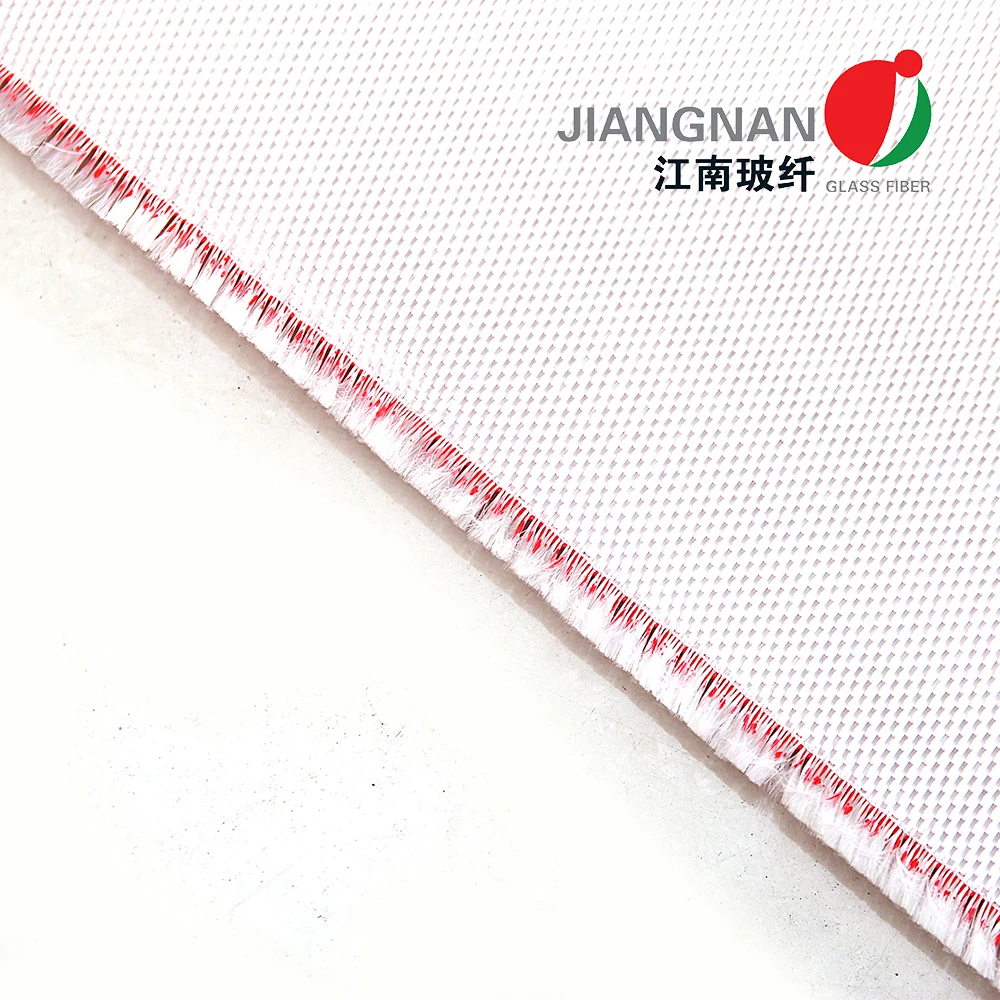

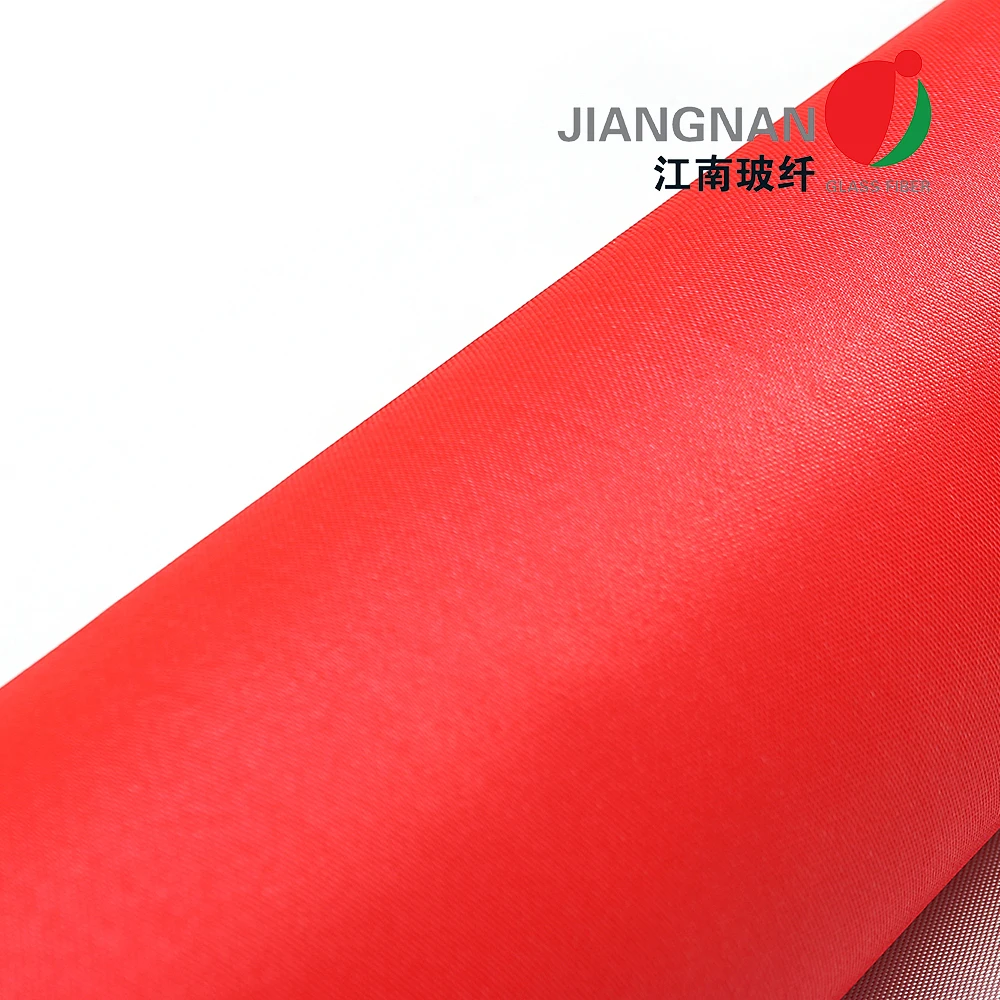

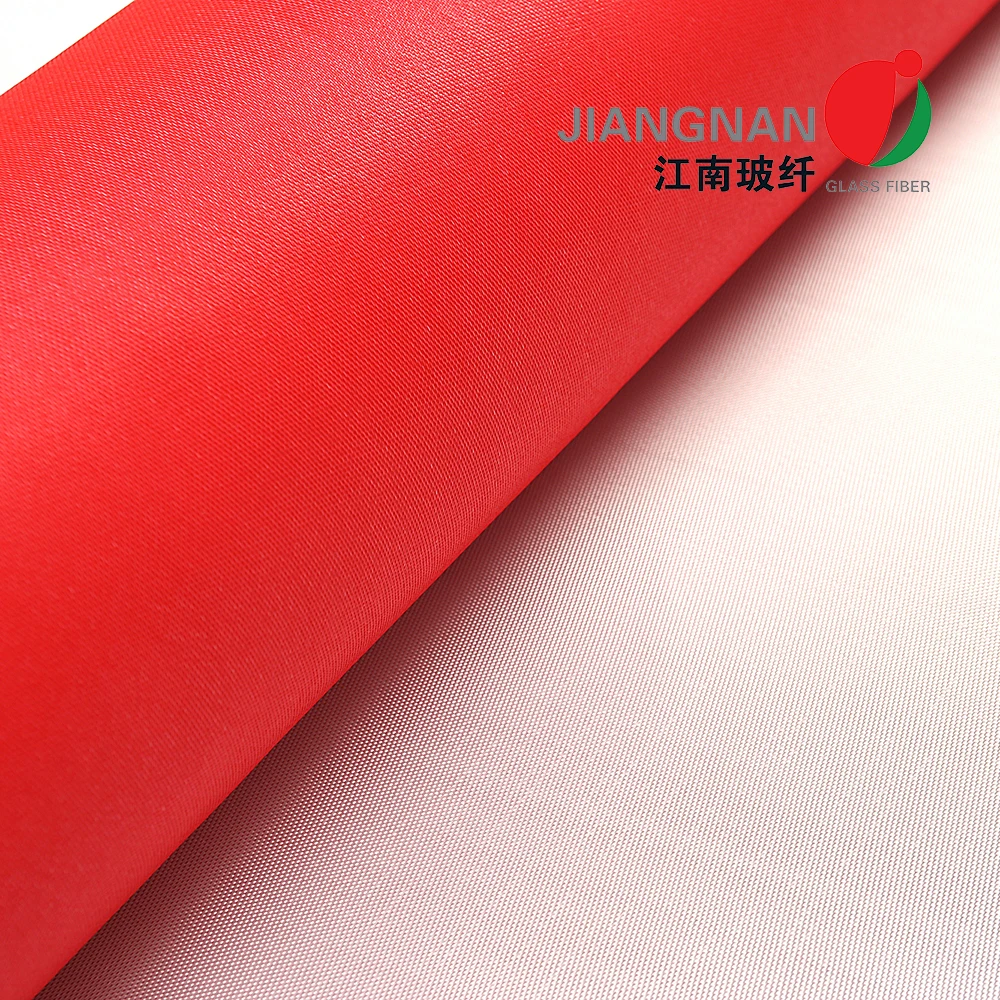

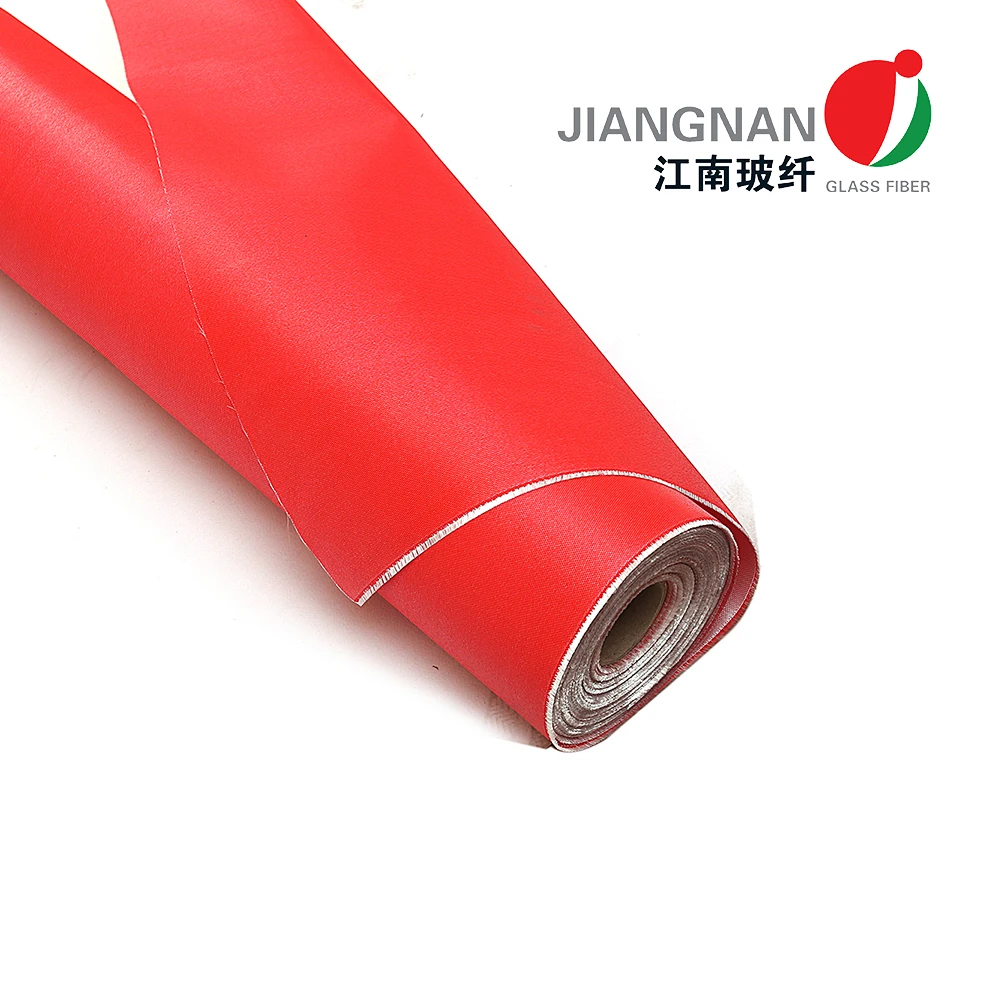

Red polyurethane (pu) /silicone rubber/acrylic waterproofing coating fiberglass fabric for smoke and fire curtain
- Category: >>>
- Supplier: Changshu Jiangnan Glass Fiber Co. Ltd.
Share on (1600470628448):
Product Overview
Description
Product Introduction
0.5+mm Thickness Basic Fiberglass Cloth Technique Data Sheets
3734 Fiberglass Cloth | ||||||||
Item Model | 3734 Fiberglass Fabric | |||||||
Description | Woven Fiberglass Cloth | |||||||
Weave Structure | 1/3 Twill Weave | |||||||
Weight | 470gsm | ASTM D 3775-96 | ||||||
Thickness | 0.45mm | ASTM D 1777-96 | ||||||
Yarn Type | Warp | EC9 68 1*2 ECG 75 1/2 | ||||||
Weft | EC9 68 1*2 ECG 75 1/2 | |||||||
Thread Count | Warp | 19±1 ends/cm 45±3 Per Inch | ASTM D 3775-96 | |||||
Weft | 10±1 picks/cm 33±3 Per Inch | ASTM D 3775-96 | ||||||
Break Strength | Warp | 7500 N/5cm 666 lbs/inch | ||||||
Weft | 5600 N/5cm 500 lbs/in | |||||||
LOI | < 0.4% | |||||||
Working Temperature | ≤550℃ | |||||||
Pu Coated Fiberglass Cloth Information
Item | 3734 Fiberglass Fabric with Double-sided Pu Coating | ||||||
Total Weight | 510 g/m2 | ||||||
Thickness | 0.5+ mm | ||||||
Color | Grey Silver White (Other colors need to be customized) | ||||||
Working Temperature | Glass fabric up to 5500C Polyurethane coating up to 2600C | ||||||
Features | Fire retardant, high performance, polyurethane on both sides | ||||||
Coating | Fire retardant, high performance, blue/black polyurethane on both sides | ||||||
Product Details
What is PU Coated Fiberglass fabric?
With the increasing demand for high-temperature textiles in the industrial development of emerging countries, energy conservation and environmental protection have become more and more important. We focus on manufacturing and supplying polyurethane-coated glass fiber. The double-sided PU-coated glass fiber cloth is made of asbestos-free high-quality glass fiber filament yarn and coated with PU resin. PU-coated fiberglass cloth is a fiberglass cloth coated with flame-retardant PU (polyurethane) on one or both sides. The PU coating gives the glass fiber cloth good weave and shape (high stability) and waterproof performance. Jiangnan polyurethane PU coated glass fiber cloth can withstand a continuous working temperature of 260C and a short-time working temperature of 600C. Compared with the basic woven glass fiber cloth, it has many advantages such as good air tightness, fire resistance, abrasion resistance, oil resistance, solvent resistance, chemical resistance, non-irritating to the skin, halogen-free, and many other advantages. Can be used for fire and smoke applications, such as welding blankets, fire blankets, fire curtains, fabric air distribution ducts, fabric duct connectors.
If you want to negotiate a customized order with polyurethane coated glass fiber fabric or you are a professional Smoke or Fire Curtain Manufacturer, please feel free to contact us. We look forward to establishing good corporate partnerships with newcustomers around the world shortly.
If you want to negotiate a customized order with polyurethane coated glass fiber fabric or you are a professional Smoke or Fire Curtain Manufacturer, please feel free to contact us. We look forward to establishing good corporate partnerships with newcustomers around the world shortly.
Thickness: 0.43mm
Weight: 470g/m2+20g/m2+20g/m2
Temperature Resistance: 260 Degree C, It can be continual working temperature 260 Degree centigrade.
Fire smoke insulating PU Coated fiberglass cloth can be used as welding blanket, filter bag, fire resistance curtain, wrapping
material, etc
Waterproof in the Roof and Understand Projects
Equipment projection
Fire & Welding Blanket

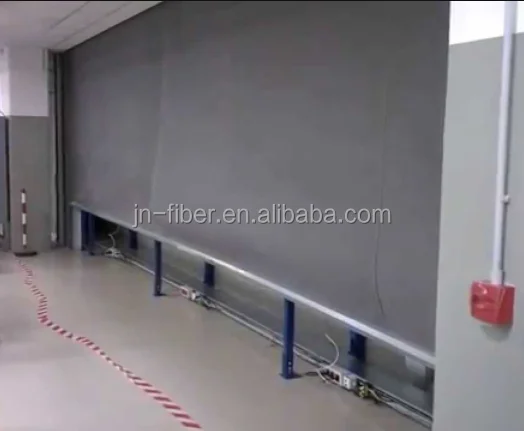

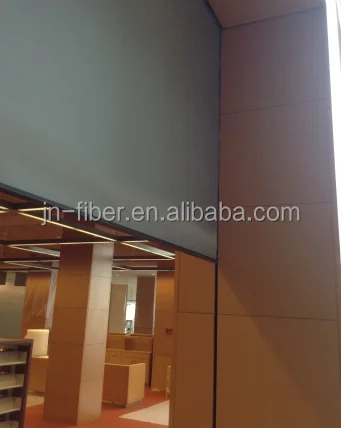

Fire & Smoke Curtains
Other High-Temperature Fields
Production Application
Flexiable
Fabric Expansion Joints
Fabric Duckwork Connector
Fire Curtains
Fire Blanket
Other Fire Control System
Main Application:
Can be used in fire and smoke applications, such as welding blanket, fire blanket, fire curtain, fabric air distribution ducts,
fabric duct connector.
fabric duct connector.

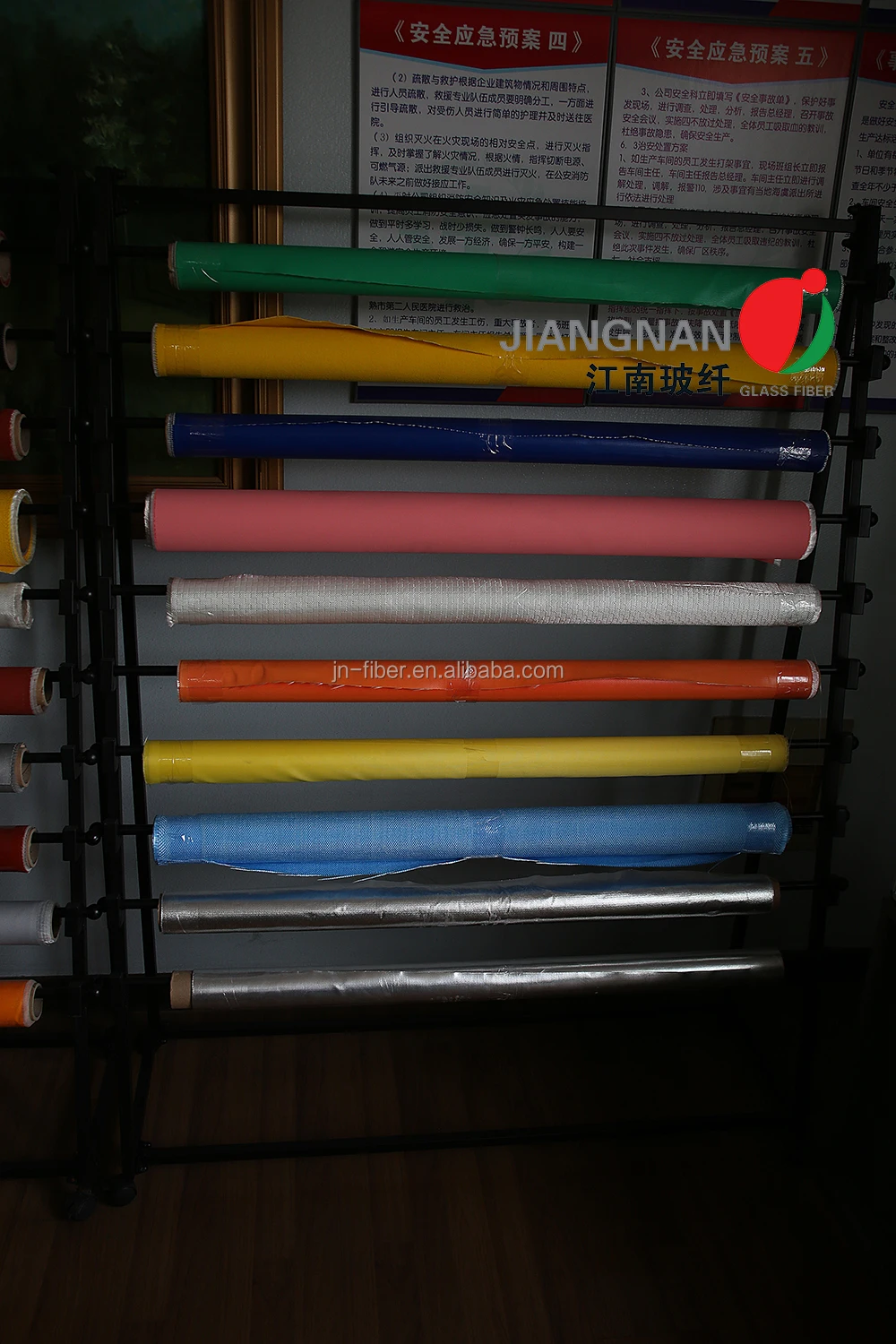

More Related Products
Silicone Coating Fiberglass Cloth
Pu Coating Fiberglass Cloth
Aluminium Coating Fiberglass Cloth
Woven Electrical Fiberglass Cloth
Woven Electrical Fiberglass Cloth
Woven Texturized Fiberglass Cloth
High Silica Fiberglass Cloth
Vermiculite Coatng Fiberglass Cloth
Arcylic Coating Fiberglass Cloth

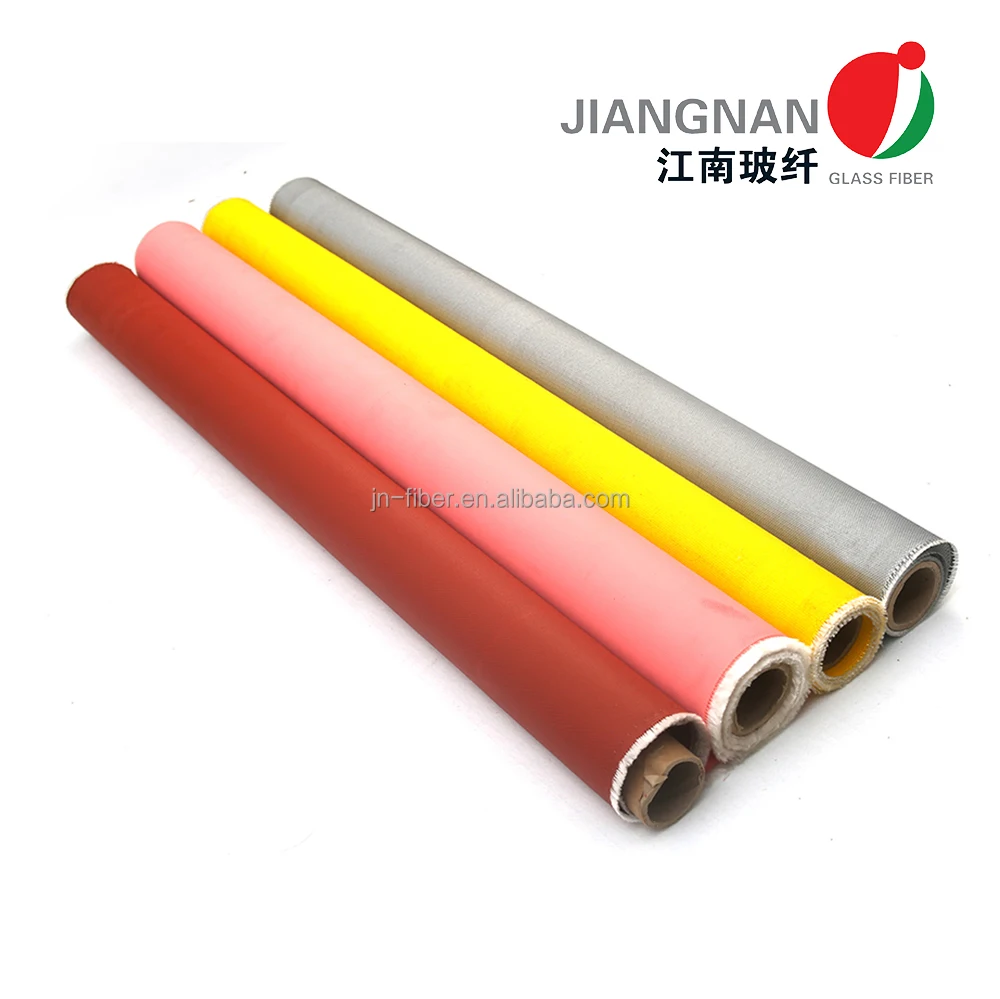

Related Products
Type | Thickness | Weight | ||||||
mm | Inch | g/m2 | oz/yd2 | |||||
3732 with Double-sided Pu Coating | 0.5 | 0.0197 | 460±20 | 13.6 | ||||
3732 with Double-sided Silicone Coating | 0.5 | 0.0197 | 540±20 | 15.9 | ||||
3734 with Double-sided Pu Coating | 0.5+ | 0.02 | 510±20 | 15.04 | ||||
3734 with Double-sided Silicone Coating | 0.5+ | 0.02 | 590±20 | 17.4 | ||||
Stainless Steel Wire Insert Fiberglass cloth with Double-sided Pu Coating | 0.6 | 0.0236 | 700±20 | 21 | ||||
3784 with Double-sided Pu Coating | 0.8 | 0.0315 | 890±30 | 26.7 | ||||
3784 with Double-sided Silicone Coating | 0.8 | 0.0315 | 1050±30 | 32.05 | ||||

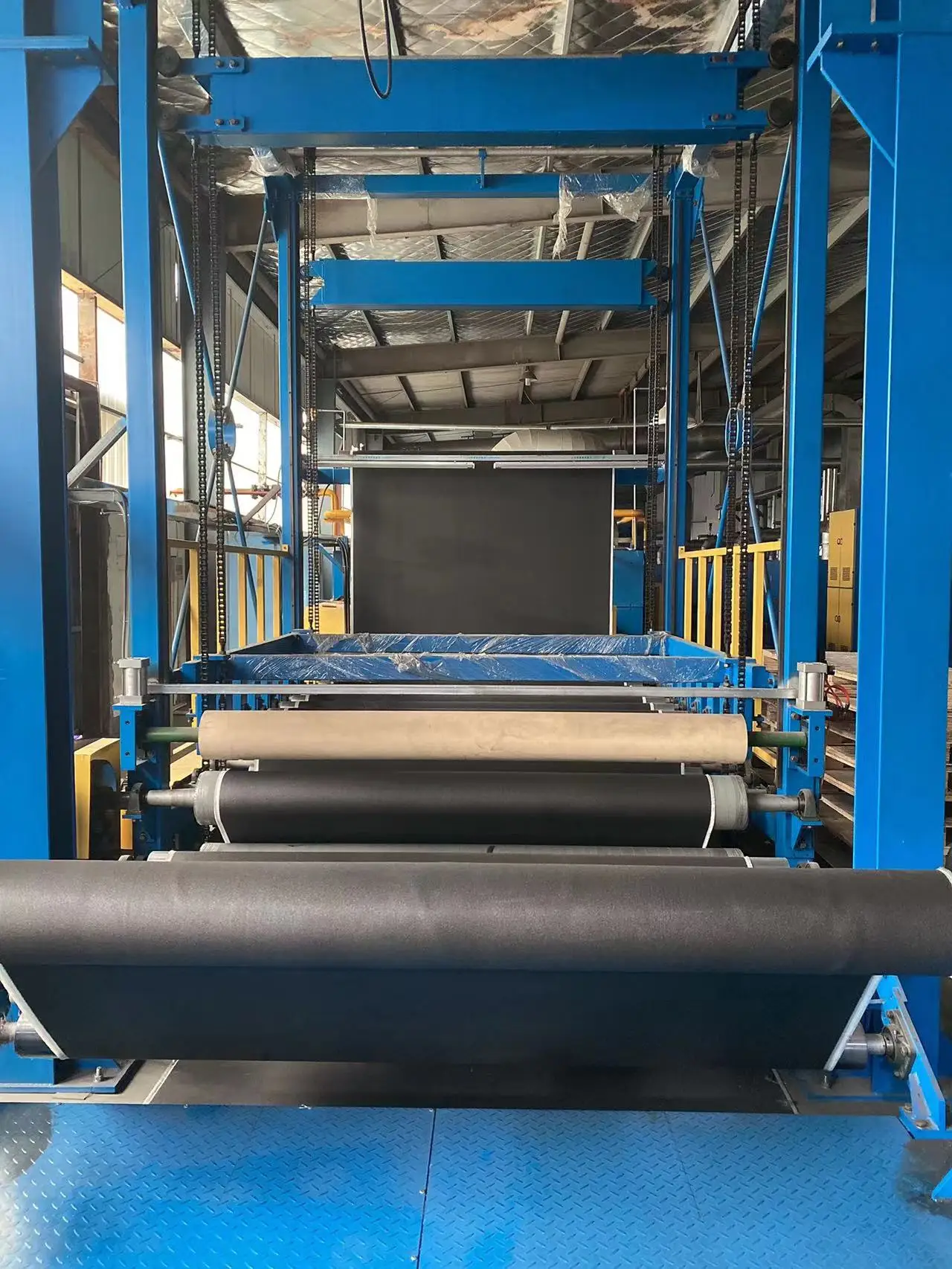

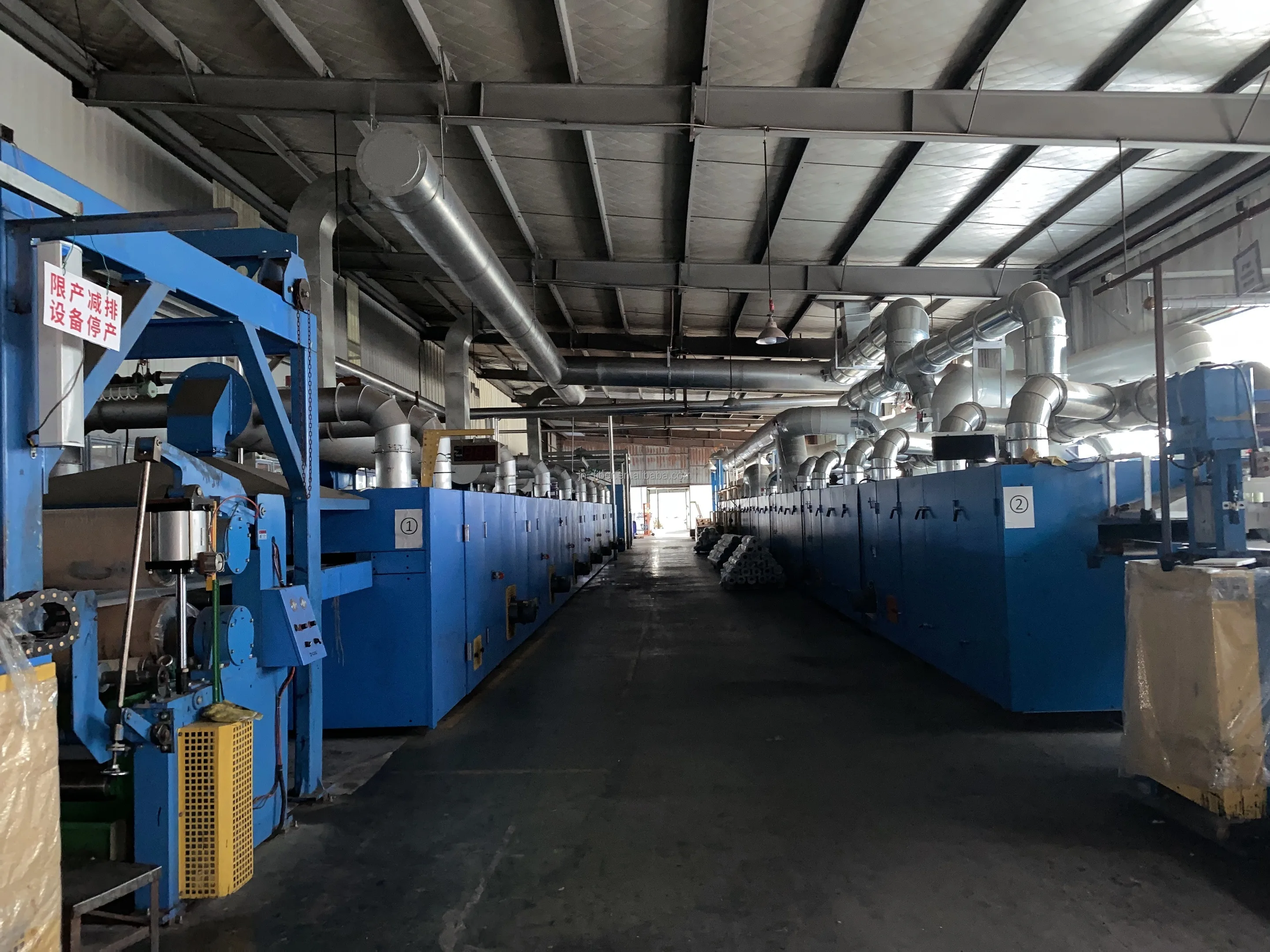

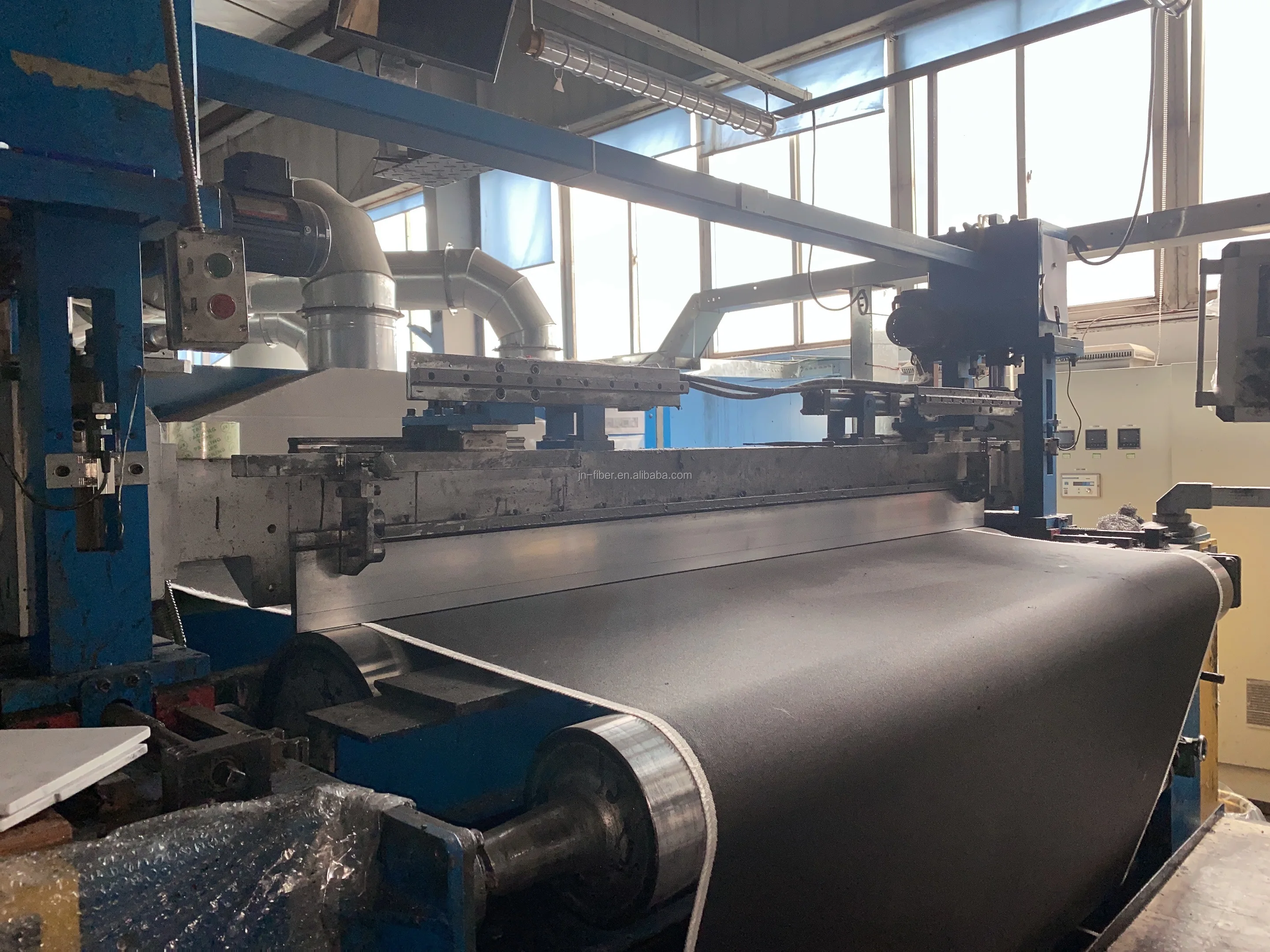

Production Process
The fiberglass yarns are supplied by our company, it has 10% more strength, much softer and more beautiful surface than normal product. Our glass fiber cloth quality is much better than other suppliers in China and faster production rate.
Product packaging
Q: Are you trading company or manufactuer?
A: We are factory with more than 10 years production experience.
Q: Can you send me a sample? Is it free?
A: Yes, We could offer the sample for free charge but do not pay the cost of freight.
Q:What is MOQ?
A: 1250 square meter ,one pallet, easy to transportation and protection cargos.
Q: How long is your delivery time:
A:Generally it is 15-20 days,it is according to quantity .
Q:Do you accept OEM order ?
A: Yes.
Q: What is your term of payment?
A: Payment: 30% TT in advance, balance against copy BL; L/C at sight
A: We are factory with more than 10 years production experience.
Q: Can you send me a sample? Is it free?
A: Yes, We could offer the sample for free charge but do not pay the cost of freight.
Q:What is MOQ?
A: 1250 square meter ,one pallet, easy to transportation and protection cargos.
Q: How long is your delivery time:
A:Generally it is 15-20 days,it is according to quantity .
Q:Do you accept OEM order ?
A: Yes.
Q: What is your term of payment?
A: Payment: 30% TT in advance, balance against copy BL; L/C at sight
