R11 16A 250V Cqc CE Rocker Switch 16A 250V 1E4 T125 KCD2 Rocker Switch 1 Way 2 Way 6A 250V 4 Pin Electronic Rocker Switch Wiring
- Category: >>>
- Supplier: Yueqing Daier Electron Co. Ltd.
Share on (1600470717628):
Product Overview
Description
Products Description

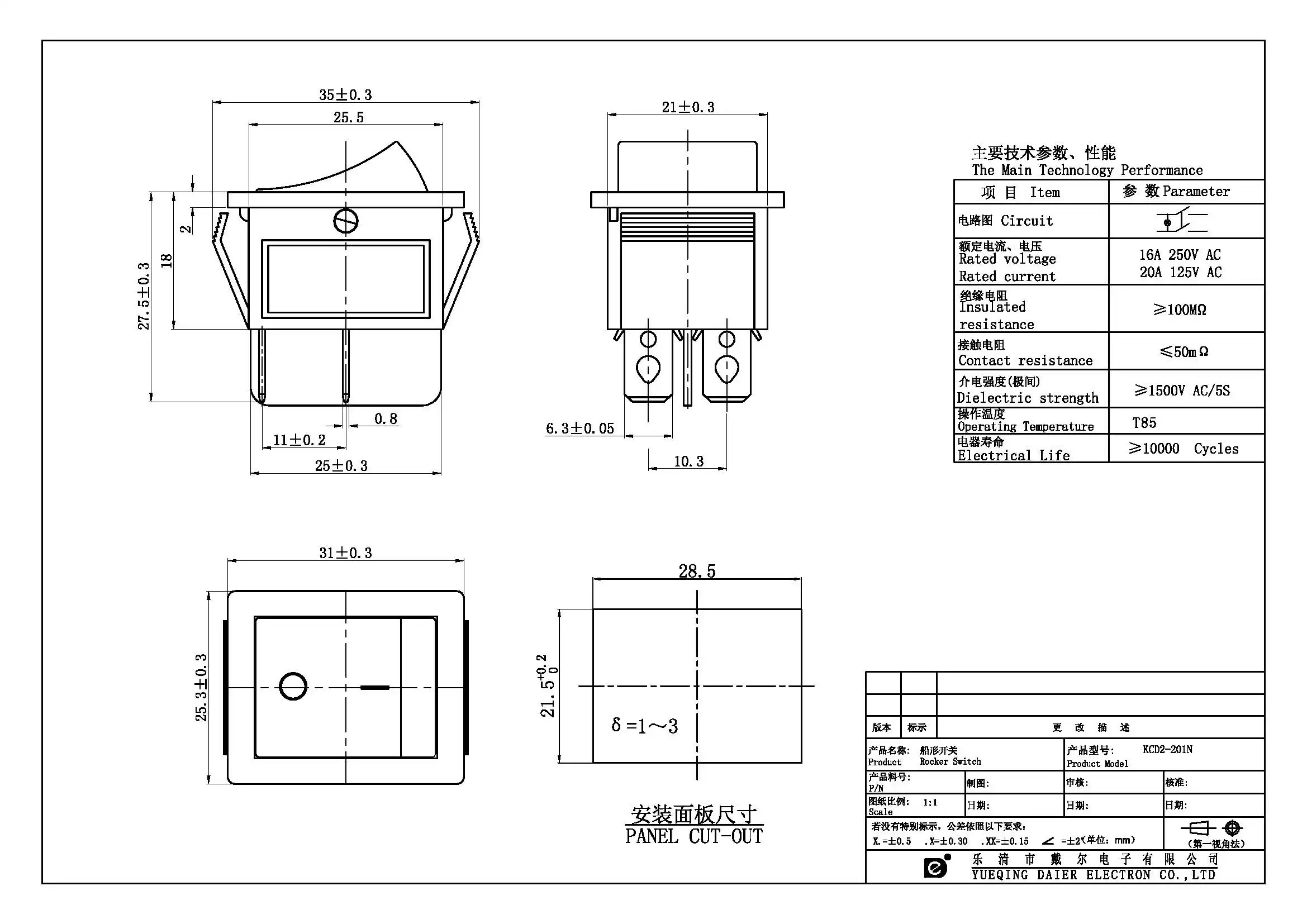

Item | KCD2-201N 4pin on-off 110V light "O I" marked |
Max. Current | 20A |
Max. Voltage | 250VAC |
Mechanical Life | 10000 |
Housing color | Black White Gray |
Led Color | Blue Red Green Yellow |
Function | ON-OFF DPST |
Size | 21*28.5mm |
Rating | 20A 125VAC/16A 250VAC |
Operating temperature | -25℃~+85℃ |
Electrical life | ≥10000 |
—— Progucts Details ——
Rating: 20A 125VAC;16A 250VAC
Contact Resistance: 35mΩ max
Insulation Resistance :500VDC 100MΩ min
Dielectric Strength: 1500VAC,1 Minute
Operating Temperature: -25℃~+85℃
Electrical Life: >=10000 Cycles
Product function
We have single pass, double pass, single pass spacing ≥ 3mm, double pass ≥ 3mm, double pass without pause, double pass with pause and single pass with reset,choose our products you like~

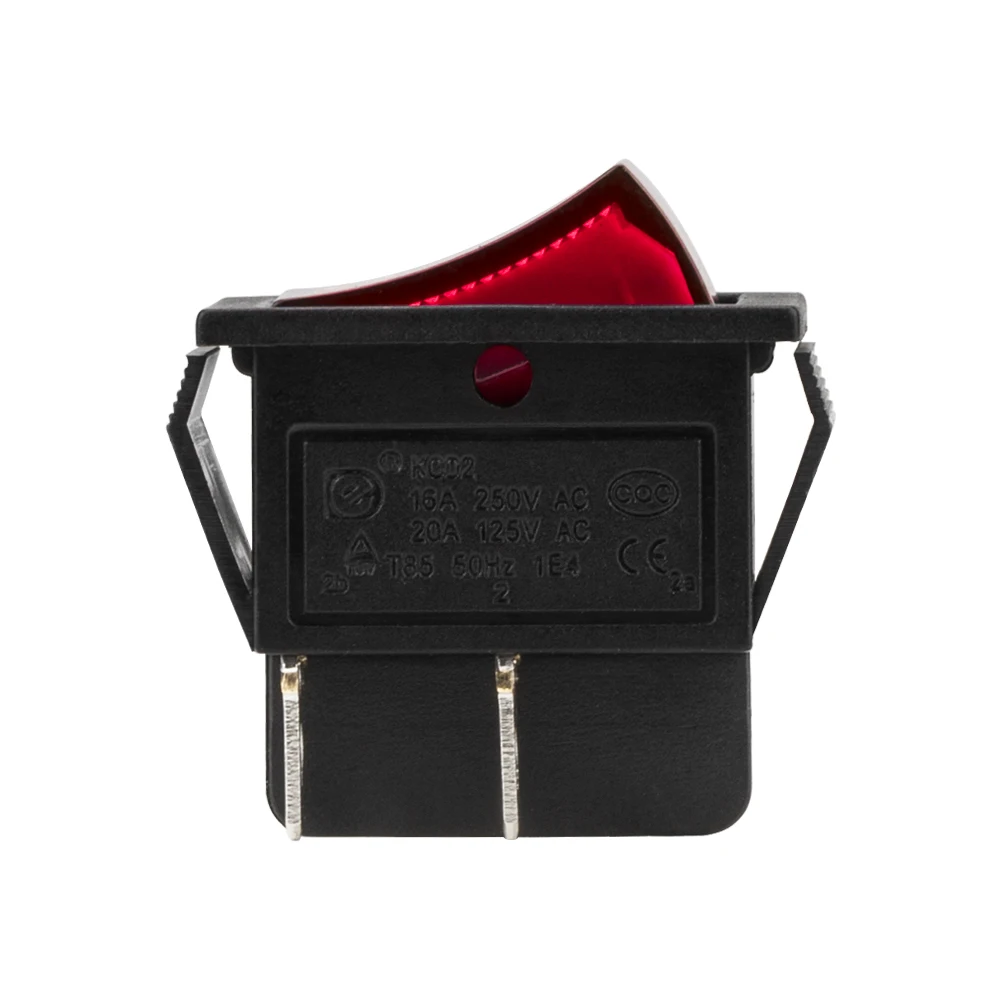

DPST Rocker Switch
It's a DPST 4 Pin ON/OFF Rocker Switch, Double Pole Single Throw design, and T85 Temperature Degree(-25C to +85C).

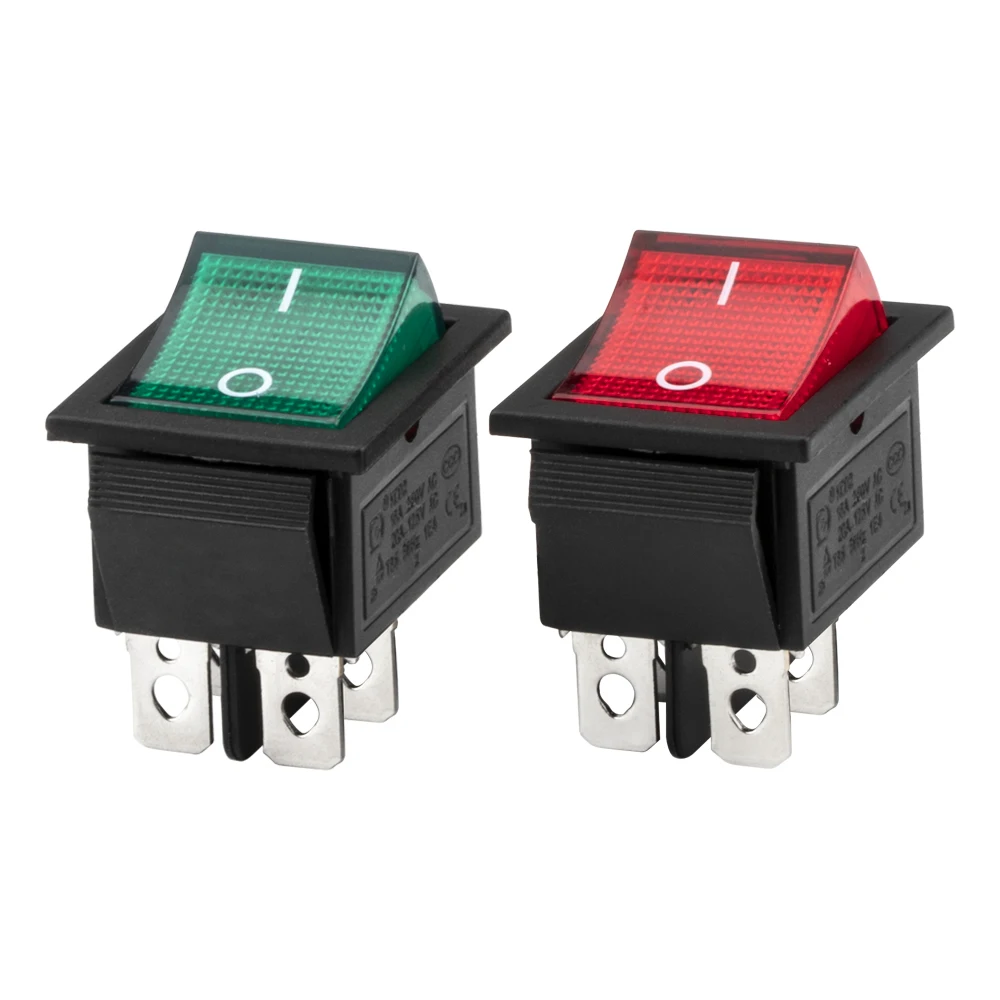

120V Lighted Rocker Switch
If it with light.The input voltage for the lamp of the switch should be 110V to 250V. The Switch Lamp will light up to indicate the operating status of the device when the switch is turned ON.
