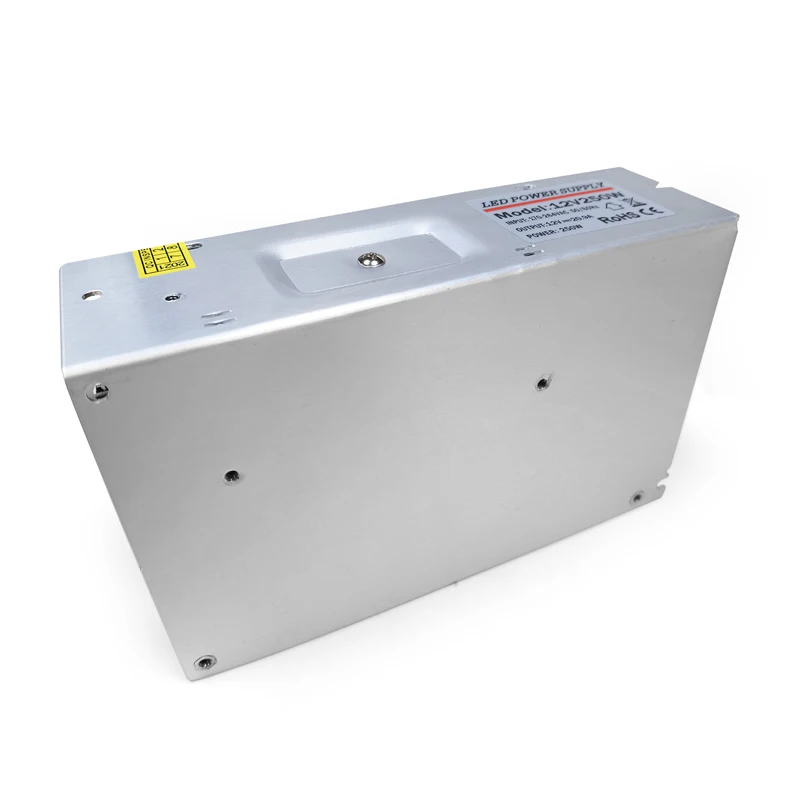

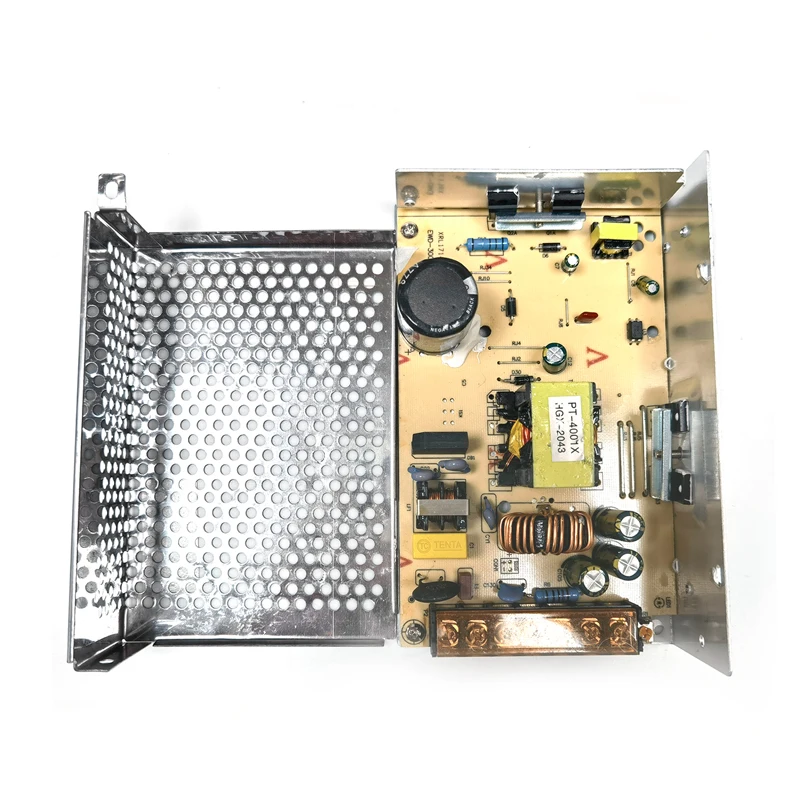

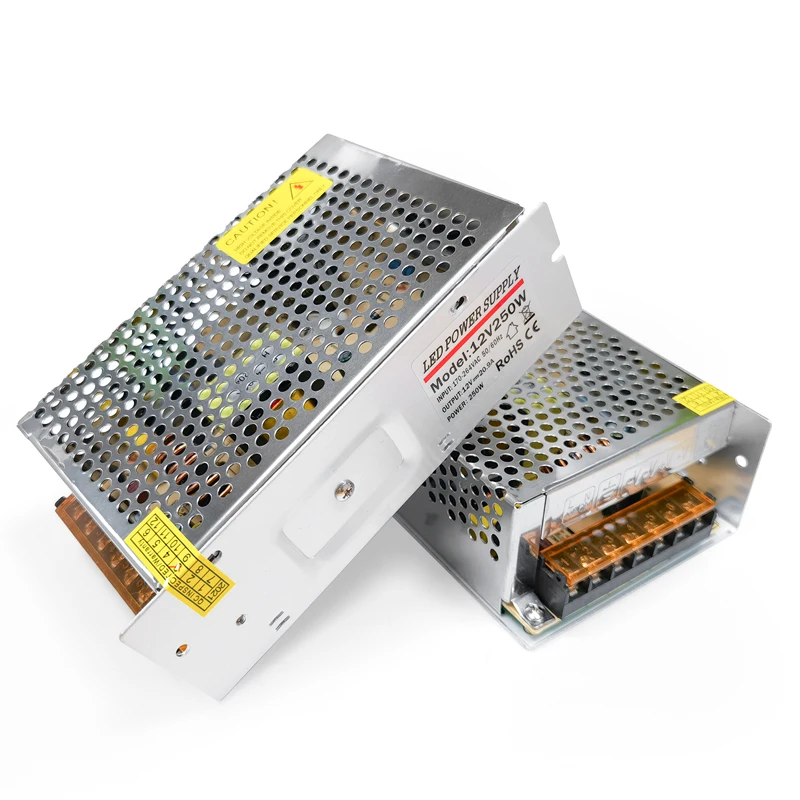

Hight voltage 2.5a 4.2a 8.4a 16.7a 20.8a 300w 150w LED Power Supply 110 240V to DC 12V 250w for street light
- Category: >>>
- Supplier: Huizhou City Kechuangli Electronics Co. Ltd.
Share on (1600470747845):
Product Overview
Description
Product Description
Hight voltage 2.5a 4.2a 8.4a 16.7a 20.8a LED Power Supply 110-240V to DC 12V 250w for street light
Features：
* High efficiency, long life and high reliabili
* Low dc ripple, high efficiency
* low operation temperature & long performance life
* input voltage 100-120V/200-240V
* Excellent insulation property, high dielectric strength
* 100% full-load burning test
* 2 years warranty
Features：
* High efficiency, long life and high reliabili
* Low dc ripple, high efficiency
* low operation temperature & long performance life
* input voltage 100-120V/200-240V
* Excellent insulation property, high dielectric strength
* 100% full-load burning test
* 2 years warranty

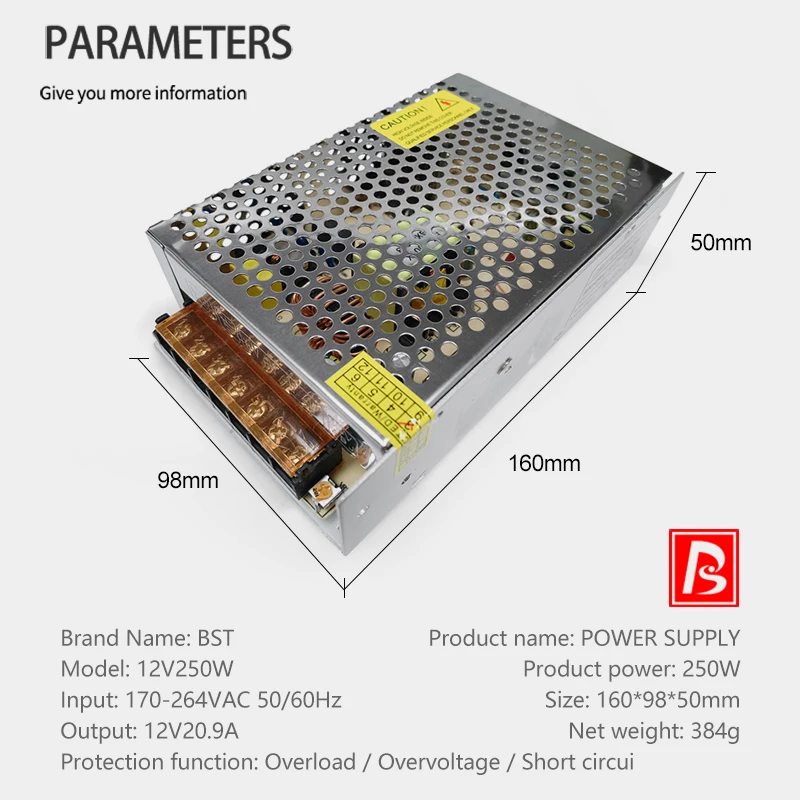

Specification
INPUT | AC input voltage range（V) | AC 85V-265V |
Input current(A) | 2A/115VAC 1.2A/230VAC | |
Frequency (Hz) | 50Hz～60Hz | |
Efficiency | 88% | |
Inrush current(A) | Cold star 36A/230VAC | |
Leakage current(mA) | <2mA/240VAC | |
OUTPUT | Output Voltage(V) | 12V DC |
Voltage Regulation | ±10% | |
Output Current(A) | 20.9A | |
Current Range (A) | 0～20.9A | |
Rated Power(W) | 250W | |
Start time, hold-up time(ms) | 500ms,20ms/230VAC 500ms,20ms/115VAC at full load | |
Rise time(ms) | 30ms/230VAC 25ms/115VAC at full load | |
Ripple/Noise(mVp-p) | 120mVp-p |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Hot Products
Output Voltage | Output Current | Rated Power | Dimension （mm） | Weight （KG） | Gross Weight（KG) |
12V/DC | 1.25A | 15W | 70*40*33 | 0.05 | 9.5KG |
24V/DC | 0.63A | 15W | 70*40*33 | 0.05 | 9.5KG |
12V/DC | 2.1A | 25W | 79*48*22 | 0.06 | 14KG |
24V/DC | 1.05A | 25W | 79*48*22 | 0.06 | 14KG |
12V/DC | 3A | 36W | 85*58*33 | 0.10 | 11.5KG |
24V/DC | 1.5A | 36W | 85*58*33 | 0.10 | 11.5KG |
12V/DC | 5A | 60W | 110*78*36 | 0.18 | 21KG |
24V/DC | 2.5A | 60W | 110*78*36 | 0.18 | 21KG |
12V/DC | 8.4A | 100W | 130*98*40 | 0.28 | 24KG |
24V/DC | 4.2A | 100W | 130*98*40 | 0.28 | 24KG |
12V/DC | 10A | 120W | 130*98*40 | 0.29 | 24KG |
24V/DC | 5A | 120W | 130*98*40 | 0.29 | 24KG |
12V/DC | 12.6A | 150W | 160*98*50 | 0.37 | 28KG |
24V/DC | 6.25A | 150W | 160*98*50 | 0.37 | 28KG |
12V/DC | 16.7A | 200W | 160*98*50 | 0.42 | 28KG |
24V/DC | 8.4A | 200W | 160*98*50 | 0.42 | 28KG |
12V/DC | 20.9A | 250W | 160*98*50 | 0.47 | 28KG |
24V/DC | 10.5A | 250W | 160*98*50 | 0.47 | 28KG |
12V/DC | 25A | 300w | 160*98*50 | 0.47 | 28KG |
24V/DC | 12.5A | 300w | 160*98*50 | 0.47 | 28KG |
If you need any of the above goods, you can make an inquiry to me or click "chat now" , and I will tell you the details of the products as soon as possible. All kinds of power supply are in stock!
Back Home（click the picture）
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Mid East(36.00%),Eastern Europe(21.00%),Southeast Asia(13.00%),Eastern Asia(11.00%),Domestic Market(10.00%),Central America(9.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching mode power supply,Rainproof power supply,Transformer,Rectifier Module,Adapter
4. why should you buy from us not from other suppliers?
We are specializing in R&D, producing and selling switching power supply for more than 10 years. We provide perfect solutions on Power Supply and Rectifier, with excellent quality product, competitive price and good after-sale services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2017,sell to Mid East(36.00%),Eastern Europe(21.00%),Southeast Asia(13.00%),Eastern Asia(11.00%),Domestic Market(10.00%),Central America(9.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching mode power supply,Rainproof power supply,Transformer,Rectifier Module,Adapter
4. why should you buy from us not from other suppliers?
We are specializing in R&D, producing and selling switching power supply for more than 10 years. We provide perfect solutions on Power Supply and Rectifier, with excellent quality product, competitive price and good after-sale services.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
