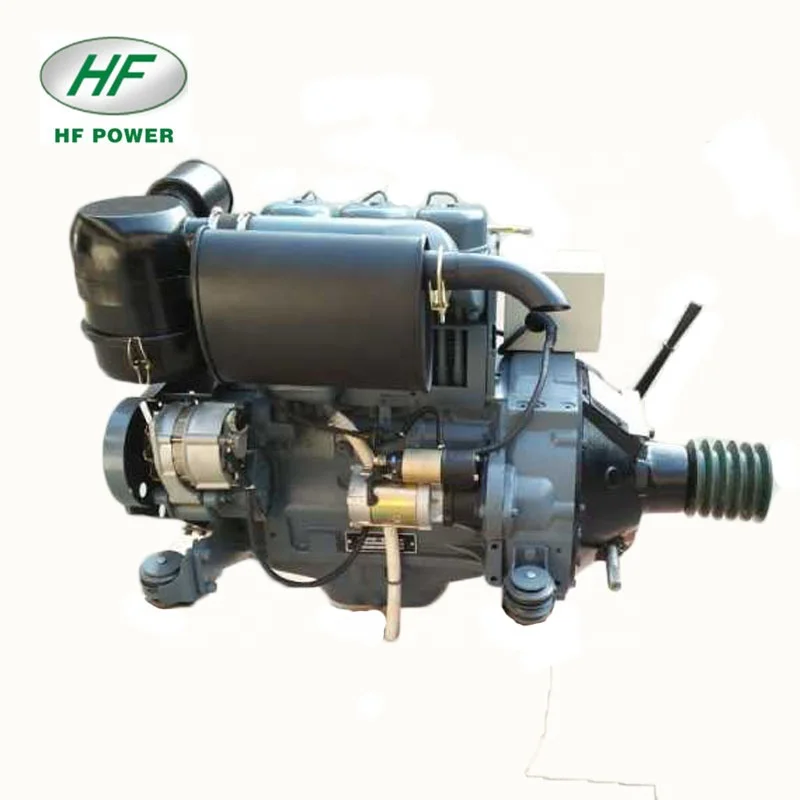

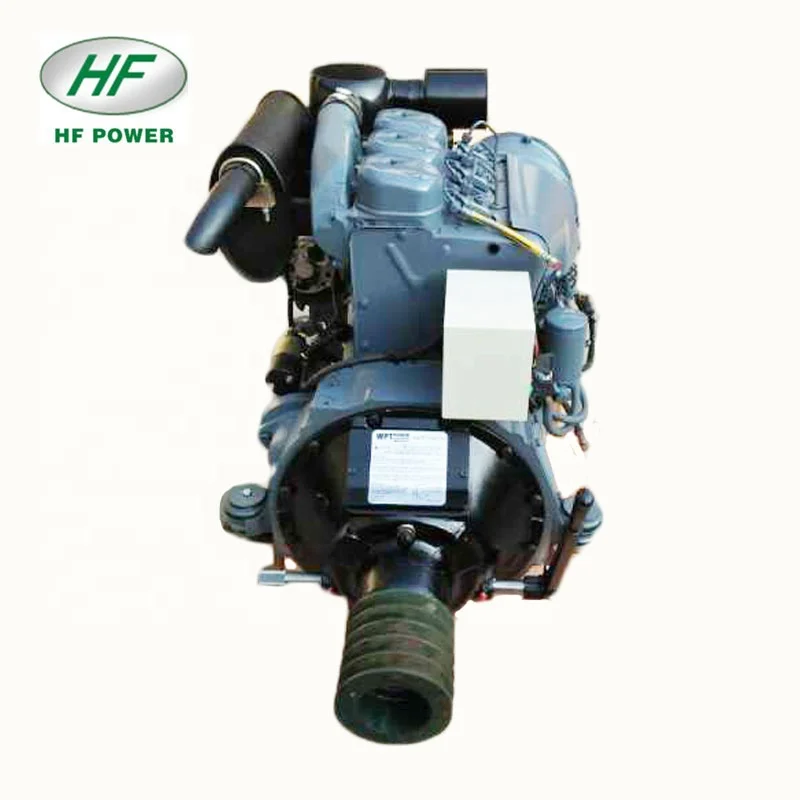

Famous brand Air cooled deutz 3 cylinder engine with clutch

Product Overview

Description

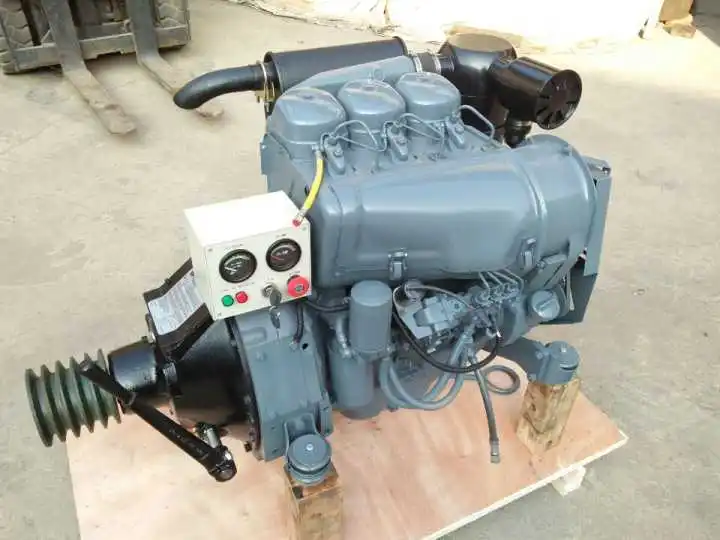

Deutz F3L912 3-cylinder air cooled diesel engine for pump





Technical Datasheet

In-line, 3Cylinder, 4 Cycle Diesel Engine
Bore×Stroke	100mm×120mm
Displacement	2.827 Liters
Compression Ration	17:1
Cooling Way	Air cooled
Combustion system	Direct injection
Inspiration	Natural intake
Direction of rotation	Counterclockwise(face To flywheel end)
Fuel consumption ratio	240.7g/kwh(limit value)
Oil consumption ratio	2.04g/kwh(limit value)
Lubricant Capacity	8Liters
Net Weight	330kg
Overall Dimension(L×W×H)	722mm×664mm×814mm

Useage	Power class	Power	Speed(rpm)
			1500	1800	2000	2150	2300	2500
Construction equipment	ISO 3046/1(IFN) (Highly intermittent)	P(kW)	26	31	34	36	38	40
		P(HP)	35	42	46	49	52	54
	ISO 3046/1(IFN) (Intermittent)	P(kW)	25	29	32	35	36	38
		P(HP)	34	39	44	48	49	52
	ICFN (Continuous)	P(kW)	24	28	30	32	35	33
		P(HP)	33	38	41	44	48	45
Genset	ICXN (Continuous)	P(kW)	24	28
		P(HP)	33	38

Configuration:





1. oil filter
2. diesel filter
3. oil bath air filter
4. 12V /24Vstarting motor
5. 12V /24V charged generator
6. V-belt break alarm device
7. 4 engine elastic supports
8 Flywheel:10/11.5, flywheel housing SAE 3
9. oil temperature sensor and alarm switch
10. oil pressure sensor and alarm switch
11. mechanical adjusting speed device
12. diesel engine paint(gray)
13. exhaust manifold silencer
14.electric shut down device 12V/24V
15 . V - b e l t g u a r d

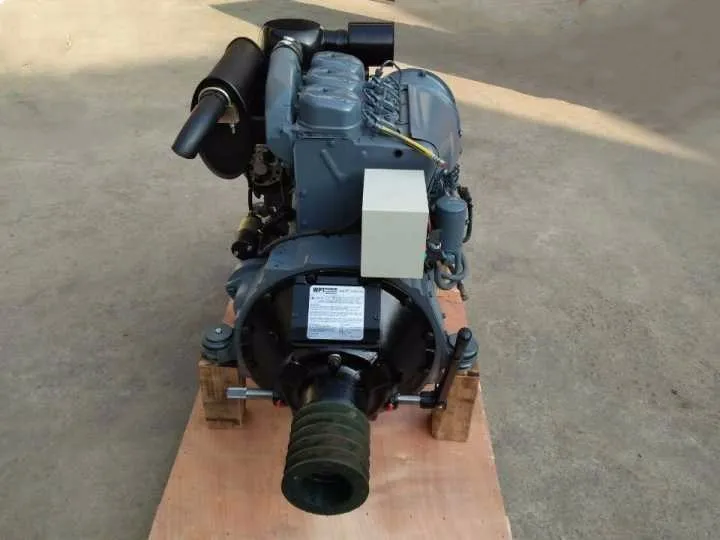

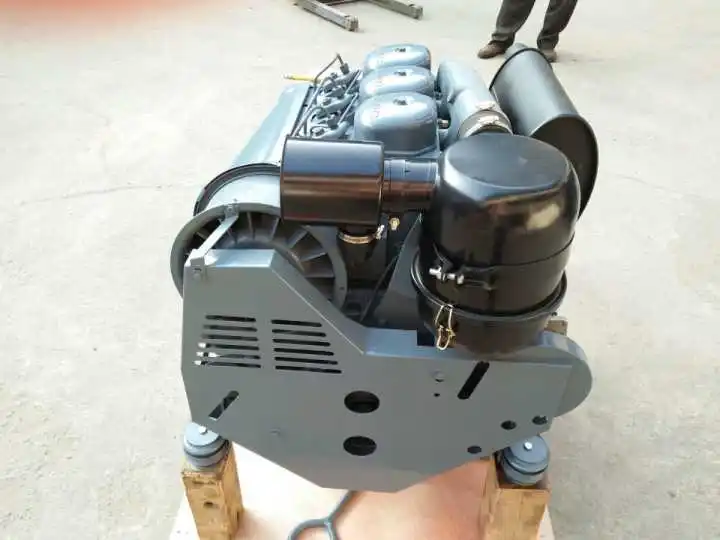

Deutz F3L912 3 -cylinder air cooled diesel engine



Click here for more information

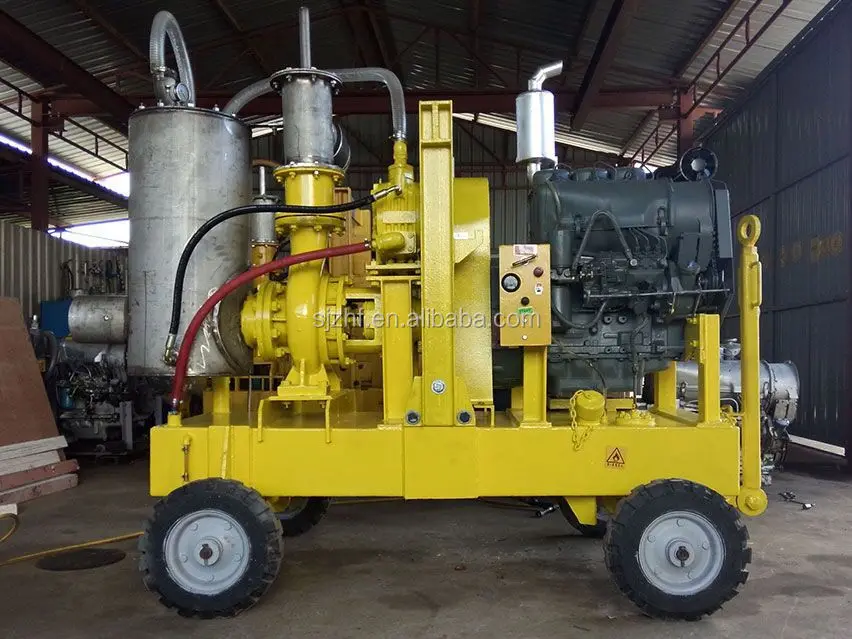

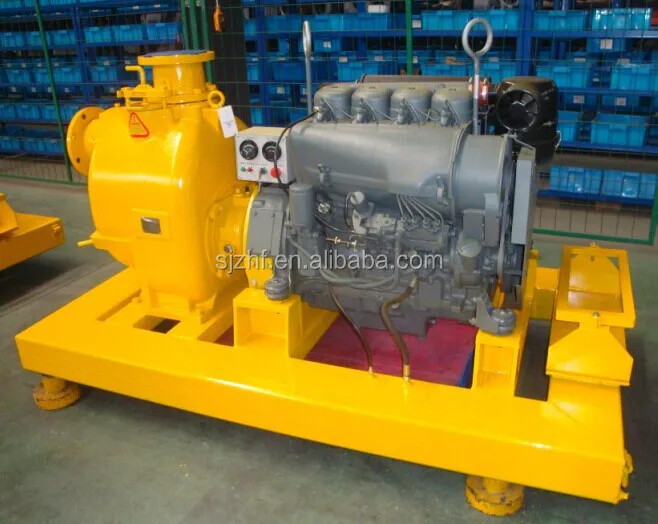

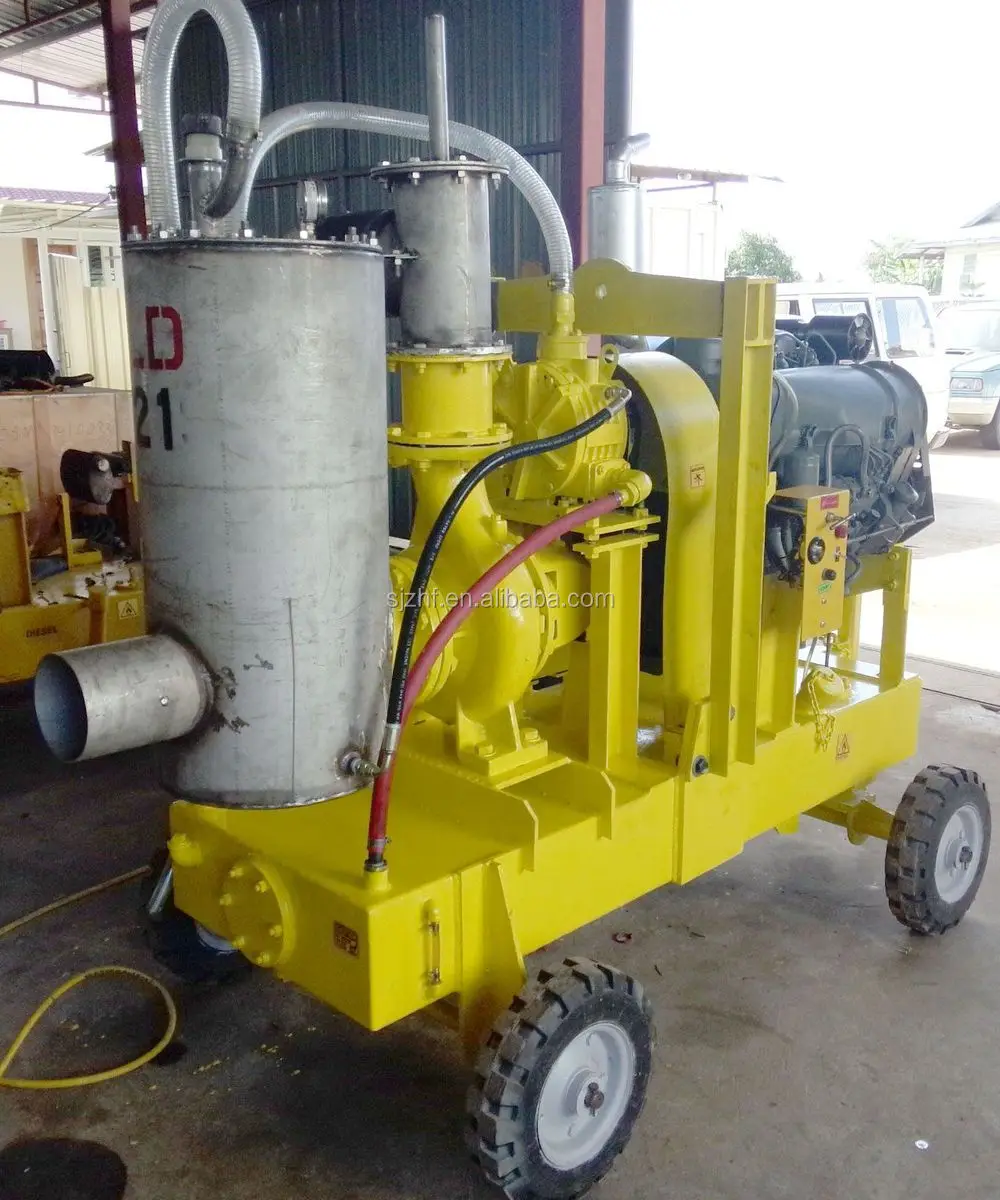

Pump set case





Usage :

Mainly used for generator set, marine, boat, fire pump, water pump, pump, air compressor,construction machinery,vehicle,heavy truck,forklift,lorry-mounted crane,, electric welding machine,road roller, wheel loader,farm tractor, Hydraulic shovel excavator, ditching machine



Some details for our engines:



Control panel

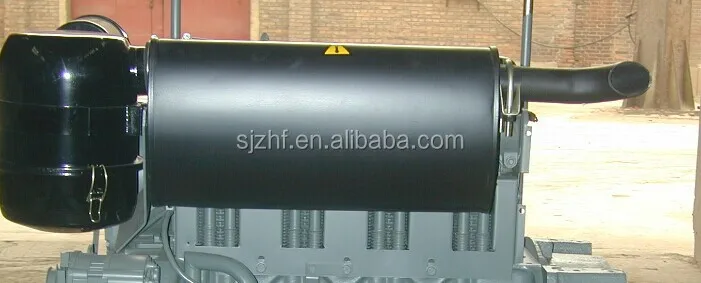

Exhaust muffler has two types ,







When the engine use in inside







When the engine use in outside

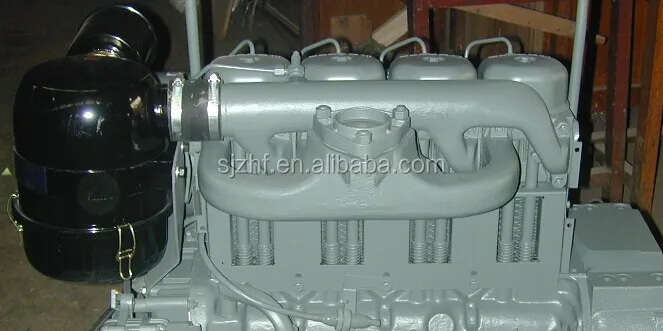

Deutz logo on the cylinder head of the engine :





Click here for more information





Package
