PS PE EPS foam product granulator pelletizing machine plastic recycling machine

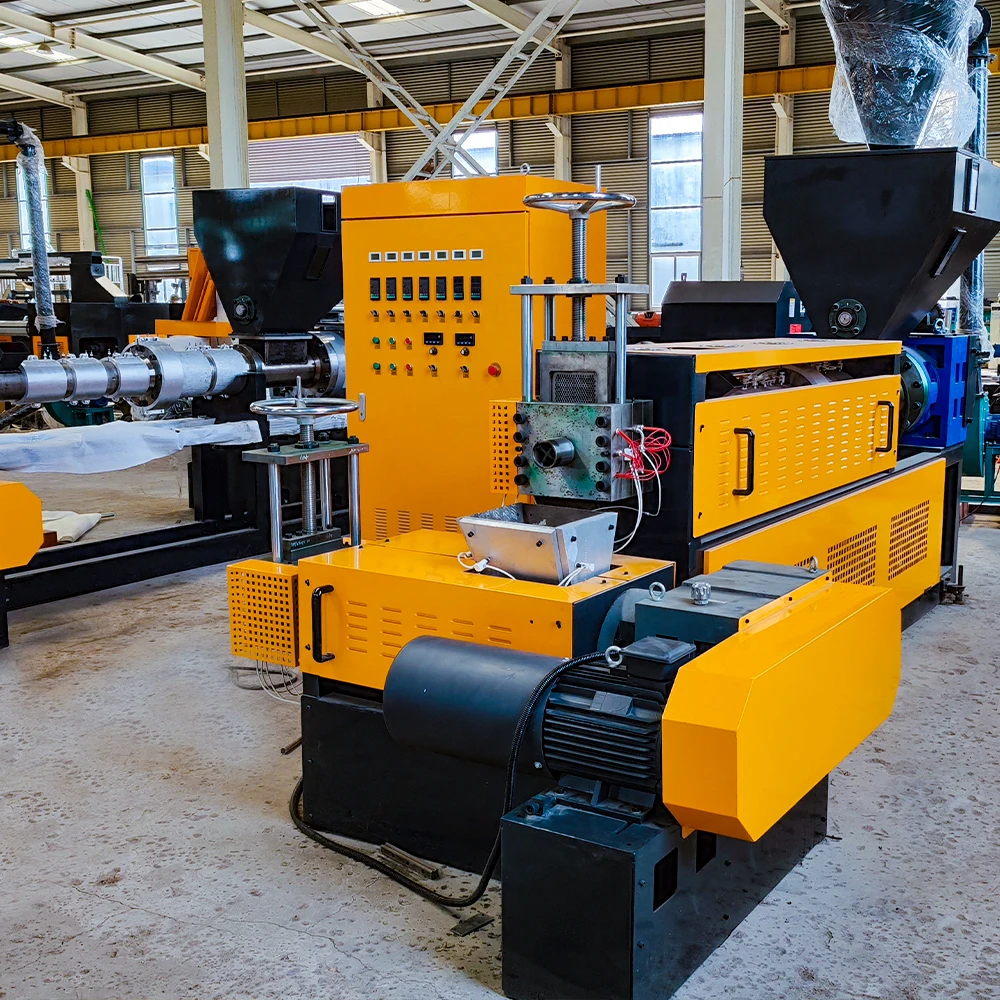

This machine is special for polystyrene. It adopts single screw, double stage plasticification, increasing compress ratio. The whole machine consists of crusher, main machine, cooling tank and granulator. It can recyle many foamed products, such as ps, xps, eps etc.
Machine Parmeter
Output | 80～130kg/h |
Pressing material motor power | 1.5kw |
Heating power | 35kw |
Mounted power | 70kw |
Power requirement | 380v three-phase/ 50HZ |
Detailed information

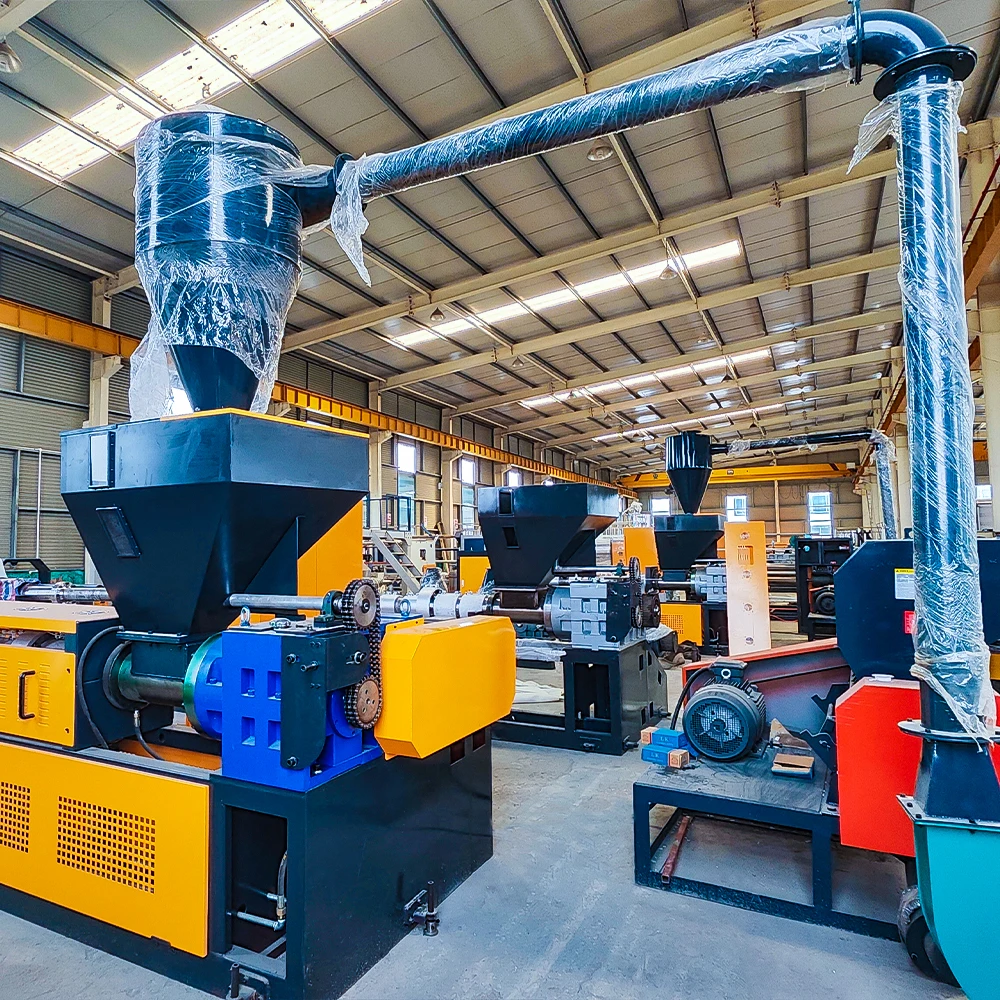

Feeding blower
The fan has strong wind force and high conveying efficiency. Quality assurance of manufacturing materials.
Power: 3KWGearbox
Main motor drives gear box.

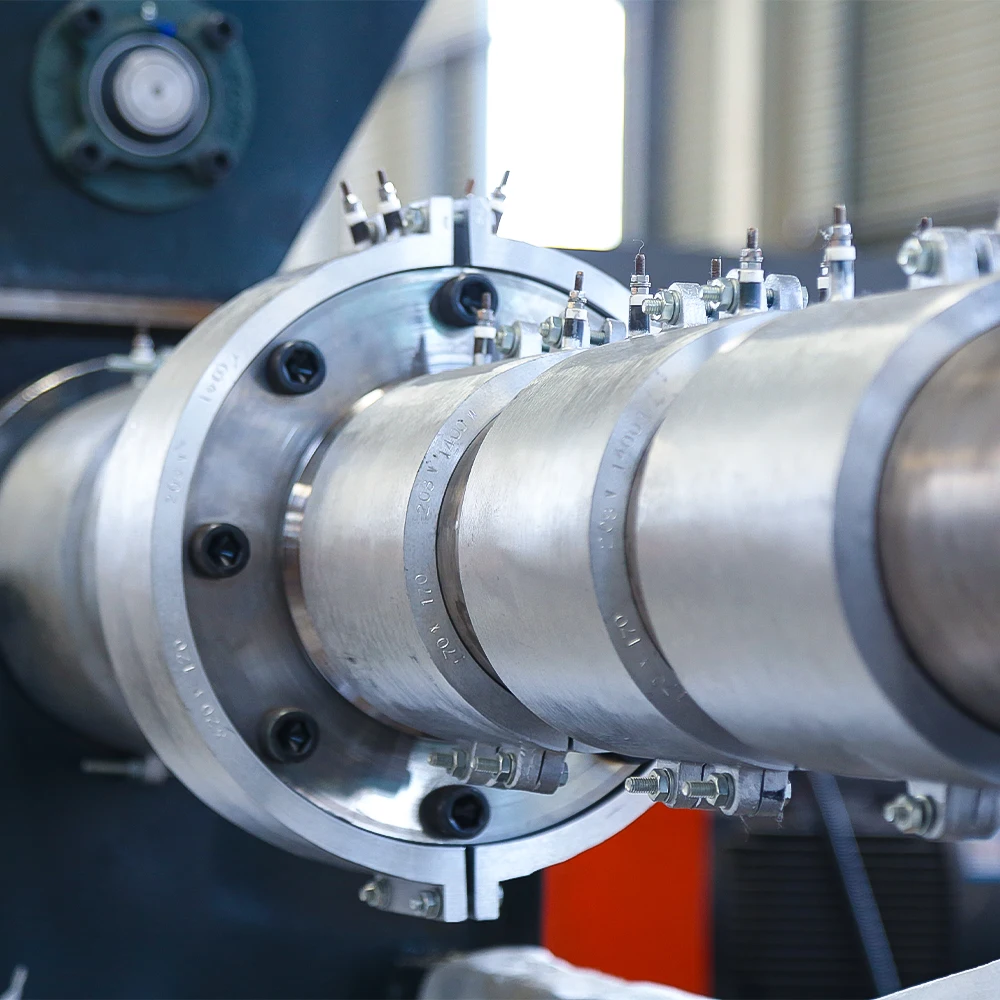

(1) The screw and the barrel
Material: 38CrMoAlA with nitrogen treatment.
Barrel heating zones: 4 pcs
(2) Gearbox:
Model: hard tooth-surface 225-16
Material: FCD25 malleable cast iron.
Gear wheel: SCM4 special gear wheel
burnishing and heating dealing.
Material: 38CrMoAlA with nitrogen treatment.
Barrel heating zones: 4 pcs
(2) Gearbox:
Model: hard tooth-surface 225-16
Material: FCD25 malleable cast iron.
Gear wheel: SCM4 special gear wheel
burnishing and heating dealing.

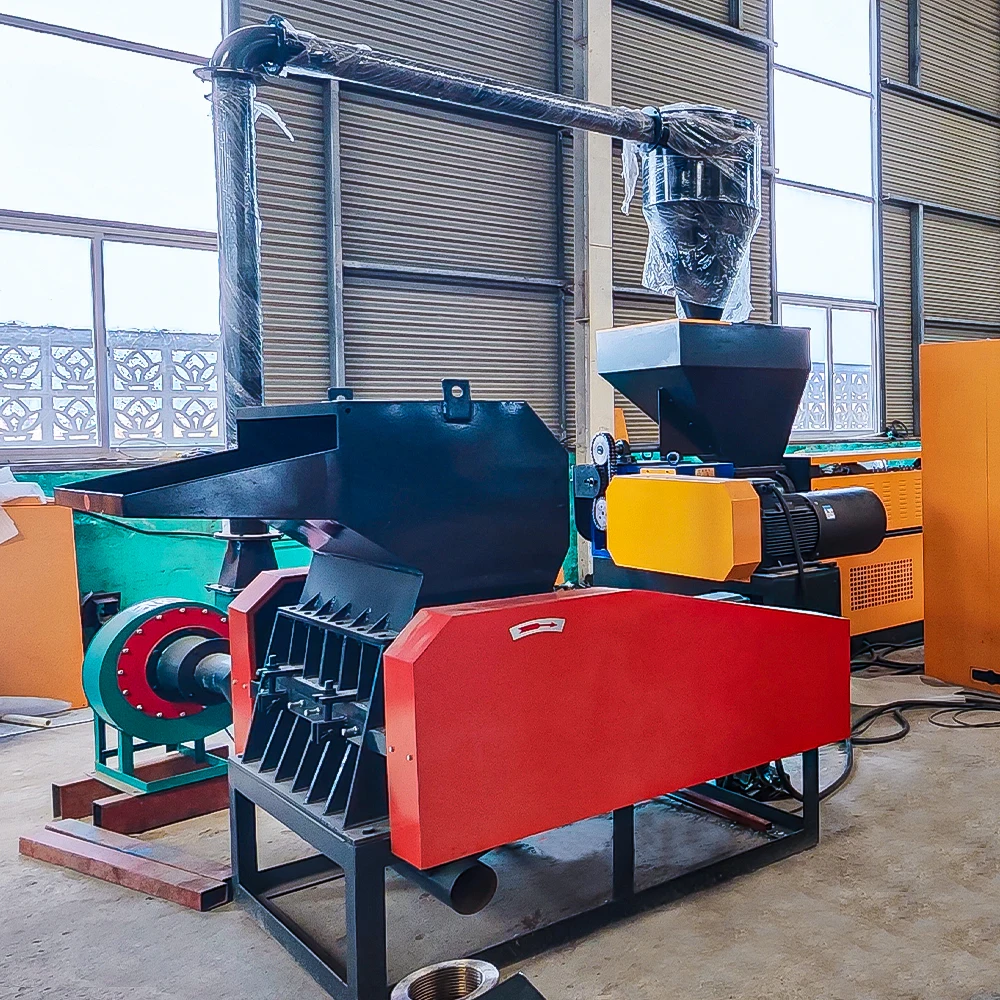

Crusher
It is wide mouth crusher with big crushing output and can crush the several kinds of plastic products.
Crusher power: 15kw
Crusher power: 15kw

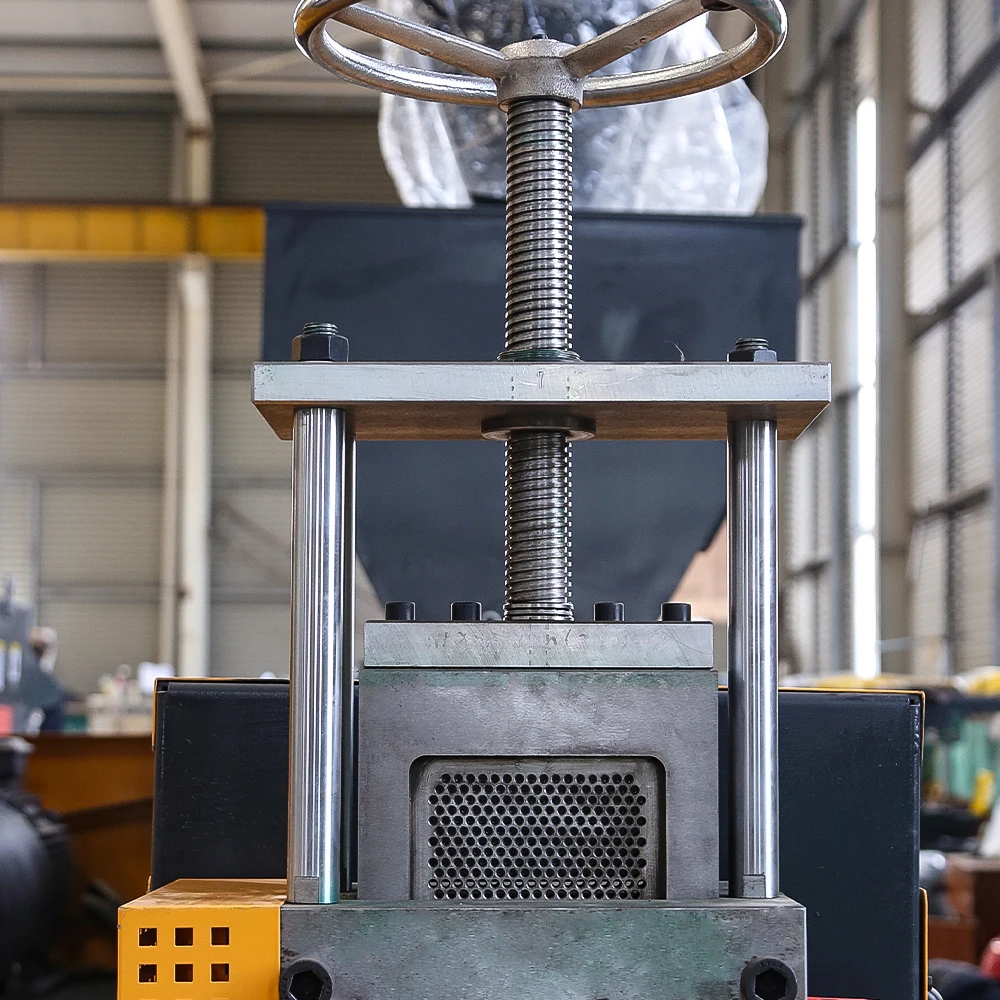

Screen changer
The operation of changing net is easy and convinient without leaking
Cutter
It adopts high-quality alloy hob, durable, chain drive performance is stable, and noise is lower. The intermediate spring pressure shaft is used to make up for the defect of the strip deviation, shortening the distance between the hob and the press shaft, and improving the winding of the strip. Phenomenon, more suitable for soft plastics. The upper and lower pressure rollers use four gear transmissions to make the pressure roller always bite and never turn around. It adopts the upper roller of silica gel, has anti-corrosion and heat-resistance effects, and has a longer durability and longer life.
screw
The screwand the barrel
Material: 38CrMoAlA with nitrogen treatment.
Material: 38CrMoAlA with nitrogen treatment.
Advantage：Long service life
Packaging And Shipping
FAQ
Q:Why are many pictures on the Internet the same as your company?
A:Because our company has been specialized in PS granules making machine for more than 30 years, after years of exploration and continuous research, the appearance of the equipment and the ease of use have led the Chinese PS granules making machine industry,it is inevitable to be stolen by competitors, but our core technology is not something that everyone can learn.
Q:Why I choose your company?
A:a) We are the Leading PS granules making machine in China.
b) We have made PS granules making machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service
A:Because our company has been specialized in PS granules making machine for more than 30 years, after years of exploration and continuous research, the appearance of the equipment and the ease of use have led the Chinese PS granules making machine industry,it is inevitable to be stolen by competitors, but our core technology is not something that everyone can learn.
Q:Why I choose your company?
A:a) We are the Leading PS granules making machine in China.
b) We have made PS granules making machine about 30 years with strong experience and advanced technics.
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24 hours service
