Length measuring electric wire spooling cable bobbin wind rewind tie tying machine
- Category: Cable Manufacturing Equipment >>>
- Supplier: Kunshan Weijiang Automation Equipment Co. Ltd.
Share on (1600470861839):
Product Overview
Description
Product Description

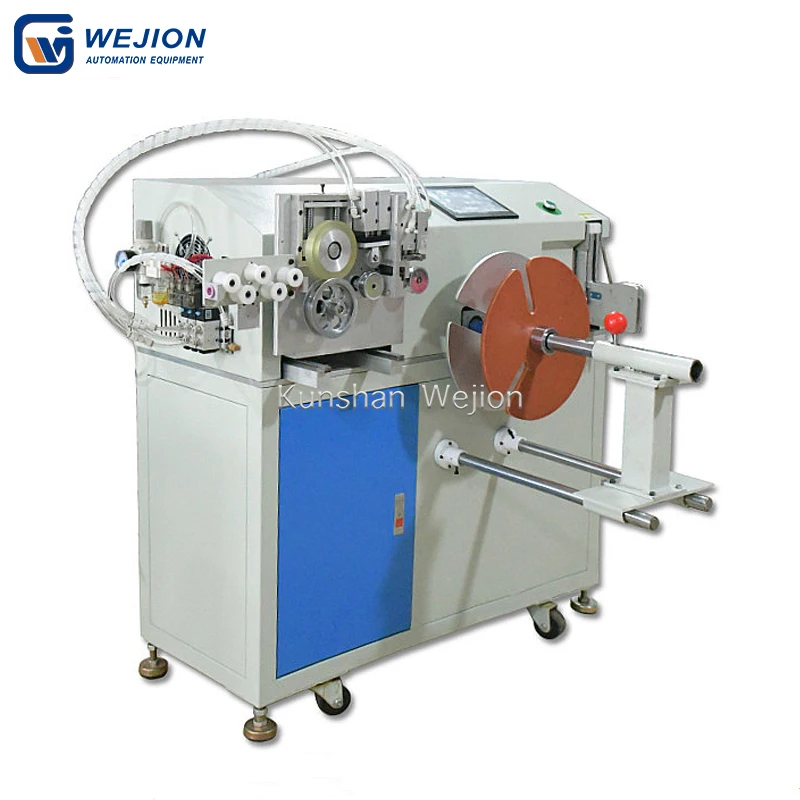

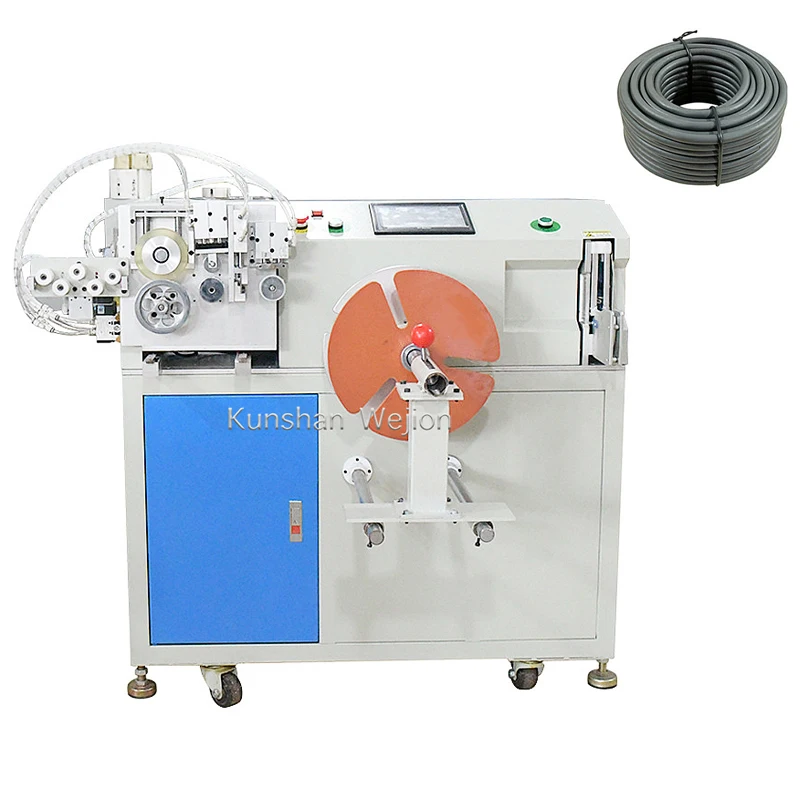

BH-RZ01 Meter Counting Cable Wire Coiling And Bundling Machine
Parameters
Model | BH-RZ01 | BH-RZ02 | |
Type | Floor-standing with tying function | Floor-standing no tying function | |
Available Wire Size | Φ1-8mm ( can custom) | ||
Max Coil Weight | 3 kg | ||
Winding Inner Dia | 50-300mm | ||
Winding Out Dia | Standard 320mm; Max 350mm | ||
Winding Speed | 1-13 cycle/s | ||
Bundling Diameter | Φ8-30mm / 18-45mm / 40-80mm | ||
Power Supply | 110/220VAC,50/60Hz | ||
Power | 500W | ||
Dimensions | 100*45*80cm | 80*100*1030cm | |
Weight | 170 kg | 150 kg | |
The BH-RZ01 and BH-RZ02 can full-automatic metering, cutting, and winding wire. The BH-RZ01 has wire bundling parts, the BH-RZ02 not,better for small wire spool rewinding.

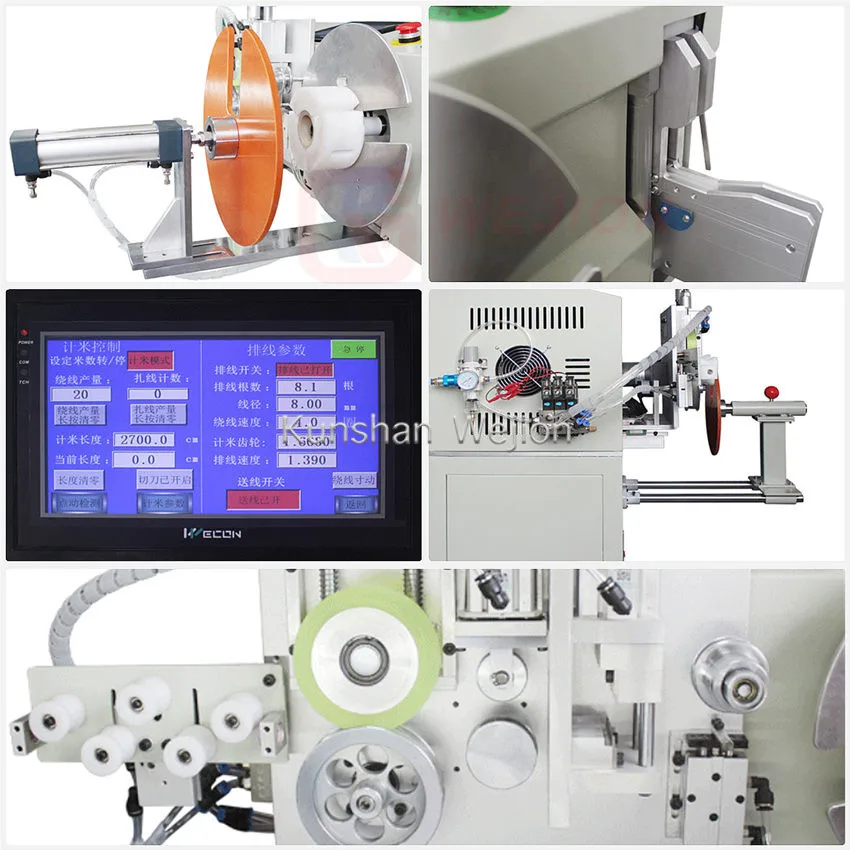

There are three winding systems for wire roll and wire reel winding. The operators just need to put the wire into the wire clamp and then step the footswitch, the machine will automatically cut and wind the wire, tying wire roll function can be costumed. ”
1. Full-featured with metering, cutting and windings. The tying function can be customized
2. Can bear heavier coils than desk type
3. High accuracy metering the wire length
4. The number of turns can be arbitrarily set and the winding speed can be adjusted
There are three winding systems for wire roll and wire reel winding. The operators just need to put the wire into the wire clamp and then step the footswitch, the machine will automatically cut and wind the wire, tying wire roll function can be costumed. ”
1. Full-featured with metering, cutting and windings. The tying function can be customized
2. Can bear heavier coils than desk type
3. High accuracy metering the wire length
4. The number of turns can be arbitrarily set and the winding speed can be adjusted
Hot Sell Products

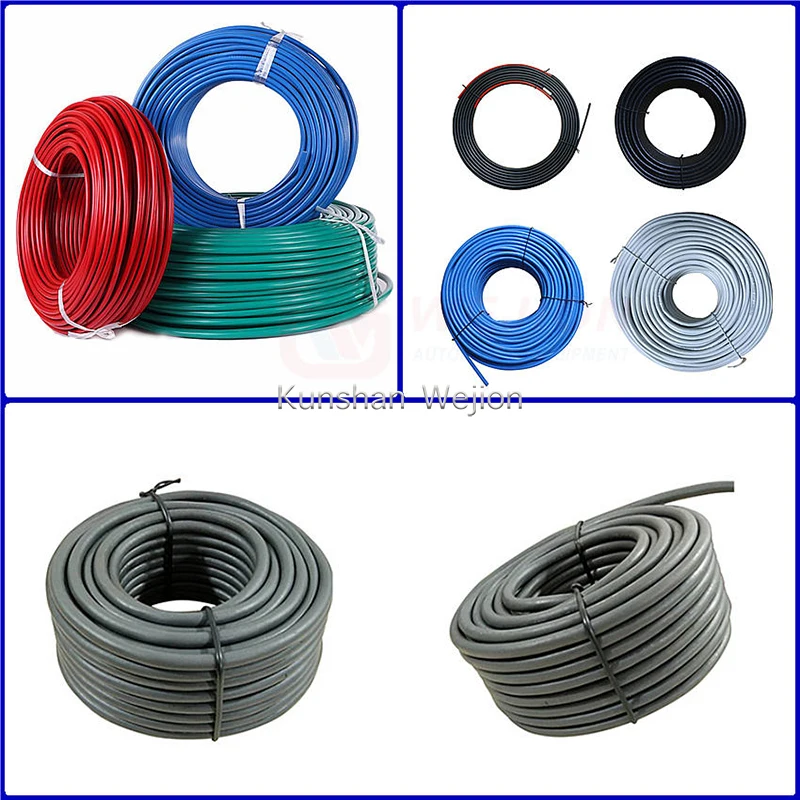

samples：
Packing
Company Introduction
Kunshan Weijiang Automation Equipment Co., Ltd is a modern technology enterprise specializing in the research,development, production and sales of intelligent equipment for processing, cutting and wiring harnesses. The company's core products include: large square computer stripping machine, automatic terminal machine,corrugated pipe cutting machine, rotary pneumatic stripping machine, hexagonal crimping machine, and so on.
Fully automatic heat shrinkable sleeve terminal machine, automatic sheath terminal machine, automatic waterproof bolt terminal machine, automatic rubber shell terminal machine, automatic cable terminal machine, new energy automation equipment, etc. In addition, the company undertakes R&D and manufacturing of non-standard automation equipment.
Fully automatic heat shrinkable sleeve terminal machine, automatic sheath terminal machine, automatic waterproof bolt terminal machine, automatic rubber shell terminal machine, automatic cable terminal machine, new energy automation equipment, etc. In addition, the company undertakes R&D and manufacturing of non-standard automation equipment.
Our Services & Strength
We are one of the most professional Chinese wire cable process machine manufacturers and leaders.
* 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.
* Best products and factory price.
* On-time delivery and the shortest delivery time. * 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
FAQ
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
