Pressure gauge digital transmitter with display, competitive price compact pressure transmitter
Product Description
Product Description

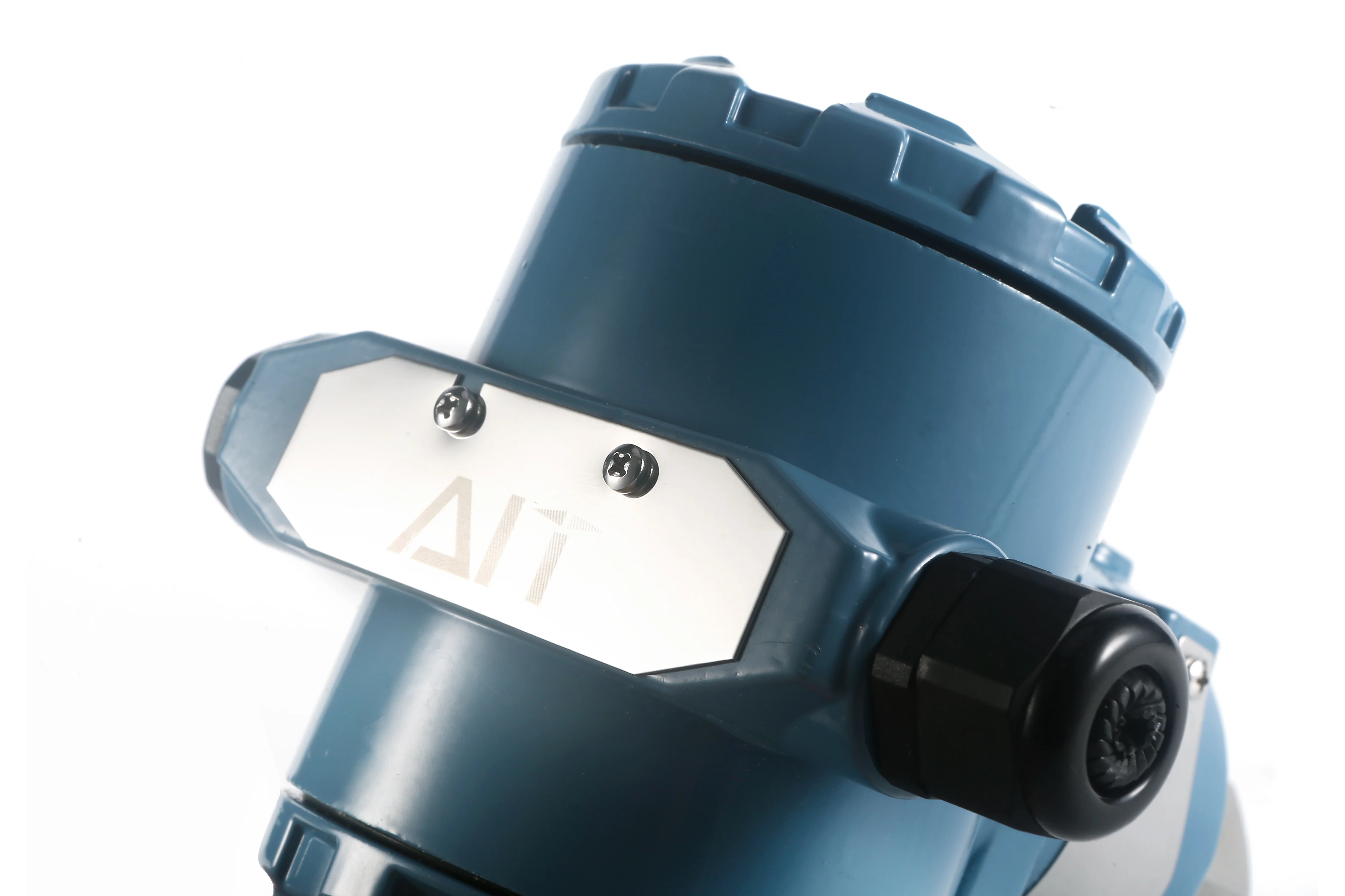

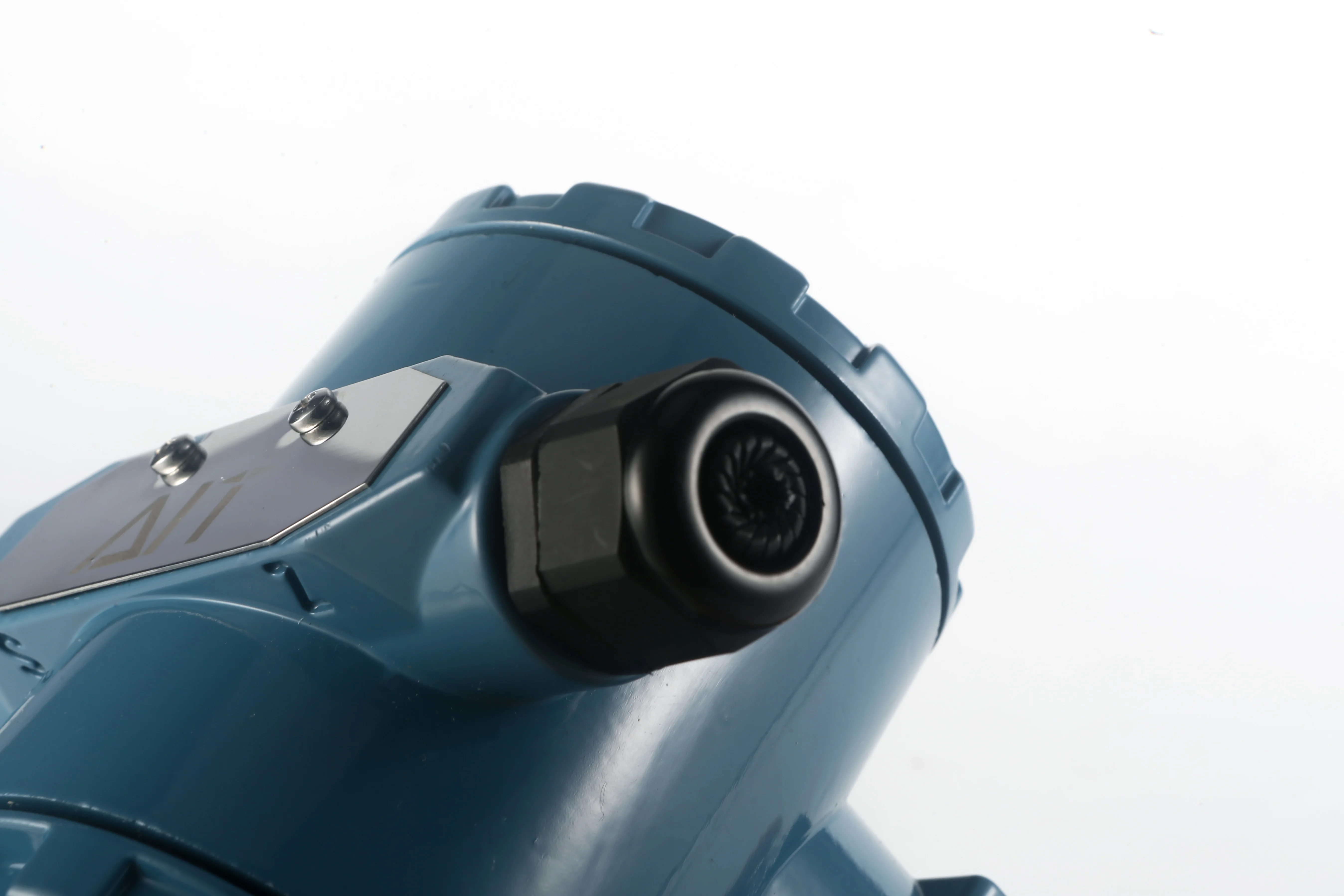

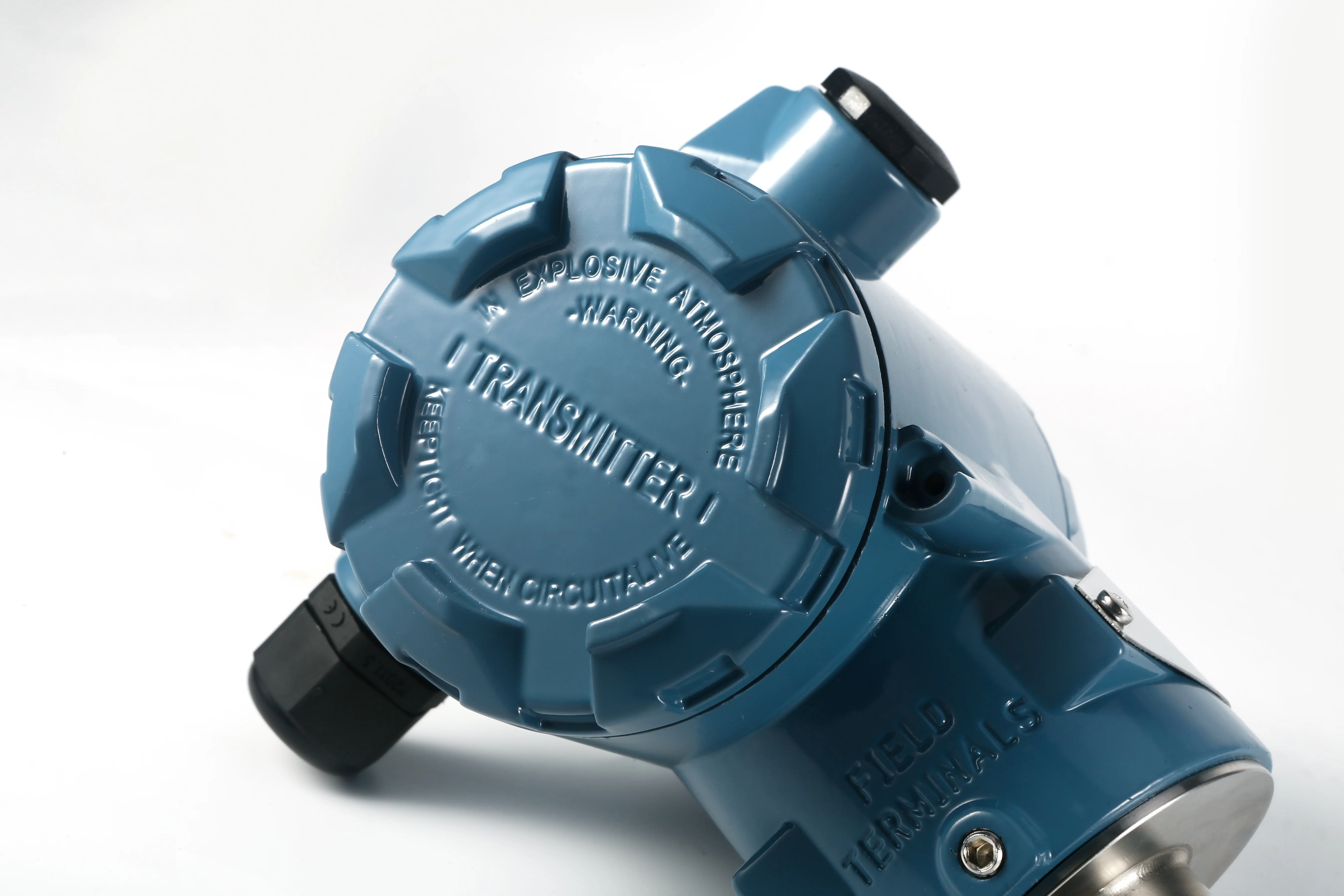

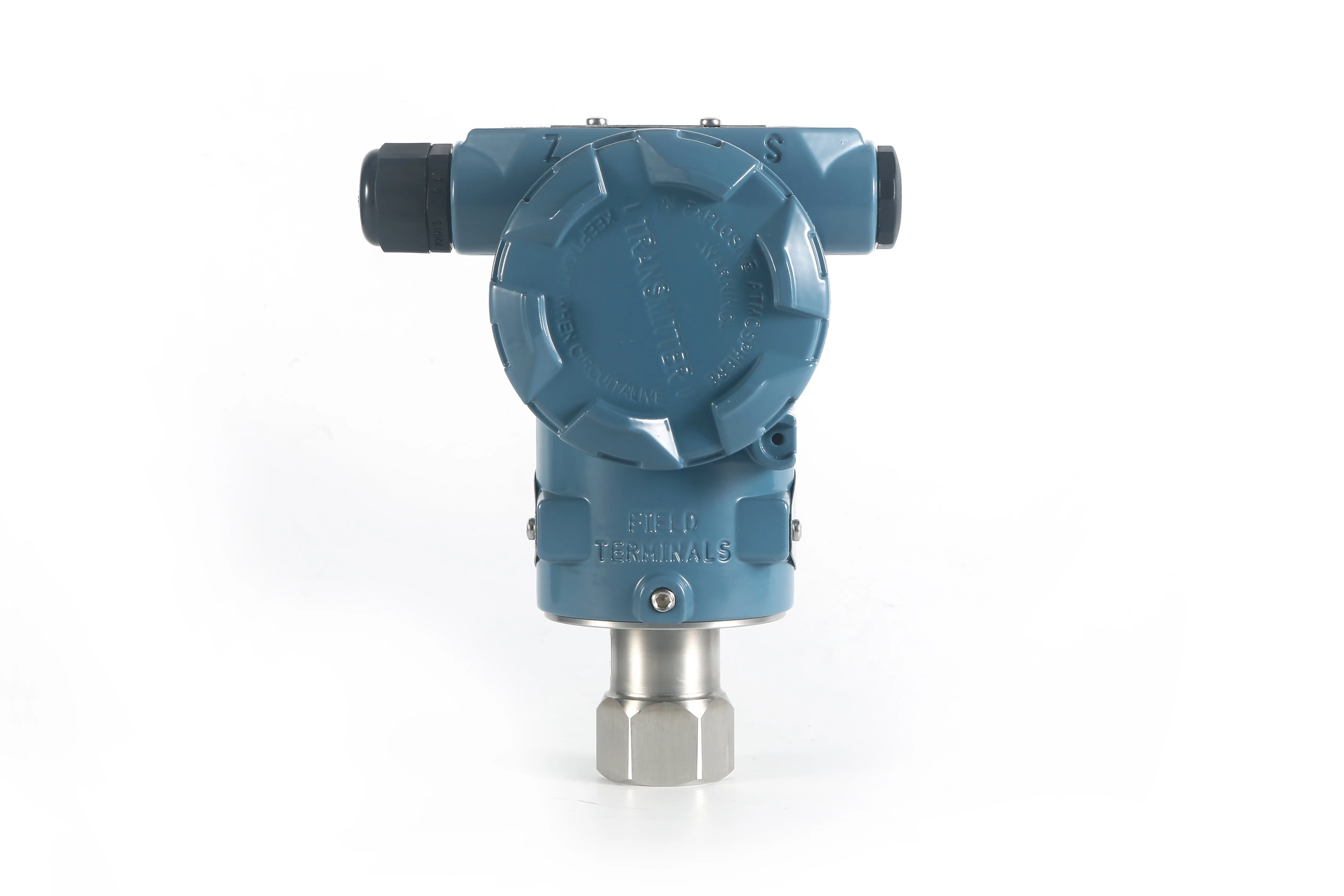

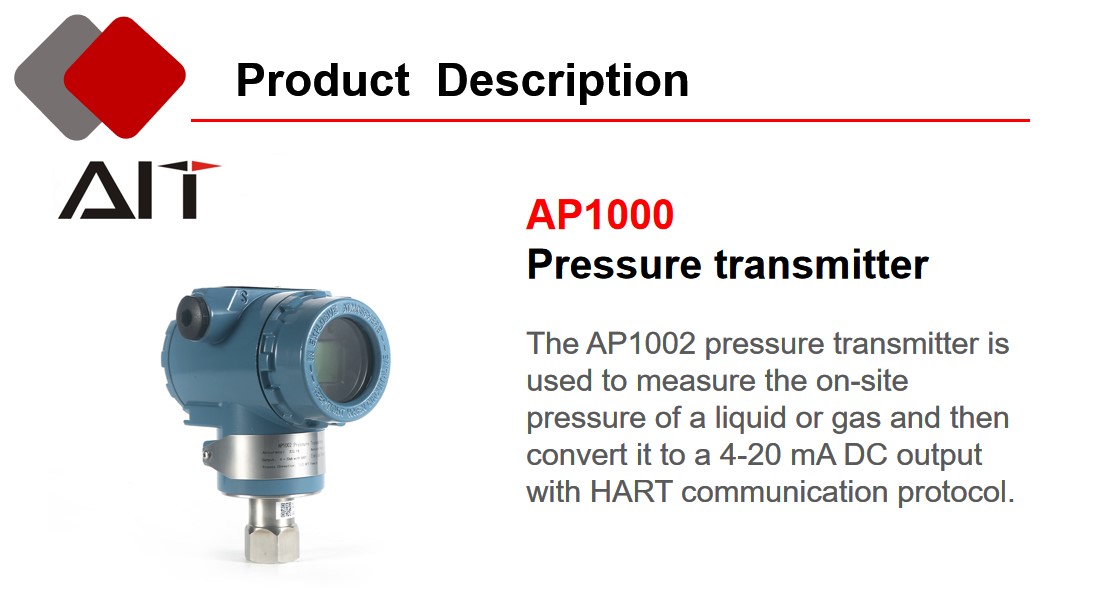

The high performance pressure transmitter AP1000 is suitable to measure liquid, gas, water or steam flow as well as liquid level, density and pressure. AP1000 outputs a 4~20 mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure
Qualified Chinese original manufacturer that exported pressure transmitters to overseas markets (EURO,AMERICA,ASIA) more than 200,000+ sets.
| Enough Experience on local applications for overseas markets |
Meet your toughest environmental conditions with -45℃ working LED display (Option), Customerized color of Housing, Special manual with local language, technical support for OEM,ODM coopertion,etc. |
Product Paramenters
Product Paramenters
Specifications:

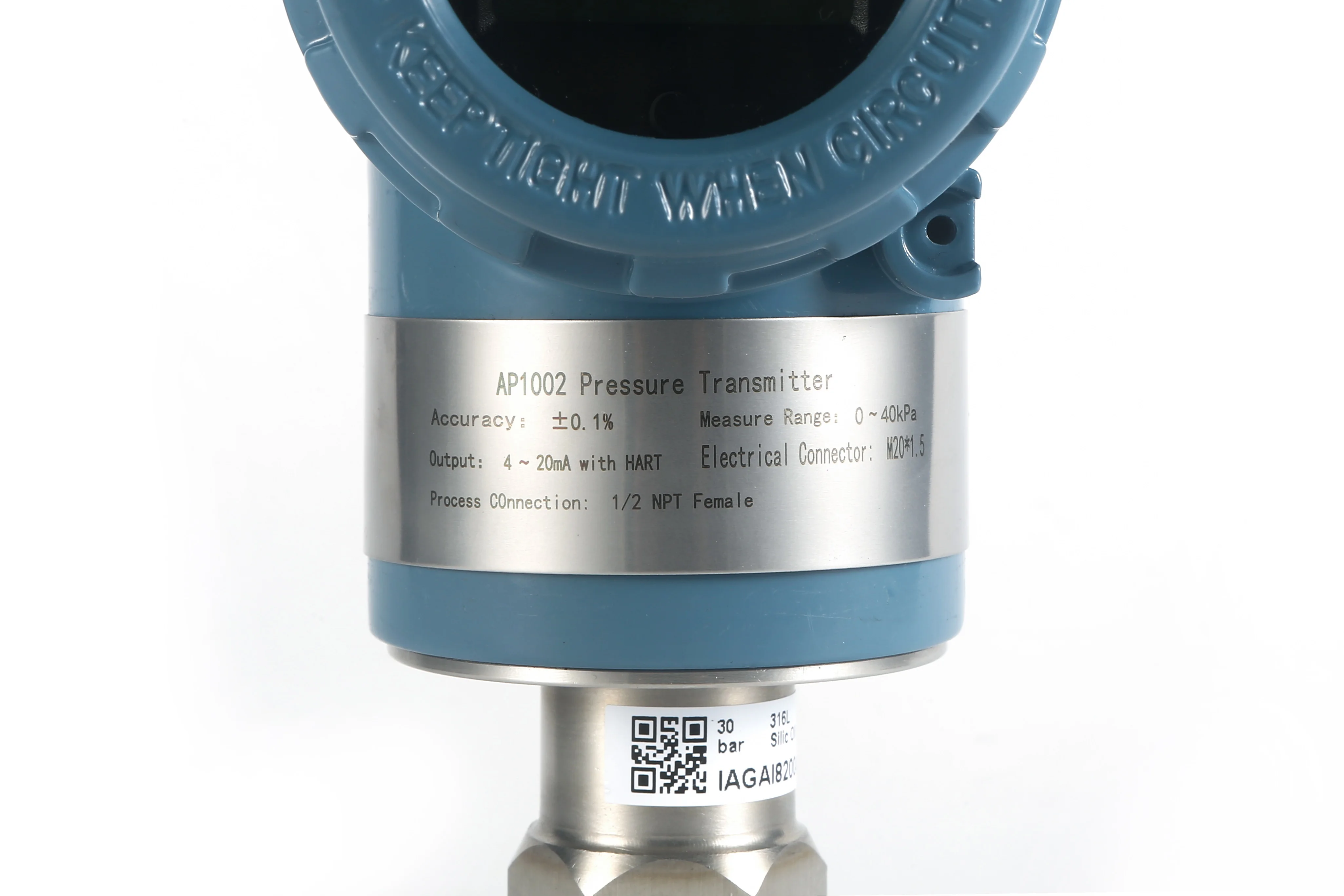

AP1000 OEM Pressure transmitter
| Measurement Type | Differential,Gage,Absolute,Level,Flow |
| Output | 4-20mA,HART,Profibus/DP |
| Reference Accuracy | ±0.1% of span |
| Long Term Stability | + 0.1% of URL for 3 years |
| Processing Temperature | -40 to 85℃ |
| Rangedown | 100:1 |
Measuring | range |
| C | 0-2kPa~40kPa /(0-200~4000 mmH2O)/(0-20~400mbar) |
| D | 0-2.5kPa~250kPa /(0-0.25~25 mH2O)/(0-25~2500mbar) |
| F | 0-30kPa~3MPa /(0-3~300 mH2O)/(0-0.3~30bar) |
| G | 0-0.1MPa~10MPa /(0-1~100bar) |
| H | 0-0.21MPa~21MPa /(0-2.1~210 bar) |
| I | 0-0.4MPa~40MPa /(0-4~400 bar) |

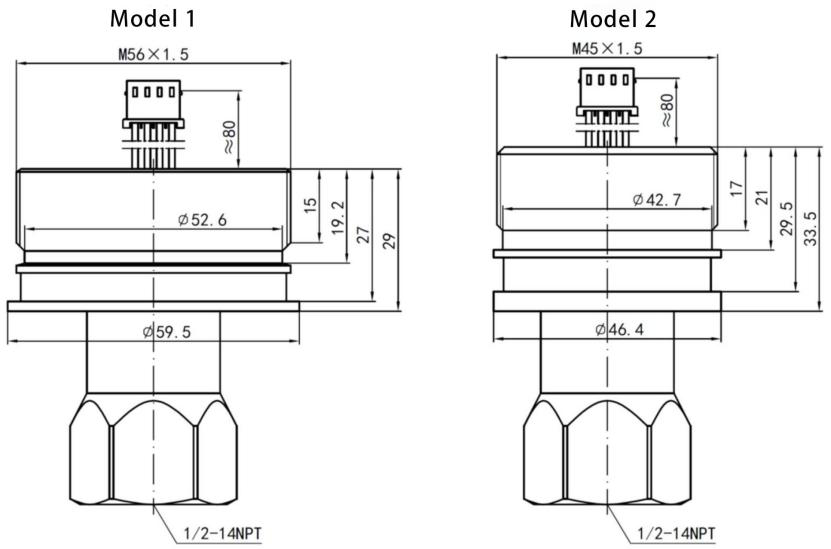

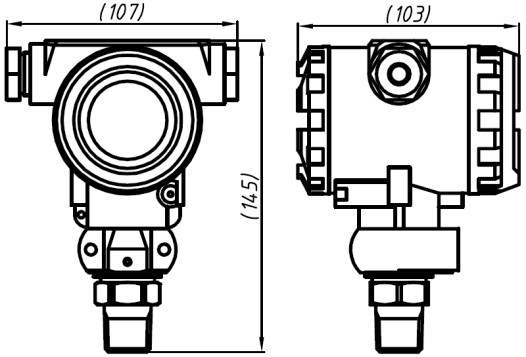

Product Dimentions
Product Dimentions
OUR CUSTOMERS
Russia, South Korea, the United States, Italy, Germany, the Netherlands, Singapore, Malaysia, India, Morocco, etc. Overseas sales accounted for approximately 40% of total sales revenue.
Company Profile
Company Profile
All-Instruments International Trading (Shanghai) Co.,Ltd is an international business solution supplier for domestic manufacturer and overseas suppliers in instruments.We hope for being the strong belt between Chinese manufacturer and overseas customers in any instrumental industy.Now All-Instruments International Trading (Shanghai) Co.,Ltd deal with the business of the import and export, production base, storage, sales, logistics multiple new pathways. The company not only have their own brands, covers hundreds of types of products, abut lso distributing the international famous brands, for the partners to provide wider and wider cooperation platform. Now, our cooperation network has over the eight countries and areas.AIT will promote Chinese instruemtns to all over the world.
