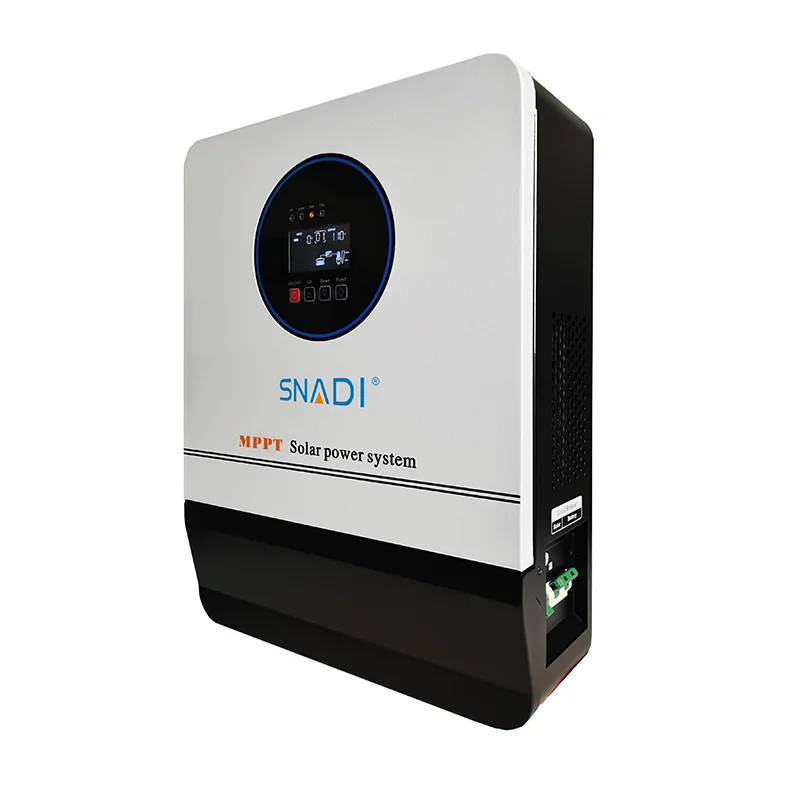

Popular Products Solar Powered Charger 4000w Split Phase Hybrid Inverter 4KW Solar Hybrid inverter
- Category: >>>
- Supplier: Foshan SNAT Energy Electrical Technology Co. Ltd.
Share on (1600470907463):
Product Overview
Description
Product Detalis
MAIN FEATURES
- Double CPU intelligent control technologyperformance excellence
- The power mode /energy saving mode /battery mode can be set up.Flexible application
- The LCD real-time display device parameters
Product Paramenters
Model:NKM- | 0.3-1KW | 1.5-6KW | ||||||||
300 | 700 | 1500 | 3000 | 5000 | ||||||
500 | 1000 | 2000 | 4000 | 6000 | ||||||
Battery | ||||||||||
Rated Voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | ||||||
Charge Current | 10A MAX | 30A MAX | ||||||||
Battery Type | Can be set | |||||||||
Input | ||||||||||
Voltage Range | 73-138VAC/145-275VAC | 85-138VAC/170-275VAC | ||||||||
Frequency | 45-65Hz | |||||||||
Output | ||||||||||
Voltage Range | 110VAC/220VAC; +5%( Inverter mode) | |||||||||
Frequency | 50/60Hz±1%( Inverter mode) | |||||||||
Output Wave | Pure Sine Wave | |||||||||
Change Time | ＜10ms（Typical Load） | |||||||||
Frequency | >85%(80% Resistive load) | |||||||||
Overcharge | 110-120%/30S;>160%/300ms; | |||||||||
Protection Function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protectior | |||||||||
Solar Controller | ||||||||||
MPPT Voltage Range | 12VDC:15V-150VDC;24VDC:30V-150VDC:48VDC:60V ~150VDC | |||||||||
PV Power | 12VDC-30A(400W);24VDC-30A(800W) | 12VDC-60A(800W;24VDC-60A/1600W);48VDC-60A(3200W) | ||||||||
Rated Charge Current | 30A(Max) | 60A(Max) | ||||||||
MPPT Efficiency | ≥99% | |||||||||
Average Charging Voltage(lead acid battery) | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||||||
Floating Charge Voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||||||
Operating Ambient Temperature | -15-+50°C | |||||||||
Storage Ambient Temperature | -20-+50℃ | |||||||||
Operating / storage Environment | 0-90% No Condensation | |||||||||
Dimensions: W*D*H(mm) | 420*321*125 | 545*461*170 | ||||||||
Packing size: W*D*H(mm) | 515*380*205 | 645*555*260 | ||||||||
MAIN FEATURES
- The power mode /energy saving mode / battery mode can be set up,Flexible application;
- Smart fan control, safe and reliable;
- The pure sine wave output, can adapt to various types of load:
- Smart fan control, safe and reliable;
- The pure sine wave output, can adapt to various types of load:
- Wide input voltage range,high-precision output automatic voltage function.;
- The LCD real-time display device parameters running status at a glance;
- The output overload, short circuit protection, automatic protection and alarm;
- The intelligent MPPT solar controller, overcharge,overdischarge protection,current limiting chargingmultiple protection;
- Built-in GPRSlWlFl wireless network module, which can control working status remotely through mobile;
- APP or computer ; (optional)
- Built-in GPRSlWlFl wireless network module, which can control working status remotely through mobile;
- APP or computer ; (optional)
FOSHAN SNAT ENERGY ELECTRICAL TECHNOLOGY CO,LTD IS ESTAB-LISHED IN 2010 .AS A WORLD'S LEADING SUPPLER FOR SOLUTIONS FORELECTRIC ENERGY AND NEW ENERGY.SNAT HAS POWERFUL STRENGHAND IS ENGAGED IN FIELD OF SOLAR INVERTER.HYBRID SOLAR INVERT.ER.SOLAR CONTROLLER UPS, WHICH ARE USED FOR HOUSE-HOULD.TELECOMMUNI CATION.ELECTRICITY.INFRASTRUCTURE ANDINDUSTRIAL MARKETS.
PRODUCT CHARACTERISTICS
FAQ
A1: Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2: Can you do OEM?
A2: Yes, we can offer the OEM service.
Q3: What is your delivery time?
A3: Within 5 day after receive advanced payment.
Q4: What minimum order do you require?
A4: 1 piece.
Q5: Why choose us?
A5: 1) Prompt delivery and good after-sale services.
2) We have our own factory, the selling prices is competitive.
3) All of our products have CE certification, ISO9001:2008, RoHS.
4) 80% new materials for production and superior quality.
5) Professional engineer designers.
