MPR5000S:Industrial 32 Universal Smart Digital Data Logger Temperature Paperless Chart Recorder Multi channel Paperless Recorder
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (1600470908168):
Product Overview
Description
7'' Color Universal 16/24/32 Channels Multi Channel Paperless Digital Temperature Humidity Recorder with USB/Ethernet
Product Show
Specification | ||||||
Accuracy | ±(0.2%FS +1) digital | |||||
Display | 7' LCD TFT True Color | |||||
Size/Installation Size | 180x150x160mm/ 138x138mm | |||||
Power supply | 100-240VAC | |||||
Sampling & Memory Specification | ||||||
Sampling | 1 second per 8channels | |||||
Memory capacity can be set flexibly according to the memory interval time setting. | ||||||
Huge capacity for Long time data saving up to 10 years with power -off protection | ||||||
Memory Interval time | 1, 2.......3600seconds, can be set flexibly as required in recorder | |||||

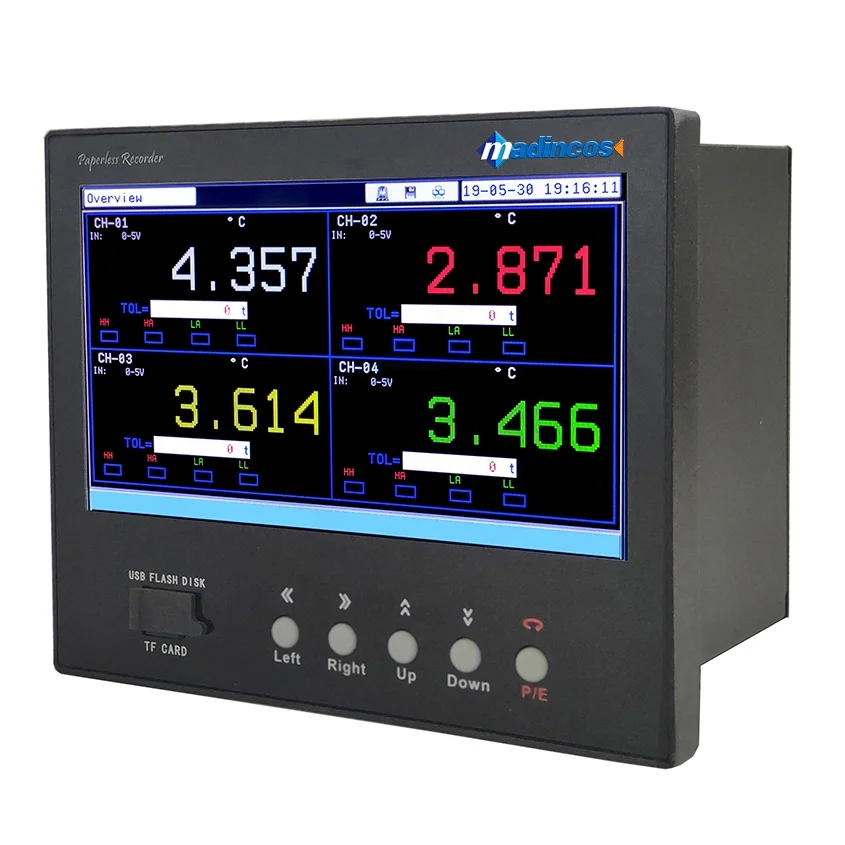

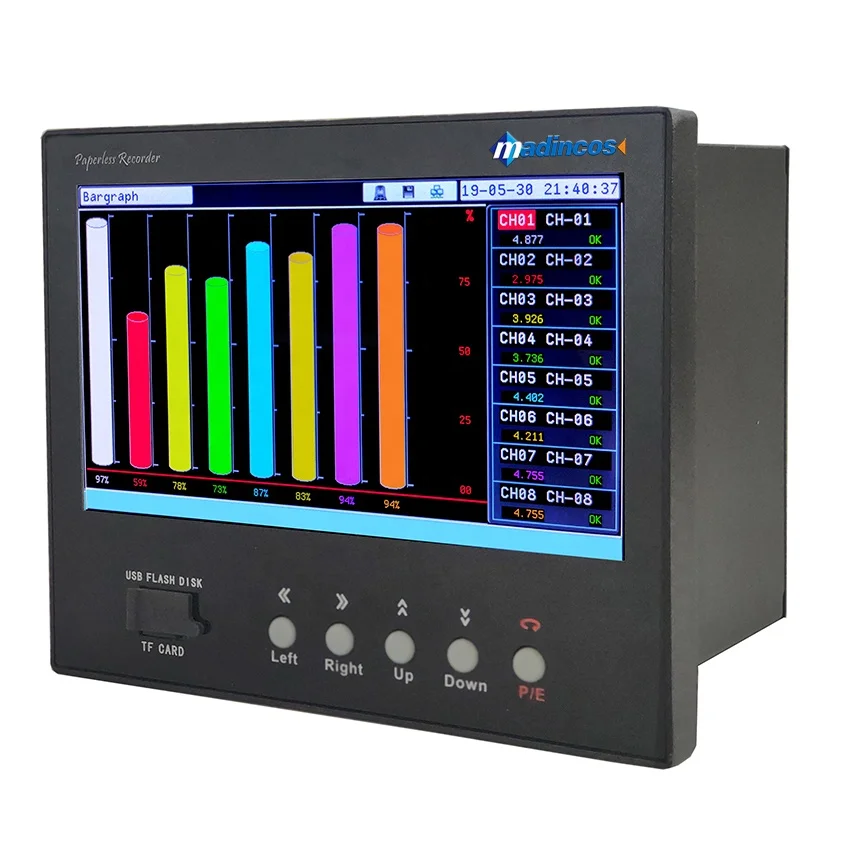

Screen Display | Various screen display in digital, trend, barograph, circular chat display | |||||
PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis. | |||||
Input & Output Specifiation | |||||||

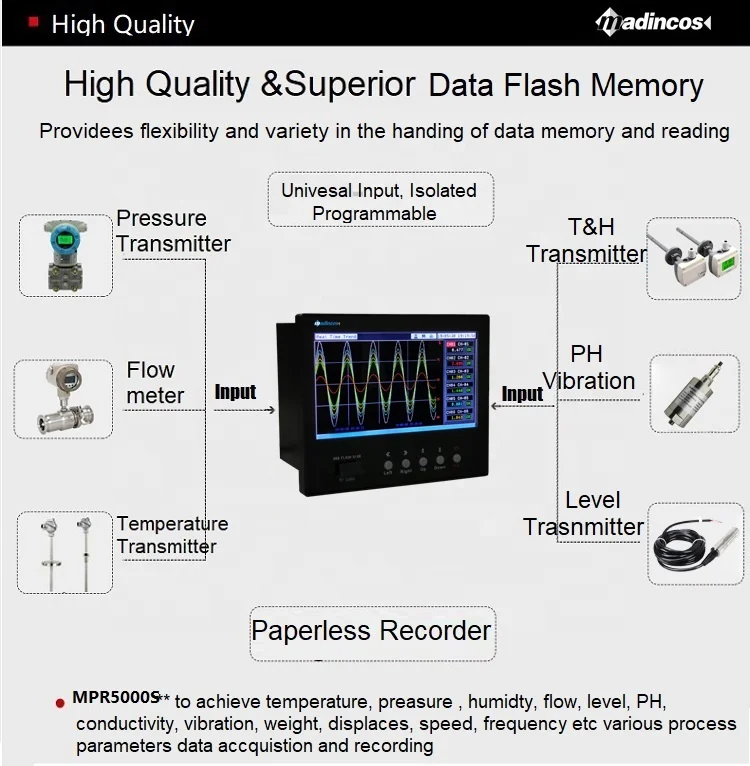

Univeral Input | Themocouple, RTD, Analog, mV,frequency input; programmable | ||||||

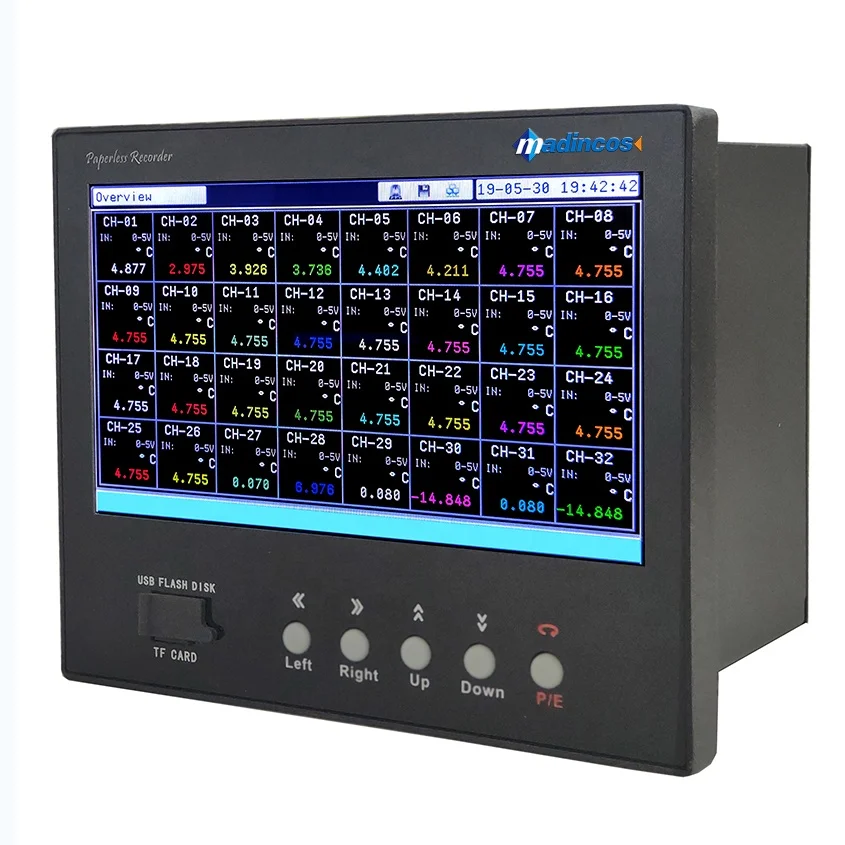

Input Channels | 1,2,3,4,5,6,7,8......16.....24....32, optional | ||||||
Channels Isolation | 400VAC photoelectrical isolation | ||||||
Sample Rate | 1 seconds /8 channels | ||||||
Relay output | 3A, NO, max 16 relay output, configurable for channels | ||||||
RS485 communication | standard Modbus-rtu protocol, | ||||||
Ethernet Communication | standard Etherent MODBUS-TCP/IP protocol | ||||||
feed output | auxiliary 24VDC output for transmitter | ||||||
Print | printing output for data in digital and curve | ||||||
Flow totalizer | with temperature, pressure compensation for channels | ||||||
Math | +, -, x, /, ,max, min, average; linear math | ||||||
Detailed Images

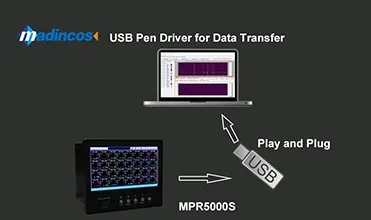

USB Data Transferring, Plug and Play
*Huge Capacity 8G/16G/32G USB pen driver for data transfer automatically only for 1-2 munities when u need to transfer the data, Fast and Easy operation.
* Powerful PC software
To display and read the memoried data in digital and curve, print the chart data.; also export the data as Excel for further analysis.

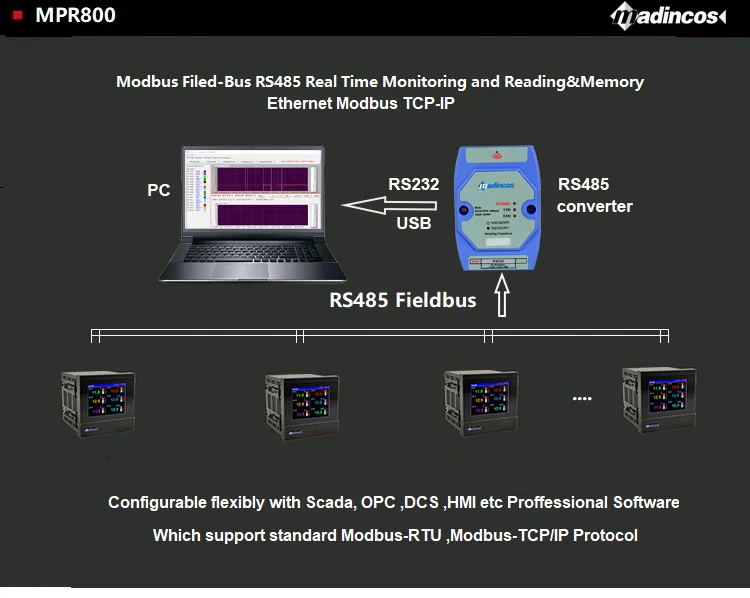

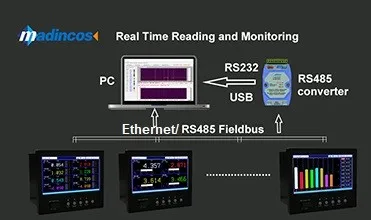

Remote Real Time Reading and Monitoring (Optional)
*Photoelectrical isolated RS485 ,Ethernet communication output
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server ,IOT for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically
Packing & Delivery
Packaging | ||
Size | 180(L) * 150 (W) * 160(D)mm | |
Weight | 2.5kg | |
Packaging &Delivery | Package: The normal package is paper box(Size: 250L*230W*230HMM). PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
Optional Related Transmitter
MTR320 Universal&Programmble
Temperature Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MTH300S Wall Type Temperature Humidity Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MTH800 High Temperature Humidity Transmitter,Digital
Accuracy: 0.3degc, 3%RH Range:-20 to 120℃
Output:4-20ma, 0-5V,0-10VDC, RS485
