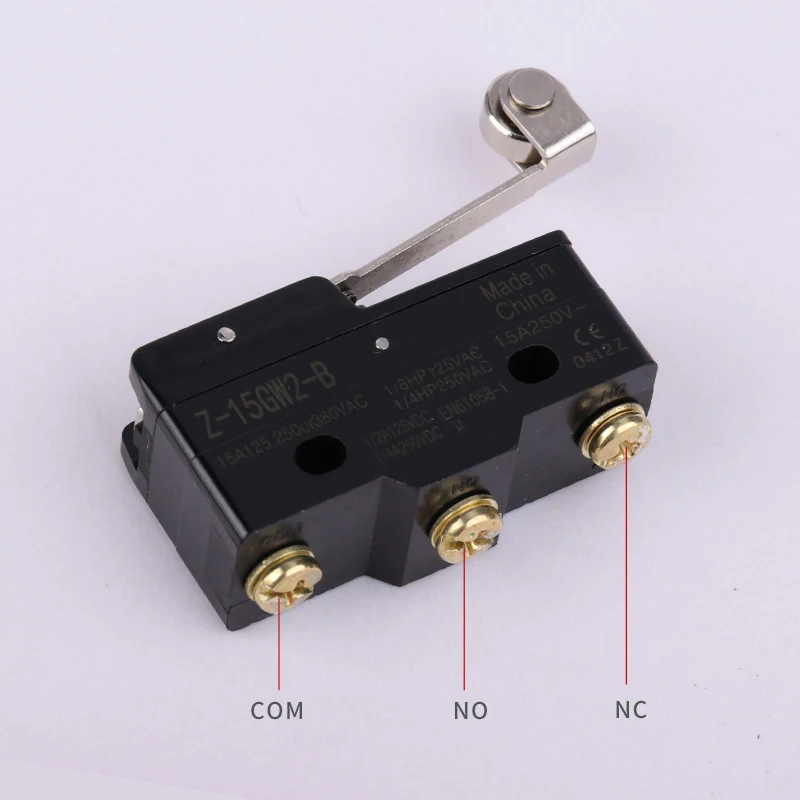

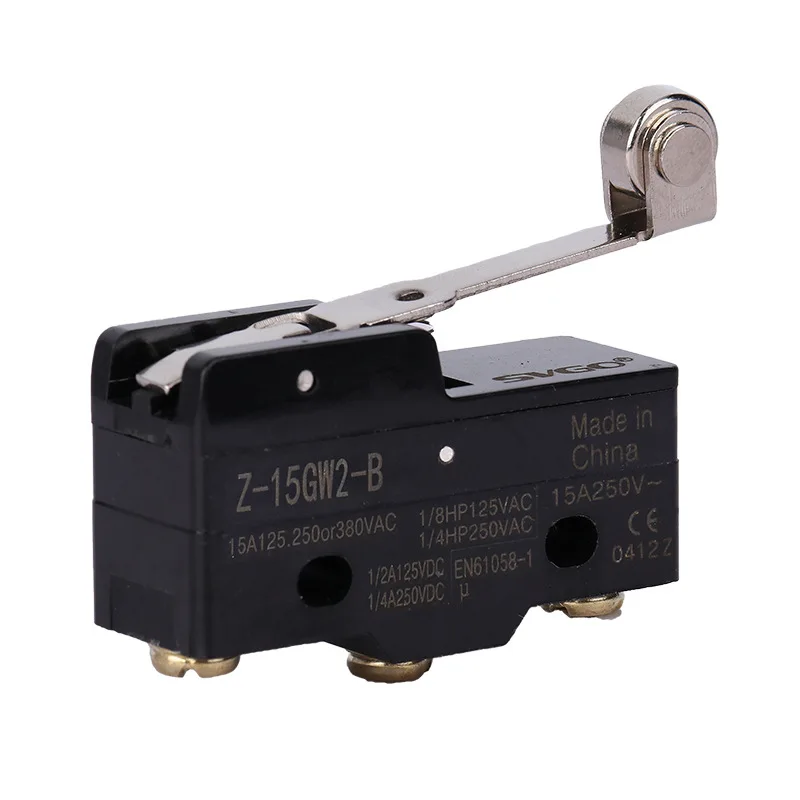

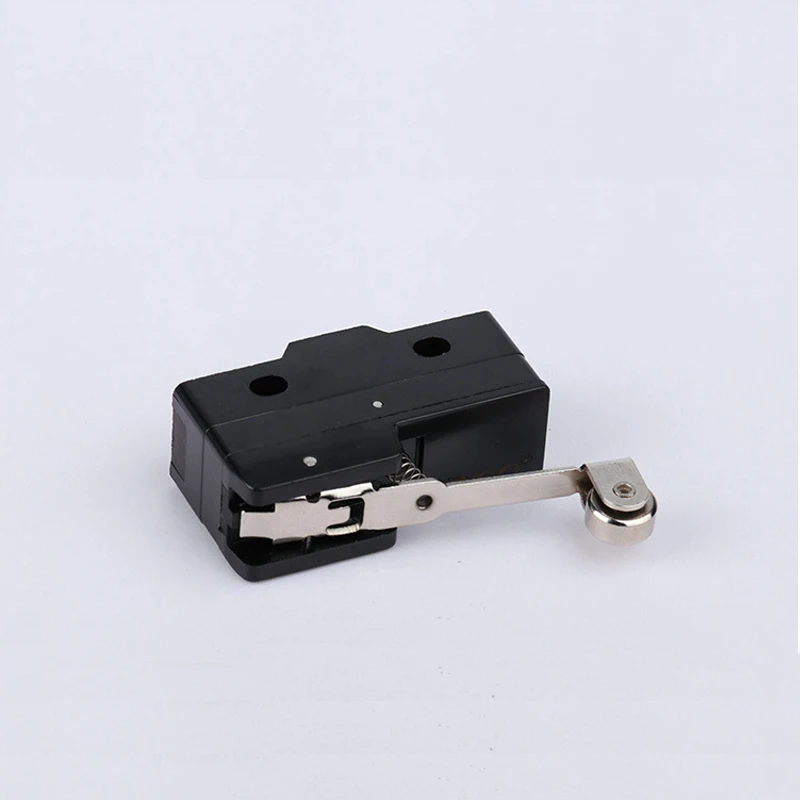

Z 15GW2 B Micro travel limit switch ball swing lever type TM 1703 LXW5 11G1

Rated Voltage
(V)

Noninductive Load
(A)

Inductive Load
(A)

Inrush Current

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

NC

NO

125VAC
250VAC
500VAC

15
15
3

3
2.5
1.5

1.5
1.25
0.75

15
15
2.5

5
3
1.5

2.5
1.5
0.75

30 max.

15 max.

8VDC
14VDC
30VDC
125VDC
250VDC

15
15
6(2)
0.4
0.2

3
3
3
0.4
0.2

1.5
1.5
1.5
0.4
0.2

15
10
5
0.05
0.03

5
5
5
0.05
0.03

2.5
2.5
2.5
0.05
0.03

Operation speed

0.01mm-1m/sec

Operating frequency

Mechanical: 240 operations/min.

Electrical: 20 operations/min.

Contact resistance

15mΩ max. (initial value)

Insulation resistance

100mΩ min. (at 500VDC)

Dielectric strength

1000VAC, 50/60HZ for 1 minute between terminals of the same polarity

1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts

1500VAC, 50/60 HZ for 1 minute between each terminal and ground

Vibration frequency

10-55HZ,1.5mm double amplitude

Shock

Mechanical durable: 1, 000m/Sec2 (about 100G'S)
Malfunction: 300m/Sec2 (about 30G'S)

Ambient temperature

General purpose type: -25℃ to +80℃, Sealed type: -15℃ to +80℃

Humidity

General purpose type: 85% RH max., Sealed type: 95% RH max.

Life

Mechanical: 20,000,000 operations min.
Electrical: 500,000 operations min.
