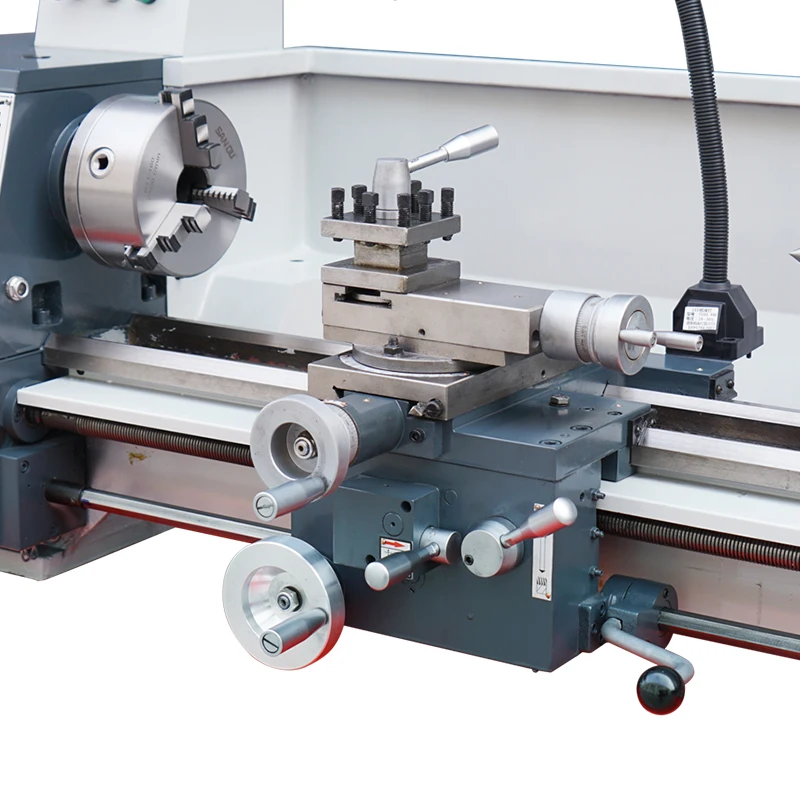

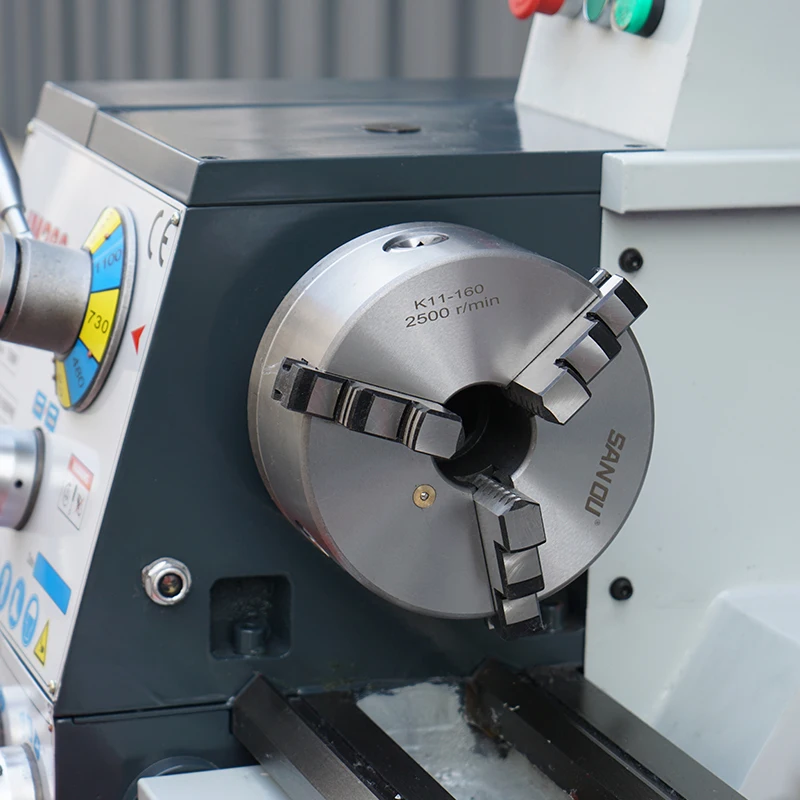

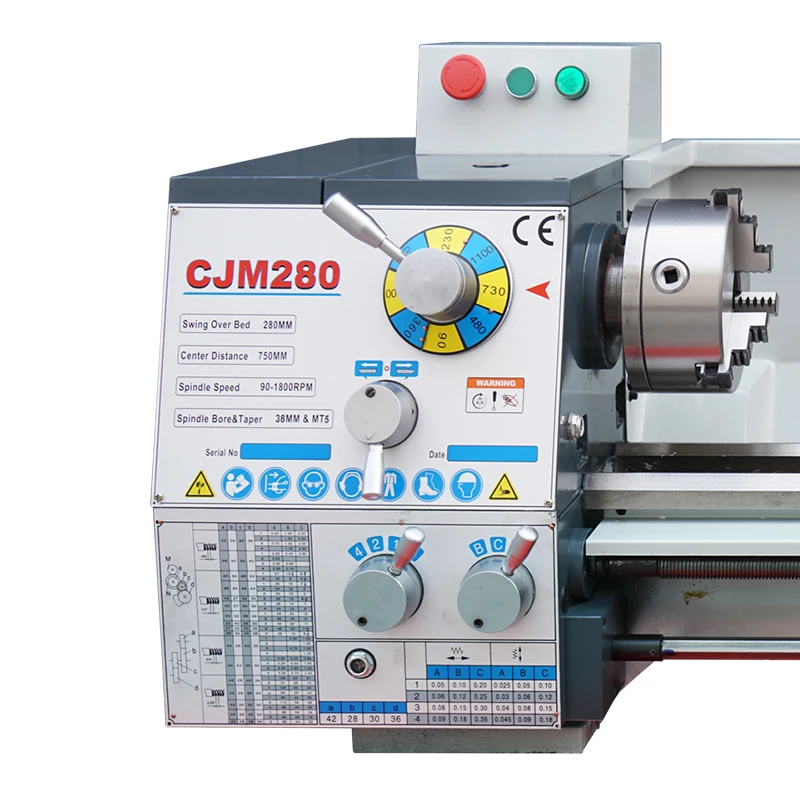

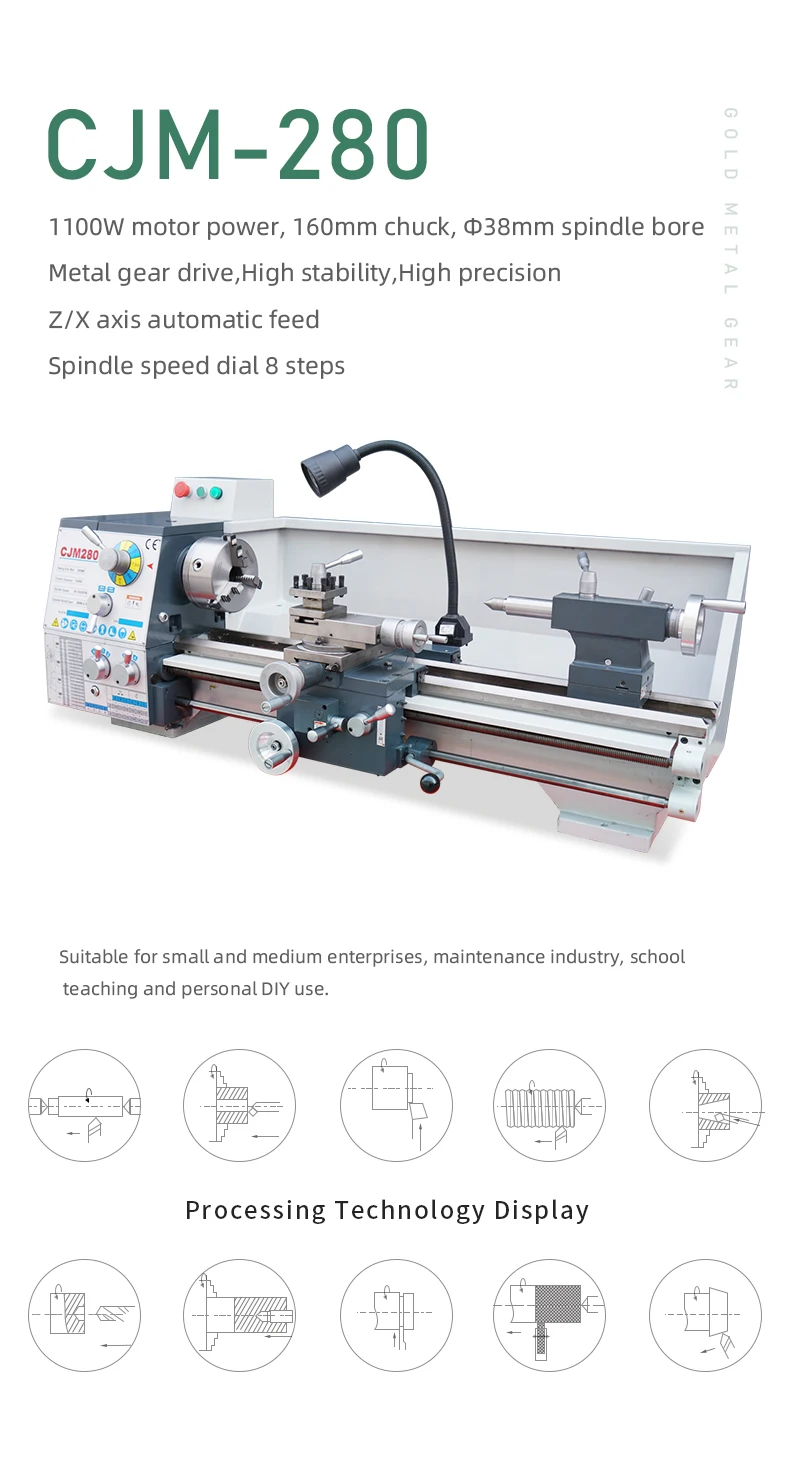

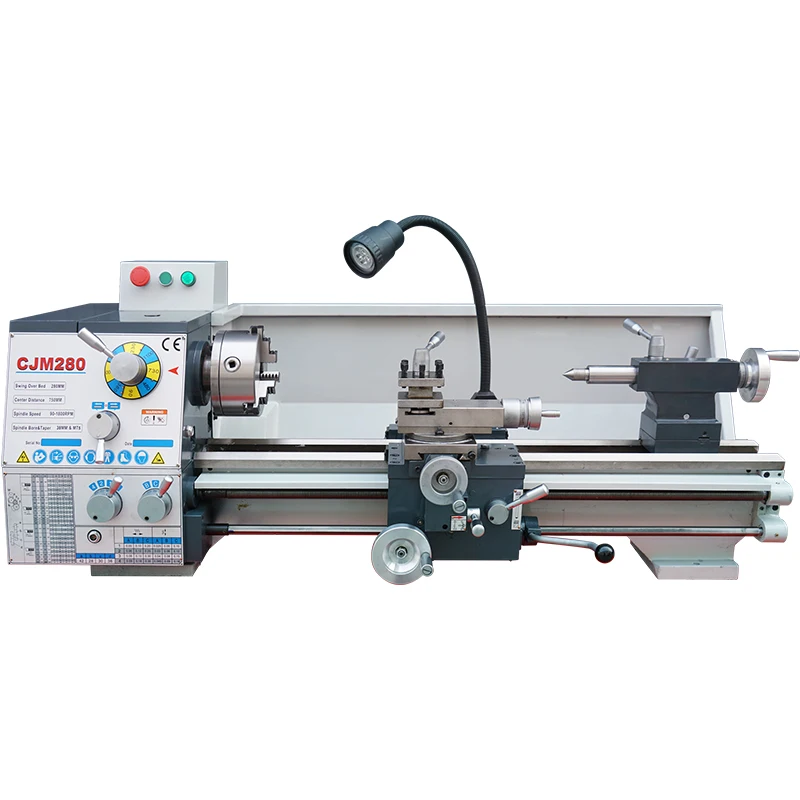

CJM280 Mini Lathe High Precision Manual Lathe Machine Price
- Category: >>>
- Supplier: Shanghai Tongchen Industrial Co. Ltd.
Share on (1600470913830):
Product Overview
Description
Model | CJM280 |
Swing over bed | 280mm |
Distance between centers | 500/750mm |
Swing over cross slide | 150mm |
Spindle bore | 38mm |
Taper of spindle bore | MT5 |
Cross slide travel | 160mm |
Top slide travel | 75mm |
Range of metric threads | 0.20-3.5mm 18kinds |
Range of inch threads | 4 1/2-48 1/n″34kinds |
Range of diametrical threads | 16-120 1/n"24kinds |
Range of module pitches | 0.20-1.75mm 16kinds |
Rapid feed of longitudinal traverse | 0.05-0.35mm/r |
Rapid feed of cross traverse | 0.025-0.18mm/r |
Tailstock barrel travel | 60mm |
Tailstock barrel taper | MT3 |
Step of spindle speed | 8 steps |
Range of spindle speed | 90-1800r/min |
Motor | 1100W 220/380V 50Hz |
N/G W | 280/320kg&300/350kg |
Package dimension | 1250*700*1300&1500*700*1300mm |
