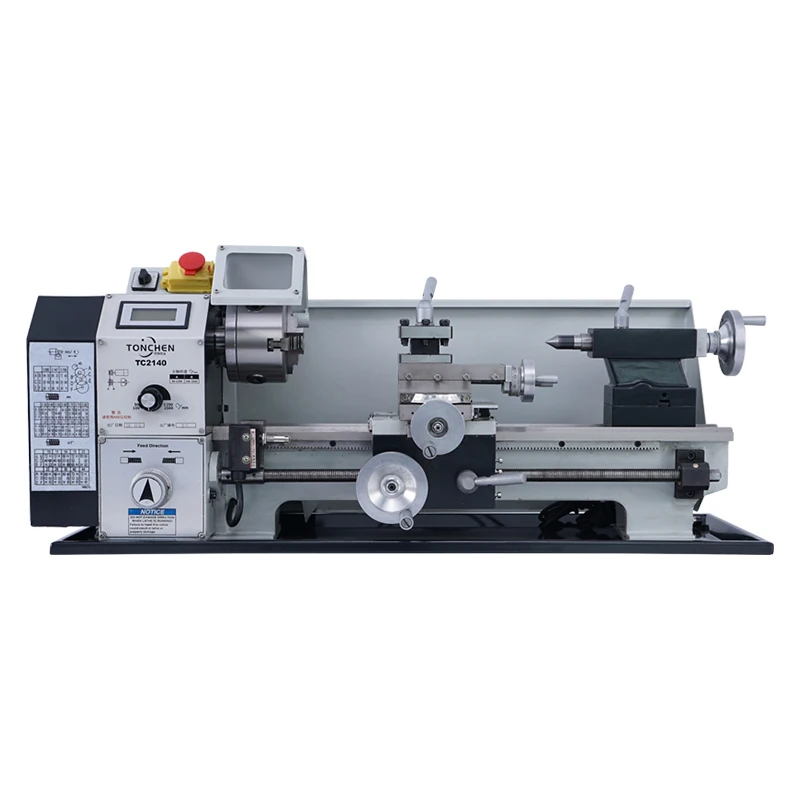

TC2140 Multifunction Brushless Motor Mini Manual Metal Lathe Machine Price
- Category: >>>
- Supplier: Shanghai Tongchen Import Export Co. Ltd.
Share on (1600470942134):
Product Overview
Description
Model | TC=2140/2180PRO |
Distance between centers | 400/750mm |
Swing over bed | 210mm |
Swing over cross slide | 140mm |
Width of bed | 100mm |
Spindle bore | 21/38mm |
Taper of spindle bore | MT3/MT5 |
Range of spindle speeds | 50-2500rpm |
Range of longitudinal feeds | 0.083-0.159mm |
Range of inch threads | 10-44TPI |
Range of metric threads | 0.3-3mm |
Top slide travel | 55mm |
Cross slide travel | 95mm |
Tailstock quill travel | 60mm |
Taper of tailstock quill | MT2 |
Motor | 1100W |
Machine size | 820/1220*400*350mm |
Packing size | 930/1320*480*460mm |
Net weight/Gross weight | 75/90&80/100kg |
