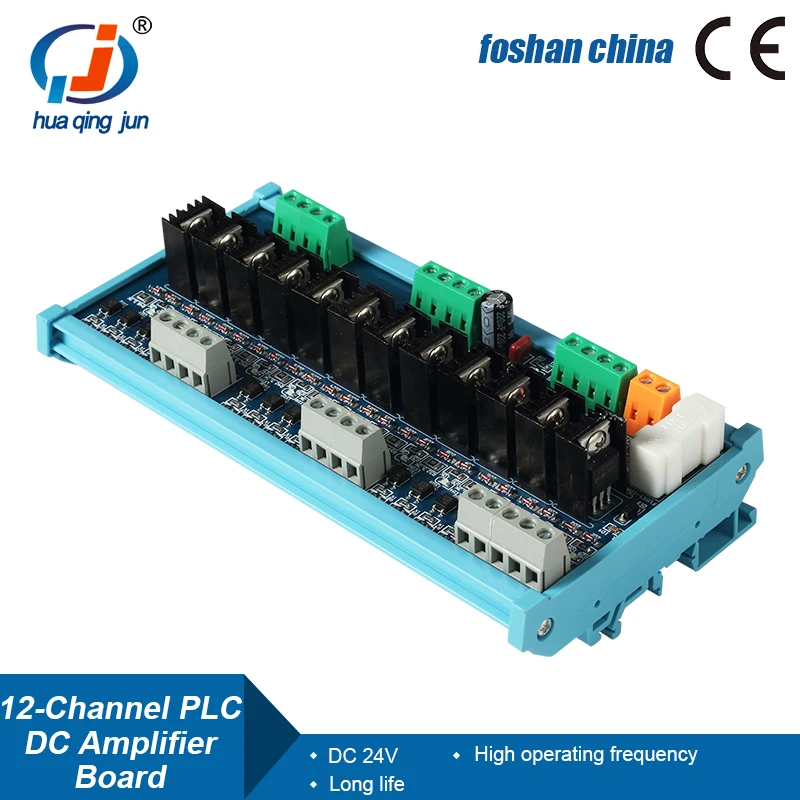

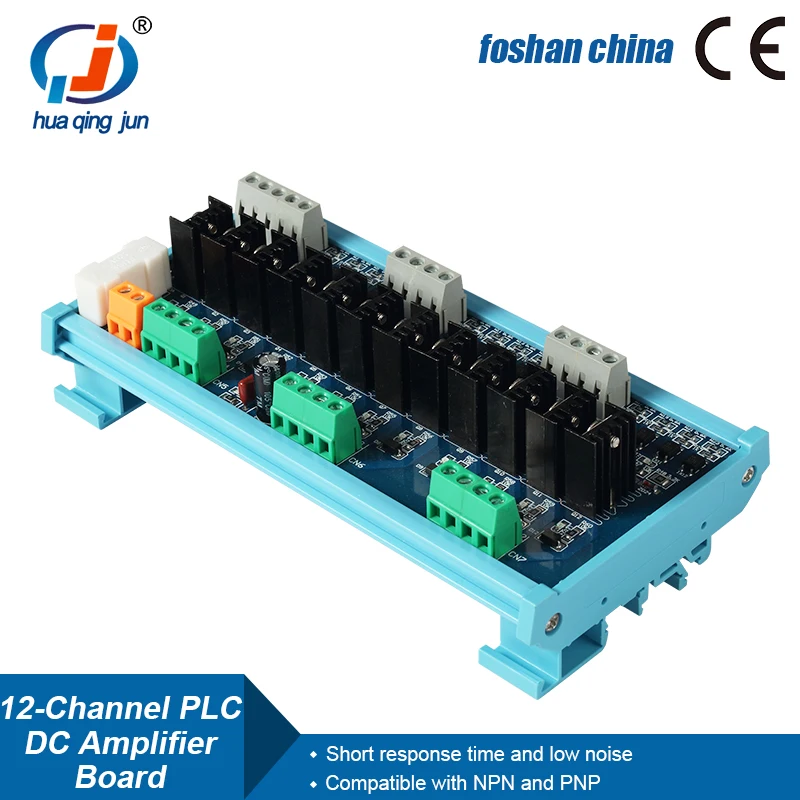

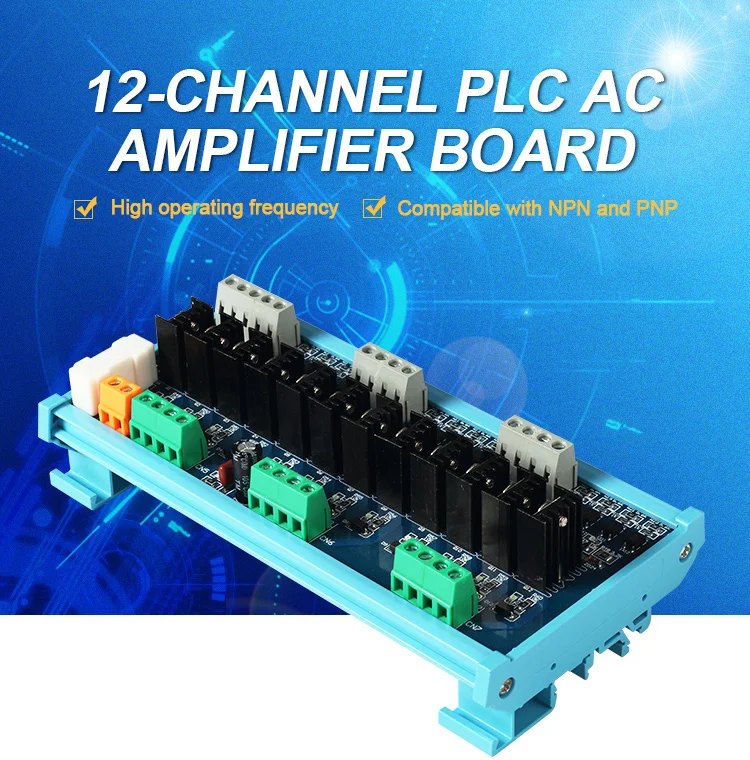

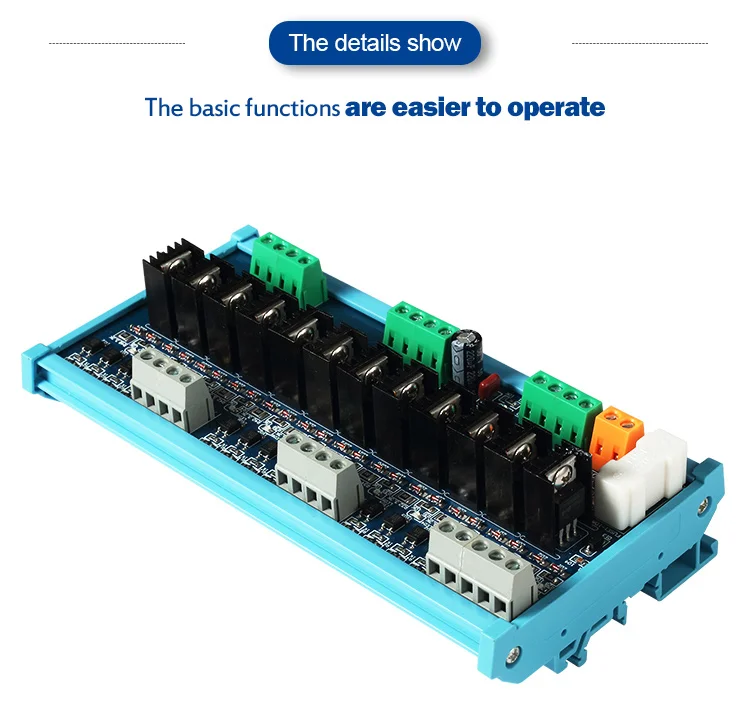

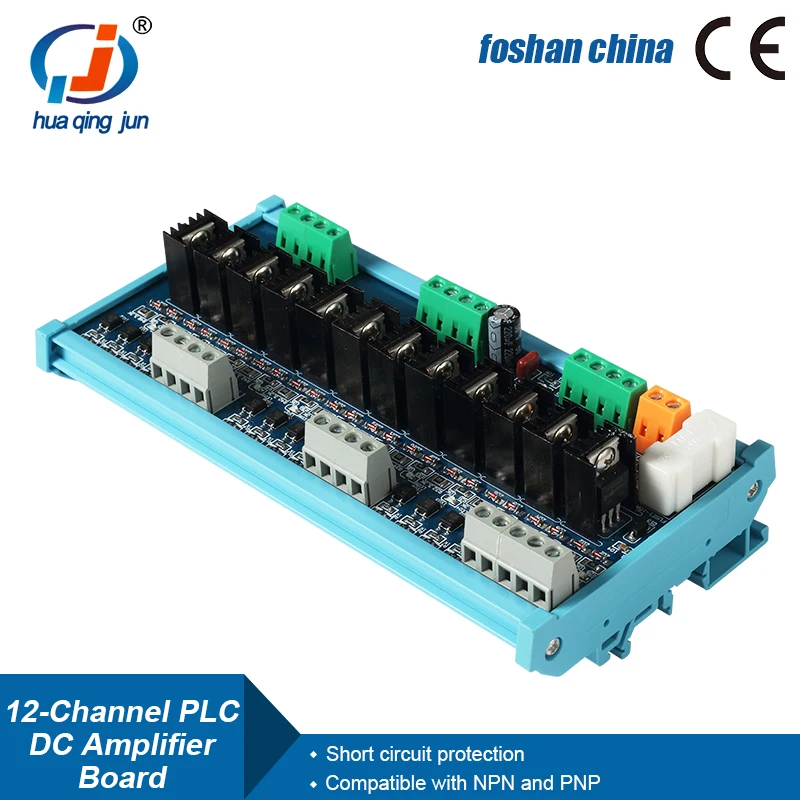

Customized 12 Channel PLC DC Amplifier Board Output Power Board Diaphragm Isolation Original MOS Tube with Heat Protection

Share on (1600470958090):


Price:$21.00 - $22.00

Quantity:


Product Overview

Description



Product Description





















Advantages

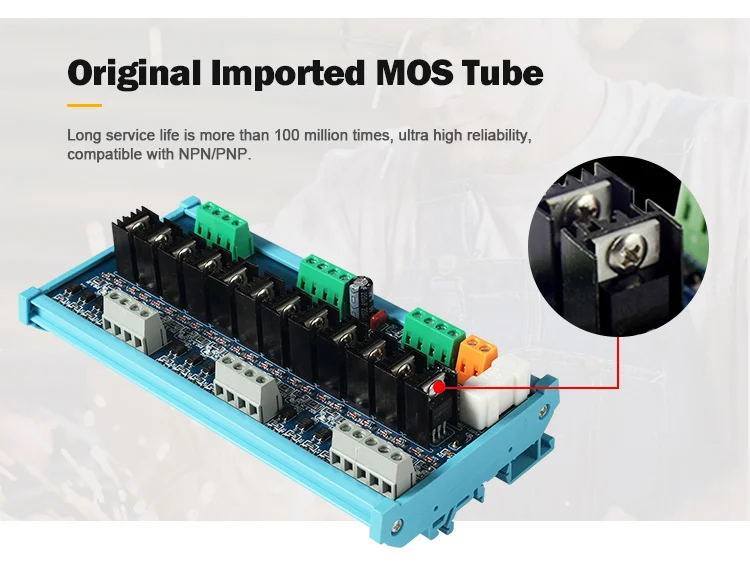

Long life, high operating frequency, short response time and low noise.

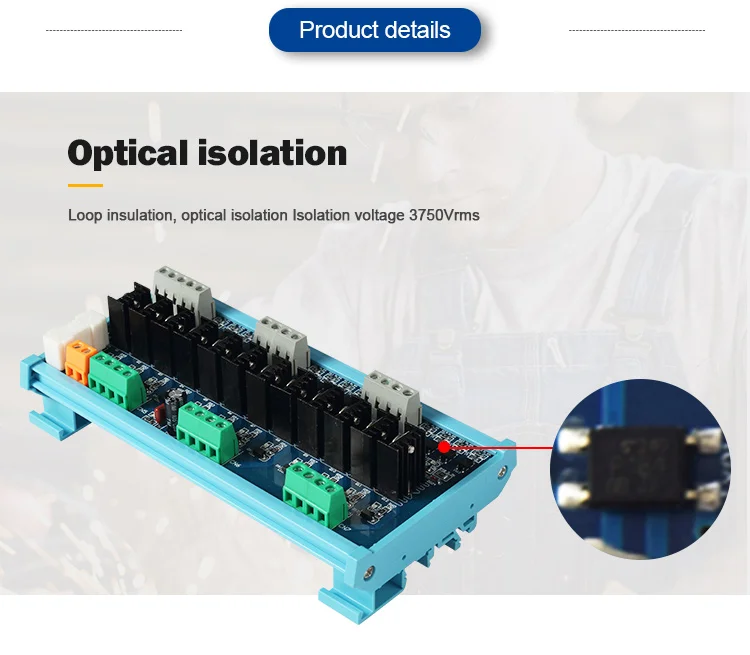

Use diaphragm to prevent surge, arc-extinguishing (2-level crystal reverse) RC circuit, anti-burn contact, short circuit protection (safety tube, self-recovery). Low voltage controls high voltage, and small current carries large current.


Applicable occasions


High frequency, many times, small current


Applicable scene


Small motor, industrial heating rod, heating plate, slitting machine, laminating machine, laser machinery, hydraulic machinery, glass machinery, woodworking machinery, access control and other automation equipment.

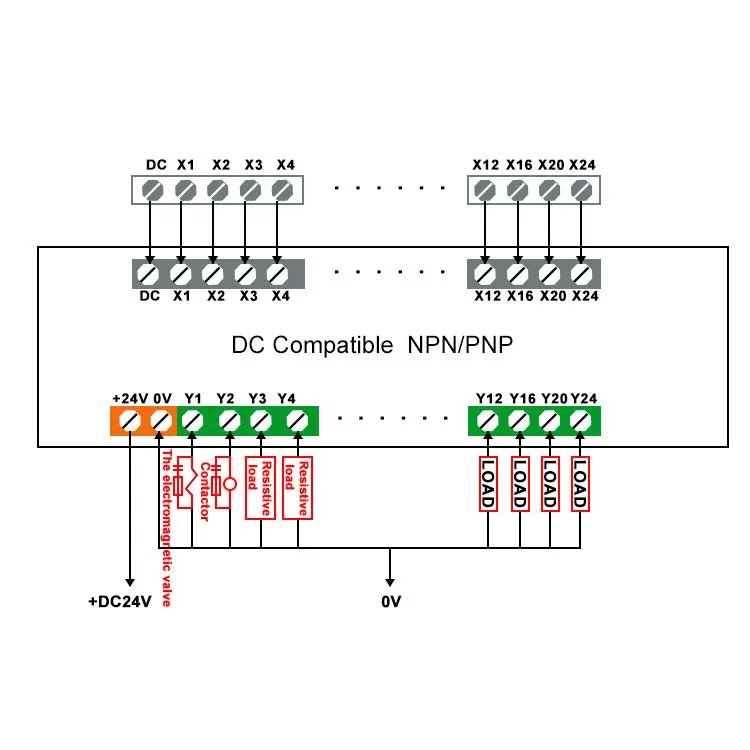

Input signal


Compatible with NPN (input 0V signal is valid) and PNP (input 24V signal is valid)


Maximum load current (Each channel)


Resistive load≤3A  Inductive load≤2A


Input signal voltage


24V (The default is 24V, the control range is 3V-24V. If you need other, please specify)


Output working rated voltage


12-24V

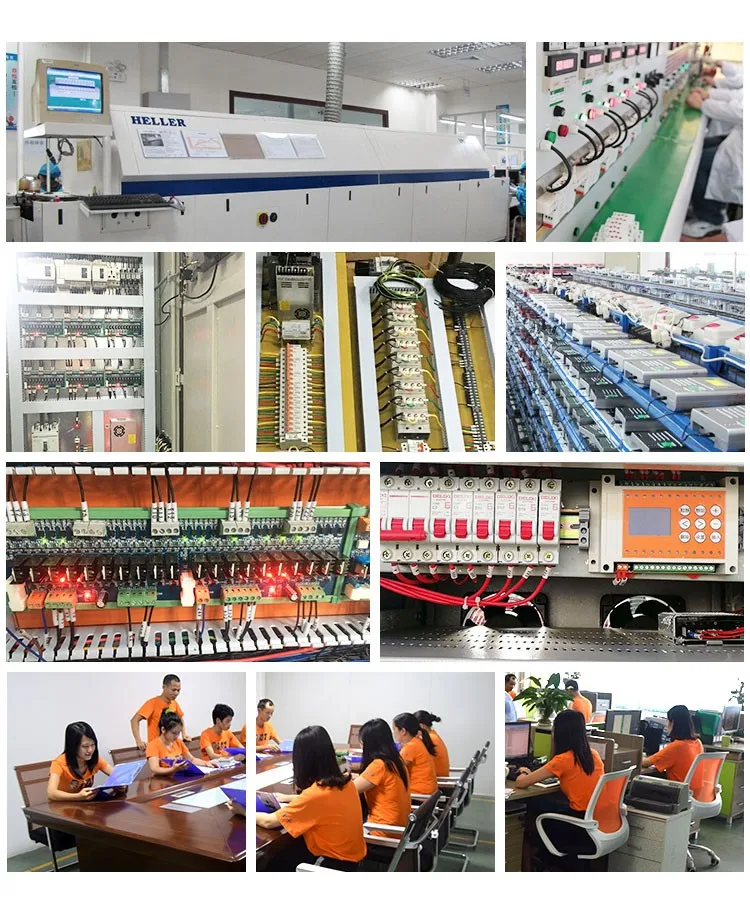

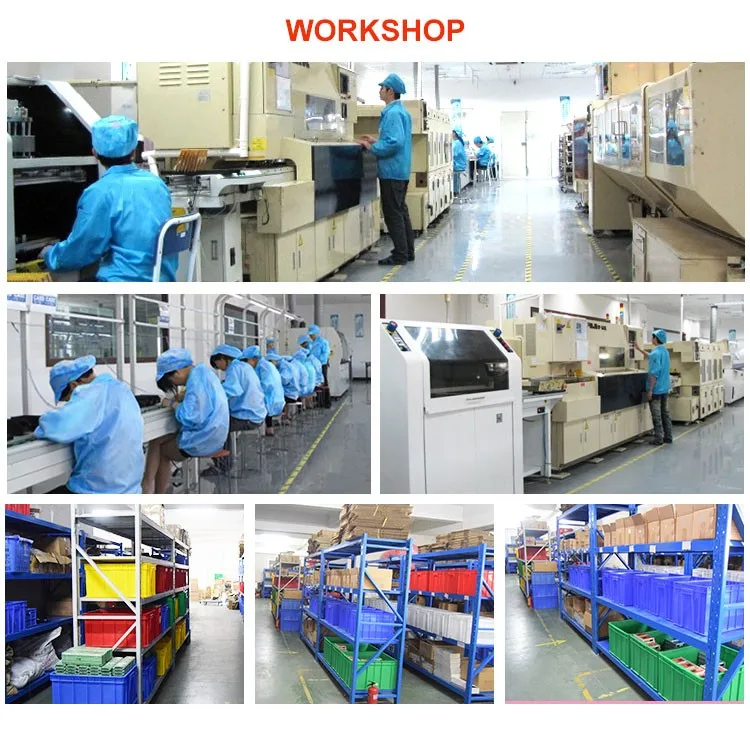

Company Information







Packaging & Shipping








Packing





Packaging Details: standard paper box














Delivery





Port: Guangzhou


Delivery Time: 3-5 days after payment for sample order
                        10-25 days after payment for big order











FAQ


Q1. What advantages do you have?




A: We have independent products, good quality products, excellent technical support and service.



Q2. How long is the quality gurantee?



A: Product quality warranty is one year.



Q3. What is the delivery time?



A: Normally, it is about 3-5 days after payment. It is needs to be negotiated to special requirement orders.



Q4. How about the quality of your product?



A: Before shpping out, we will check for quality, including check the function of products, the appearance, the packing, the necessary accessories and power adapter plug standard.



Q5. How do you keeping our long-term business and good relatonship?



A: 1. We keep good quality and competitive price to ensure our customers benefit.

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
