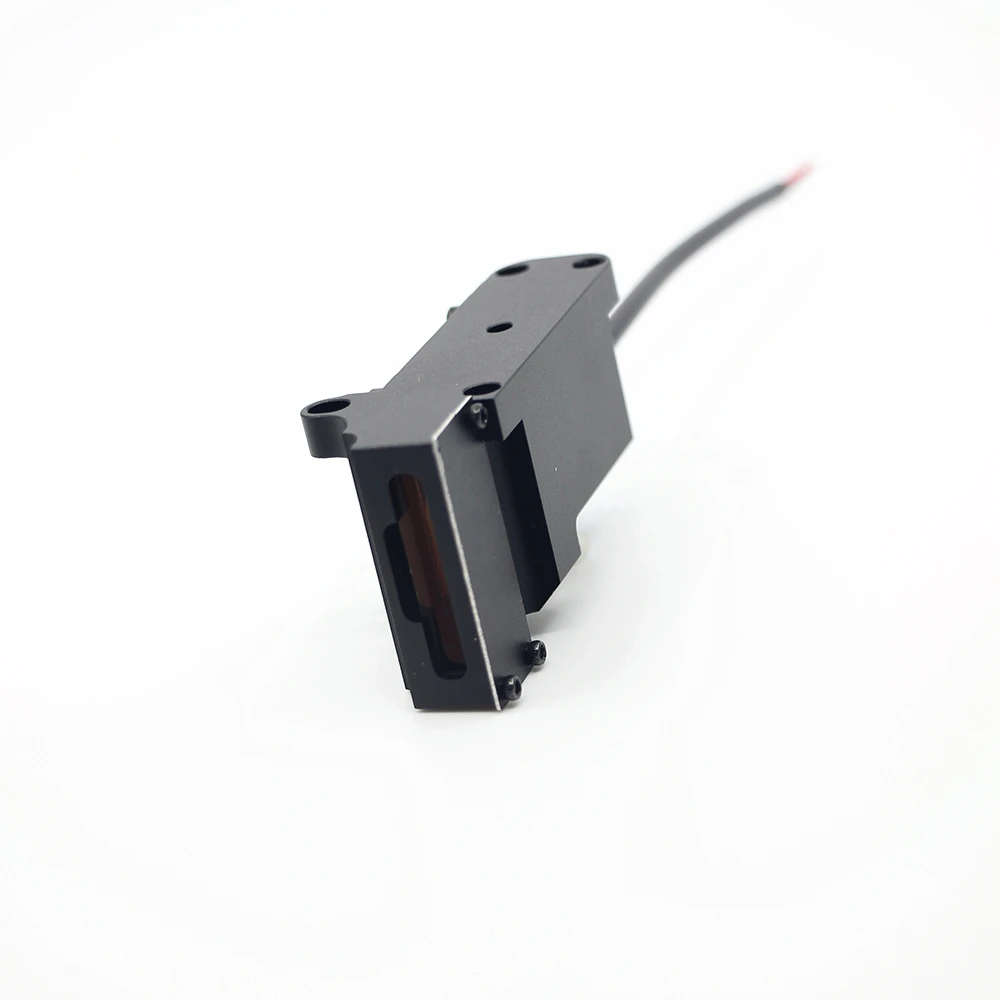

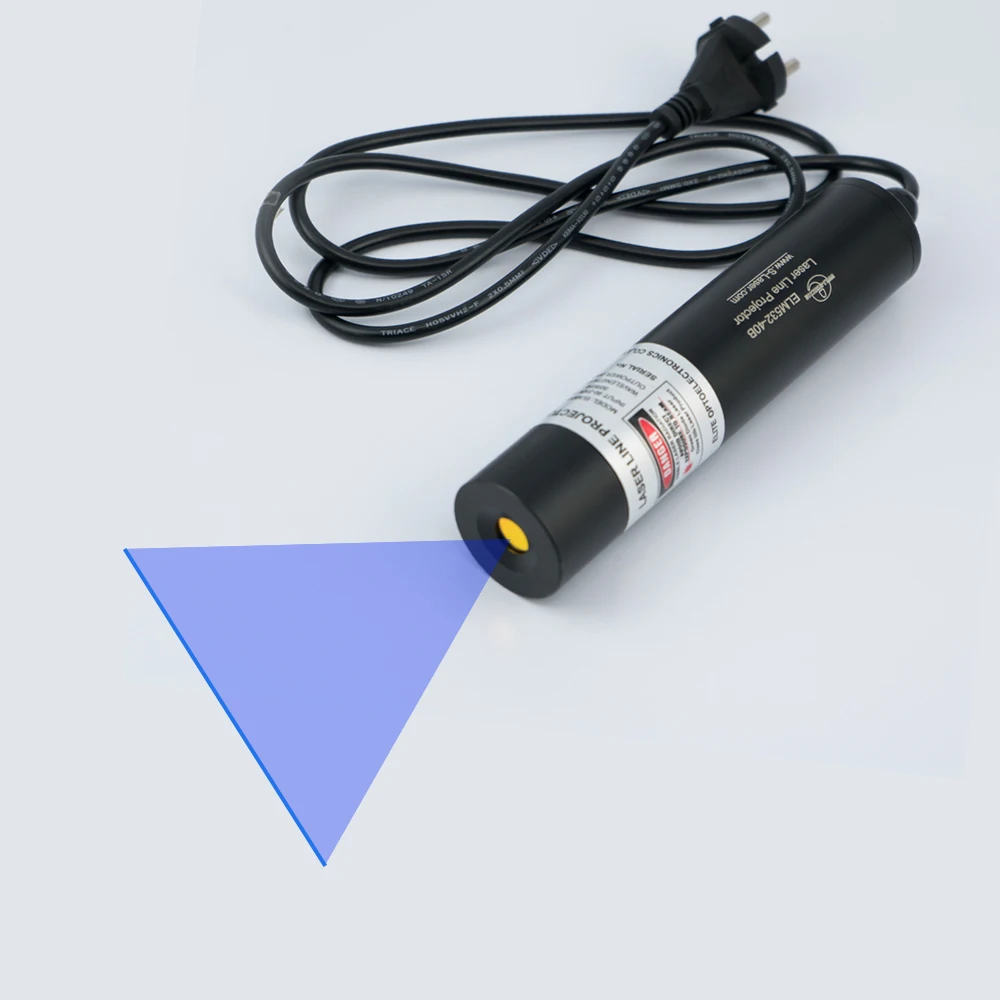

line laser blue 405nm 450nm 20w 5W 3W 1W laser pointer
- Category: >>>
- Supplier: Elite Optoelectronics Co. Ltd.
Share on (1600470959657):
Product Overview
Description

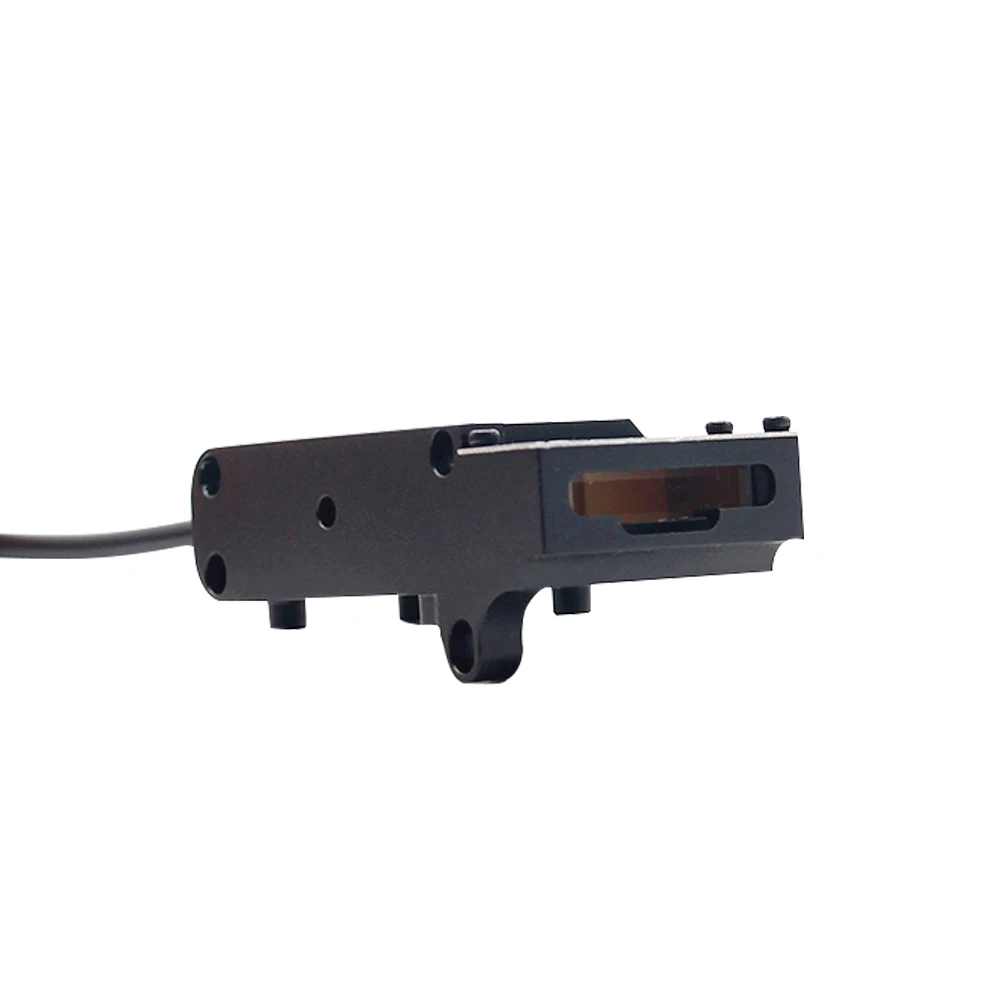

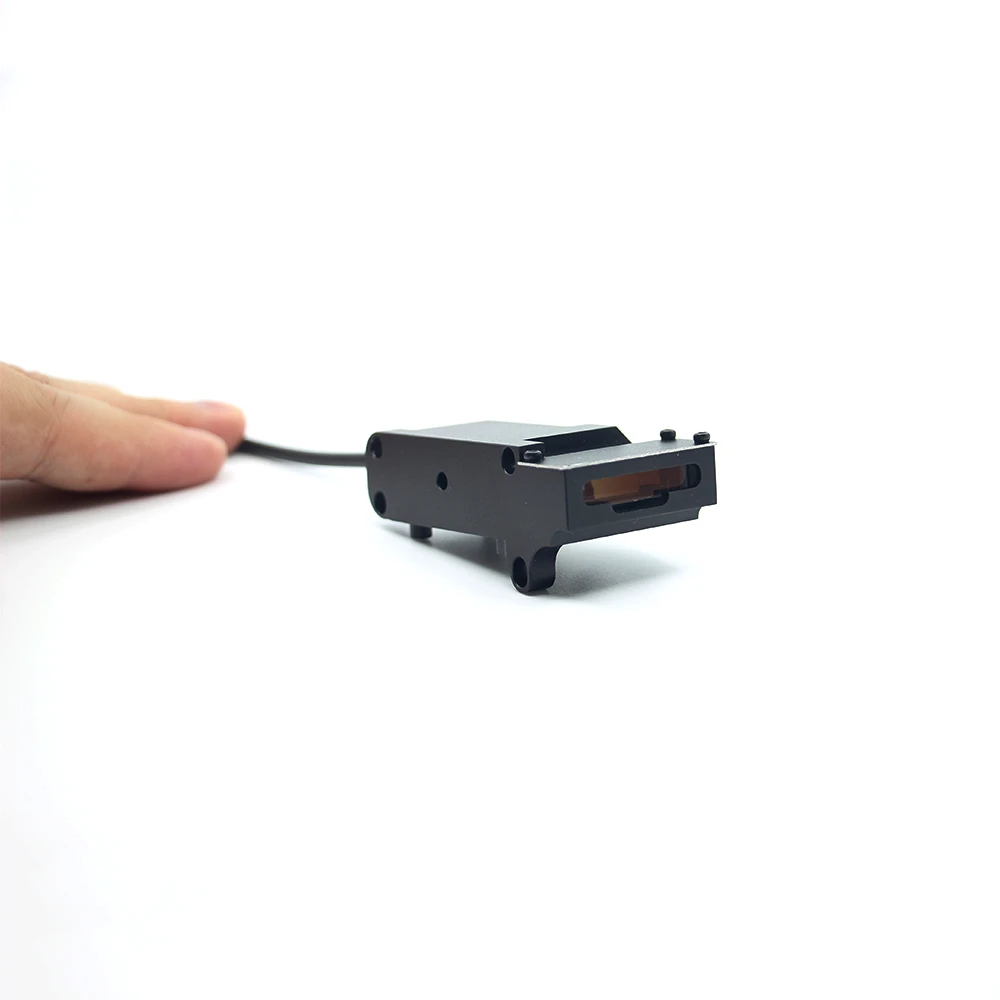

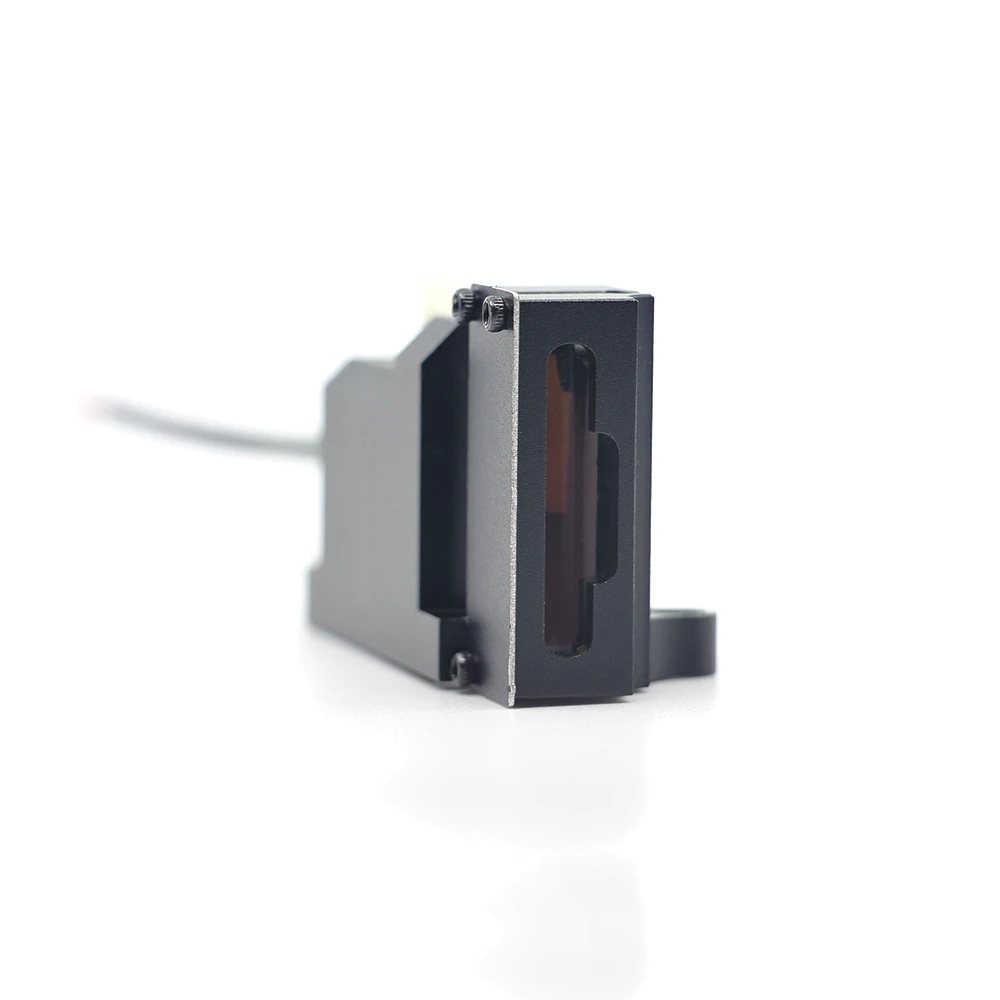

Uniform Line Laser Description This uniform line coupled laser including special lens and powell lens is the high-performance laser line generator. Powell lens is the standard uniform line laser solution in the market. Special lens uniform line laser is an exclusive patent, provides better uniform line width and intensity.This special solution has solved bright spots at both ends of the laser line, and improved beam quality. Therefore, the sharpness and resolution of scanning can be improved. Special lens uniform line laser is widely used in machine vision, 3D scanning, and industrial inspection. Features • High Signal-to-Noise Ratio • 405nm to 850nm • Power up to 500mW • User Adjustable Focus • Analog or Digital Modulation • Power Supply Range: 5 to 24VDC • EDS Protection, Over-temperature Protection, and Reverse Polarity Protection Applications • Machine Vision • 3D Scanners • AGV Robot • LiDAR • Industrial Inspection • Biological Instrument • Logistic Volume Measurements • Road/Rail Inspection • Tunnel Profiling • Infrastructure • Structured Lighting 405nm, 450nm, 520nm, 685nm, 785nm, 808nm, 830nm, and 850nm.
Specification | Uniform Line Laser |
Wavelength | 405nm~850nm |
Output Power | 10mW~500mW |
Spatial Mode | TEM00 |
Line Thickness at 1 /e^2(Line Width) | 10μm@30mm~100μm@300mm(custom) |
Fan Angles | 10° 20° 30° 45° 60° 75° |
Straightness | ≤0.1% |
Relative Intensity | >70% |
Laser Drive Modes | CW,Analog Modulation,Digital Modulation |
Laser Safety Classification | IIIb |
ESD Protection | Level4 |
Operating Temperature | -20℃ to 60℃ |
Storage Temperature | -40℃ to 85℃ |
MTBF | >10,000 Hours |

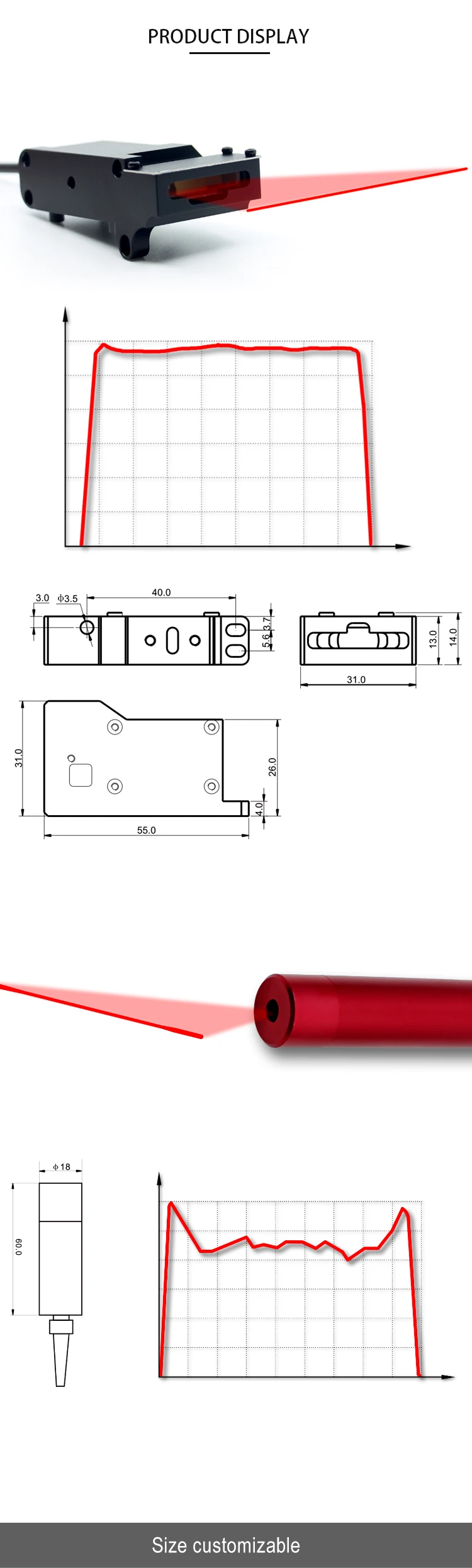

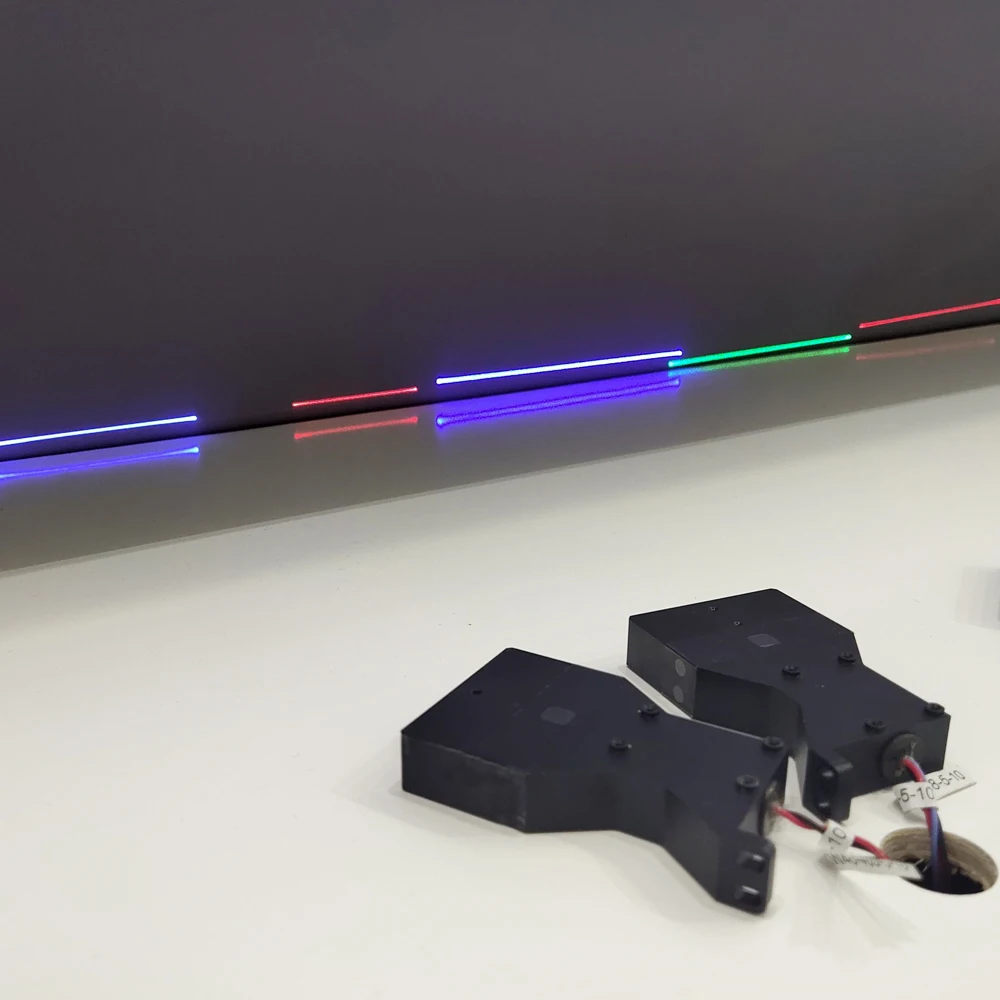

Uniform Line Laser
Special lens
Uniform Line Laser
Powell lens
Universal Applications
• Machine Vision
• 3D Scanners
• AGV Robot
• LiDAR
• Industrial Inspection
• Biological Instrument
• Logistic Volumev Measurements
• Road/Rail Inspection
• Tunnel Profiling
• Infrastructure
• Structured Lighting
Uniform Line Laser
1.High Signal-to-Noise Ratio 2. 405nm to 850nm
Uniform Line Laser
3.Power up to 500mW 4.User Adjustable Focus
Uniform Line Laser
5.Analog or Digital Modulation 6.Power Supply Range:5 to 24VDC
Uniform Line Laser
7.EDS Protection,Overse Polarity Protection
FAQs
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS
7. How long is the warranty period?
12 months.
Shipping via DHL, TNT, UPS, FedEx, and EMS.
2. What's the payment method?
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS
7. How long is the warranty period?
12 months.
