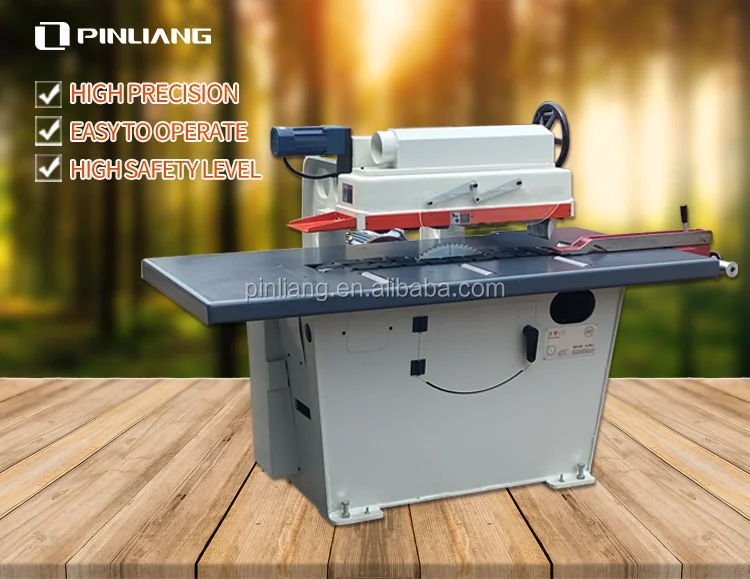

Laser guide Single blade bottom Rip Saw high precision MJ163 Timber Straight Line Rip Saw
- Category: Wood Saw Machines >>>
- Supplier: Foshan Pinruiliang Machinery Co. Ltd.
Share on (1600470989142):
Product Overview
Description
Product Description
Product Application: This Bottom Rip Saw is using for furniture factory for cutting wood with high accuracy and high efiicient. Bring great help to the subsequent production process
MJ163 Bottom rip saw | ||
Working thickness | 10-105mm | |
Max.Working width | 460mm | |
Min.working length | 250mm | |
Max.saw blade dia | 405mm | |
Main motor power | 10kw | |
Feeding motor power | 2kw (Multi speed motor ) | |
Total power | 12kw | |
Saw shaft diameter | 50.8mm | |
Spindle speed | 2900rpm | |
Feeding speed | 4/19/25m/min (manual adjust or automatic adjust following the processing thickness) | |
Working table size | 1700*1000mm | |

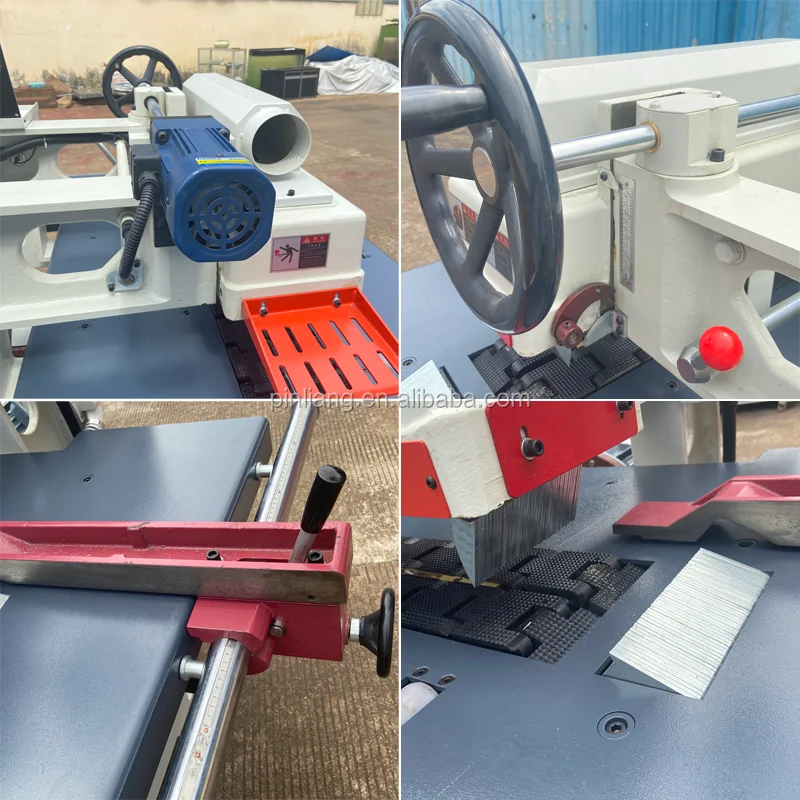

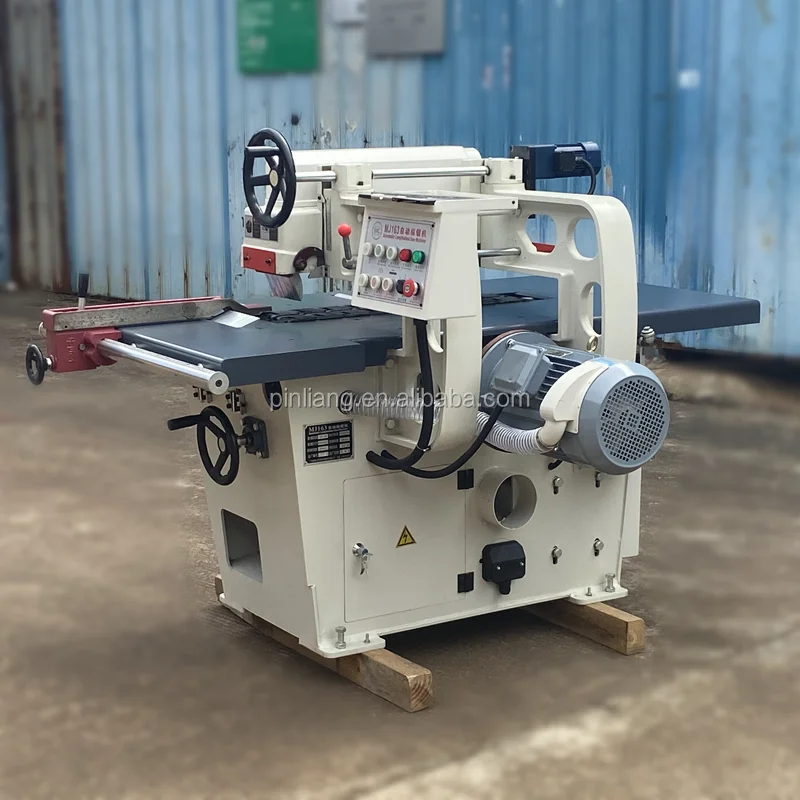

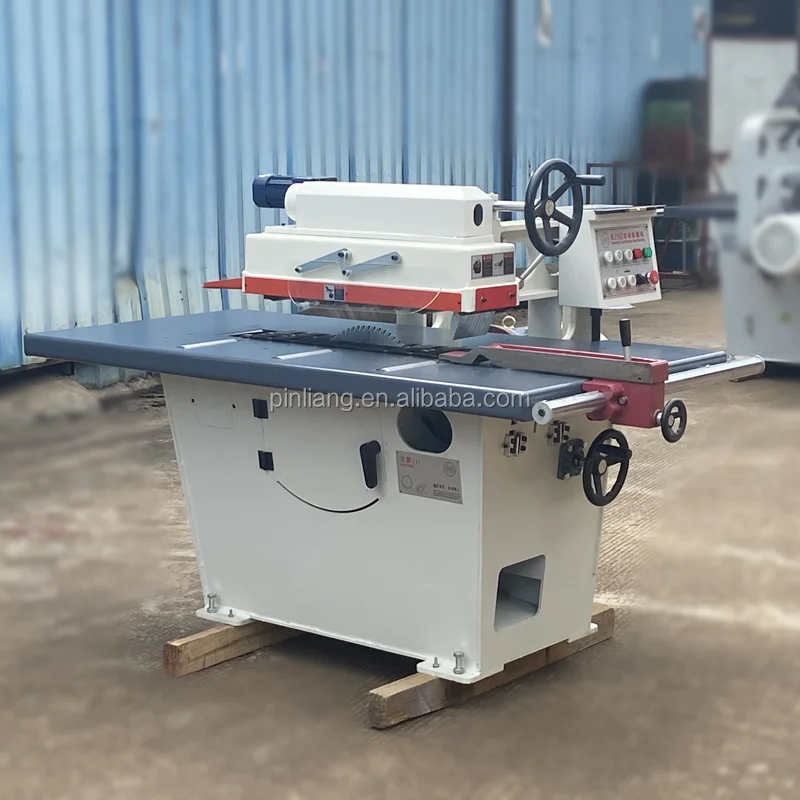

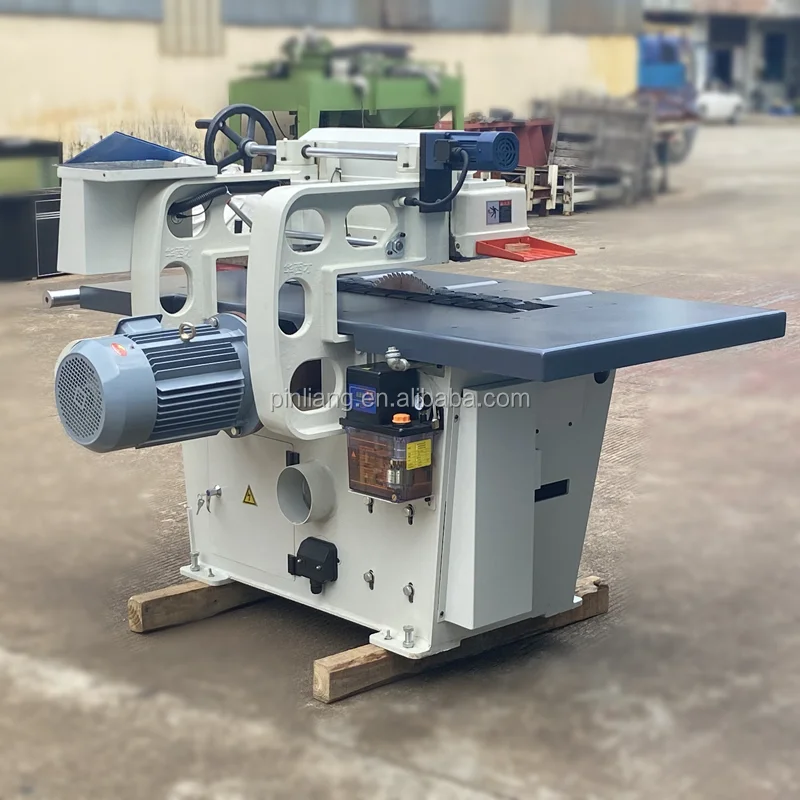

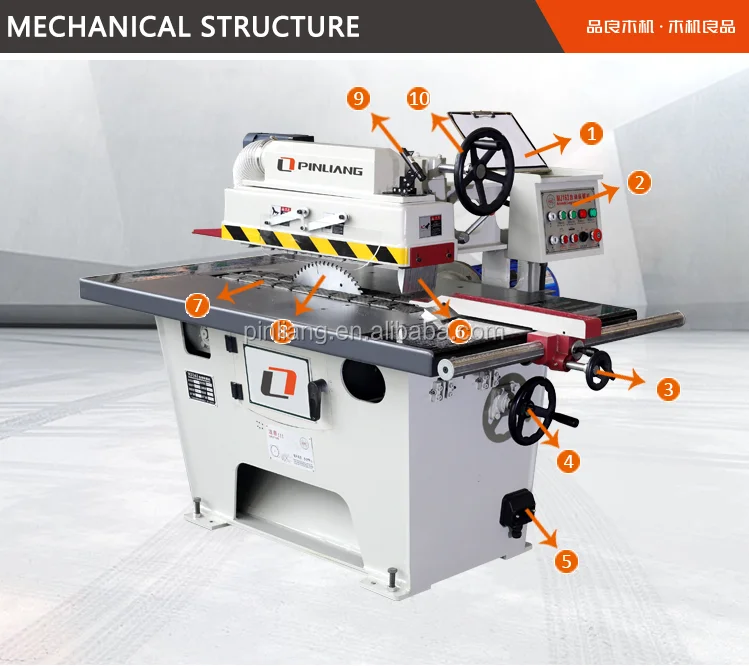

1.Control operation panel 2.Laser line positioning device

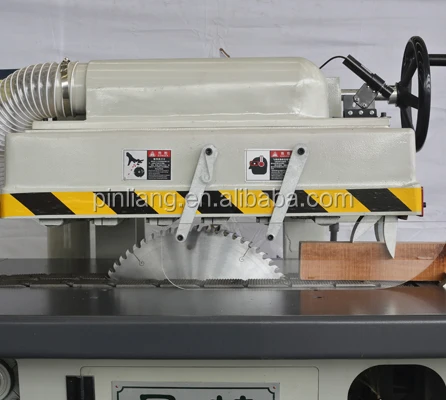

3.Timber anti-rebound safety device 4.Movable backing
5.Machine electrical box 6.Power junction box

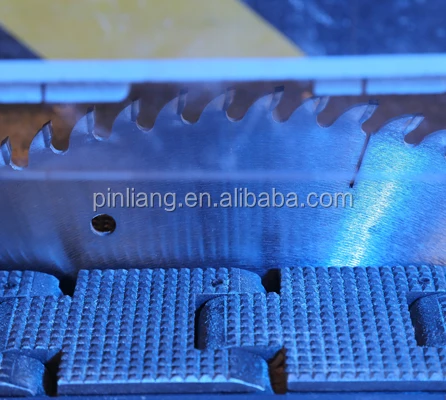

7.High-quality alloy trimming saw blade 8.Feed chain plate
9.Extension workbench 10.Beam manual lifting hand wheel
3.Timber anti-rebound safety device 4.Movable backing
5.Machine electrical box 6.Power junction box
7.High-quality alloy trimming saw blade 8.Feed chain plate
9.Extension workbench 10.Beam manual lifting hand wheel

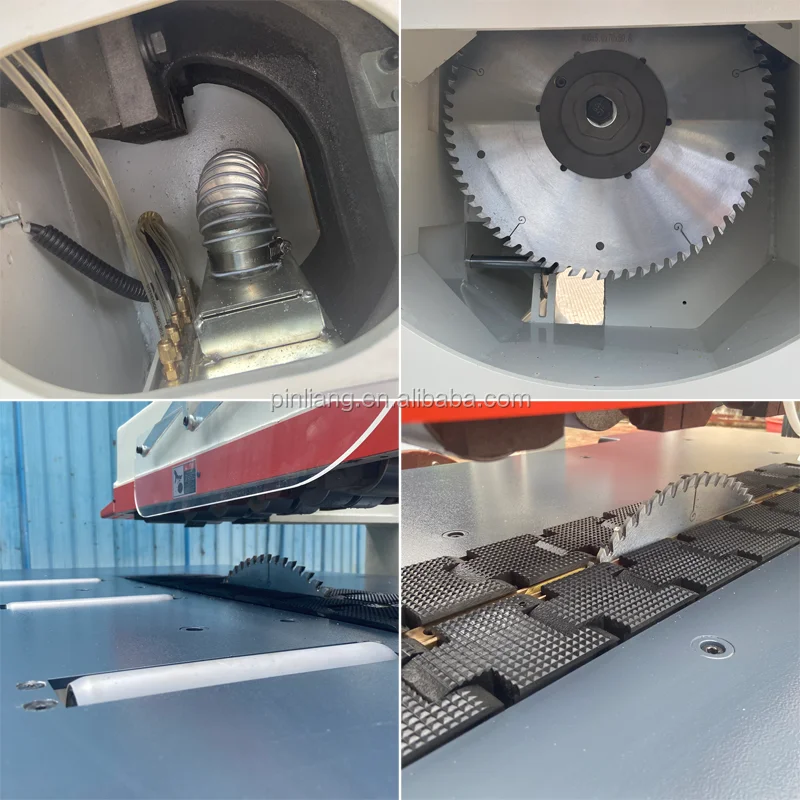

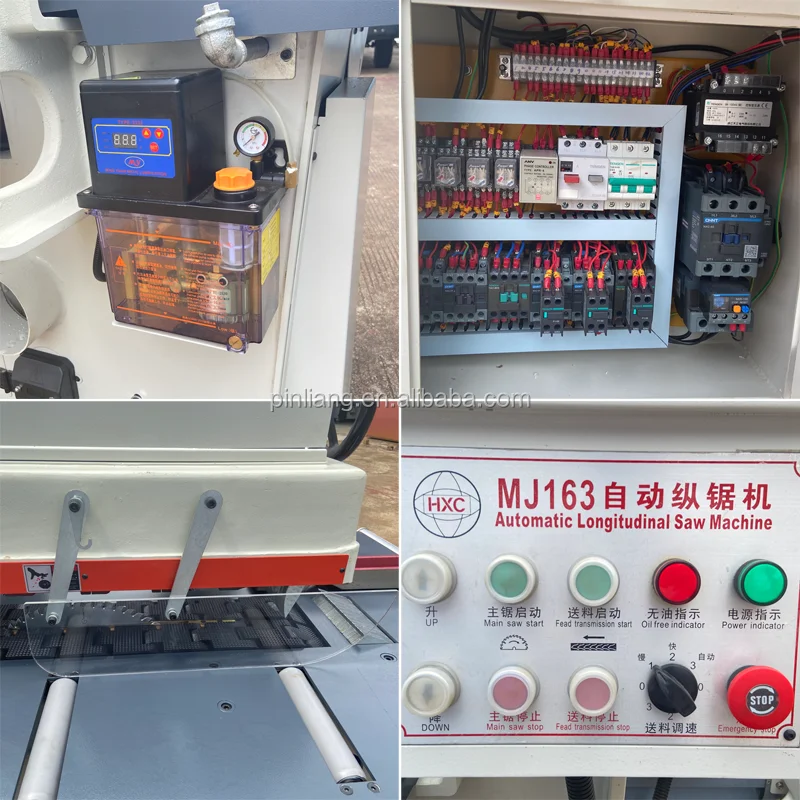

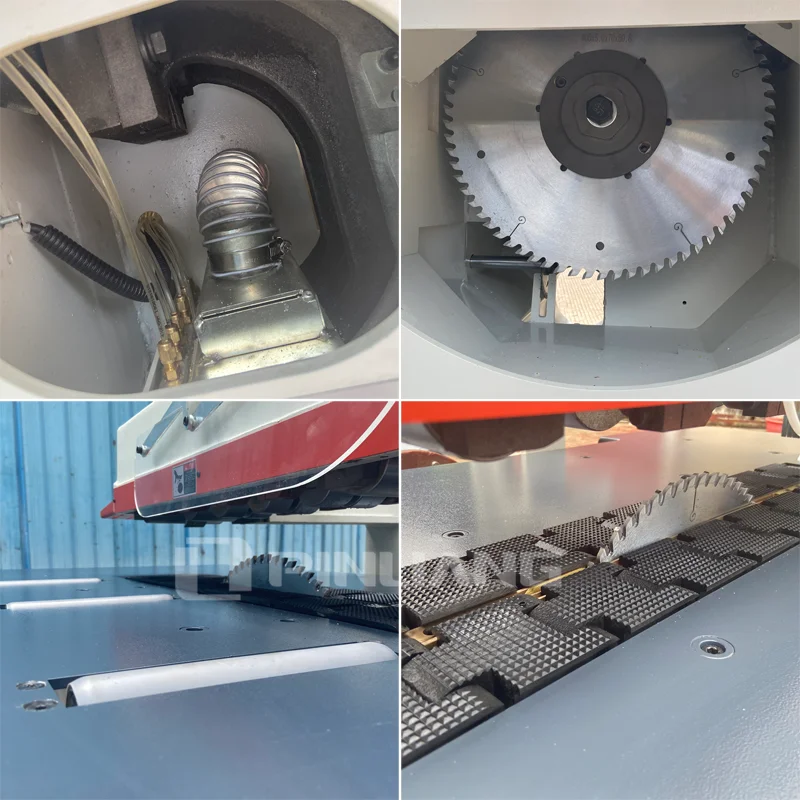

Detailed Images

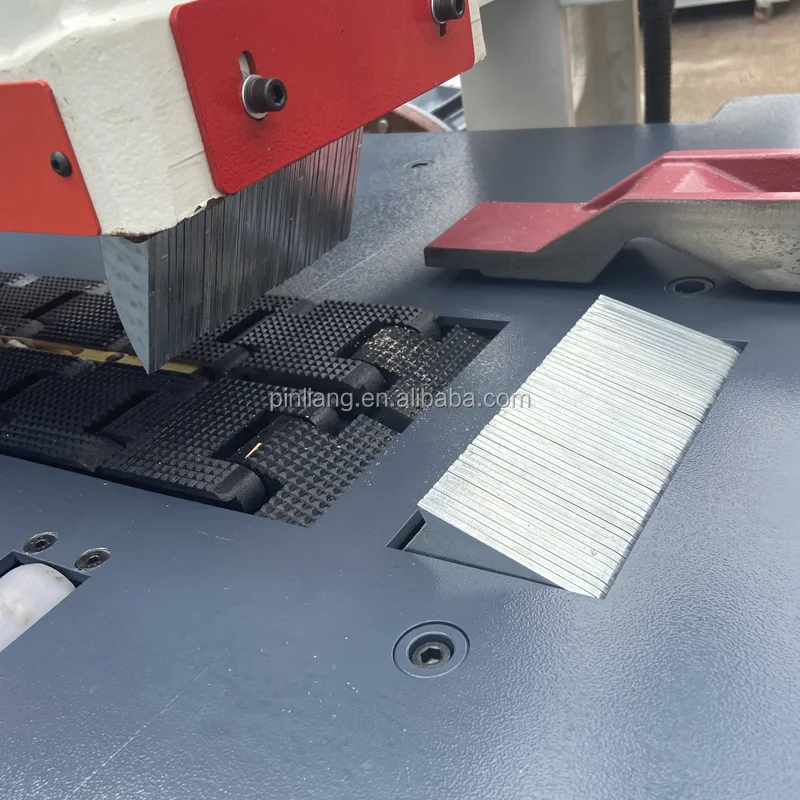

As the core component of the machine, we have specially treated the chain plate guide rails, which greatly improves the wear
resistance and service life of the guide rails.
resistance and service life of the guide rails.

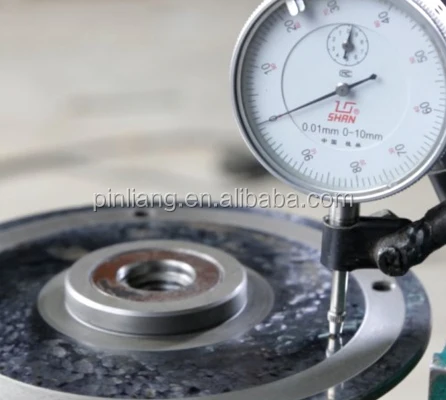

Spindle is processed by forging process, with zero error in assembly
The spindle of this machine is made by forging (similar to the process of making swords). It is not made by ordinary welding. It
is equipped with a special spindle sealing device and an oil cooling system, which can ensure the spindle's long-term high-load
operation.
Most spindles of ordinary technology will be damaged within 3 years and need to be replaced, but our spindles can be used for more
than ten years.
is equipped with a special spindle sealing device and an oil cooling system, which can ensure the spindle's long-term high-load
operation.
Most spindles of ordinary technology will be damaged within 3 years and need to be replaced, but our spindles can be used for more
than ten years.

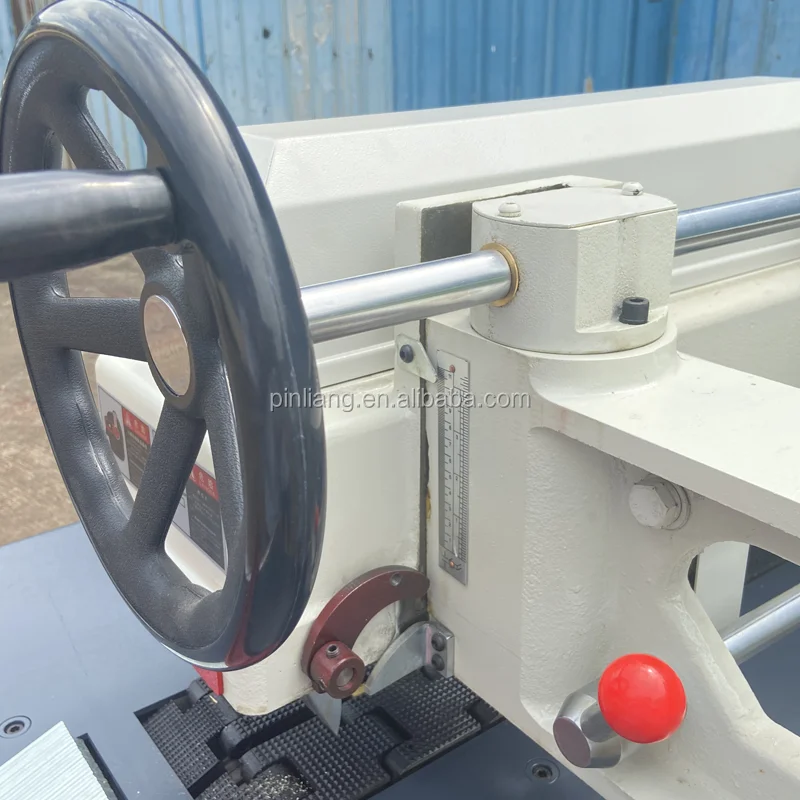

Feeding speed is automatically adjusted according to sawing height (output power is not attenuated)
When adjusting the cutting height, the feeding speed is automatically adjusted to ensure that the feeding speed is slow when the
sawing thickness is high; when the sawing thickness is thin, the feeding speed is fast. In addition, the operation panel can
directly select three speeds: fast, medium, and low.
sawing thickness is high; when the sawing thickness is thin, the feeding speed is fast. In addition, the operation panel can
directly select three speeds: fast, medium, and low.
Similar Productions
FAQ
How to buy
1. Contact PINLIANG sales and provide your requirements to get best solutions
2. Order confirmed, get invoice, contract from PINLIANG.
3. Normally, production started against TT by 30% deposit.
4. After one week, PINLIANG sales inform you production state and delivery date.
5. Order finished, PINLIANG sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
2. Order confirmed, get invoice, contract from PINLIANG.
3. Normally, production started against TT by 30% deposit.
4. After one week, PINLIANG sales inform you production state and delivery date.
5. Order finished, PINLIANG sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve,
our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for PINLIANG machines, including find problems, send
spare parts, and teach you to replace the parts.
our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for PINLIANG machines, including find problems, send
spare parts, and teach you to replace the parts.
Service contacting
Before buying, choose suitable model contact 008618934373658 （whtsAp）. After buying, technical supporting contact 008618934373631（whtsAp）

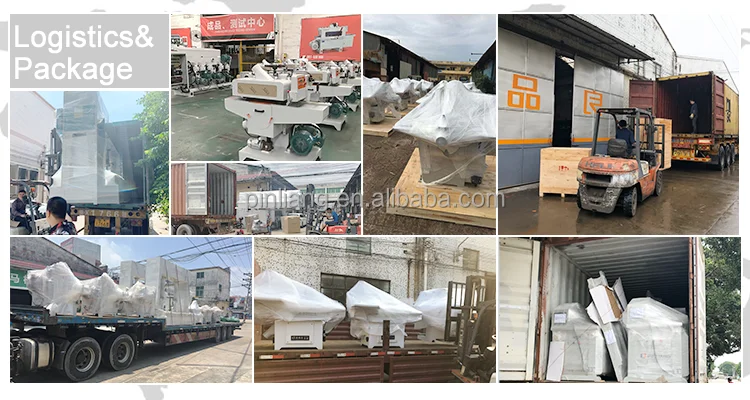

Packing & Delivery
When machine are finished, we will provide plywood packaging or regular packaging as needed.
PINLIANG have a professional loading team. The pre-planning of container loading makes full use of the container space. After machine are loaded into the container, it will be firmly fixed to ensure that all machines are safe and stable during transportation. (Plywood packaging is firmer but requires additional costs)
PINLIANG have a professional loading team. The pre-planning of container loading makes full use of the container space. After machine are loaded into the container, it will be firmly fixed to ensure that all machines are safe and stable during transportation. (Plywood packaging is firmer but requires additional costs)

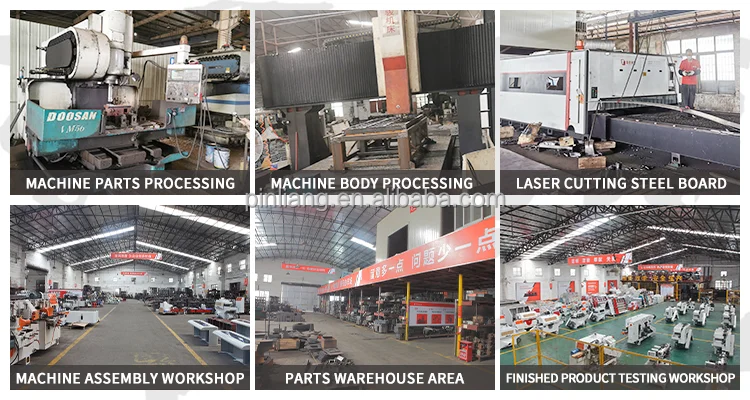

Production Process

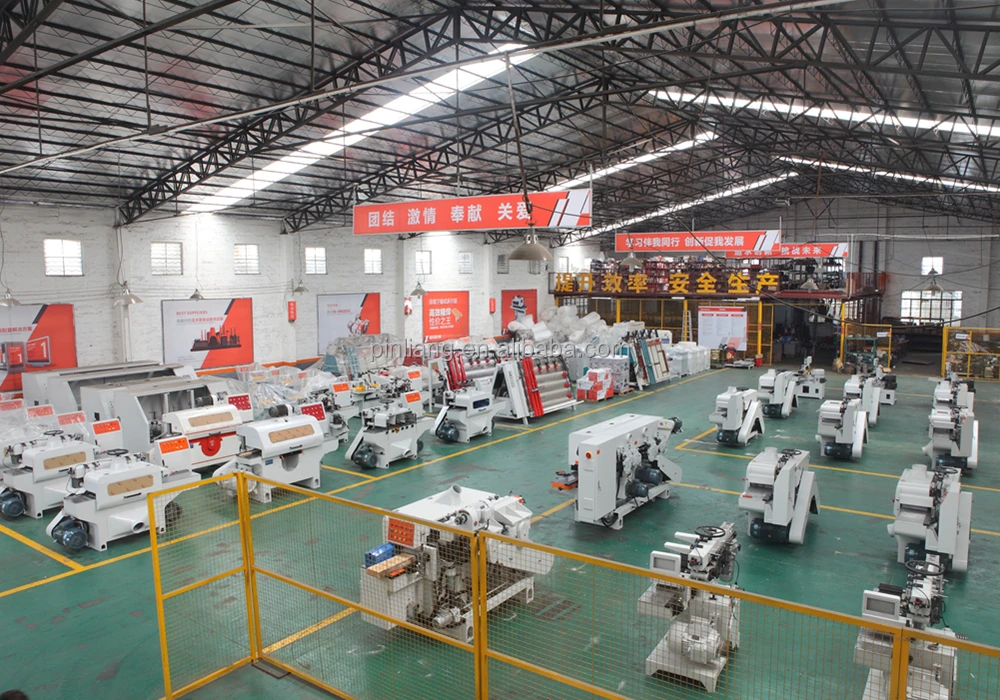

We use imported CNC machine to process parts. The main steel parts of all machines are formed by laser cutting. Through the careful design of engineers, the structure of the machine is stable and durable.
Each machine is tested and inspected for a long time before leaving our factory to ensure that each machine is qualified and excellent in quality.
Each machine is tested and inspected for a long time before leaving our factory to ensure that each machine is qualified and excellent in quality.
