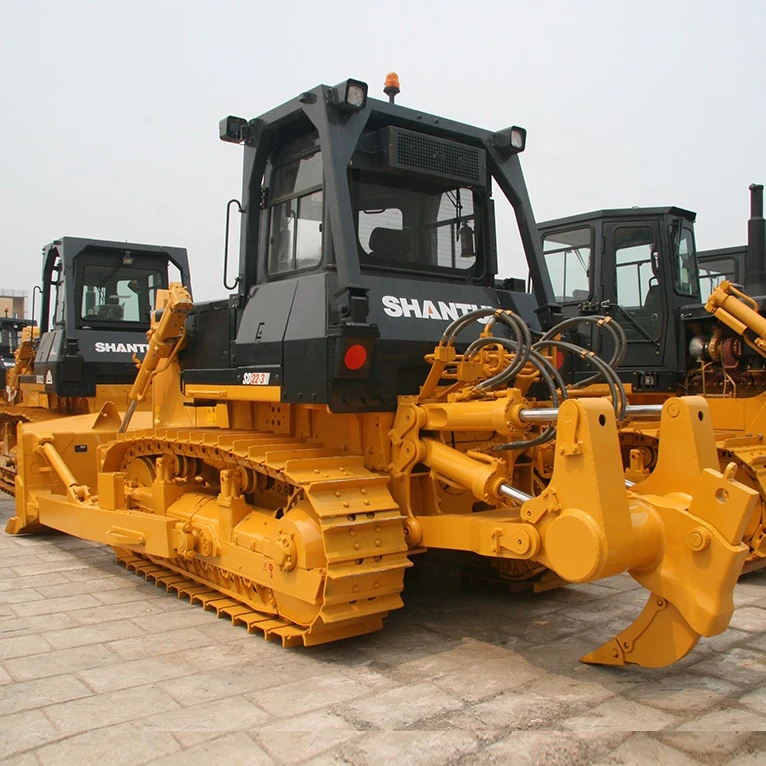

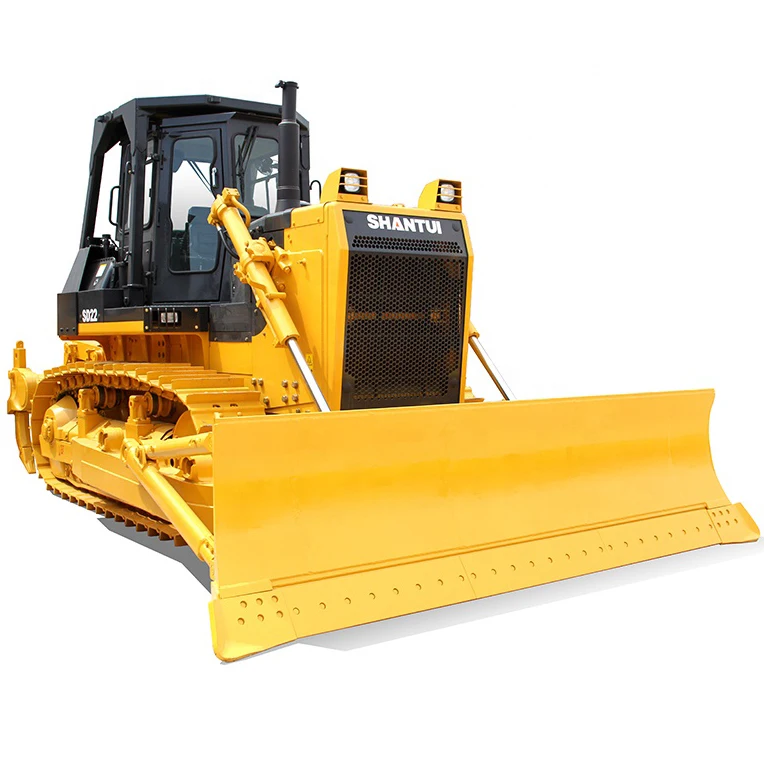

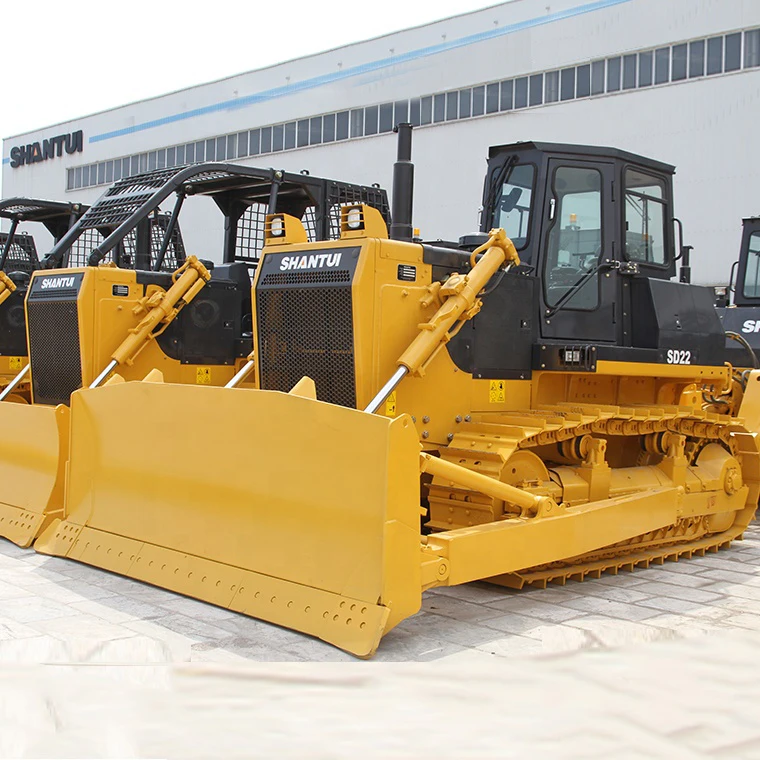

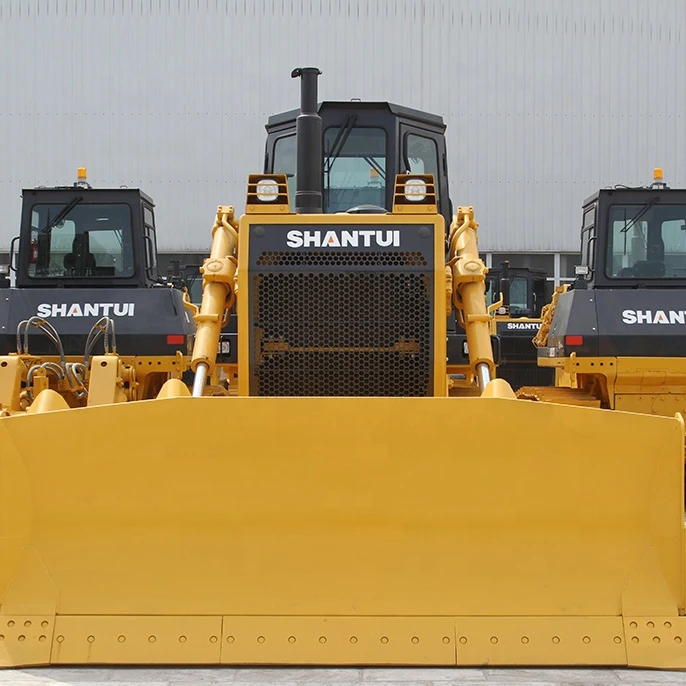

Shantui Road Dozer SD22 220 Hp New Crawler Bulldozers For Sale
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600472003189):
Product Overview
Description
Product information
Product parameters
Model & type | Cummins NT855-C280S10; In-line, water cooled 4-cycle, overhead valve direct injection, turbocharged diesel | ||||||
Rated power | 162 kW | ||||||
Number of | 6—139.7 x 152.4 mm (bore x stroke) | ||||||
Piston | 14.01 L | ||||||
Min. fuel consumption | 205 g/kW·h | ||||||
Maximum | 1030 N·m@1250rpm | ||||||
Torque converter | 3-element, 1 stage, 1 phase | ||||||
Transmission | Planetary gear, multi-disc clutch, hydraulically connected, forced lubrication | ||||||
Main drive | Spiral bevel gear, splash lubrication, single-stage speed reduction | ||||||
Steering clutch | Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control | ||||||
Steering brake | Wet, floating, direct on-off hydraulic inter-linking operation | ||||||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | ||||||
Gear | 1st | 2nd | 3rd | ||||
Forward | 0~3.6 km/h | 0~6.5 km/h | 0~11.2 km/h | ||||
Reverse | 0~4.3 km/h | 0~7.7 km/h | 0~13.2 km/h | ||||
Type | Swing type of sprayed beam, suspended structure of equalizer | ||||||
Carrier rollers | 2 each side | ||||||
Track rollers | 6 each side | ||||||
Track type | Assembled, single-grouser | ||||||
Width of track shoes | 560 mm | ||||||
Pitch | 216 mm | ||||||
Maximum pressure | 14 MPa | ||||||
Pump type | Gear pump | ||||||
Discharge | 262 L/min | ||||||
Bore of | 120 mm × 2 | ||||||
Blade type | Straight-tilt | Angle | Semi-U-blade | ||||
Dozing capacity | 6.4 m3 | 4.7 m3 | 7.5 m3 | ||||
Efficiency (Theoretical value 40 m) | 330 m3/h | 245 m3/h | 365 m3/h | ||||
Blade width | 3725 mm | 4365 mm | 3725 mm | ||||
Blade height | 1315 mm | 1055 mm | 1374 mm | ||||
Maximum drop below ground | 538 mm | 535 mm | 540 mm | ||||
Maximum tilt adjustment | >735 mm | >500 mm | >755 mm | ||||
Maximum tilt adjustment | 2830 kg | 3254 kg | 3254 kg | ||||
Maximum digging depth of 3-shank ripper | 666 mm |
Maximum lift above ground | 555 mm |
Weight of 3-shank ripper | 2495 kg |
Maximum digging depth of single ripper | 695 mm |
Maximum lift above ground | 515 mm |
Weight of single ripper | 2453 kg |

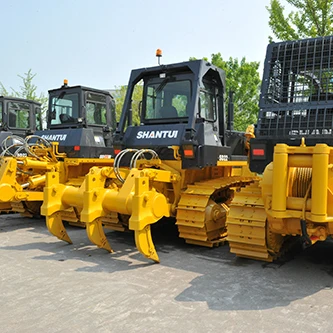

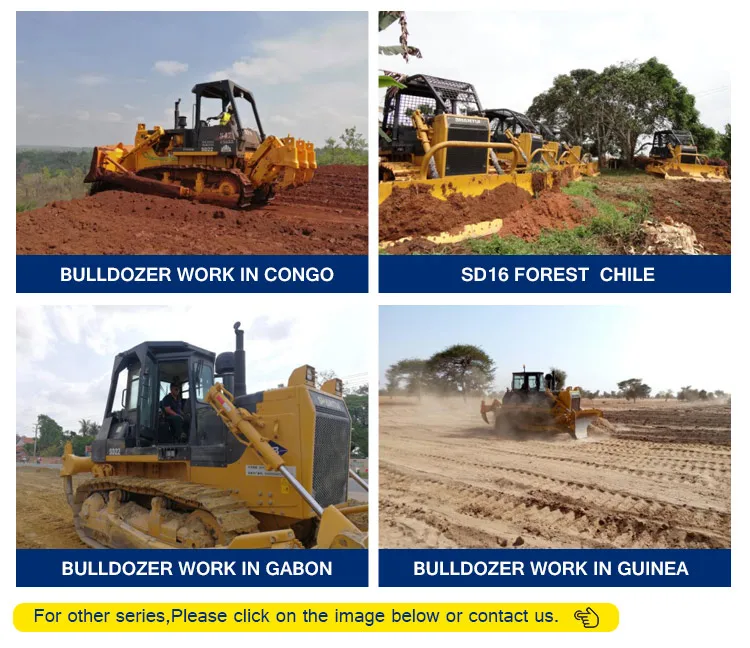

Successful construction cases
Shantui’sbest-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier IIIb Cummins engine for European markets for other markets.

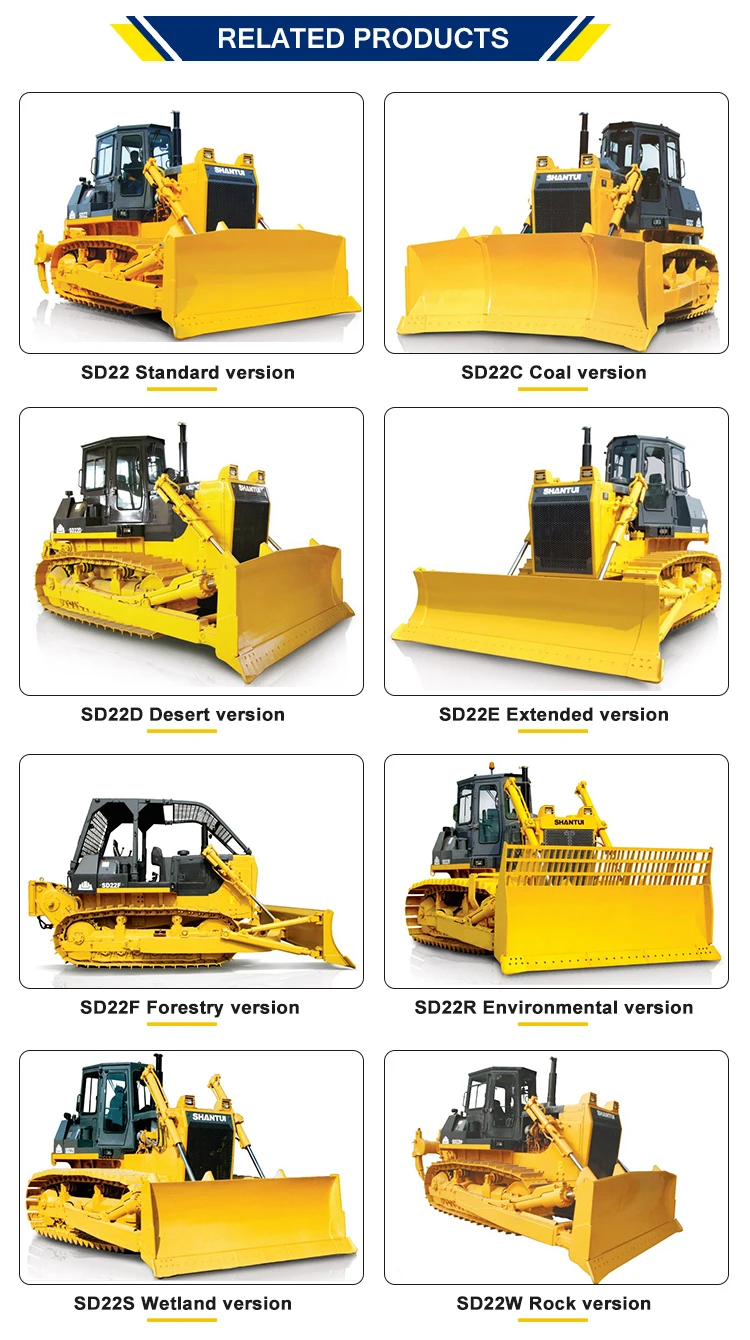

Related products

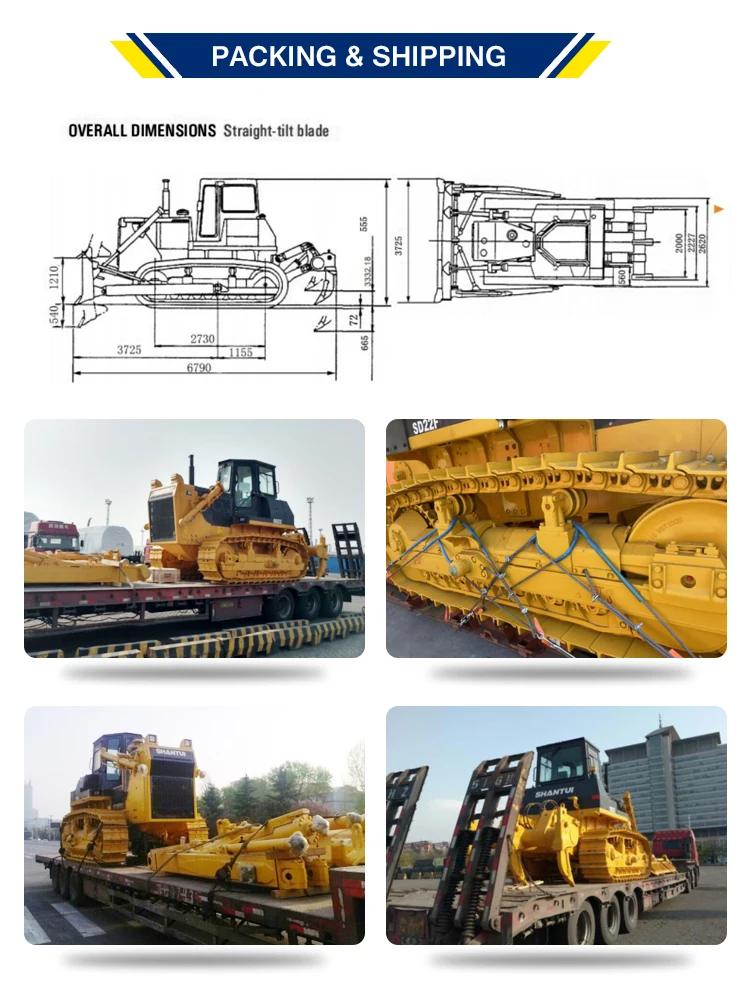

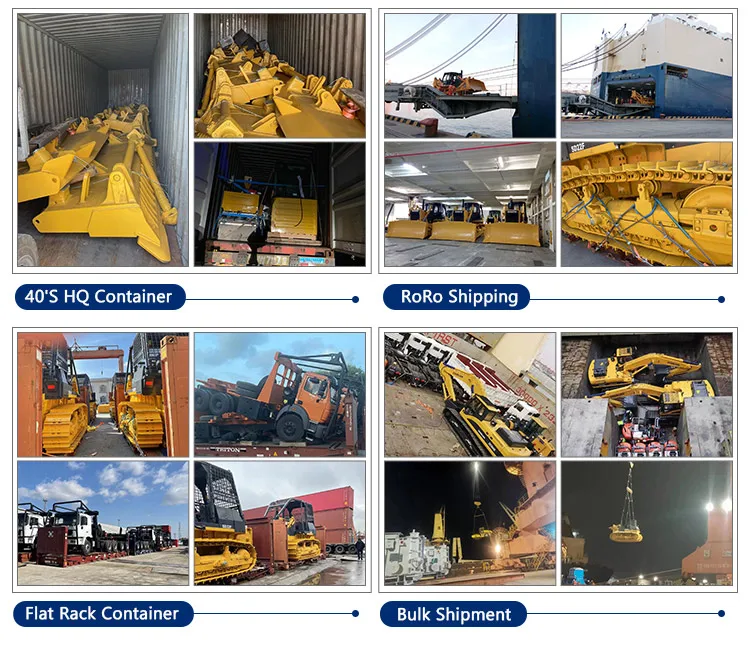

Packing & Delivery
