Misecu metal 2.8mm lens 5mp camera ir night vision h.265 poe ip camera dome onviif one way audio
- Category: >>>
- Supplier: Shenzhen Techage Technology Corp. Ltd.
Share on (1600472019863):
Product Overview
Description
Products Description
Warm Tips:
1.Ship from Russian/ Czech warehouse will be Received the Goods Faster.
2. Czech Warehouse can Ship to Spain, Portugal, Germany, France, Austria, Belgium, United Kingdom, Italy, Luxembourg,Netherlands,Czech Republic, Denmark, Poland, Slovenia, Slovakia, Bulgaria, Estonia, Finland, Hungary, Ireland, Lithuania, Latvia,Romania,Sweden, Country.
1.Ship from Russian/ Czech warehouse will be Received the Goods Faster.
2. Czech Warehouse can Ship to Spain, Portugal, Germany, France, Austria, Belgium, United Kingdom, Italy, Luxembourg,Netherlands,Czech Republic, Denmark, Poland, Slovenia, Slovakia, Bulgaria, Estonia, Finland, Hungary, Ireland, Lithuania, Latvia,Romania,Sweden, Country.
Camera parameters
1) 3MP/5MP 12V IP Camera or 48V POE IP Camera For Optional
2) 3.0MP 2304*1296P/5.0MP 2592*1944
3) With IR-CUT, support day/night switch
4) 3mp 20fps/ 5mp 15fps
5) DC 12V/ 48V PoE Optional
6) 15pcs IR LED, 20m ir distance for night vision
7) Multi-screen software and CMS
8) Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
9)Support motion detection, ON-VIF
10) Support visit by smart phone
• Title OSD: Supports channel name, date, and video stream information overlay;
• Privacy Mask: 4 configurable regions
• Image Orientation: image flip and mirror
• Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF)
• Auto Black Level Calibration (ABLC)
• Network protocol: TCP/IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP
• ON-VIF protocols: Support 2.0 Version
• Remote View: IE 6.0 or above, Firefox, chrome ( old version please )
• Network Interface: 10/100M BASE-TX,RJ-45 connector
1) 3MP/5MP 12V IP Camera or 48V POE IP Camera For Optional
2) 3.0MP 2304*1296P/5.0MP 2592*1944
3) With IR-CUT, support day/night switch
4) 3mp 20fps/ 5mp 15fps
5) DC 12V/ 48V PoE Optional
6) 15pcs IR LED, 20m ir distance for night vision
7) Multi-screen software and CMS
8) Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
9)Support motion detection, ON-VIF
10) Support visit by smart phone
• Title OSD: Supports channel name, date, and video stream information overlay;
• Privacy Mask: 4 configurable regions
• Image Orientation: image flip and mirror
• Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF)
• Auto Black Level Calibration (ABLC)
• Network protocol: TCP/IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP
• ON-VIF protocols: Support 2.0 Version
• Remote View: IE 6.0 or above, Firefox, chrome ( old version please )
• Network Interface: 10/100M BASE-TX,RJ-45 connector
General Specifications
• Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)
• Operating Humidity: 0% -85% RH

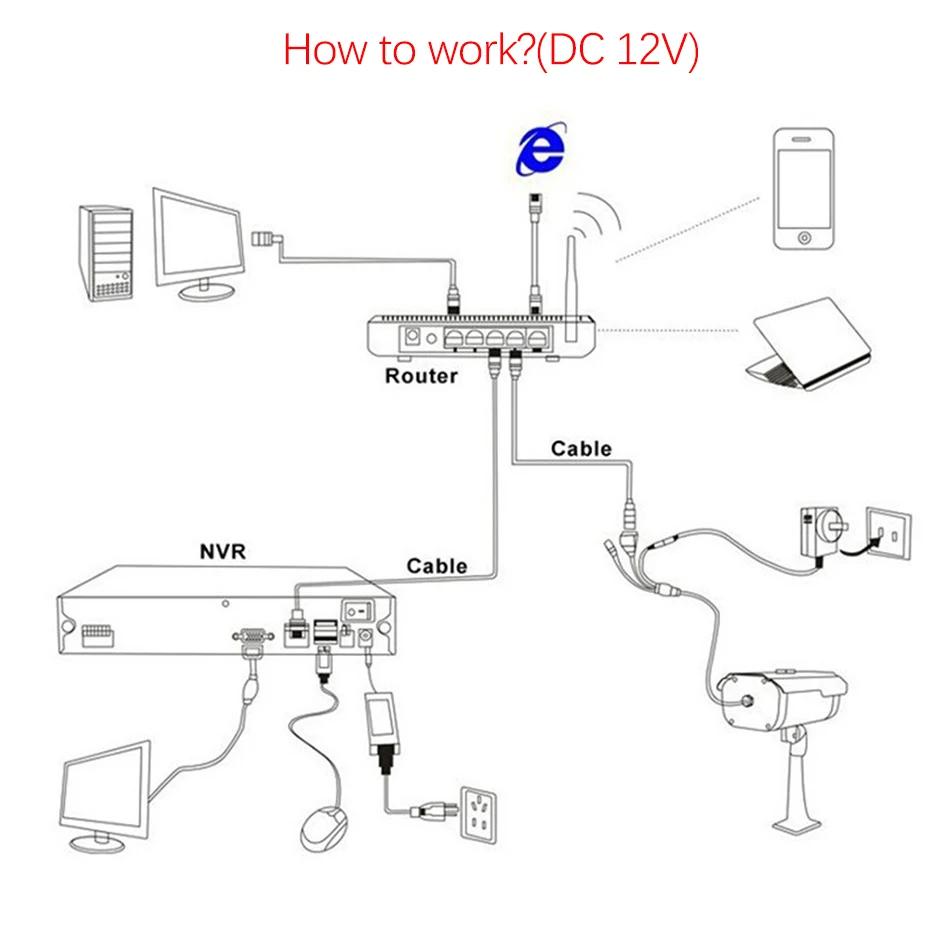

• Power: DC 12V 2A(DC 12V Version ) or 48V PoE Switch ( PoE version )
Notice : 48V PoE Version Has PoE Module Inside Which Can Work With DC PSU & 48V PoE Switch/Injector (NOT Included )
*Please don't directly use 48V power for 12V or 48V camera, it will be damaged!
The camera is not support zoom function!
• Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)
• Operating Humidity: 0% -85% RH
• Power: DC 12V 2A(DC 12V Version ) or 48V PoE Switch ( PoE version )
Notice : 48V PoE Version Has PoE Module Inside Which Can Work With DC PSU & 48V PoE Switch/Injector (NOT Included )
*Please don't directly use 48V power for 12V or 48V camera, it will be damaged!
The camera is not support zoom function!
How we pack
1x 3.0MP/5.0MP IR HD IP Audio Camera/POE (no power supply)
Screw
Stricker
Waterproof Lid Manual
1x 3.0MP/5.0MP IR HD IP Audio Camera/POE (no power supply)
Screw
Stricker
Waterproof Lid Manual
H.265 Video Compression
Better Video Quality, Less Video Storage.
Better Video Quality, Less Video Storage.

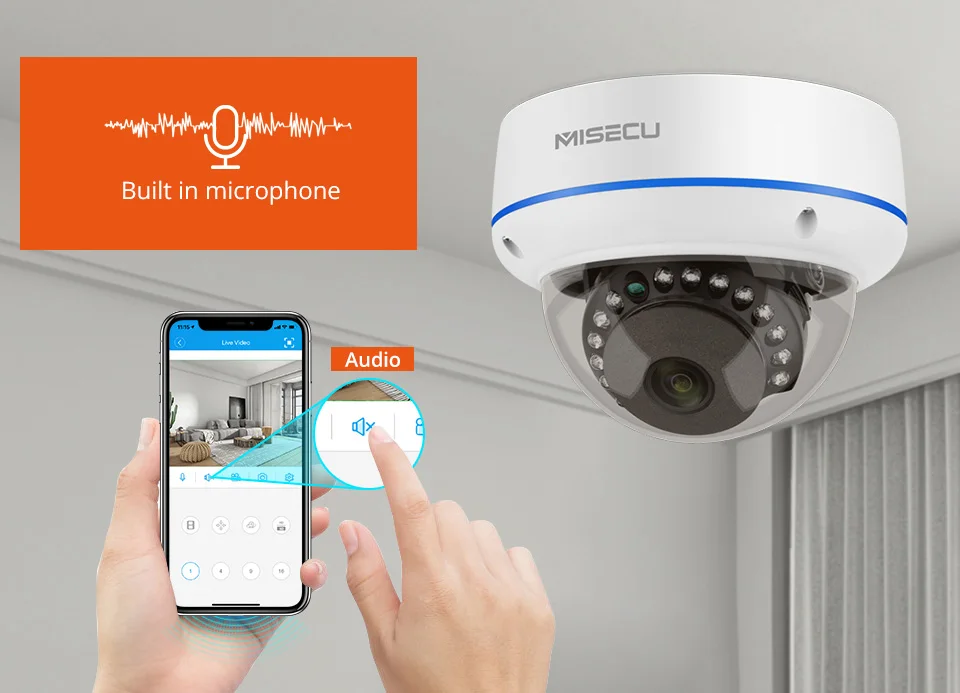

Audio Record Sound Camera
Built-in microphone records what people say, make it authentic with sound video recording
Built-in microphone records what people say, make it authentic with sound video recording
Day and Night Vision
Built in IR Cut with 15pcs IR LEDS,up to 25 meters distance
Built in IR Cut with 15pcs IR LEDS,up to 25 meters distance
Support Motion Detection
Alert and Recording Setting the motion detection to block areas with constant movement send an email alert when motion activated
Alert and Recording Setting the motion detection to block areas with constant movement send an email alert when motion activated

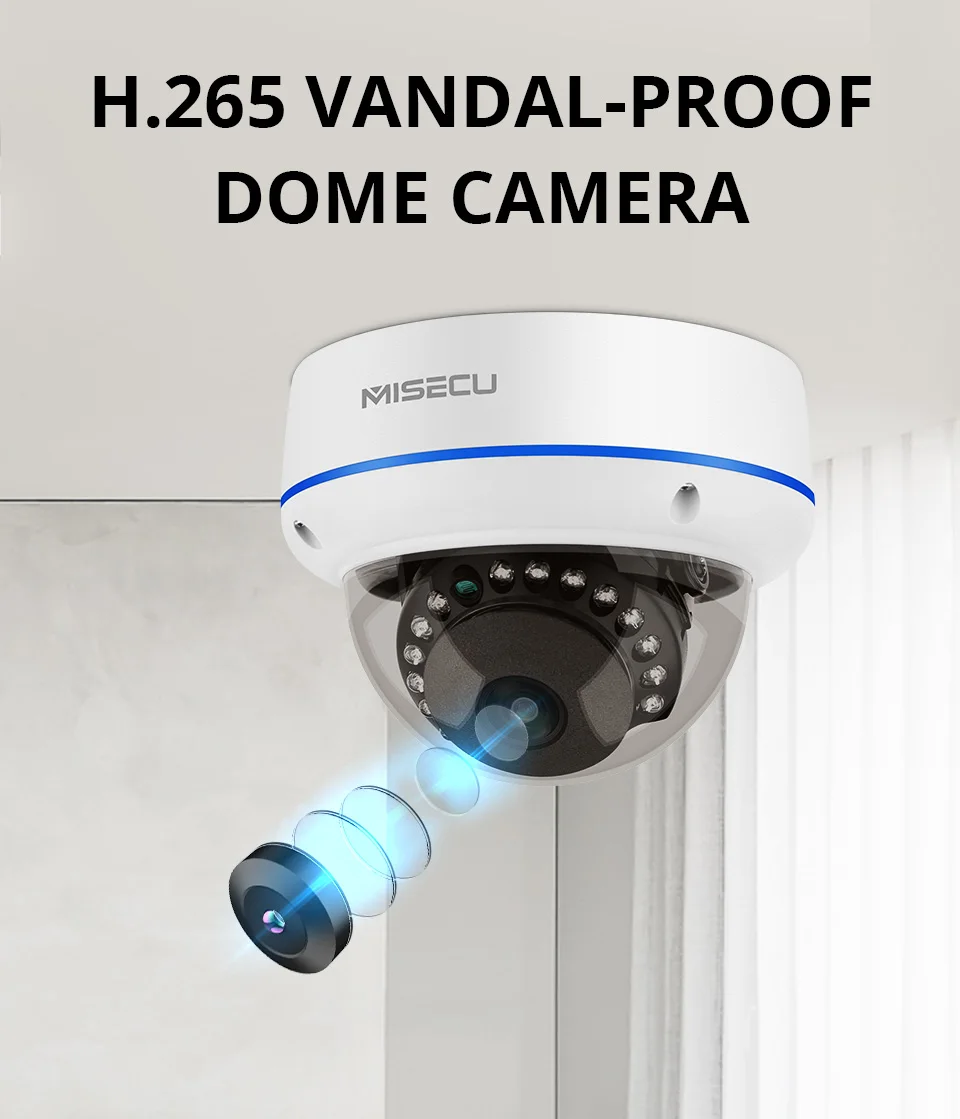

Vandalproof of Metal Housing

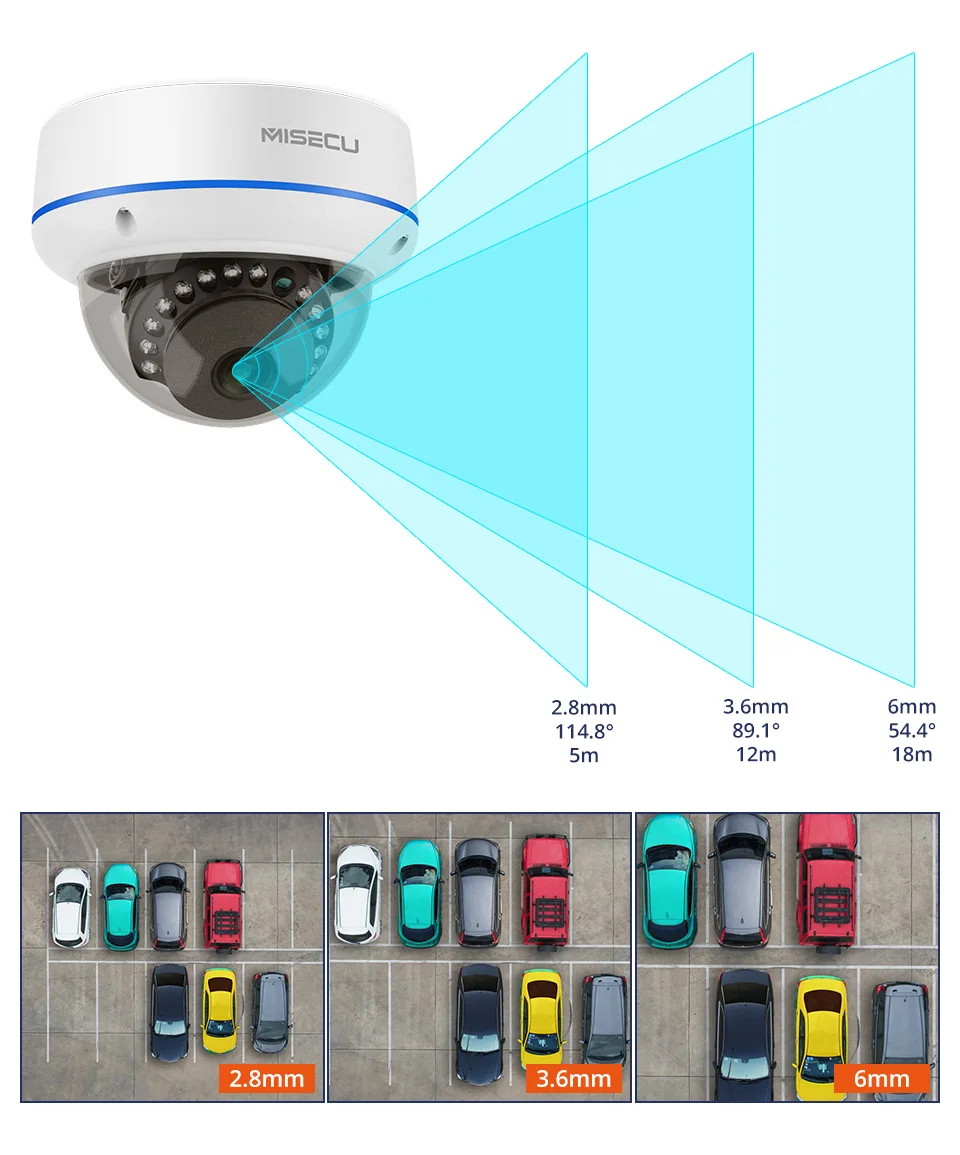

2.8mm Len Wide Angle
Video With Smart Playback
Smart Playback Available With Customizable Searching Area, Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.
Smart Playback Available With Customizable Searching Area, Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.
Warm Note

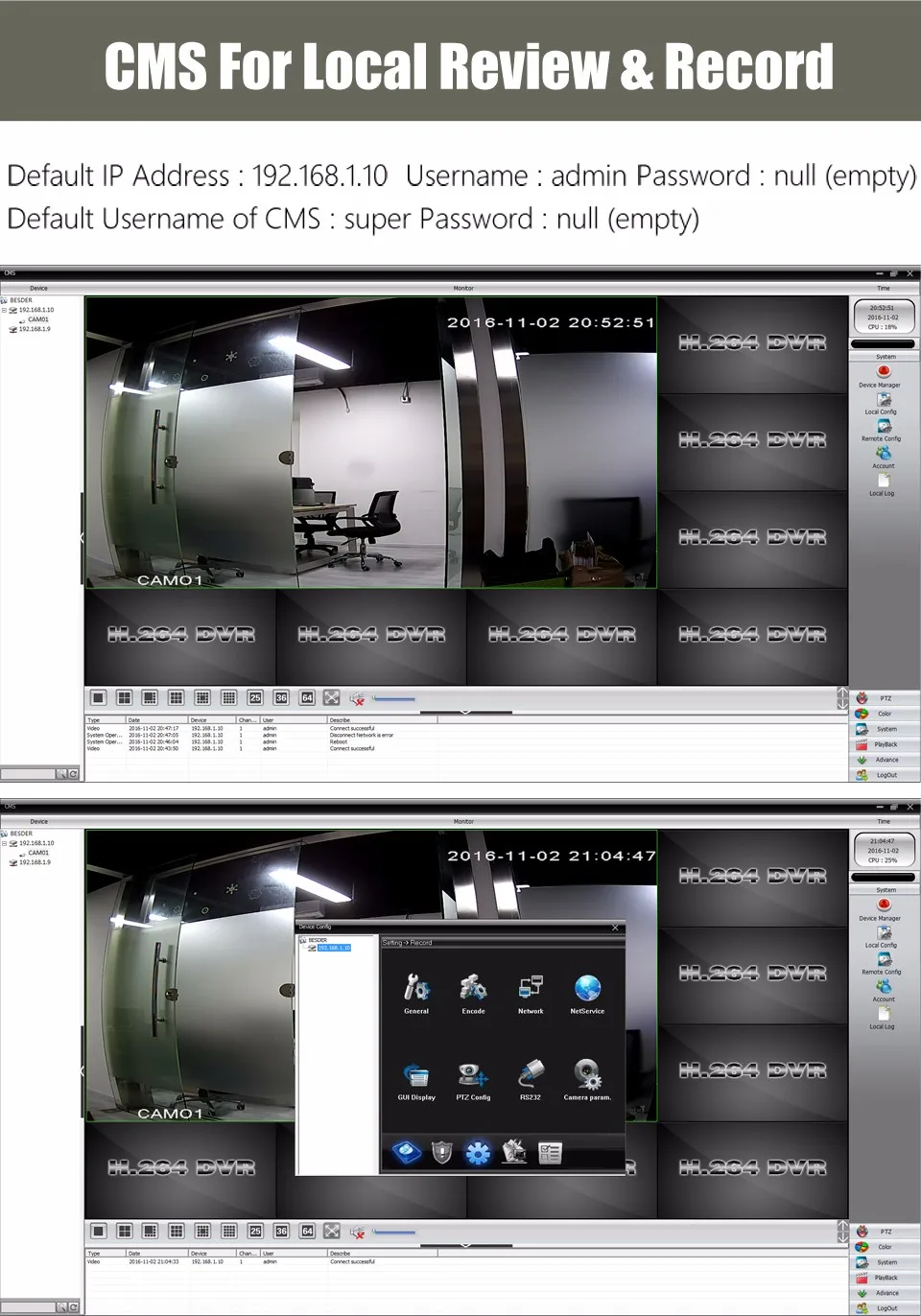

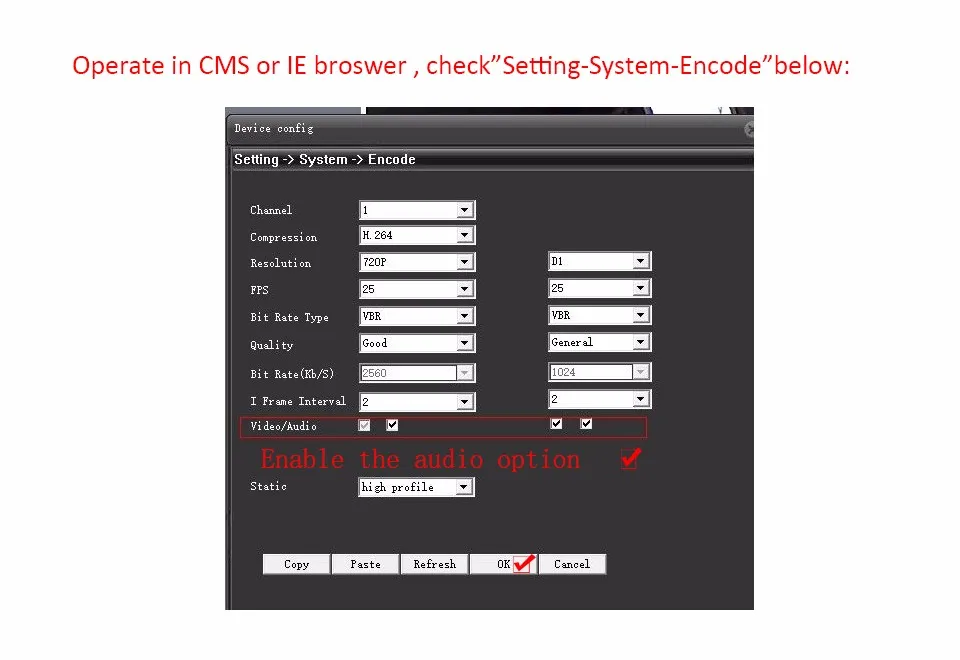

To Enable the Audio Function , please check in CMS or IE: " Setting-System-Encode " , enable the audio
To Enable the Audio Function , please check in CMS or IE: " Setting-System-Encode " , enable the audio
Details Images
Packing & Delivery

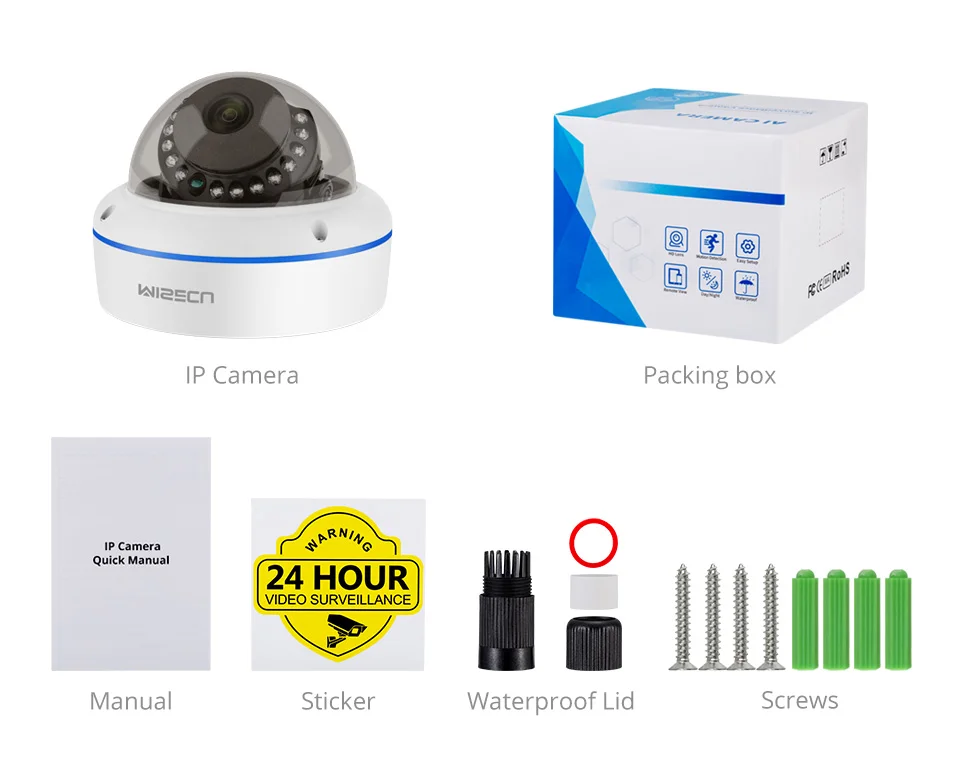

Packing List
1x 3.0MP/5.0MP IR HD IP Audio Camera/POE (no power supply)
1*Screw
1*Stricker
1*Waterproof Lid Manual
1*Screw
1*Stricker
1*Waterproof Lid Manual
Specification
Model Number | XM-DM13EP-50-2.8mm |
Warranty | 1 year |
Special Features | Face detection, Motion Detection, NIGHT VISION, one-way Audio, Vandal-proof |
Sensor | CMOS |
Style | Eyeball dome Camera |
Function | Alarm I/O, Built-in Mic, Built-in Siren, NIGHT VISION, One-way Audio, one-way Audio, Vandal-proof, Waterproof / Weatherproof |
Video Compression Format | H.265 |
Data Storage Options | Cloud, Full HD, NVR |
Application | Indoor, Outdoor |
Customized support | Customized logo, Online technical support, Software reengineering |
IR LED | 15pcs IR LEDs with 30m IR distance |
Camera Lens | 2.8mm |
Working Temperature | -25°C ~ 50°C |
APP | XMeye App |
Certification | ce,FCC,RoHS |
Camera Material | Metal Housing |
AI | Human Body Motion Detection,Line Detection |
Alarm System | Motion Detection + Email Alert +APP Push |
NVR Power Supply | DC12V/POE 48V |
Company Profile
FAQ
Q: What is your company’s competitive advantage?
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 5 years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!
Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.
Q: What's the MOQ?
A: Online order:No moq,
OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.
Q: What is your delivery time?Complete HD Camera system
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.
Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.
Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!
Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 5 years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!
Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.
Q: What's the MOQ?
A: Online order:No moq,
OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.
Q: What is your delivery time?Complete HD Camera system
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.
Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.
Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!
Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
