Kebang factory hot product TNS 20kw 30kwa 3 phase voltage stabilizer (1600472070999)

Share on (1600472070999):

Price:$210.00 - $270.00
Price in USD:Details


Product Overview


Product Description

TNS6-20KVA Three Phase High Accuracy Intelligence Automatic AC Voltage Stabilizer




TNS Series single and three phase high precision automatic AC voltage regulator is composed of contact type auto voltage regulator, servo motor and automatic control circuit. When the grid voltage is unstable for the load changes, the automatic sampling control circuit sends a signal to drive the servo motor, adjust the position of the auto-coupler carbon brush, adjust the output voltage to the rated value and reach a steady state.
TNS series high-precision automatic three phase AC regulated power supply is composed of single phase TND series high precision automatic regulated power supply. Three phase and phase to phase adjustment ensures stable and safe voltage of each phase. The grid input is three phase four wire system. Star(Y-shaped) connection, the output can be used three-phase four wire system or three phase three wire system.


TNS series high-precision AC voltage regulator has the function of direct power supply. It has many advantages such variety, fully specifications and beautiful appearance. It has the advantages of no waveform distortion, high efficiency, reliable performance, long-term operation, etc. It has short delay, overvoltage and other protection functions. It can add long delay and undervoltage protection according to the needs of users. The product can be widely used in any place of electricity, it is an ideal regulated power supply to ensure the normal operation of your electrical equipment.

Main Technical Parameter

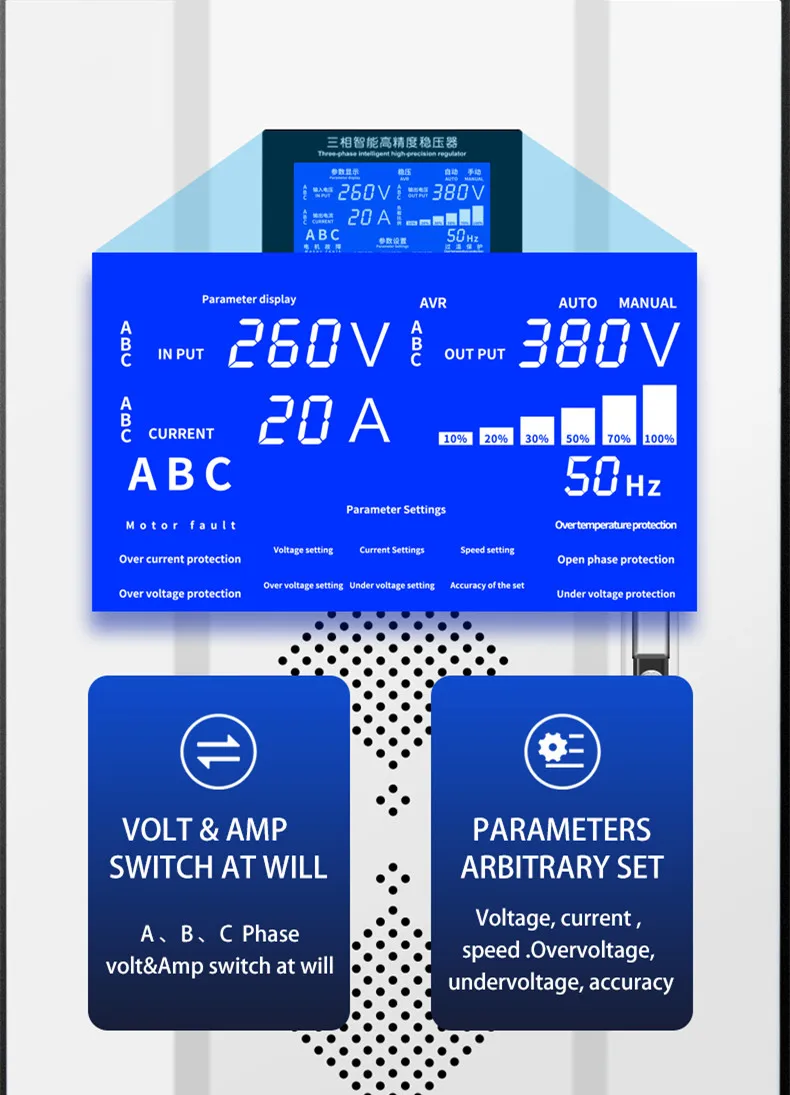

High Definition LCD Display



Product Details

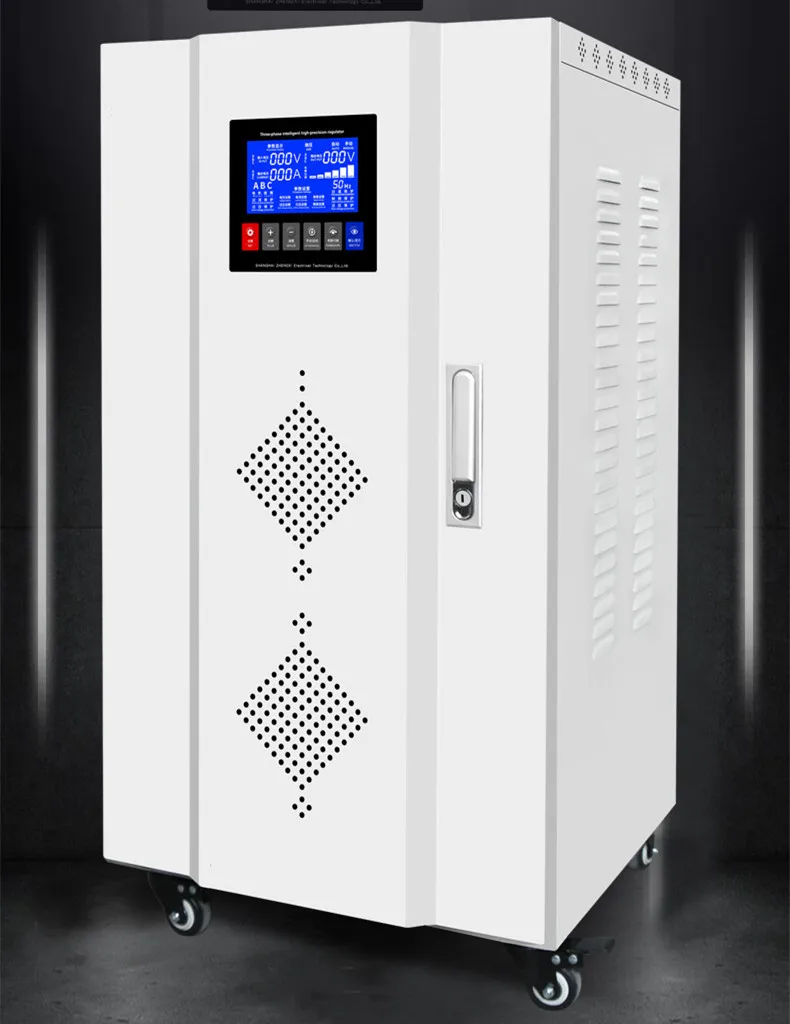

Other specifications and appearance

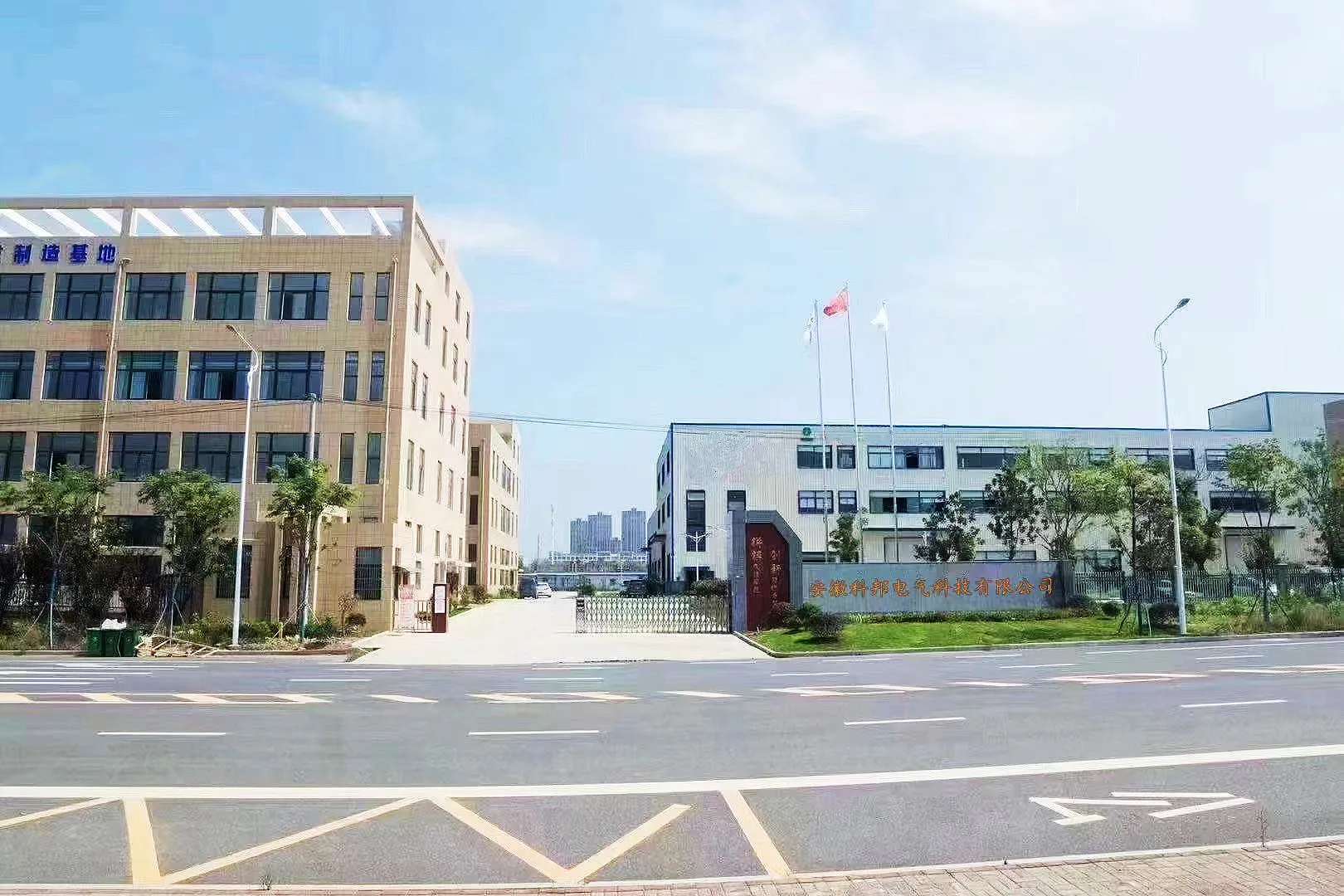

Company Information

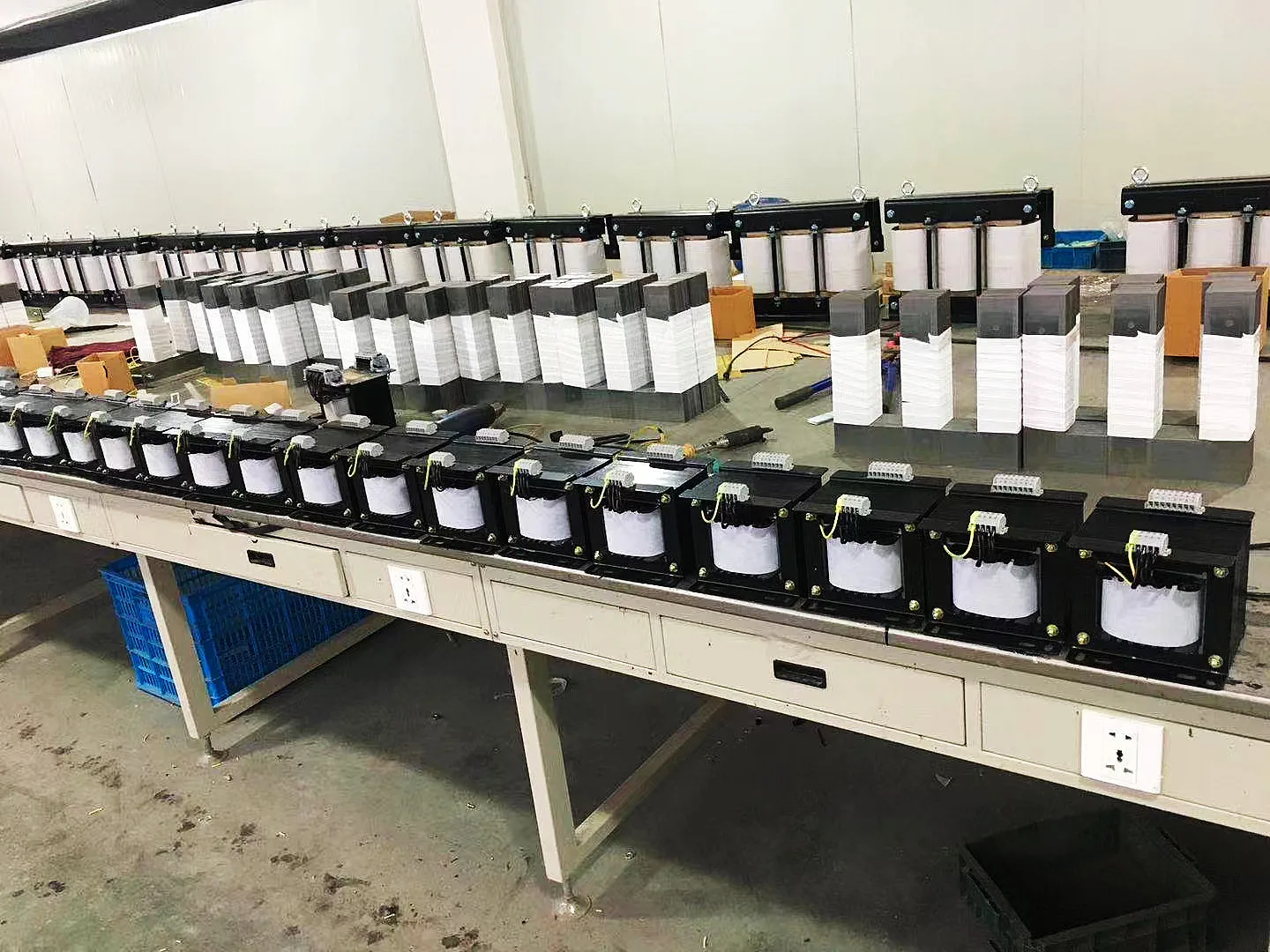

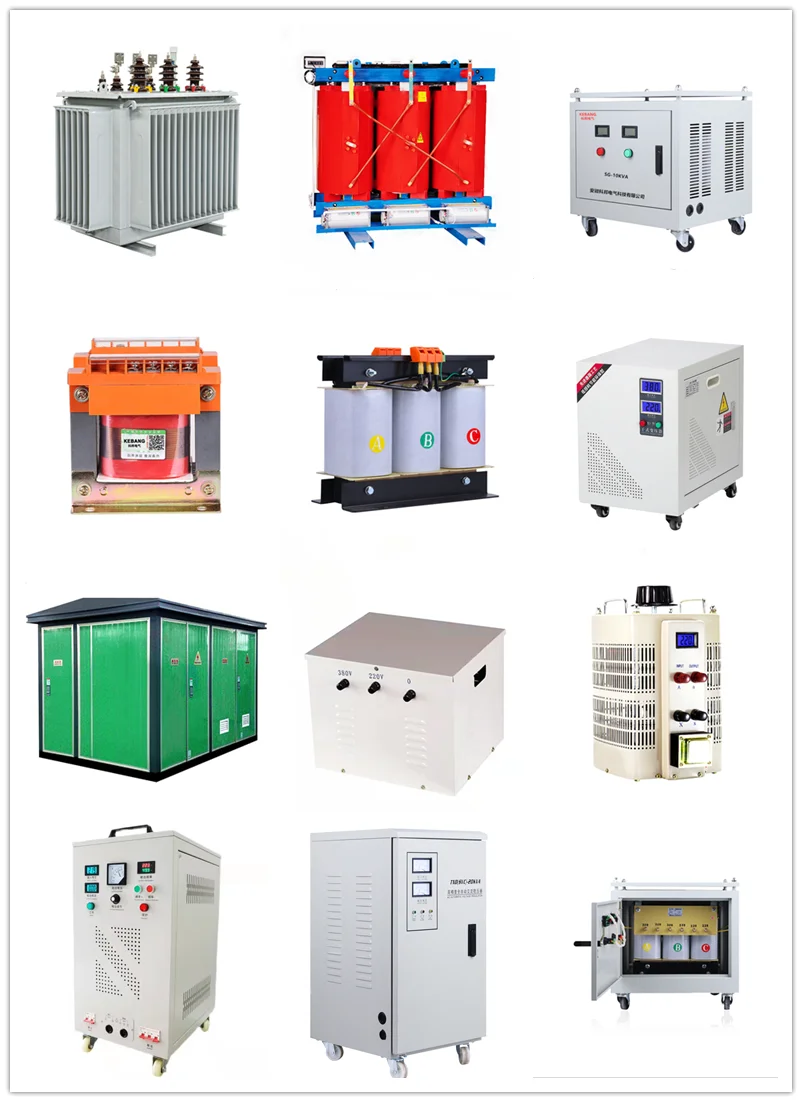

We are a professional manufacturer with 15 years of experience in electric equipments, specializing in the production of transformer (dry-type transformer, oil-immersed transformer, autotransformer, isolation transformer, etc.), voltage stabilizer, voltage regulator, switchgear,compact substation,frequency converter and other electric equipments products, and has implemented a strict and complete quality control system to ensure quality and safety, so we enjoy a good reputation in this field and are favored by domestic and foreign customers, especially in Central Asia, Southeast Asia, Africa, the Middle East, South America and other countries and regions. Customer satisfaction is our eternal pursuit, and we will continue to provide you with the most sincere, considerate and satisfactory service.Very welcome to visit our factory and establish a permanent partnership with us.







Why choose us

1. Factory direct sales, competitive price

2. Support customization

3. Fast delivery, for sample orders, generally 1-2 days to

complete, for large orders, generally 3-4 days to complete

4. 5-year warranty, comprehensively improve customer service system

5. 15 years of production experience

6. We have one strong R&D team who keeps developing new items for

customers all over the world to ensure that we keep the follow of new

hot selling point.


Q1:Do you have a catalog? Can you send me the catalog to see all your products?
A1:Yes, we have a product catalog. Please contact us online or email for a catalog.

Q2: I need your price list of all your products, do you have a price list ?
 A2:We do not have price lists for all products. Because we have so many items, it's impossible to put all the prices on the list. And because of production costs and shipping, prices are always changing. If you would like to see any prices for our products, please feel free to contact us and we will send you a quote as soon as possible!

Q3:I can't find this product on your catalog, can you make this product for me?
A3:Our catalog shows most of our products, but not all. So please tell us what product you need and how much you want. If we don't have one, we can also design and make new molds to produce it. For your reference, it takes about 35-40 days to make a normal mold.

Q4:Can you provide samples? Are samples free?
A4:Yes, we can provide samples. Usually, we provide samples for testing quality. But you have to pay for samples and shipping.

Q5:What about your delivery time?
A5:We have many products in stock. We can send stock products within 3 working days. If there is no stock or insufficient stock, we will check the delivery time with you. "

Q6: Can we put our own logo on your product?

A6: Yes, no problem, but there is a minimum quantity requirement.

Q7: Is OEM/ODM available?

A7: Yes, our products can be customized. The R&D department has professional senior engineers, who can design and produce various electrical equipment according to the specific requirements of customers.



Small-capacity products (automatic voltage stabilizer / voltage stabilizer),

inner packaging color box, outer packaging carton.

For high-capacity products, we use sturdy plywood enclosures.

2.Shipping Methods:
By air or sea (FOB port: Ningbo, Shanghai), by express (DHL, UPS, TNT, FEDEX).1.png
