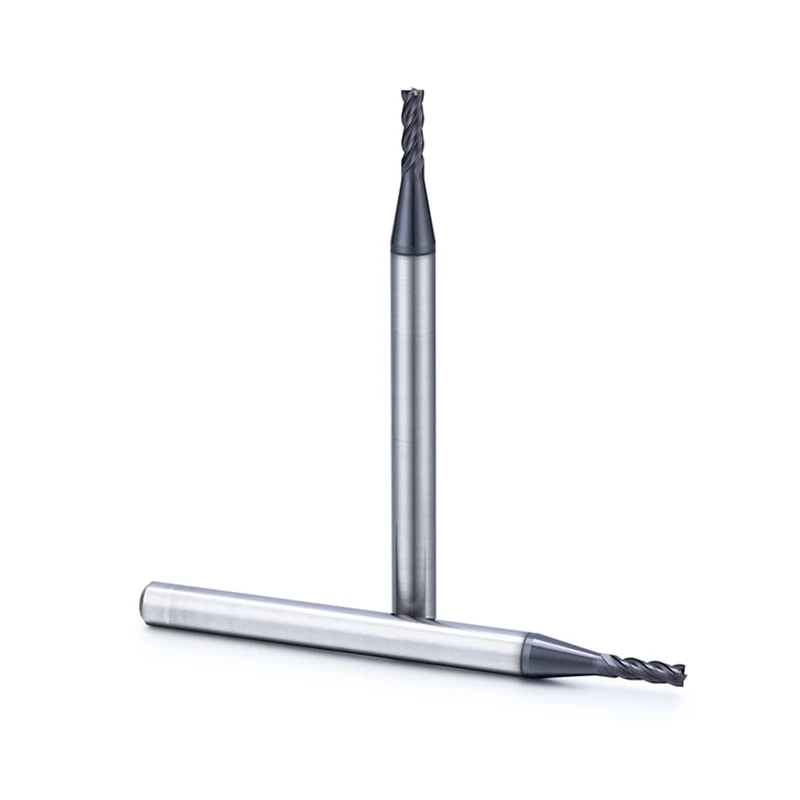

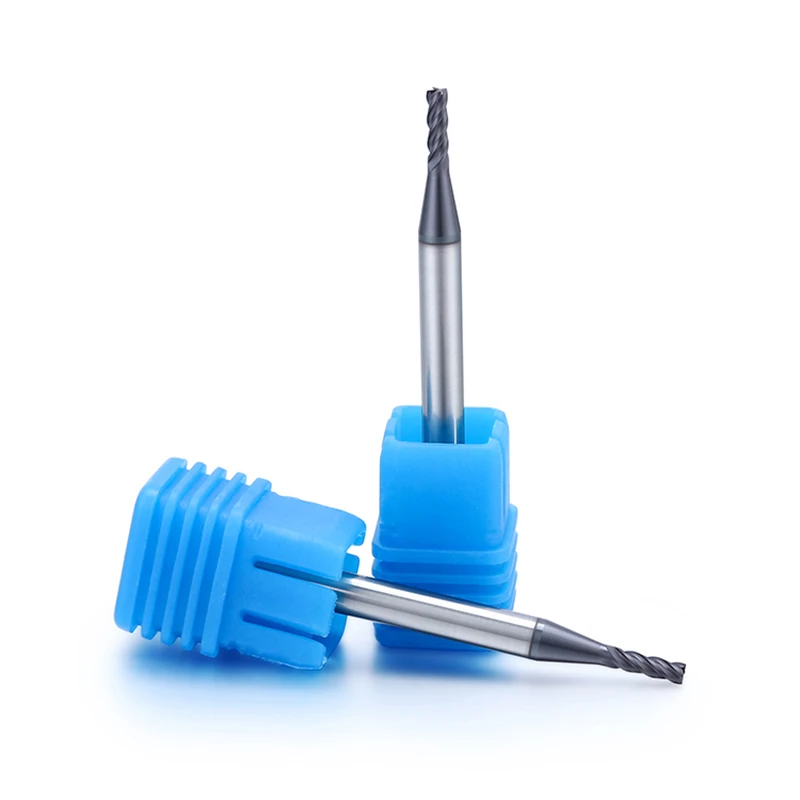

BKXE Manufacturer Wholesale 2mm Diameter Tungsten Solid Cnc Carbide End Mill Bits Cutting Tools Milling Cutter
- Category: >>>
- Supplier: Guangdong Berkshire Technology Ltd.
Share on (1600472071069):
Product Overview
Description
Product Description

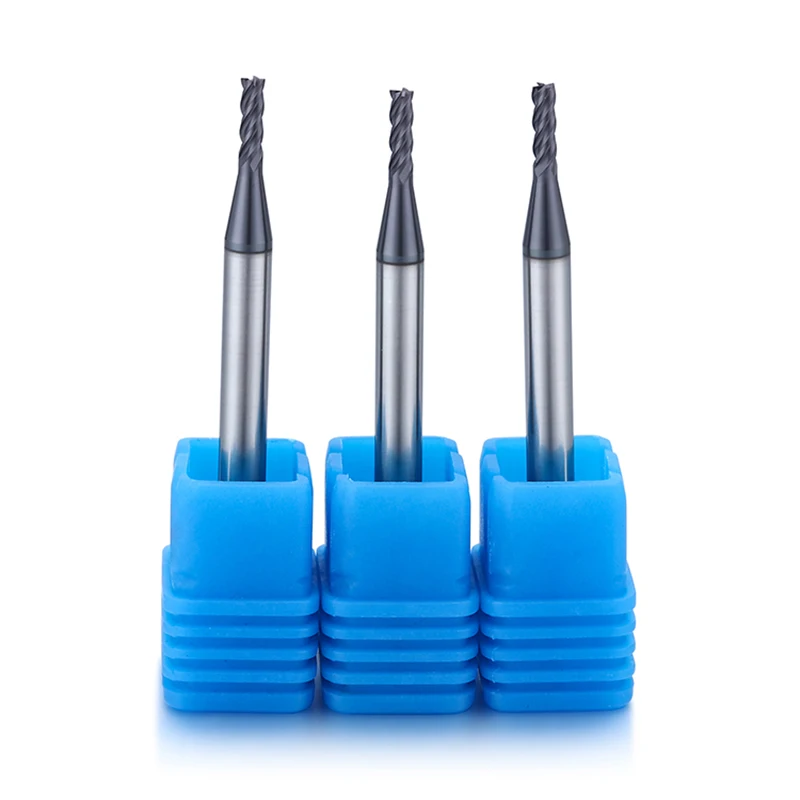

1.Product Name:2mm Diameter Tungsten Solid Cnc Carbide End Mill Bits Cutting Tools Milling Cutter
2.Standard size: 1mm,2mm,3mm,4mm,5mm,6mm8mm,10mm,12mm,14mm,16mm,18mm,20mm
3.Advantages: High Precision,Good Surface & Performace
2.Standard size: 1mm,2mm,3mm,4mm,5mm,6mm8mm,10mm,12mm,14mm,16mm,18mm,20mm
3.Advantages: High Precision,Good Surface & Performace
Product name | BKXE Manufacturer Wholesale 2mm Diameter Tungsten Solid Cnc Carbide End Mill Bits Cutting Tools Milling Cutter |
Material | Tungsten Carbide |
Coating | Black coating |
Standard | ISO |
HRC | HRC45/55/65 |
OEM | Supply |
Machining | Carbon Steel/Mould steel /Stainless steel |

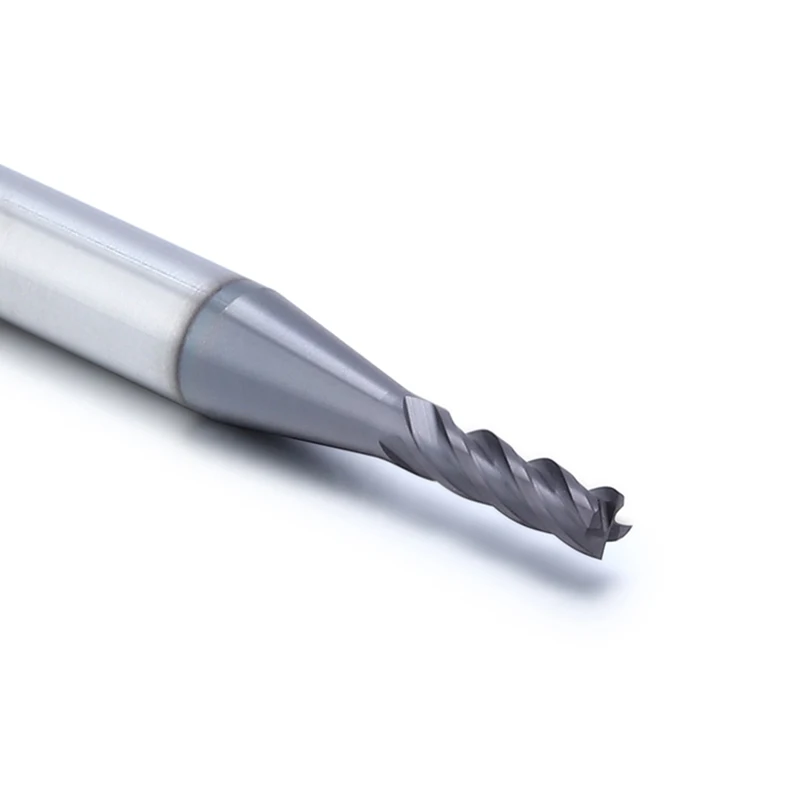

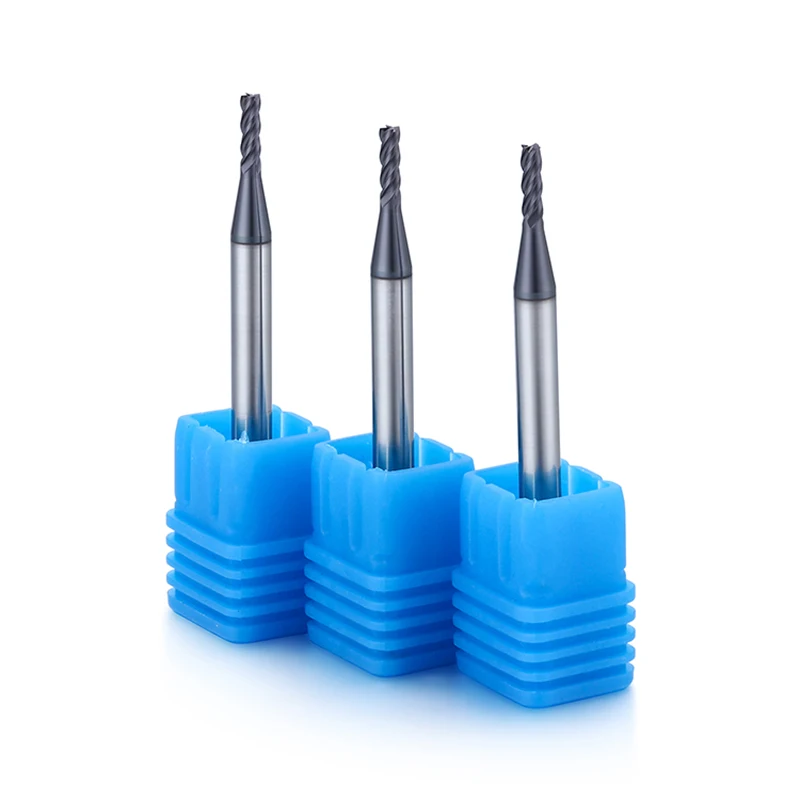

Product Show
Super Raw Material
Item Grade | HRC45 (YG10X ) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 &K40) | HRC65 (Sandvik H10F) |
Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 | Grain size 0.6um Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12% Flexural strength 4300N/mm2 | Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
Supper Coating
Item | Coating Type | AlTin | TiAlN | TiSiN | Naco |
Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | |
Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | |
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | |
Color | Black | Bronze | Bronze and gold | Blue | |
Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision cutting | |
Suitable for high speed, dry cutting | Suitable for cutting mould steel, stainless steel | Suitable for high hardness cutting, mould steel processing | |||
Most suitable for carbide cutting tools, turning insert |

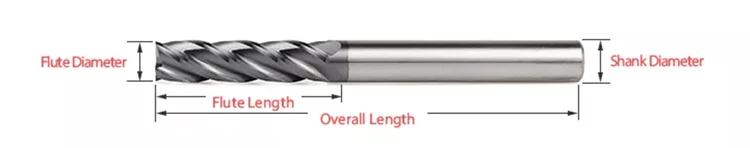

Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
Φ20x45Cx20x100L | 20.0 | 45 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could be customized.

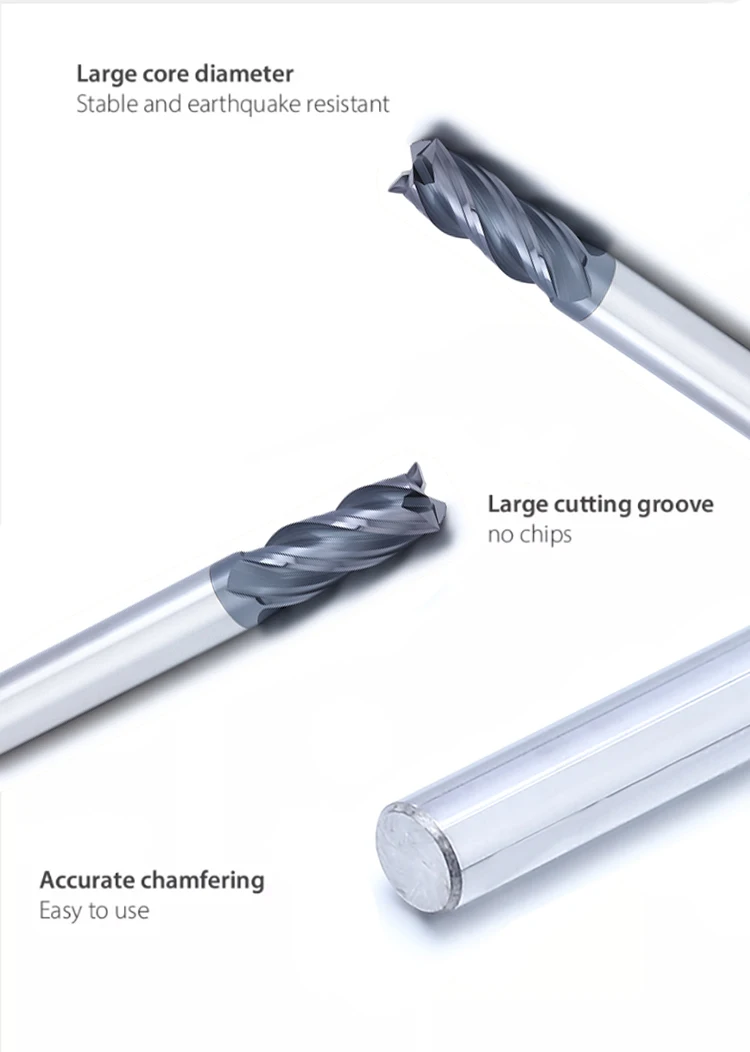

Details Images
Wide Range of Processing
Company Introduction
Packing&Shipping
Anti-walter package.
One plastic pipe pack one piece,10 pcs per group.
Put goods enclosed with air bubble paper into box.
Other package is accepted according to customer's requirement.
Put goods enclosed with air bubble paper into box.
Other package is accepted according to customer's requirement.
Orders processed timely after the payment verification. we have many shipping ways, like DHL, Fedex, EMS and so on, will choose the best one for you.
FAQ
Q: Are you trading company or manufacturer ?
A: Yes ,We are factory for more than 10 years in CNC tools.
A: Yes ,We are factory for more than 10 years in CNC tools.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we don't provide samples, we we can offer you some discounts depends on your order quantity.
Q: What is your terms of payment ?
A: T/T 30% deposit,70% balance against B/L copy or 100% irrevocable LC at sight. More payment terms available(Paypal, Western
Union,
Q: Do you make OEM ?
A: Yes, we do. OEM is accepted with your brand lase in the products by our laser machine and label of the OEM brand would be stuck
on the box before goods shipped out.
Q: What the machine do you adopt to produce the products ?
A: We use the walter which imported from Germany.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we don't provide samples, we we can offer you some discounts depends on your order quantity.
Q: What is your terms of payment ?
A: T/T 30% deposit,70% balance against B/L copy or 100% irrevocable LC at sight. More payment terms available(Paypal, Western
Union,
Q: Do you make OEM ?
A: Yes, we do. OEM is accepted with your brand lase in the products by our laser machine and label of the OEM brand would be stuck
on the box before goods shipped out.
Q: What the machine do you adopt to produce the products ?
A: We use the walter which imported from Germany.
