Original Yinlong LTO66160h LTO Batterie 40ah 30ah 35ah 45ah 50ah 55ah lithium titanium oxide battery 10 years warranty
- Category: >>>
- Supplier: Shenzhen Flyxure Technology Co. Ltd.
Share on (1600472098990):
Product Overview
Description
6 Minutes Fast Charging 2.3V 40Ah Lithim Titanate Battery Cylindrical LTO Battery
LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn.
As a new type rechargeable lithium battery,LTO battery has great performances of perfect high safety, high stability, super long cycle life, fast charging/discharging performance, and strong temperature tolerance.
LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn.
As a new type rechargeable lithium battery,LTO battery has great performances of perfect high safety, high stability, super long cycle life, fast charging/discharging performance, and strong temperature tolerance.
Key Features
1. Fast charge: fully charged in 10 minutes
2. High discharge rate: up to 20C Peak
3. Wide working temperature range: -50°C ~ 65°C
4. Very long lifetime: over 30,000 cycles
3. Wide working temperature range: -50°C ~ 65°C
4. Very long lifetime: over 30,000 cycles
Product Description
Battery type | LTO 66160H 2.3V 40Ah |
Chemistry | Lithium Titanate Oxide |
Weight | 1.25kg |
Internal impedance | ≤0.7mΩ |
Cycle life | ≥25000 times, 80% DOD, capacity rentation≥80% |
Dimension | 66*202mm (include studs) |
Max.cont.charge | 240A(6C) |
Max.cont.charge | 240A(6C) |
Pulse current | 800A(20C,10s) |
Working voltage range | 1.5V~2.9V |
Applications | Energy Storage,Car Audio,Car Starter,Fast Charging Station |
Operation temperature | -50-65℃ |
Life duration | 30 years |
Testing show
Penetrating
Overcharge & overdischarge
Penetrating under water
Drilling
Cutting
Buring
Tests confirm that Yinlong LTO batteries can still keep working even being strictly tested like Penetrating,Overcharge &overdischarge,Drilling,Cutting,Buring!
There is No fire, no explosion, no leakage happens!
There is No fire, no explosion, no leakage happens!
Advantages
1. Super fast charge & discharge in 6 mins
2. Wide operating temperature between -50℃-60℃
3. High safety: The chemical reactivity between lithium Titanate Oxide and electrolyte is low, no SEI film formed to make sure the battery keeps stable and safe.
4. Super long lifespan: 25000-30000 times for 30 years.
Applications
LTO battery applications
LTO are high power batteries, so they are perfect for use in Energy storage system,Car audio,Car starter,Fast charging station.
Other applications: UPS, electrical power trains, solar powered street lights,aerospace and military uses,smart grids creation.
UPS
Car audio
Golf cart
Telecom
Touring car
Marine
We have A few types of LTO cells available with stable supply,those has become our hot-selling items.
They are:
1.Cylindrical ones----LTO 2.3V 30Ah,35Ah,40Ah,45Ah
2.Prismatic ones-----LTO 2.3V 10Ah,20Ah from Toshiba Scib brand, LTO 30Ah,33Ah from Yinlong brand.
3.LTO pouch cells----LTO 2.3V 10Ah(LG brand,Microvast) and JEVE 70Ah Please See some of it as below.
For more efficient contact, please email me at jason.lai@flyxure.com. WhatsApp: +86 18617103102
They are:
1.Cylindrical ones----LTO 2.3V 30Ah,35Ah,40Ah,45Ah
2.Prismatic ones-----LTO 2.3V 10Ah,20Ah from Toshiba Scib brand, LTO 30Ah,33Ah from Yinlong brand.
3.LTO pouch cells----LTO 2.3V 10Ah(LG brand,Microvast) and JEVE 70Ah Please See some of it as below.
For more efficient contact, please email me at jason.lai@flyxure.com. WhatsApp: +86 18617103102

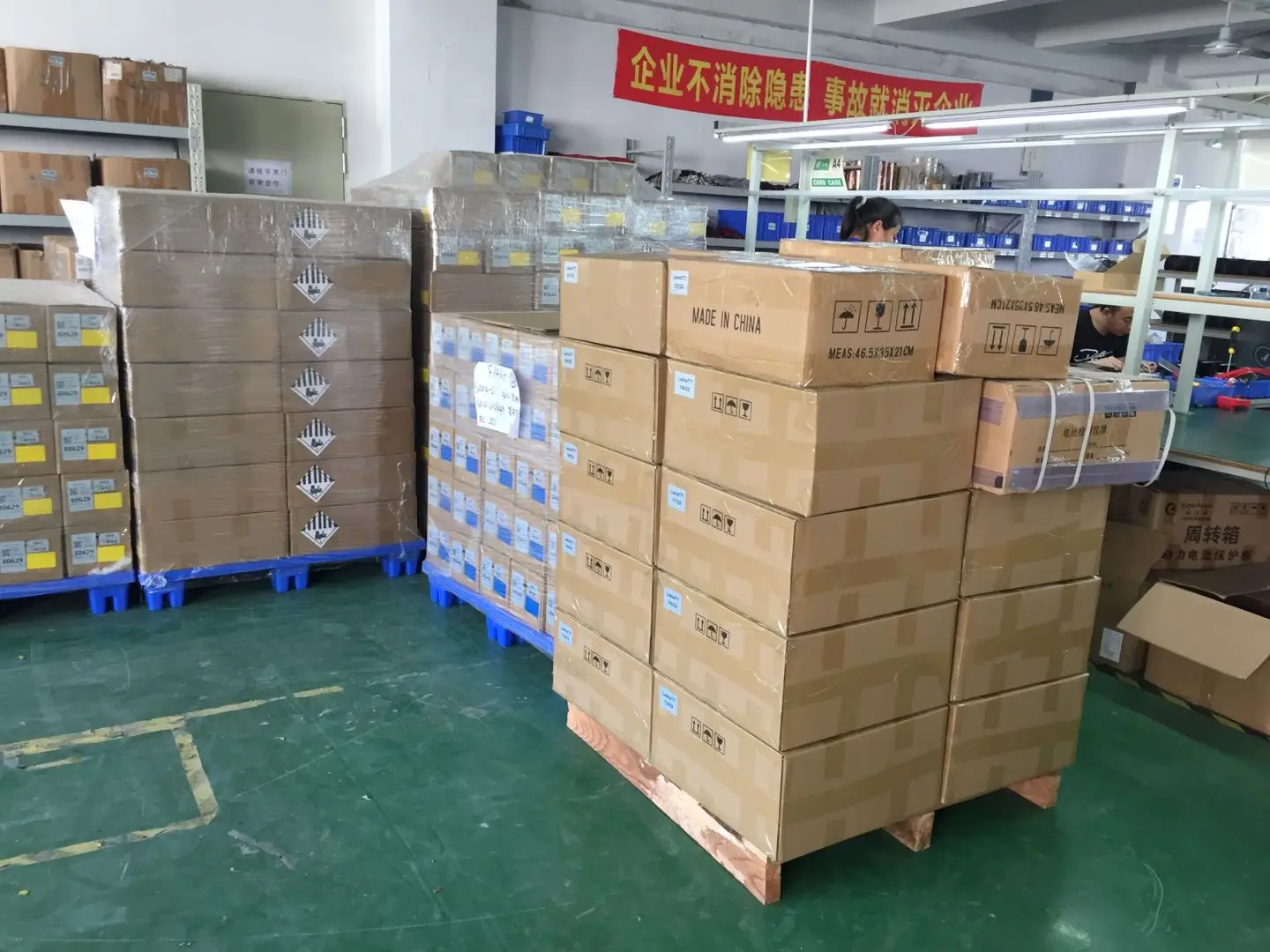

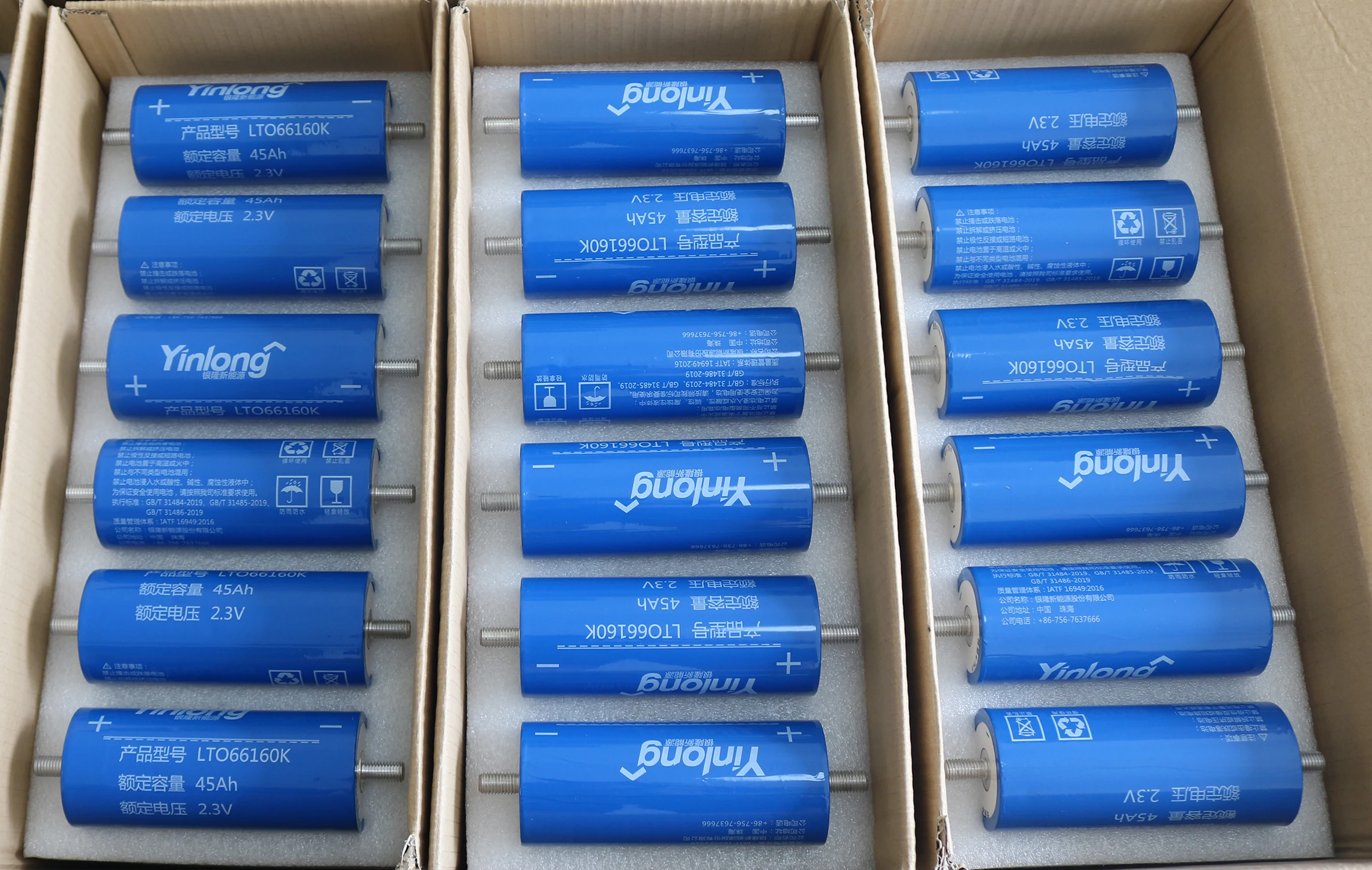

Product packaging
PACKING METHODS
Hold in custom pallets firstly(6 pcs each), then put into hard 5 layers of cartoon boxes.
Hold in custom pallets firstly(6 pcs each), then put into hard 5 layers of cartoon boxes.
SHIPPING
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free)
Unavailable: Military and PO box address,Puerto Rico,Virgin Islands,Guam
Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia, Singapore, Malaysia, Philippines,
Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
Note:
The tracking status can be updated after customs clearance finished and picked up by
local express, please wait patiently or contact us for help.
Other countries which is not stated above, please check shipping fee with us before order.
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free)
Unavailable: Military and PO box address,Puerto Rico,Virgin Islands,Guam
Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia, Singapore, Malaysia, Philippines,
Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
Note:
The tracking status can be updated after customs clearance finished and picked up by
local express, please wait patiently or contact us for help.
Other countries which is not stated above, please check shipping fee with us before order.
FAQ
1. Q: What about your batteries?
A: All batteries are brand new grade A, Factory direct sales.
2.Q: How about the warranty?
A: 1~5 years from date of purchase.
Any physical damage like crashes or improper handling is excluded.
3. Q: If price can be negotiated?
A: Yes, we have a pricing range for different quantities.
4. Q: What is the lead time?
A: In 3~10 days, depending on purchasing quantities.
5. Q: Does the items have certificates?
A: Most of them have original specification and was certified with CE/FCC/CB/UN38.3
/MSDS,etc.
6. Q: Do you have catalogue and quotation sheet?
A: Yes.
7. Q: How can i place the order?
A: Online transaction by Alibaba trade assurance: please place your order and pay directly
for RTS(Ready To Ship) products if there is clear shipping cost or free shipping, or contact
our sales to creat a online order.
8. Q: What you’ll do before shipment?
A: Test all cells and get it balanced, well packaging offered.
9. Q: How can i make good comments?
A: Find out your order list and specifically make your good reviews on the items you
received, sincerely appreciated.
A: All batteries are brand new grade A, Factory direct sales.
2.Q: How about the warranty?
A: 1~5 years from date of purchase.
Any physical damage like crashes or improper handling is excluded.
3. Q: If price can be negotiated?
A: Yes, we have a pricing range for different quantities.
4. Q: What is the lead time?
A: In 3~10 days, depending on purchasing quantities.
5. Q: Does the items have certificates?
A: Most of them have original specification and was certified with CE/FCC/CB/UN38.3
/MSDS,etc.
6. Q: Do you have catalogue and quotation sheet?
A: Yes.
7. Q: How can i place the order?
A: Online transaction by Alibaba trade assurance: please place your order and pay directly
for RTS(Ready To Ship) products if there is clear shipping cost or free shipping, or contact
our sales to creat a online order.
8. Q: What you’ll do before shipment?
A: Test all cells and get it balanced, well packaging offered.
9. Q: How can i make good comments?
A: Find out your order list and specifically make your good reviews on the items you
received, sincerely appreciated.
