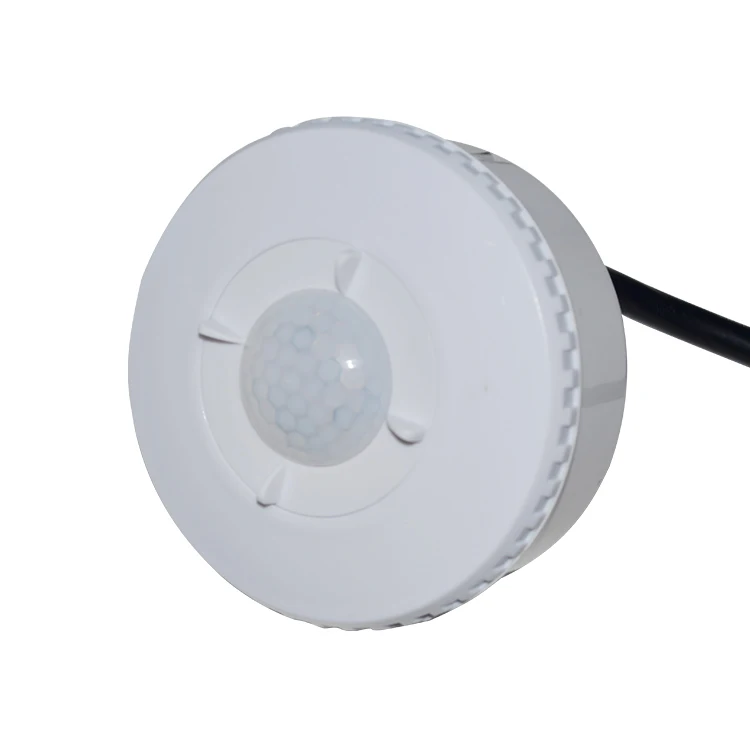

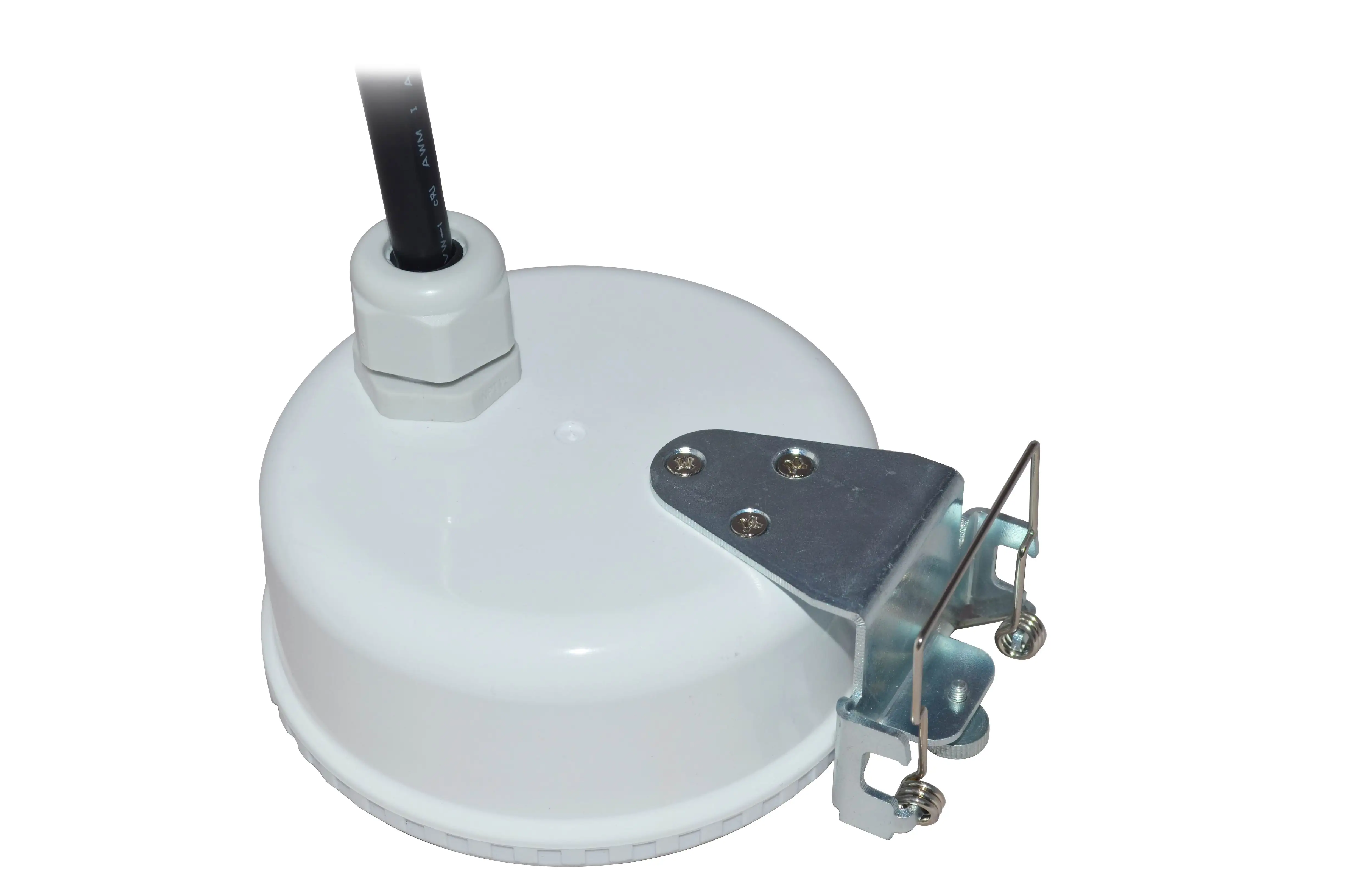

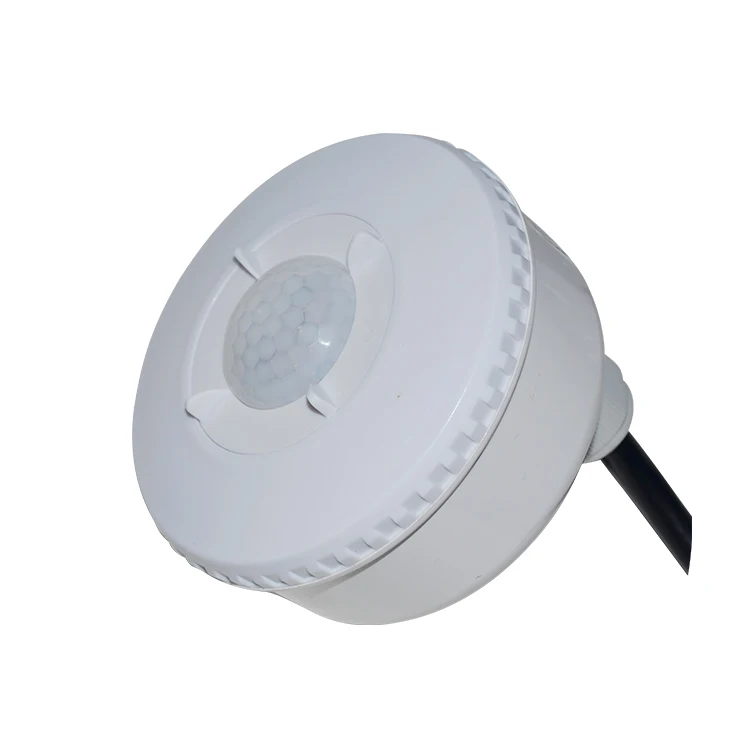

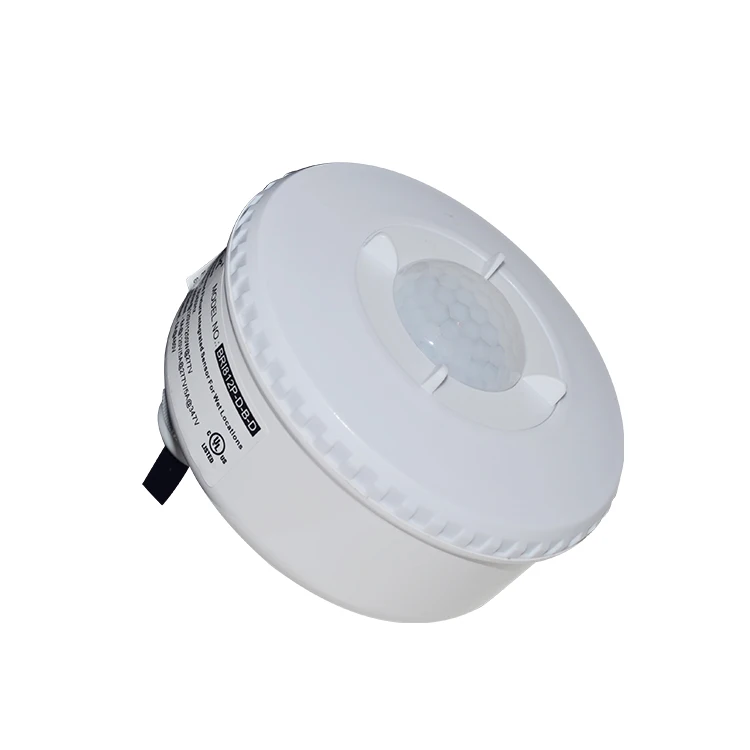

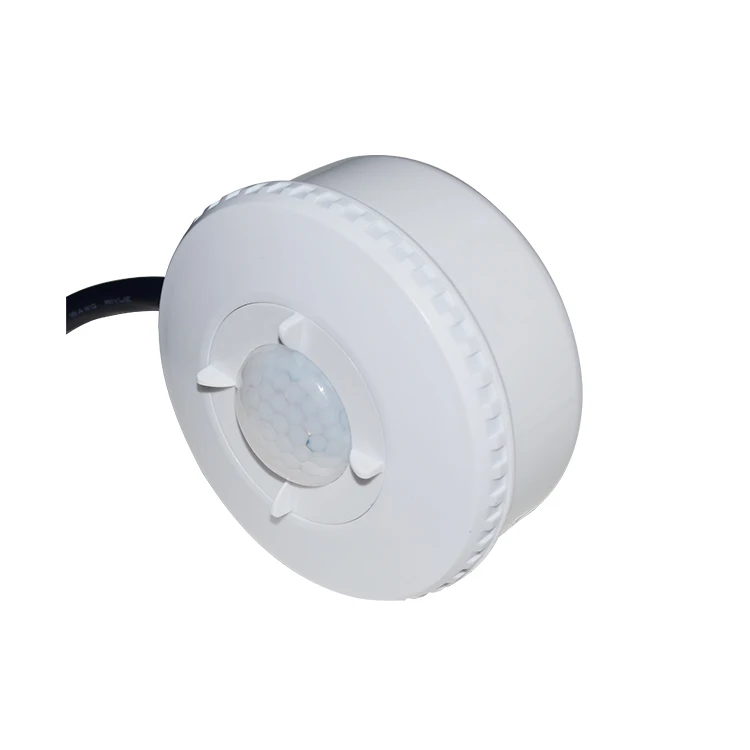

IP65 UFO waterproof ceiling led presence motion ir infrared detection induction distance pir wire sensor
- Category: >>>
- Supplier: Ningbo Brilliant Electronics Co. Ltd.
Share on (1600472145374):
Product Overview
Description
Specifications
Power supply | 120~480VAC 50/60HZ |
Maximum load @-40°F~+158°F (40°C ~ +70°C) | Tungsten -800W@120V/1200W@277V Standard Ballast -5A@480V Electronic Ballast-8A@120V/5A@277V/5A@347V |
Dim control output | 0-10V, max. 25mA sinking current |
Detection radius/angle | Max 26ft.(8m)/360° |
Mounting Height | Max 40ft |
Time setting | 10sec.-15min (adjustable) |
Light control | 10-2000Lux (adjustable) |
Humidity | Max. 95% RH |
Temperature | -40°F~+158°F(-40°C~+70°C) |
Products Description
The BRI812P-D-A-D/BRI812P-D-B-D mounts in an outdoor lighting fixture and provides multi-level control based on motion and/or daylight contribution. It controls 0-10VDC LED drivers or dimming ballasts, and is rated for wet and cold locations.
All control parameters are adjustable via a wireless configuration tool capable of storing and transmitting sensor profiles.
All control parameters are adjustable via a wireless configuration tool capable of storing and transmitting sensor profiles.
Wiring
Sensor Coverage
Functions
