Stepping Motor Driver ZY B3 For Bag Making Machine

Product Overview

Description

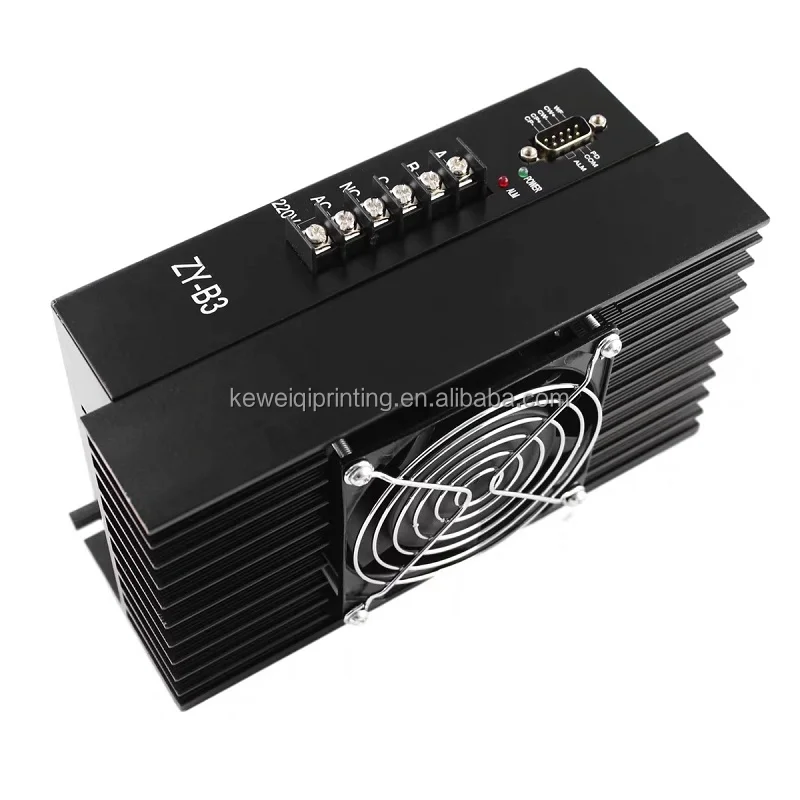

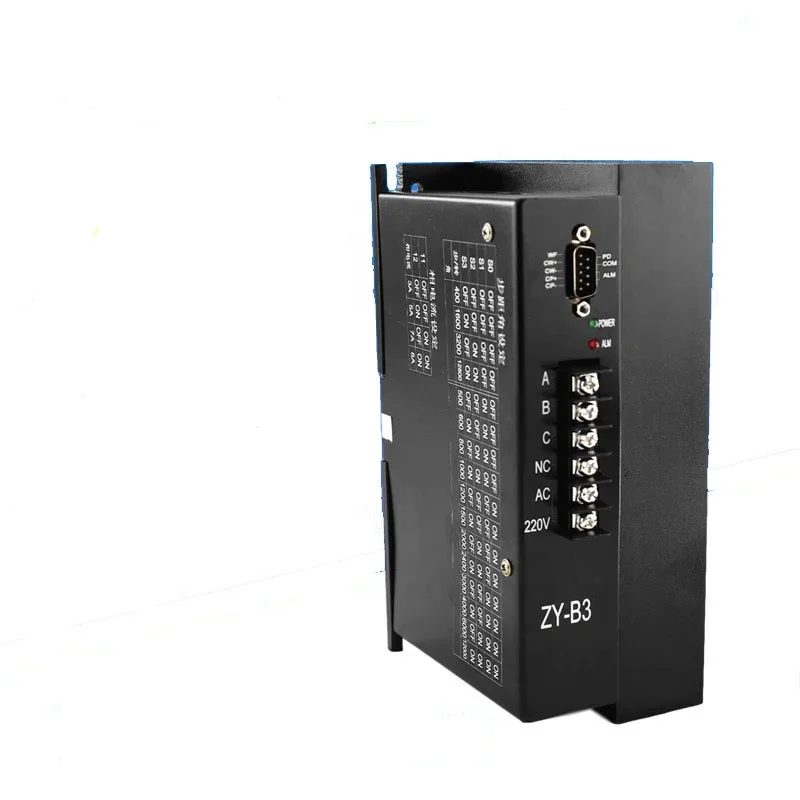

Stepping Motor Driver ZY-B3 For Bag Making Machine



ZY-B3 driver adpots original imported module. Can be high speed chopping. Constant current driver, good perfermance of anti-interference; control signal and inner signal, realize optoelectronic isolation, it has the function of self - protection when it is over-current,over-voltage,overheating,etc.  Operate steadily, good reliability, output current can reach 11A , Make the motor output the more higher power and torque .



Phrase Current	5A	6A	10A	11A
I1	OFF	OFF	ON	ON
I2	OFF	ON	OFF	ON





Product  Feature :

Limiting the input signal coupler internal resistance 1K,The signal common terminal

Direct access to 12V,24V each signal to be 1K resistor in series ,the current requirement

Of the system is not less than the pull-8MA ,Alarm output is open collector and Emitter ,

NPN Type

VCEmax=15VIECmax=100Ma



Wiring connection:

Three-Phase Hybrid Stepper Motor Drive
A Connect to A	A→Stepper motor 1core
B Connect to  B	B→Stepper motor 3core
C Connect to C	C→Stepper motor 5core
Grounding	NC→Grounding
Power input AC:165V-235V/50HZ	L→220V(Live wire)
	N→220V(Neutral wire)
