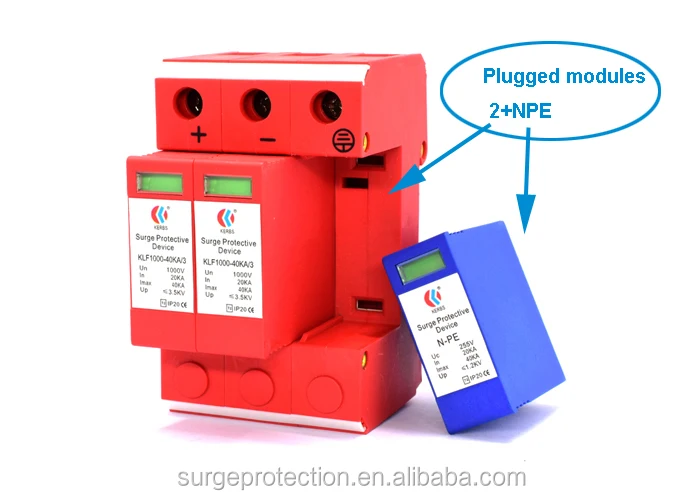

300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection
300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection
300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection
300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection
300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection
300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection
300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection

300V 600V 1000V Type C 40kA Surge Protector for Solar Panel Protection

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description





Product Description


Feature:
 * DC12-1500V surge protector.
* Remote communication alarm interface
* High quality pressure sensitive resistance, stable performance
* Indicate deterioration module : green (normal),red (failure).
* Temperature control breaker, build-in over currents fuse protector.
* Extremely quick respond, large intake capacity.
* Small leakage power, long work life, simple maintenance.
* 35mm guide rail installation, standardized module design.




Specification


TYPE:
KLF300-40KA/3
KLF600-40KA/3
KLF1000-40KA/3
Protection Class:
C
C
C
Operating Voltage (Un):
DC300V
DC600V
DC1000
Nominal Discharge Current (8/20μs) (In):
20KA
20KA
20KA
Max. Discharge Current (8/20μs) (Imax ):
40KA
40KA
40KA
Voltage Protection Level( Up):
≤1.5KV
≤1.8KV
≤2.5KV
Response Time:
<25ns
<25ns
<25ns
Leakage current(μA):
≤20µA
≤20µA
≤20µA
Working Environment:
Temperature -40°C +80°C;Relative humidity<95%;
Material of Outer Shell:
Flame retardant materials
Dimension(mm):
94*54*66
Weight(kg) :
0.459


Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.






Company Profile










Customer Photos




FAQ
