High Quality Manufacturer Bags Mechanical Inflatable Head Curtain Cold Room Dock Seal Shelter Dock Sealing for Cargo Inflatable
- Category: >>>
- Supplier: Yuou,(luoyang),Doors,And,Windows,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Why to choose us?
1.Before sale,according to your size, our engineers will provide you with detailed CAD design solution.In order to avoid mistakes.
2.We are quality manufacturer certified by Alibaba. And we have ability to provide you with safe,assured and satisfactory services.
3.Our office located in costed city, and factory moved to inland city.Only aims to offer you a more competitive price.
4.After sale, 18 months warranty and spare parts will be provided.
5.Installation technical support:Please make an appointment 24 hours in advance.
1.Mechanical Dock Shelter :
The front sealing curtain consists of three pieces of 3 mm thick high-density black polyester with a yellow reverse bar.The surrounding sealing curtain is composed of 0.8 mm thick high-density polyester fiber.
When the truck is docked , the three sealing linings form a flap-like seal on the outside of the truck compartment.
The frame is made of galvanized steel pipe and aluminum alloy with spring balance for better impact resistance.
When the truck is docked , the three sealing linings form a flap-like seal on the outside of the truck compartment.
The frame is made of galvanized steel pipe and aluminum alloy with spring balance for better impact resistance.
Mechanical Dock Shelter | ||||||||
Size | 3400*3400mm or customized | |||||||
Color | Stanard color is black, or customized | |||||||
Material | polyester fiber, aluminum alloy and galvanized square pipe | |||||||
Adjustable height rang | 1000mm | |||||||
Operating temperature rang | -35ºC-70ºC | |||||||
Application Features
Mechanical dock shelter: This kind of dock shelter is closed by the high elastic door seal to the car, which is suitable for large vehicles.
2.Sponge Dock Shelter :
It consists of three sections of high-quality sealing column. The surface of the sealing column is made of high-quality high-density polyester fiber base cloth , and the interior is filled with high-quality high-density sponge, a yellow reverse bar is added to the front surface of the left and right sealing posts.The top adjustment curtain is suitable fir shorter vehicles.The yellow scales add friction and an effective seal to protect to the seals body.
Application Features
Sponge dock shelter: This dock shelter is closed by the extrusion of the car, its tightness is good, and all van models are required to by uniform.

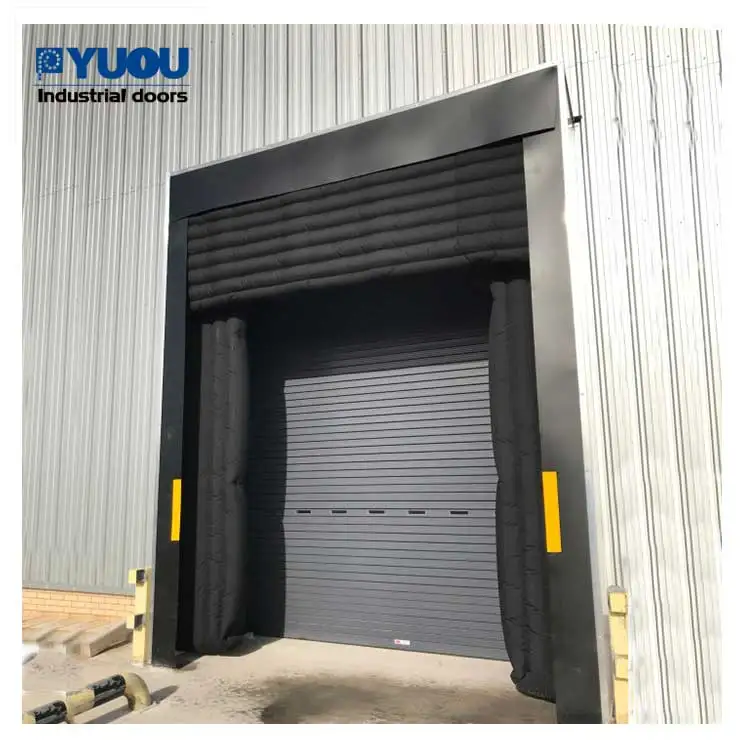

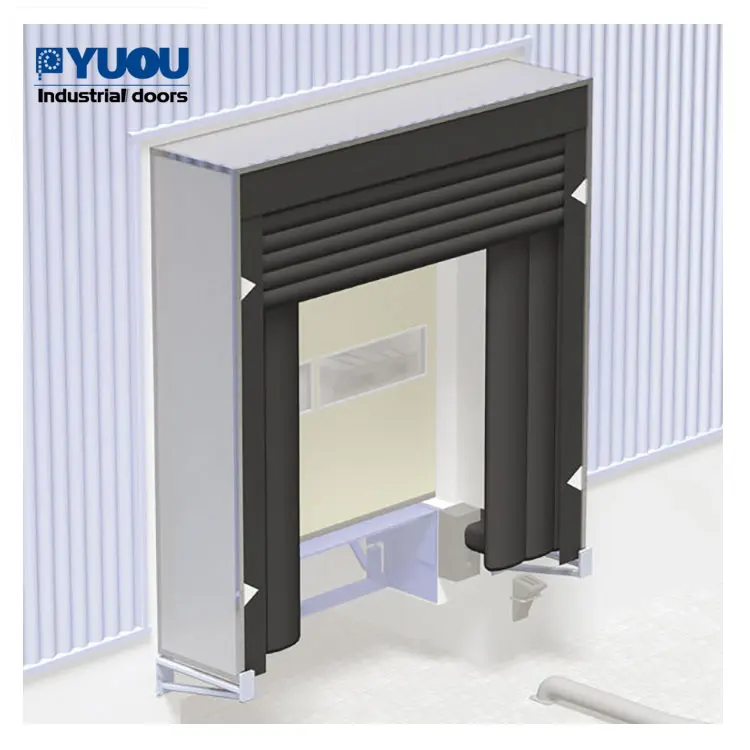

3.Inflatable Dock shelter :
333
There are top seal posts and two side seal posts. The material is a synthetic fabric of neoprene rubber, and the sealing column is a central continuous cylindrical shape, which is continuously inflated by an external blower and equipped with balance holes in each part. Therefore, the entire working state will tightly wrap the truck compartment. Achieve the sealing effect.
Application Features:
Inflatable dock shelter: This type of door seal encloses the airbag around the cargo port to enclose the car. Its sealing effect is good. It is commonly used in food and medicine and other high-cleaning loading and unloading ports, and is suitable for large and medium-sized cars. The door seal can effectively reduce the energy loss during loading and unloading, and block the weather and the weather, insects, dust pollution and other goods in contact with the goods in the warehouse vehicle.
333
You will receive

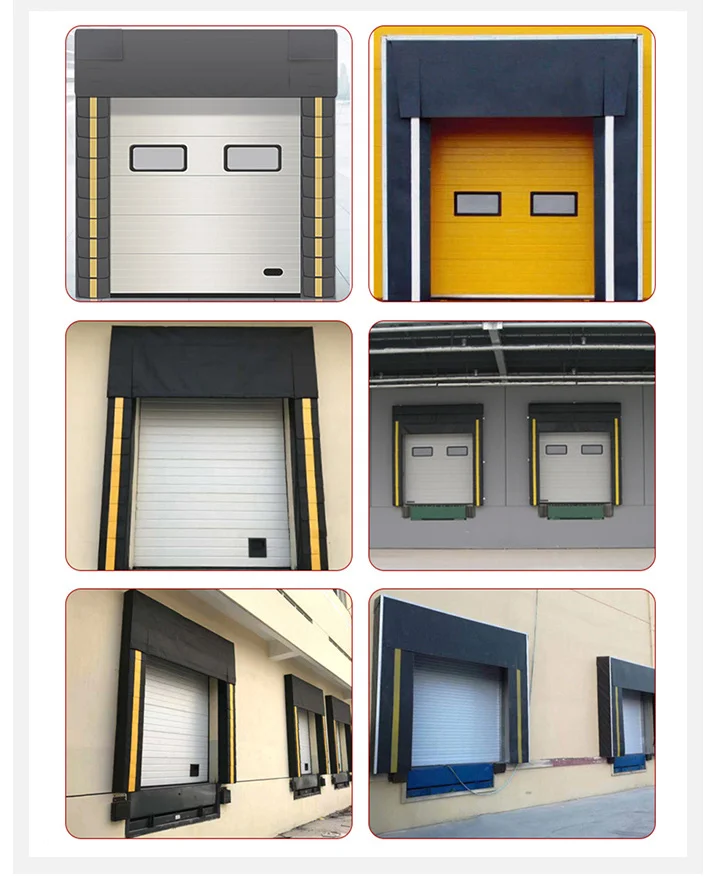

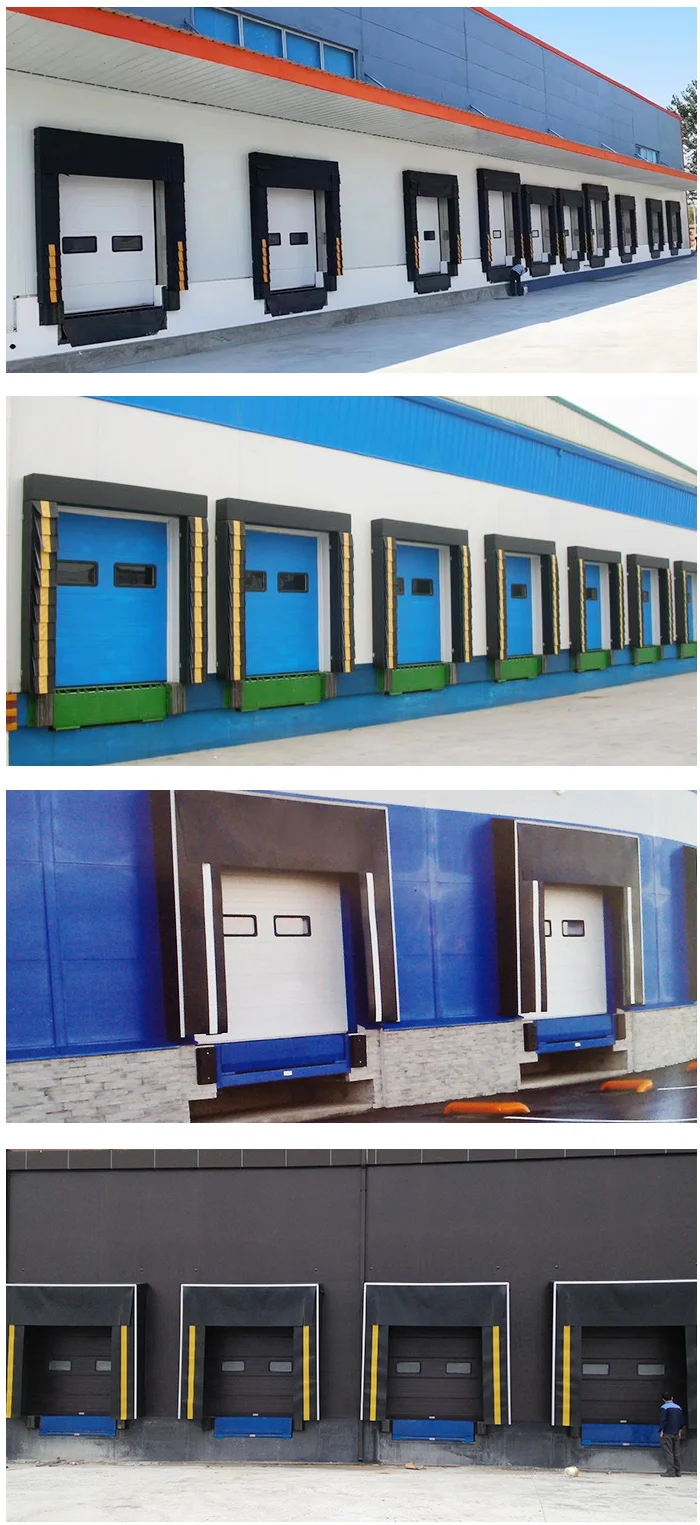

Products real shot
Our company
The products we can provide:
Rapid roller door, Fire shutter door, Sectional door, Wind resist roller shutter door, Aluminum roller shutter door, Transparent roller shutter door, Industrial sliding folding door, Steel(fire) door, Hangar door, Dock shelter, dock shelter and so on.
