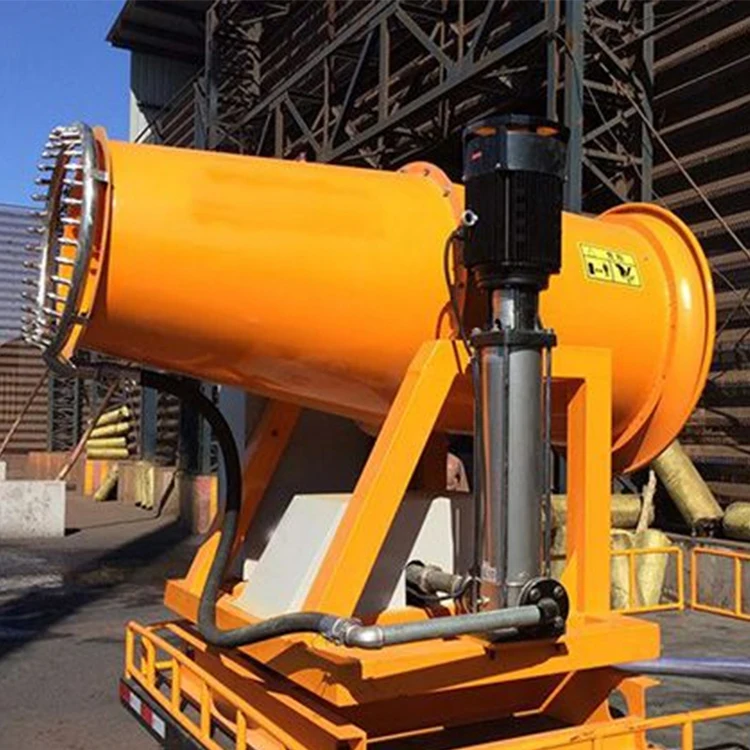

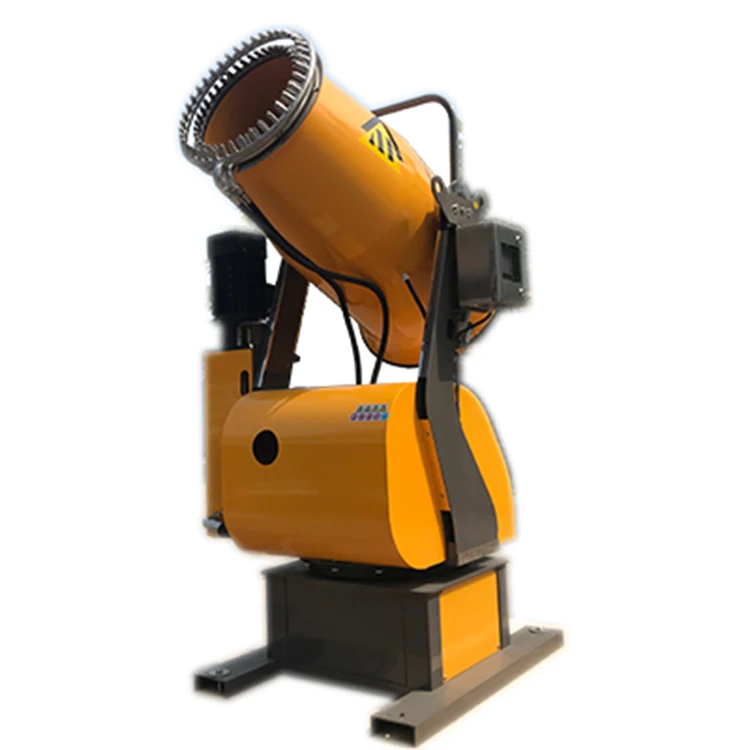

china hot sale good quality 50m 60m Intelligent ultra fine mist sprayer fog cannon
- Category: Garden Supplies >>>
- Supplier: China Construction Machinery Co. Ltd.
Share on (1600472572085):
Product Overview
Description
Product Description
The strong wind formed by the system pressurization and turbocharging of the ultra-fine fog sprayer can produce ultra-fine mist droplets with an average particle size of less than 30 microns (no obvious condensation at 20 meters from the fog-facing surface in a windless state). The range can be determined according to Need to be customized. The maximum distance is 100 meters, 340° rotation can be achieved, the movement is flexible, and the maintenance is simple. Easy to
control, automatic control and precise tracking positioning control.
The ultra-fine mist sprayer through the water quality optimization system, quantitative output, system pressurization, electronic control system, and the strong wind formed by the turbocharger will spread the micron-level water mist in a long distance and a wide range, and can rotate at multiple angles. The air forms a fog layer, which greatly increases the humidity in the air, absorbs dust particles, and the fog droplets become heavy and fall to the ground, which can effectively change the air dust concentration in a large range and improve the air quality of the partially enclosed environment. The electronic control system integrates programmable logic controllers, protection circuits, relays and their related components, providing users with automatic, manual, remote and other operation modes. In automatic operation mode, it can automatically receive remote trigger signals. Start or stop spray; in manual mode, the operator can press the operating button to start or stop spray. Users can also modify the spray cycle through the PLC setting interface, that is, to achieve remote intelligent and precise control. The booster system boosts the water to the working pressure of the nozzle to ensure the mist volume of the spray.
High-quality nozzle and fan blade assembly is the guarantee of ultra-fine mist and effective conveying distance and reducing working noise. According to the requirements, it can be equipped with original German imported or domestic nozzles and fan blades
control, automatic control and precise tracking positioning control.
The ultra-fine mist sprayer through the water quality optimization system, quantitative output, system pressurization, electronic control system, and the strong wind formed by the turbocharger will spread the micron-level water mist in a long distance and a wide range, and can rotate at multiple angles. The air forms a fog layer, which greatly increases the humidity in the air, absorbs dust particles, and the fog droplets become heavy and fall to the ground, which can effectively change the air dust concentration in a large range and improve the air quality of the partially enclosed environment. The electronic control system integrates programmable logic controllers, protection circuits, relays and their related components, providing users with automatic, manual, remote and other operation modes. In automatic operation mode, it can automatically receive remote trigger signals. Start or stop spray; in manual mode, the operator can press the operating button to start or stop spray. Users can also modify the spray cycle through the PLC setting interface, that is, to achieve remote intelligent and precise control. The booster system boosts the water to the working pressure of the nozzle to ensure the mist volume of the spray.
High-quality nozzle and fan blade assembly is the guarantee of ultra-fine mist and effective conveying distance and reducing working noise. According to the requirements, it can be equipped with original German imported or domestic nozzles and fan blades
Specification
Specifications/Models | HBY-50W | illustrate | |
Spray range (m) | 50-60 | still wind | |
Liquid pump pressure (Mpa) | 2.0-9.0 | ||
power distribution | Three-phase four-wire, 100A, 400V, 50HZ | ||
Fan power (KW) | 11 | ||
Liquid pump power (KW) | 4-15 | Flow average check | |
Number of atomizing nozzles | 50-80 | ||
Atomization amount (L/Min) | 10-16 | ||
control mode | PLC (eg: Siemens S7200smsmart) central control, automatic/remote/remote | Ethernet communication | |
Pitch angle | ‘-10°-+45° | ||
Rotation angle | 340° | With automatic return function | |
Water pressure (Mpa) | 0.1-0.4 | main water pressure | |
Installation form | High platform installation, truck cargo towing | ||
Protection class | IP55 | ||
Operating temperature | ’-30°C-45°C | Optional heat tracing insulation | |
storage temperature | Above 0°C | ||
blade material | Aluminum alloy | ||
Basin ring piping material | 304 stainless steel | ||
Dimensions (MM) | 1330*1120*2200 | ||
length*width*height | |||
Mounting base size (MM) | 1100-920 | ||
Weight (KG) | 580 | ||
water quality requirements | Requires water suspended solids ≤50mg/L, chloride ≤250mg/L, PH value 6.5~8.5, total hardness ≤450mg/L | ||

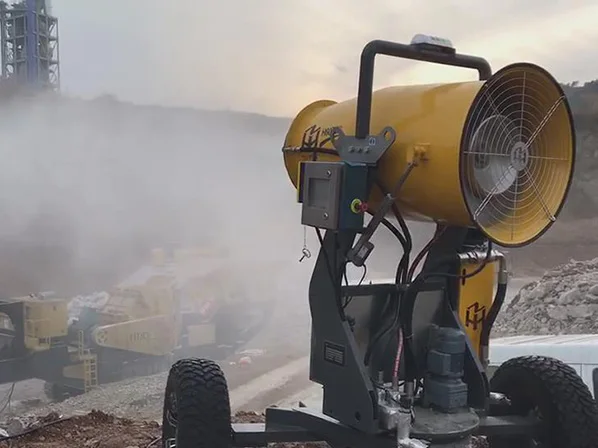

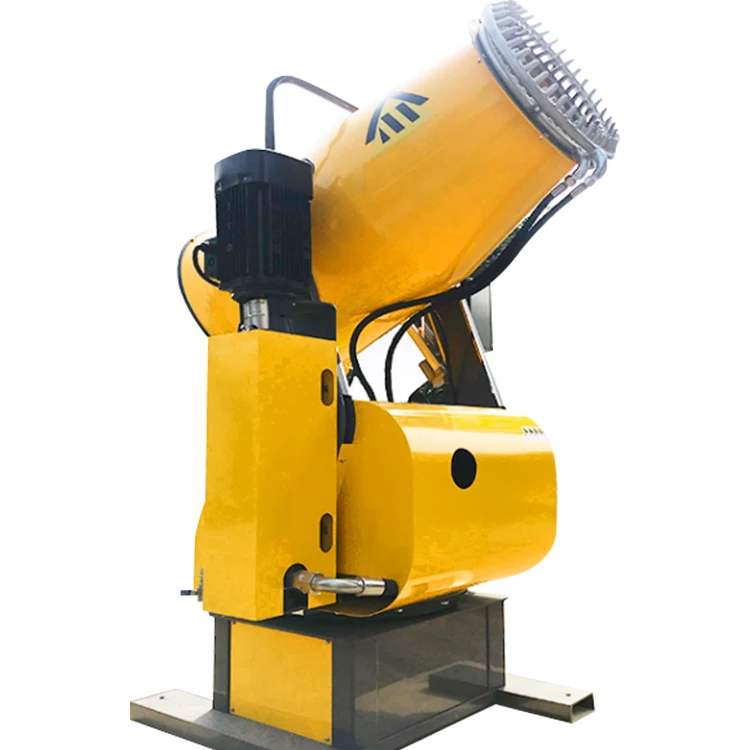

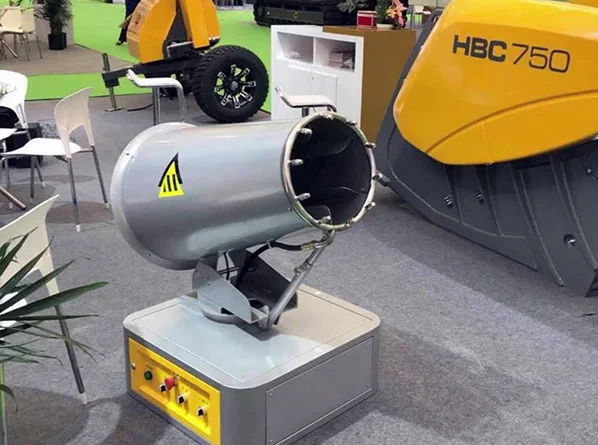

Product pictures
