Automatic SMT PCB belt conveyor smt inspection conveyor for smt machine line

Product Overview

Description

Automatic SMT PCB belt conveyor smt inspection conveyor for smt machine line

Whatspp:+8613424013606,skype:sensenhenhao

SMT PCB belt conveyor details

smt placement machine or between smt placement machine and reflow soldering machine.With Sensor to send in or send out and with sensor at the middle to keep stop or continue run .



1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.

2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.

3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.

4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.

5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.

6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.

Brand	Meraif smt conveyor
Model	MF-350
Outer Dimension	500*700*940mm-1500*700*940mm
PCB Width	50~350mm
PCB Direction	L to R or R to L
Speed	0-2000 mm/min
Motor	1P AC220V 50/60HZ 15W
Power Supply	1P AC220V 50/60HZ
Rail length	up to your request
Control System	PLC
Foot switch	standard
Lighting	Option
SOP Rack	Option
Platform material	ESD Rubber Mat
Communication plug	SMEMA Signal plug for up & down line
Weight	Approx.55Kg-85kg

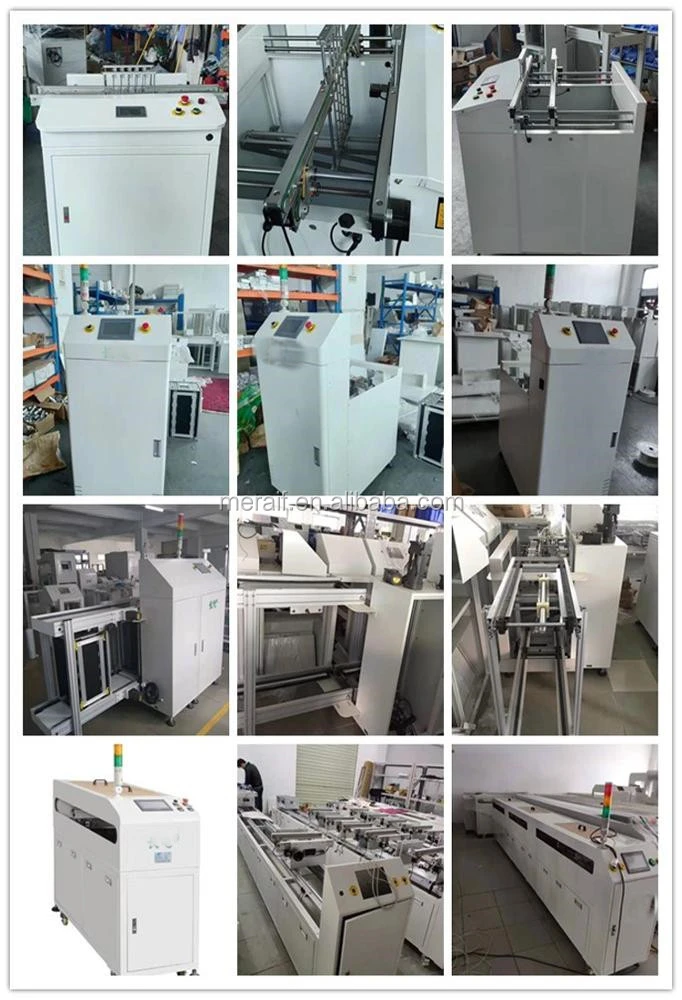

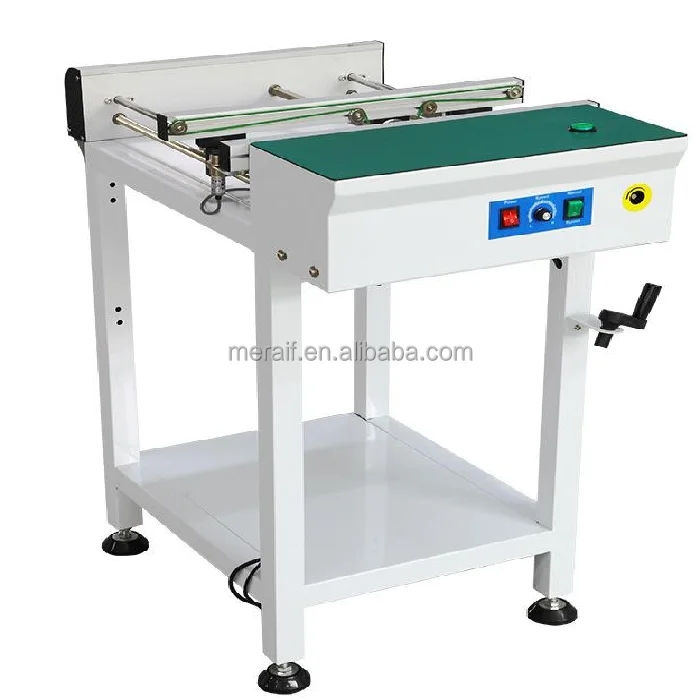

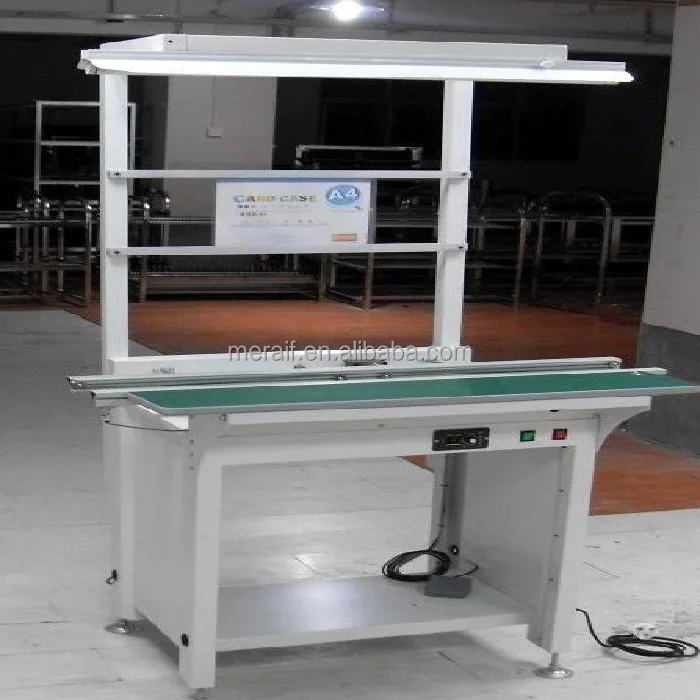

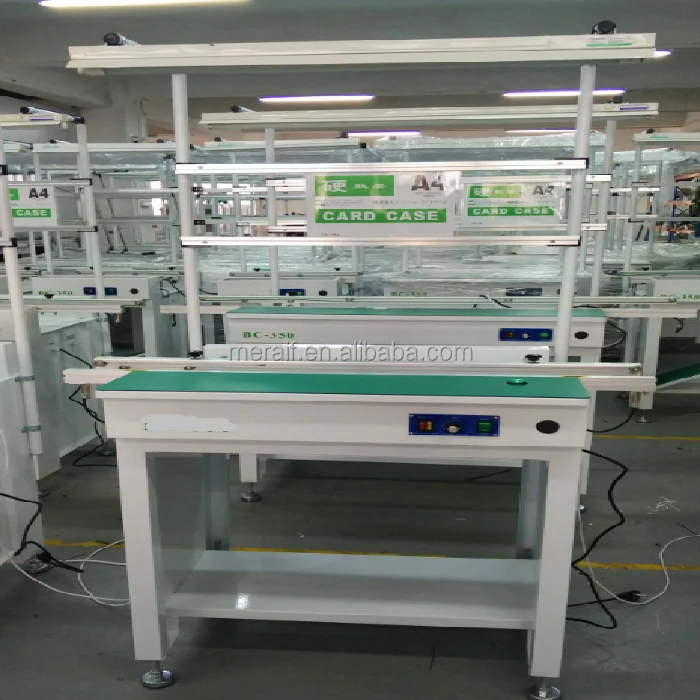

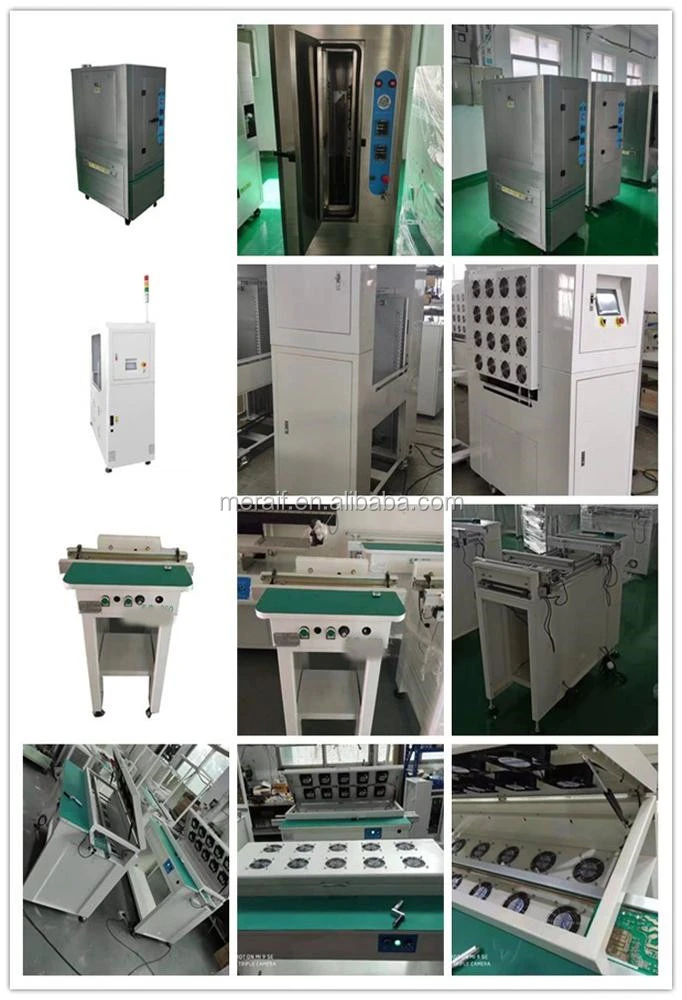

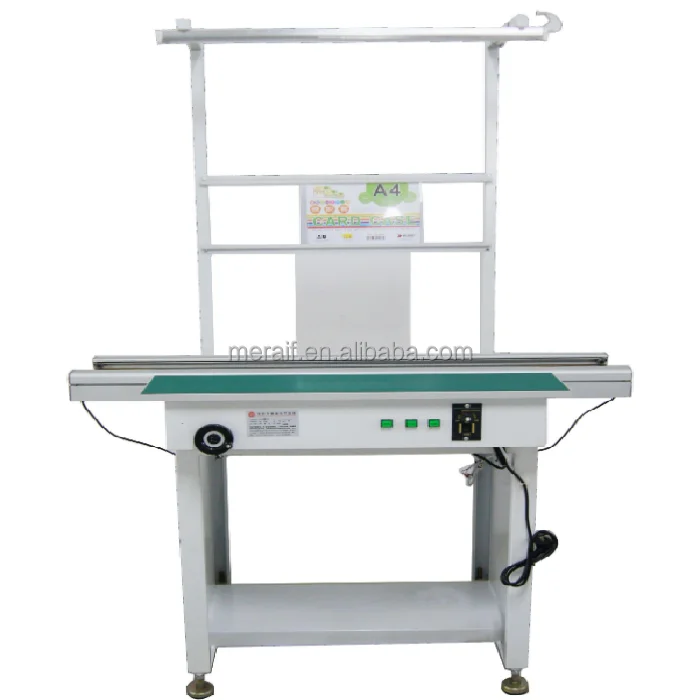

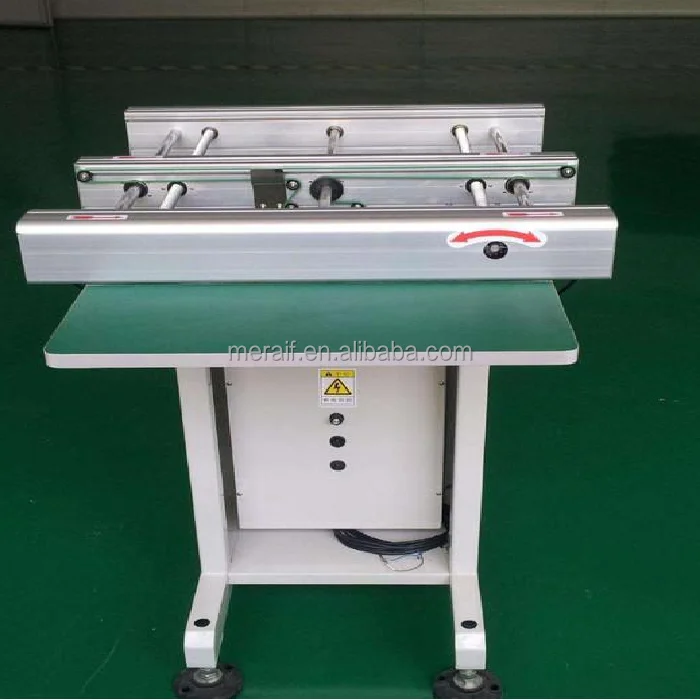

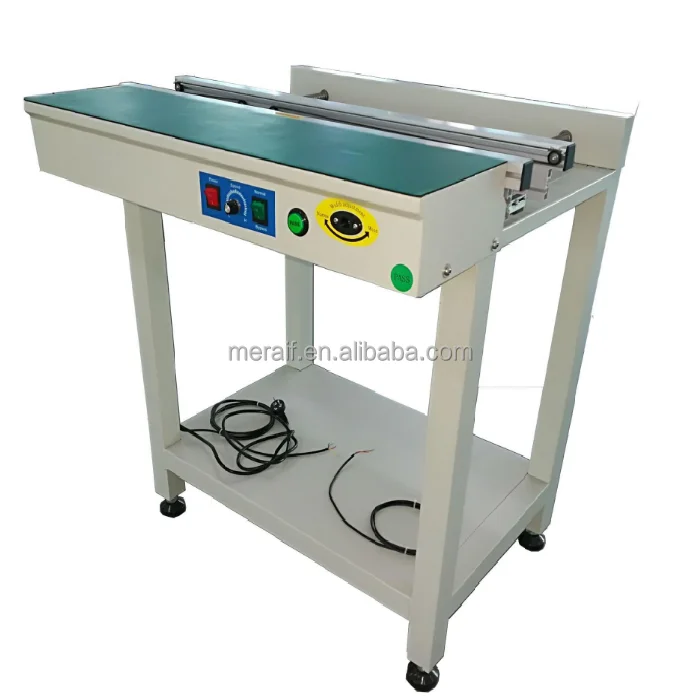

SMT PCB belt conveyor  picture show

picture show:
