North Seeking Gyro Survey Tool For Borehole Vertical Testing

Product Overview

Description

North Seeking Gyro Survey Tool For Borehole Vertical Testing

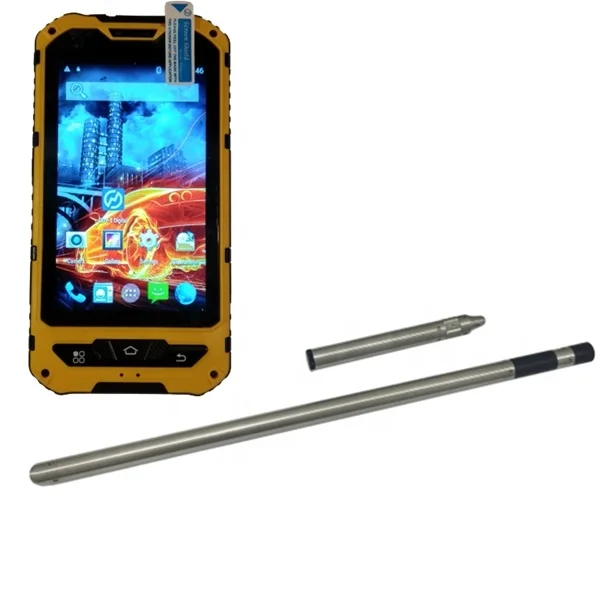

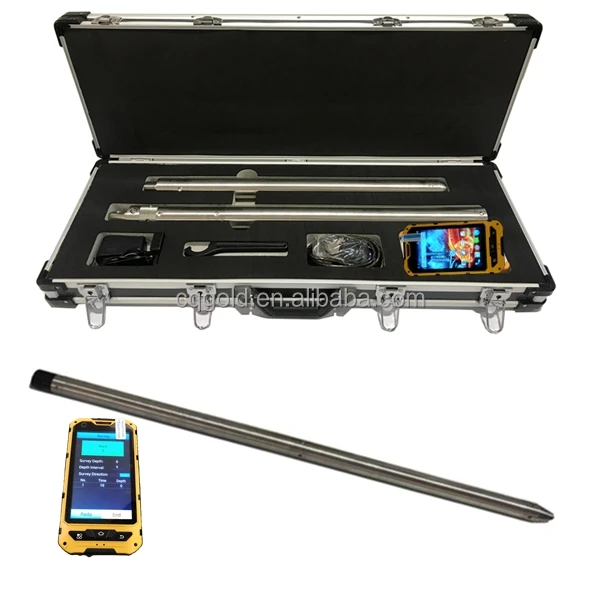

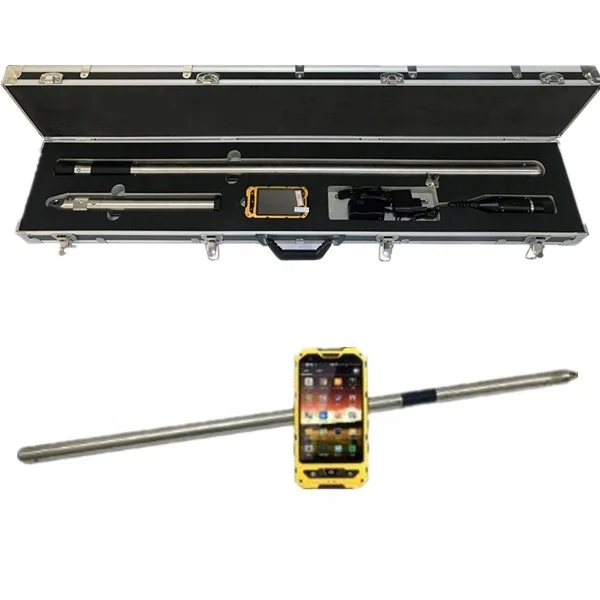

The GDY-2GW is an easy to use and non-magnetic multi-shot tool. It is based on military quality Fiber Optic Gyro technology. The tool measures the self-rotation of the earth where the tool is placed at to indicate the True-North angle.











1.Inclination Range 0° - 50°(Resolution 0.01°) Accuracy ±0.1°

2.Azimuth Range 0° - 360°(Resolution 0.1°) Accuracy ±2°(@Inclination>4°)

3.Pressure Normal: 20MPa

4.Dimenisions Ø40mm×1400mm Weight about 7.5Kg

5.Temperature Normal:-10°C - 70°C With thermal shield: -10°C- 120°C

6.Power (Probe) 7.4V Rechargeable Battery Endurance about 20 hours (Fully charged)

7.Power (Controller) 2600 mAh Polymer Battery

8.Self test time 30 seconds (For better accuracy, warm up the probe for at least 5 minutes)

9.Survey time less than 2 minutes (must be in a static environment)

10.Depth 2000m

11.Storage 8GB ROM

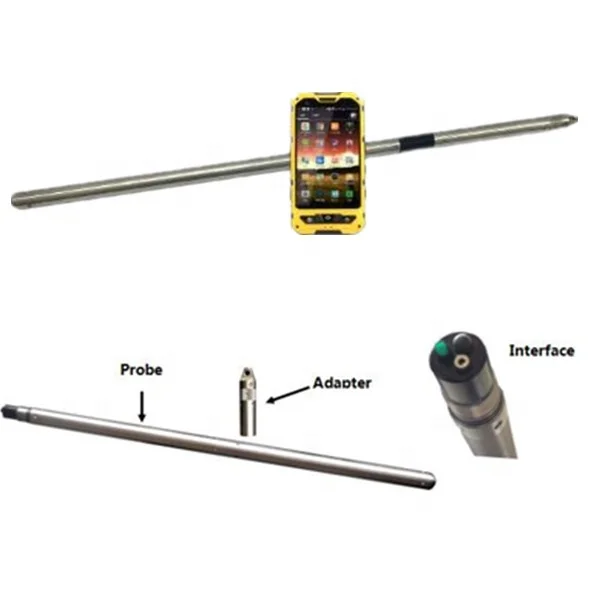

The adapter with an ID number “420xxx” is used to connect a steel wire and slowly lower it down the hole. There is no switcher on the probe so you don’t need to disassemble GDY-2GW during the whole measuring process. Once being assembled with the battery housing, the GDY-2GW will automatically start to work. The probe is powered by a 7.4V rechargeable lithium battery, which can be charged no less than 500 times. The endurance of the survey tool is about 20 hours.
