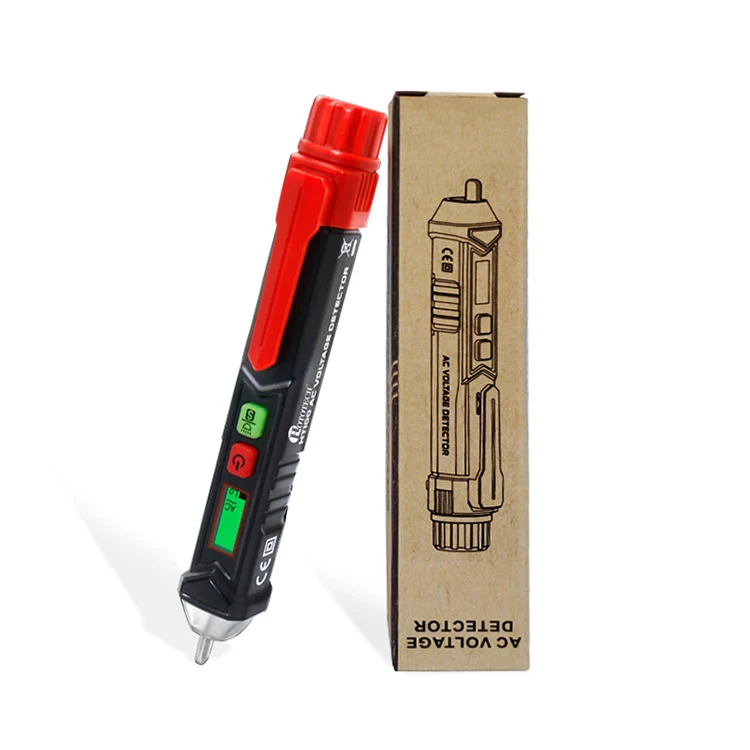

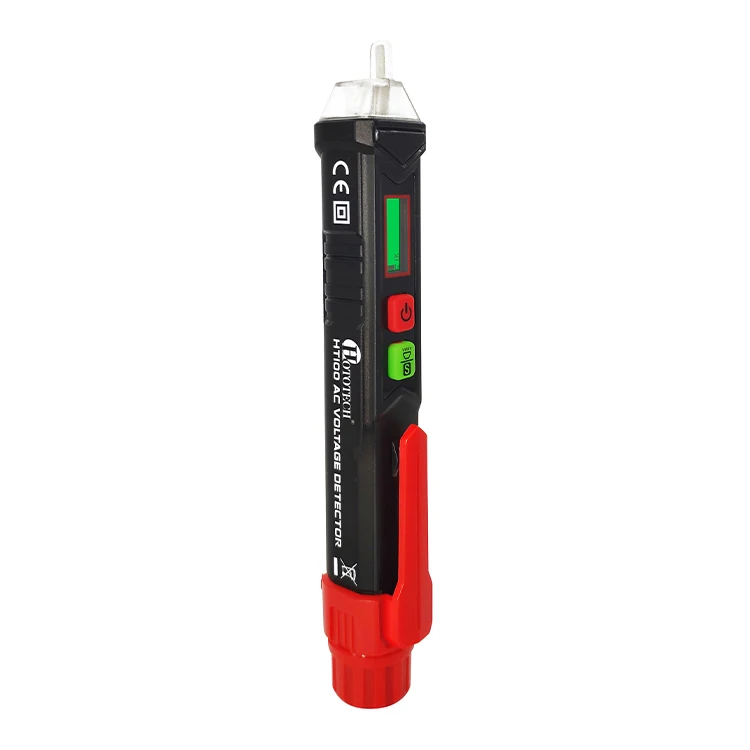

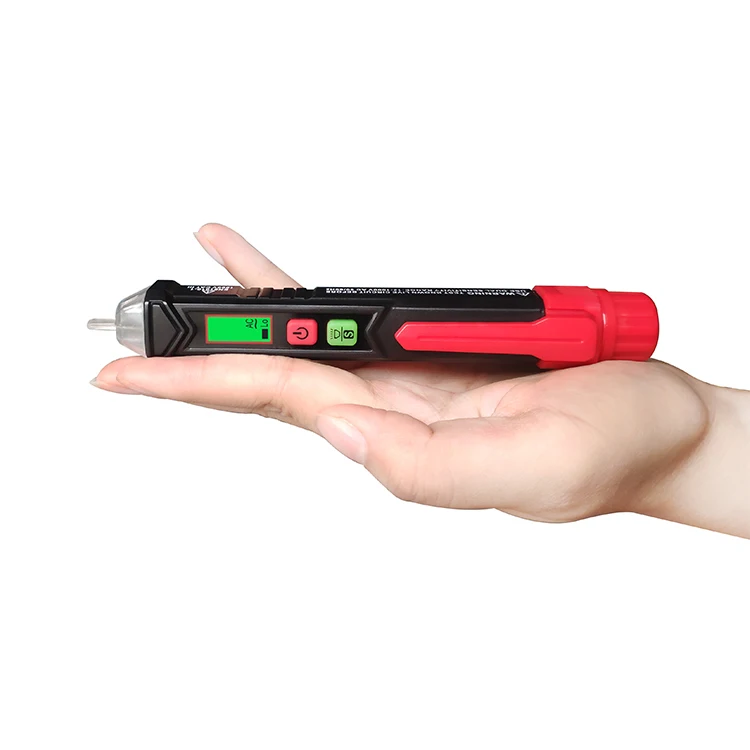

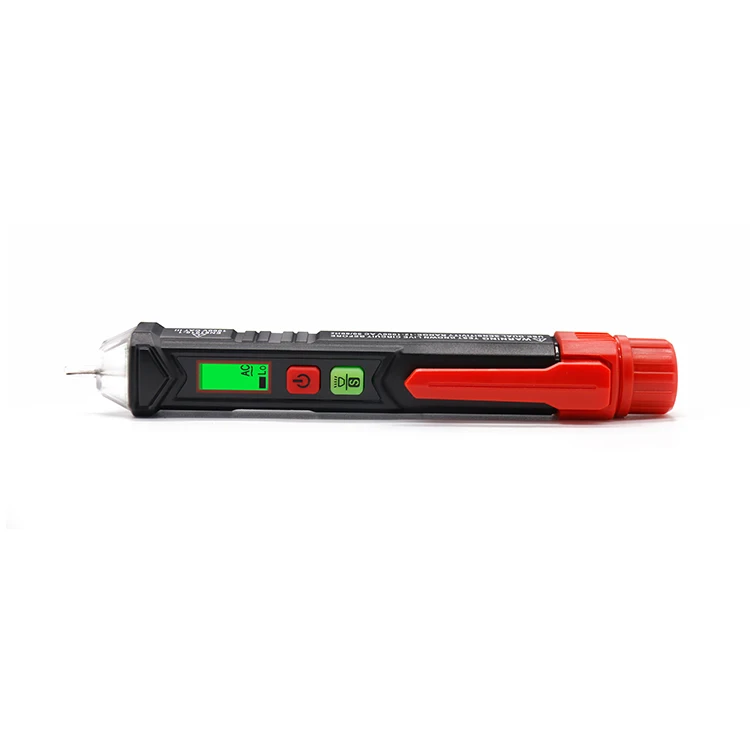

New Design 12V to 1000V Pen Type Non Contact Voltage Detector With Flashlight

Specifications

Display

Bar graph

Range of voltage detection

high sensitivity AC12~1000V. Low sensitivity: AC48~1000V

frequency

50/60Hz

Alarm mode

Sound and light alarm

Probe shape

Prolate shape

Backlight

Red and green double color backlight

Live and Neutral

According to backlight color change: green is neutral wire; red is live wire.

Signal intensity display

Four level sensitivity of bargraph

Signal intensity indication method

sound from slow to fast; backlight from green to red; bargraph from low to high

Flashlight

No operation, no sensing signal will shut down automatically in about 3 minutes.

Auto power off

No operation, no sensing signal will shut down automatically in about 3 minutes.

Low-battery indication

√

Power Supply

2x1.5V AAA batteries

Weight

Approx.32g

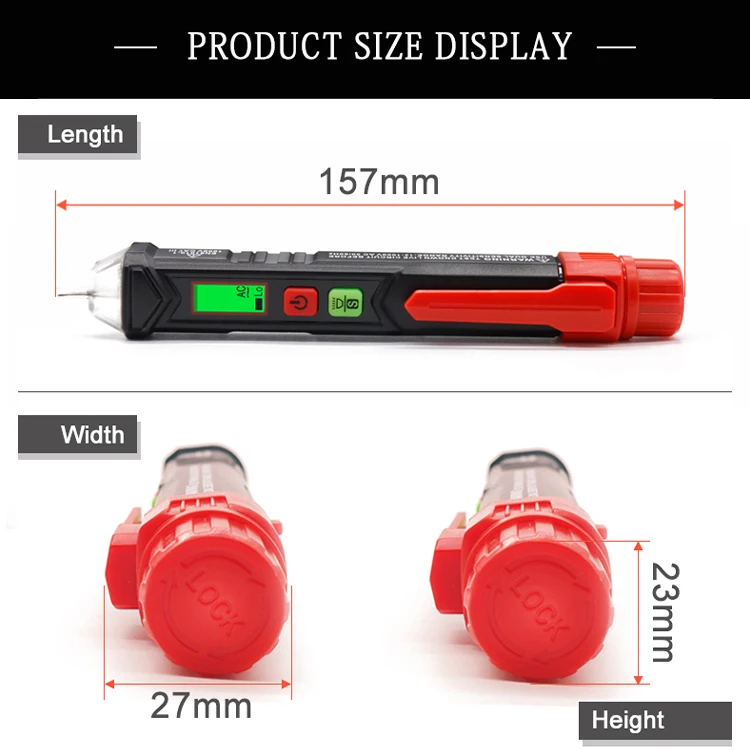

Size

157mm x 27mm X 23mm

Safety rating

EN61010-1,-2-030; EN61326-1, CAT lll 1000V
