High Heating Efficient Electric Infrared Heaters Ceramic with Long Life Span
- Category: >>>
- Supplier: Shanghai Pamaens Technology Co. Ltd.
Share on (1600473040366):
Product Overview
Description
Product Description
PAMAENS Ceramic infrared heater / Electric Infrared Heaters Ceramic
1. Radioactive properties: a maximum monochromatic radiation components reached 0.9, the normal total radiation rate is greater than 0.83.
2. Thermal response time: from room normal temperature to a constant value of the radiant panel surface temperatures less than 20 minutes.
3. Degeneration of hot and cold resistance: five alternating hot and cold test of no peeling, no cracking.
Radiating temperature inhomogeneity | ≤ 15% |
Power error | The rated working voltage ≤ 5% |
Cold insulation resistance | 500V megger> 2mΩ |
Thermal insulation resistance | 500V megger> 0.5mΩ |
Using life | > 5000 hours |
Features
1.Extremely high temperatures, limited largely by the maximum temperature of the emitter
2.Fast response time, on the order of 1–2 seconds Temperature gradients, especially on material webs with high heat input
3.Focused heated area relative to conductive and convective heating methods
4.Non-contact, thereby not disturbing the product as conductive or convective heating methods do
Applications
* PET perform heating in stretch blow molding machines
* Printing Ink drying in offset machines
* Screen-printing curing on T-shirts and textiles
* Powder coating curing
* Rubber coated drying
* Sterilizing/mirror coating drying in glass industries
* Paint baking
* Paper coating drying
* All type of lamination
* Preheating prior to embossing
Table

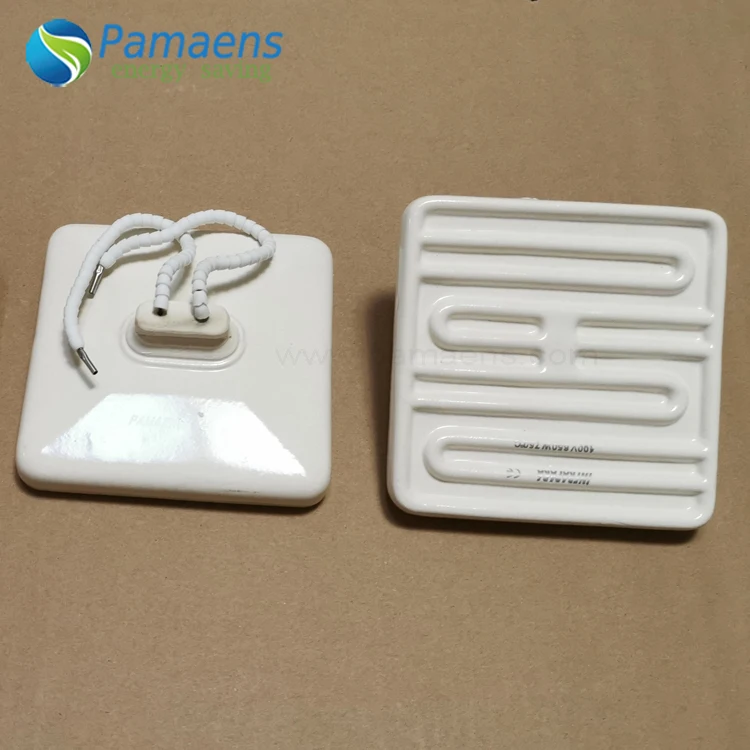

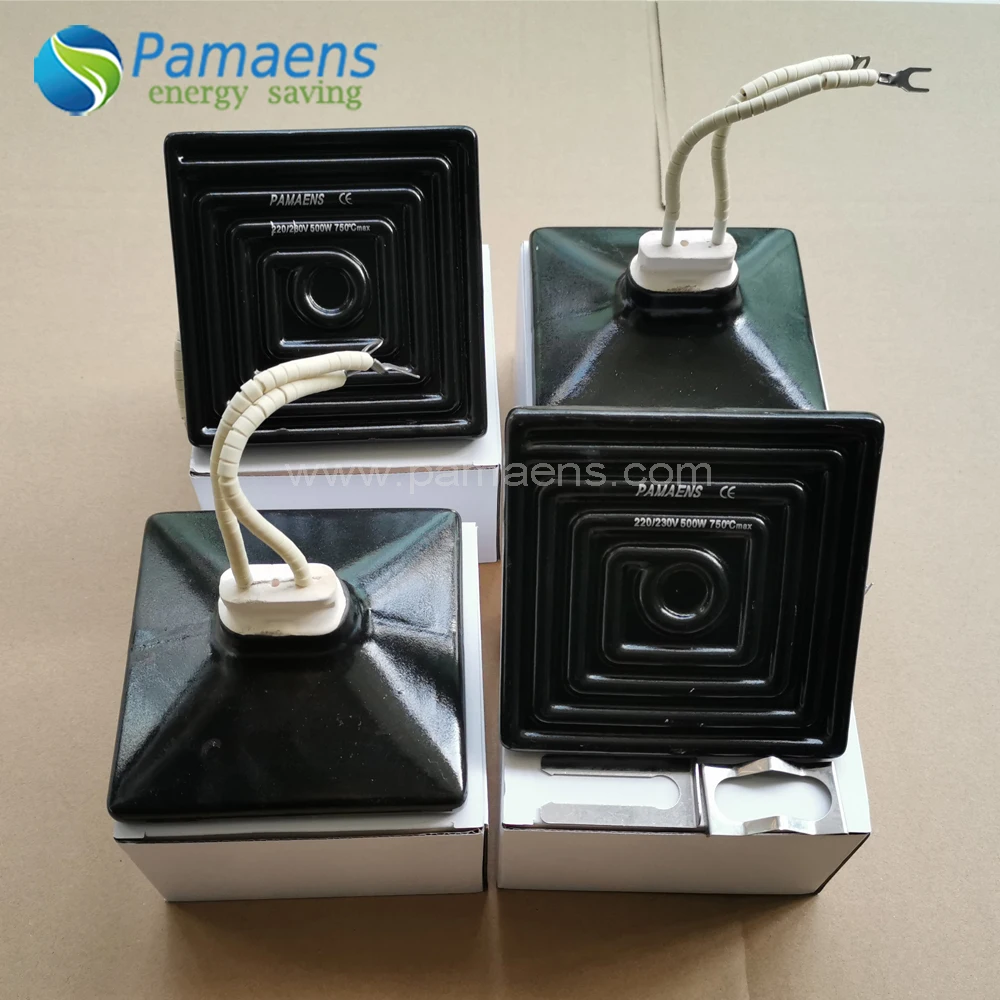

1) square IR Ceramic heater(hollow type & flat type) , customized
Model | Size | Voltage | Wattage | Max.Temperature |
PM-120 X 120 | 120X120 mm | 110v/220v/230v | 150w-1000w | 950°C |
PM-60 X 60 | 60x60 mm | 110v/220v/230v | 100w-500w | 500°C |

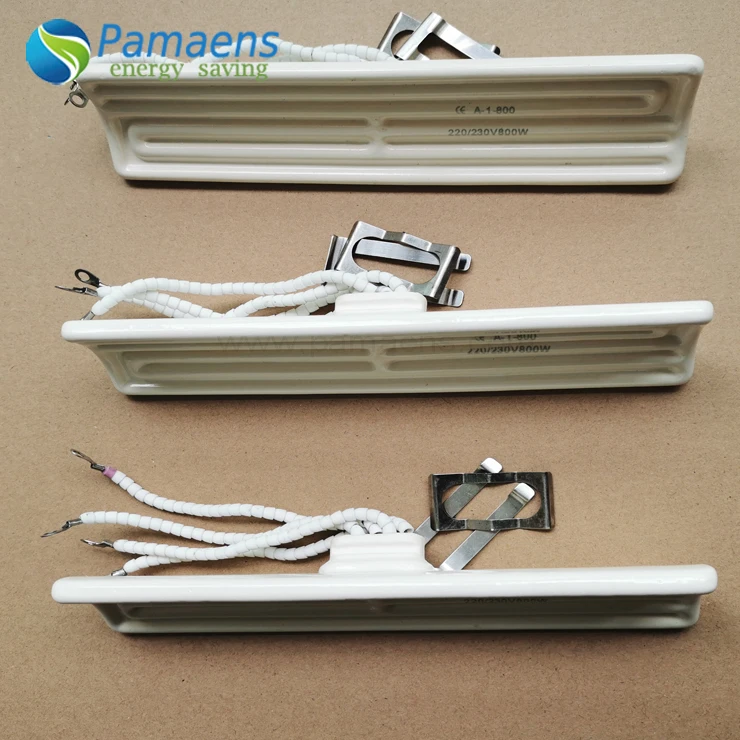

2) rectangle flat IR Ceramic heater(hollow flat & solid flat type ) , customized
Model | Size | Voltage | Wattage | Max.Temperature |
PM-240 X 80F | 240x80 mm | 110v/220v/230v | 300w-1200w | 950°C |
PM-240 X 60F | 240x60mm | 110v/220v/230v | 300w-1200w | 950°C |
PM-120 X 60F | 120x60mm | 110v/220v/230v | 200-600w | 750°C |

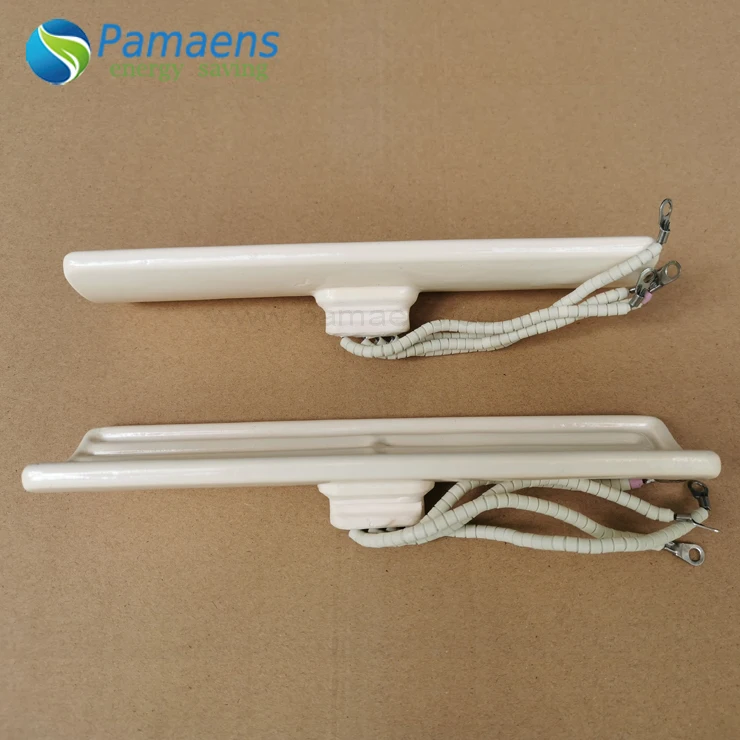

3) rectangle curved IR Ceramic heater, customized
Model | Size | Voltage | Wattage | Max.Temperature |
PM-240 X 60C | 240x60mm | 110v/220v/230v | 150w-1200w | 950°C |
PM-240 X 80C | 240x80mm | 110v/220v/230v | 300w-1500w | 950°C |
PM-120 X 60C | 120x60mm | 110v/220v/230v | 100w-500w | 500°C |
Note:
1)Color: bright black, black, bright white, white, bright beige, yellow
2) with or W/O thermocouple K or J
3) Packing: 1 piece in one box, carton + wood pallet
4) The OEM and ODM order is available
Heating performance
Products Showcase of Electric Infrared Heaters Ceramic
 |  |
 |  |
 |  |
 | |
 |  |
 |  |
Packaging & Shipping
PACKAGE:
Standard export carton packing with separate blister inner package.
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Our Services

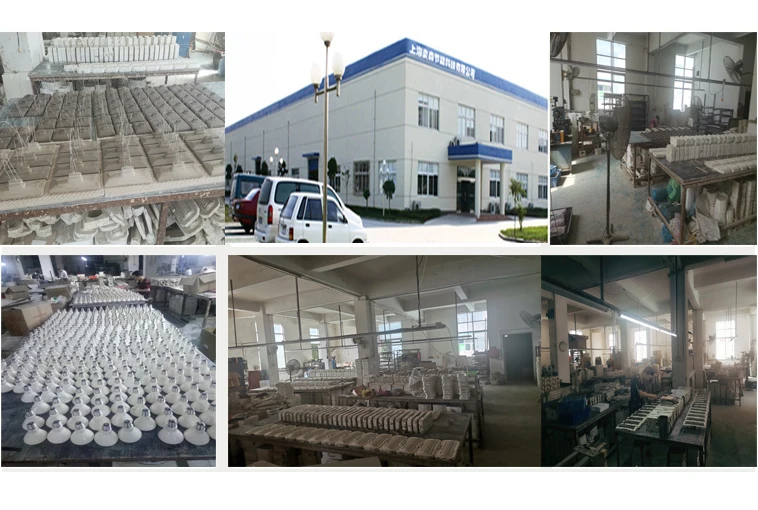

Company Information
Company Information
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
Certifications
How to Order
Order Guidance of Electric Infrared Heaters Ceramic
Length and width of the heater
Shape of the heater: Hollow, Trough, Flat, ceramic bulb
Voltage & Power
Built-in thermocouple type, J type or K type (optional)
Quantity
FAQ
Q
How can I get the sample to check your quality?
A
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q
What can I get the price?
A
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q
What is your term of delivery?
A
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
Q
What about the lead time for the mass production?
A Nrnooo
Our production time is 10-20 days depends on the order quantity and the season you place the order.
