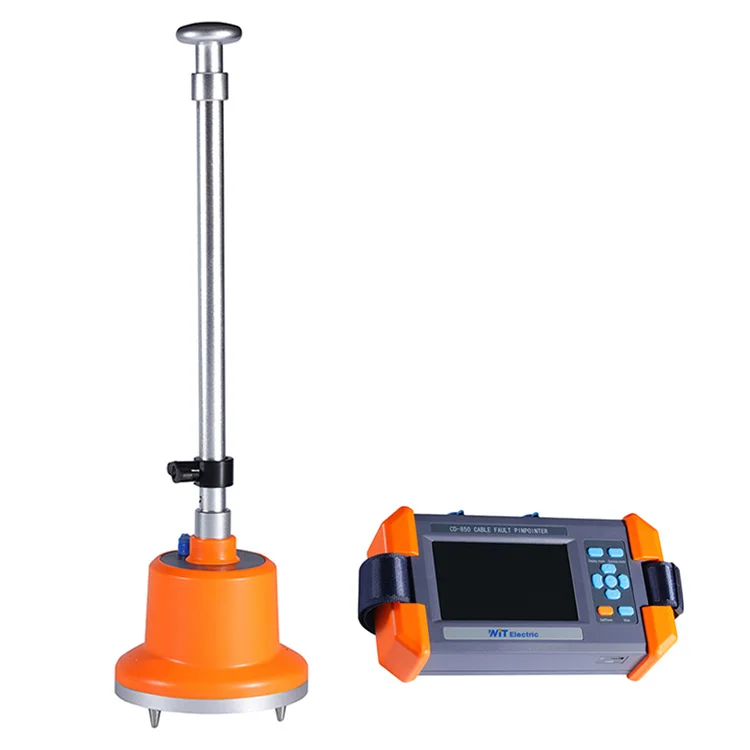

Portable Pin pointer Cable Fault Locator Tester Underground Cable Fault Locator
- Category: >>>
- Supplier: Zibo Wit Electric Co. Ltd.
Share on (1600473093095):
Product Overview
Description
Products Description
Function:
1. Integrated the function of acoustic magnetic synchronization method, the step voltage method(optional)
2.Intelligent pinpointing method to calculate the acoustic magnetic delay value
3. Background noise reduction function
4. Auto muting function to avoid the noise
5. Electronic compass function to display the included angle between cable route direction and sensor. It’s very useful for quick pinpointing
6.acoustic channel filtering parameter adjustable
7.Auto gain adjustment function for easy use, automatic trigger by magnetic field

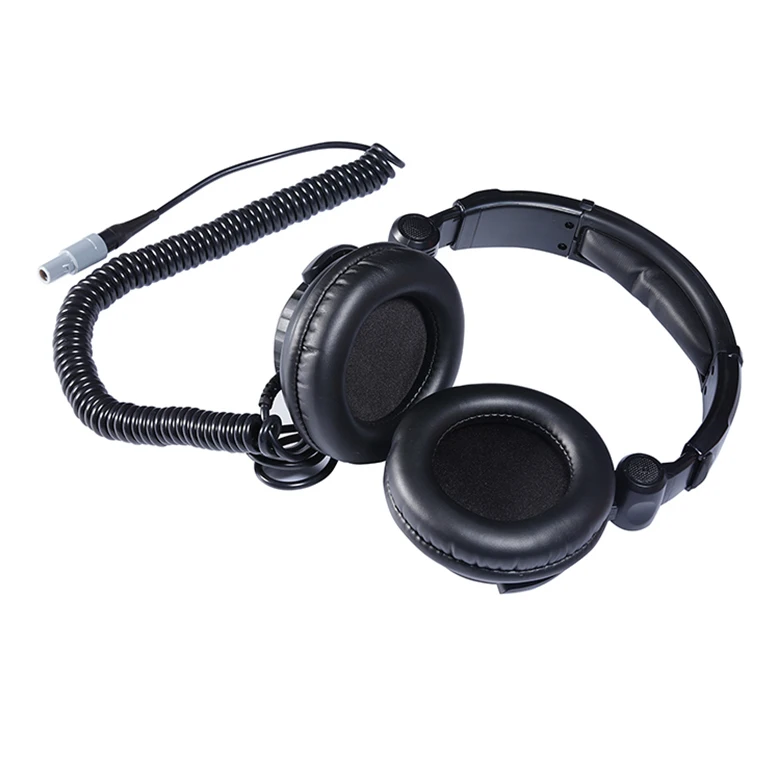

8.High performance anti-noise headphone
9.Water-proof IP 65 for outdoor application
10.Color LCD to make clear display under the sun
11.Power supply management: power off automatically in 5 min. without action; Power off also when low battery voltage
12.Built-in Li-ion battery
1. Integrated the function of acoustic magnetic synchronization method, the step voltage method(optional)
2.Intelligent pinpointing method to calculate the acoustic magnetic delay value
3. Background noise reduction function
4. Auto muting function to avoid the noise
5. Electronic compass function to display the included angle between cable route direction and sensor. It’s very useful for quick pinpointing
6.acoustic channel filtering parameter adjustable
7.Auto gain adjustment function for easy use, automatic trigger by magnetic field
8.High performance anti-noise headphone
9.Water-proof IP 65 for outdoor application
10.Color LCD to make clear display under the sun
11.Power supply management: power off automatically in 5 min. without action; Power off also when low battery voltage
12.Built-in Li-ion battery
Function
1) acoustic magnetic synchronous pin-pointing:
a) acoustic channel
Bandwidth:
all-pass: 80Hz~1500Hz
low-pass: 80Hz~400Hz
high-pass: 200Hz~1500Hz
band-pass: 150Hz~600Hz
b) Signal gain: ≥80dB
c) Accuracy: 0.1m
2) Step voltage function(optional)
a) Magnification times: >80db
3) Power supply:
a) Battery: built-in Li-ion battery series,7.4V,3400mAH
b) Continuous work time above 9 hours
c) Charger: input AC220V±10%,50Hz;output 8.4V,DC 1A
d) Quick charging below 4 hours

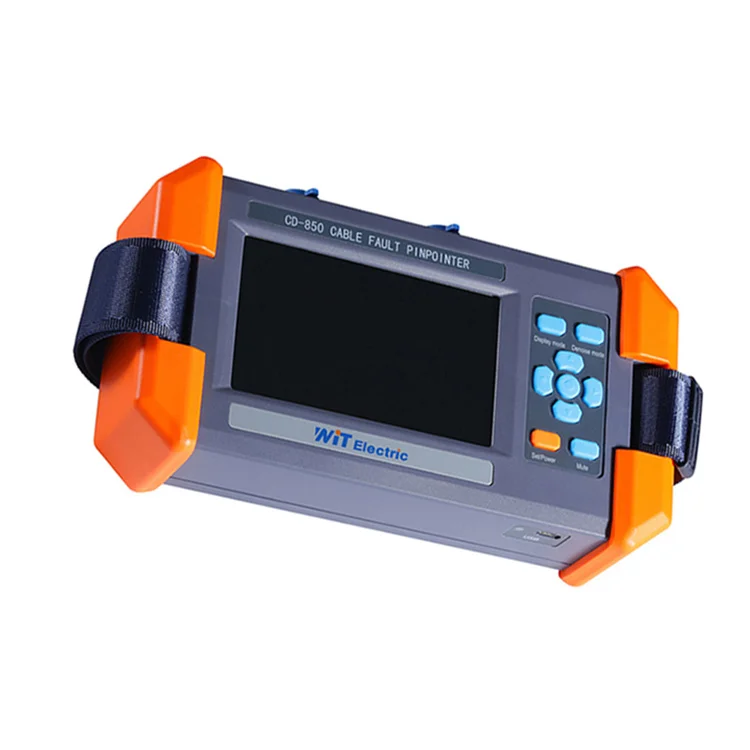

4) Display method: 320x240 dot LCD, screen semitransparent & Semi Gloss to make sure clear display under the sun
5) Size: 210mm×95mm×115mm
6) Weight: 0.6kg
7) Use environment: -10℃~40℃,5-90% RH, elevation <4500m
1) acoustic magnetic synchronous pin-pointing:
a) acoustic channel
Bandwidth:
all-pass: 80Hz~1500Hz
low-pass: 80Hz~400Hz
high-pass: 200Hz~1500Hz
band-pass: 150Hz~600Hz
b) Signal gain: ≥80dB
c) Accuracy: 0.1m
2) Step voltage function(optional)
a) Magnification times: >80db
3) Power supply:
a) Battery: built-in Li-ion battery series,7.4V,3400mAH
b) Continuous work time above 9 hours
c) Charger: input AC220V±10%,50Hz;output 8.4V,DC 1A
d) Quick charging below 4 hours
4) Display method: 320x240 dot LCD, screen semitransparent & Semi Gloss to make sure clear display under the sun
5) Size: 210mm×95mm×115mm
6) Weight: 0.6kg
7) Use environment: -10℃~40℃,5-90% RH, elevation <4500m
Product Application
Recommend Products
Company Profile
Our service
1) two years warranty
2) site trainging for distributor
3) free demo sample for distributor
4) extra discount for distributor
5) OEM/ODM is needed
Exhibition
Certifications
Product packaging
FAQ
1.Who we are?
WIT ELECTRIC located in China north location device production base, we are leading manufactuere in the developing and production of Cable fault location device, Pipeline detection device, related HV testing devices and portable tools.
2.What we fucus on?
-Cable fault location system,to find underground fault points position.Includes Prelocator,Pinpointer,HV generator,Bridage device
-Underground pipe and cable detection system,detect pipe and cable path,depth,do identification.
-RFID reader and ball marker
-EHV cable sheath fault location
-Insulation tester
-HV detector and other electric tools
3.Our value
Professional, concentration, respection,passion, value any cooepration chance
WIT ELECTRIC located in China north location device production base, we are leading manufactuere in the developing and production of Cable fault location device, Pipeline detection device, related HV testing devices and portable tools.
2.What we fucus on?
-Cable fault location system,to find underground fault points position.Includes Prelocator,Pinpointer,HV generator,Bridage device
-Underground pipe and cable detection system,detect pipe and cable path,depth,do identification.
-RFID reader and ball marker
-EHV cable sheath fault location
-Insulation tester
-HV detector and other electric tools
3.Our value
Professional, concentration, respection,passion, value any cooepration chance
