seafood drying machine Portable food grade material 40 trays shrimp dryer machine
- Category: Chemical Machinery & Equipment >>>
- Supplier: Henan,Baixin,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

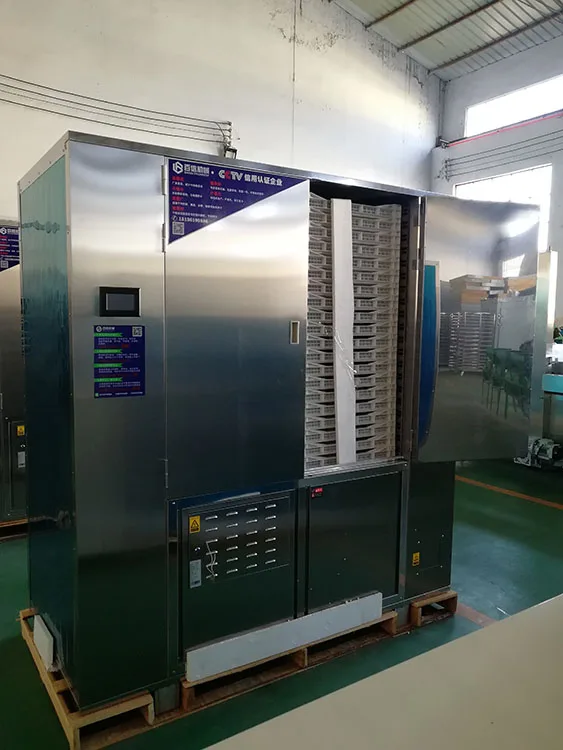

Portable food-grade material 40pcs trays shrimp dryer machine
Product Description
With about more than 10 years of experience on shrimp dryer machine, we offer drying system which is designed to operate at low energy consumption with high reliability, smooth operation and little maintenance. Our heat pump dryer machine is widely used in the application of food, industry, chemical industries , and earn a good reputation from our clients.
Dew to the different characteristic of material, Special design for heat pump dryer machine is a must to ensure the reliable operation, high dehydration capacity and highly economic efficiency.
-Stainless steel for whole machine , Anti-Rust and Anti-corrosion
-No need installation
-Portable type, can be removable with 360 degree steering wheel
-Simple operation, just connect the power supply.

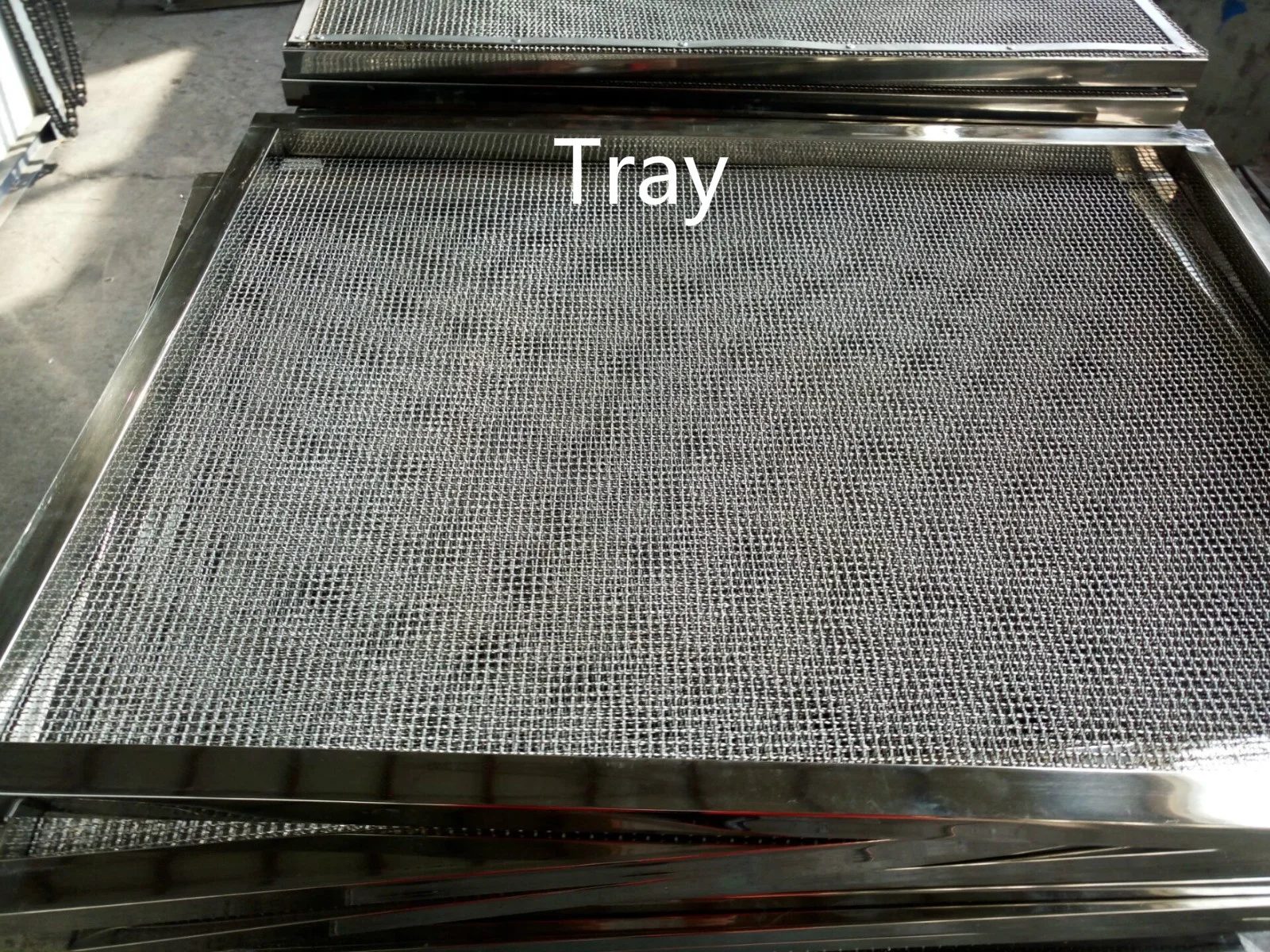

-Optional tray for food grade PP and 304 stainless steel
-The drying situation could be observed from outside the machine
-PLC intelligent control panel: drying temperature(18-80°C), humidity, time, drying stages all could be setted.

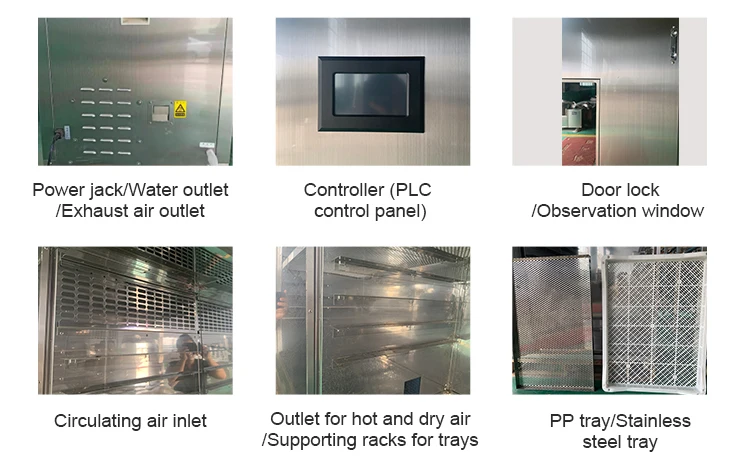

Structure of shrimp dryer machine
the shrimp dryer machine mainly contains: stainless steel container, electric cabinet, heat exchanger, PLC touch screen, tray
Technical Parameters
food dryer
Capacity: 50-1000kg/batch
Power: 1-8kw
| Type | Machine size(MM) | Capacity (KG) | total power(kw) | trolley Qty. | trolley size | tray Qty. | tray size(MM) |
| 1P | 1180×680×1800 | 50kg-80kg | 1 | — | — | 15 | 600×800 |
| 3P | 2100×930×2100 | 120kg-300kg | 3.5 | — | — | 40/60 | 600×800 |
| 8P | 4000×1960×2050 | 650kg-1000kg | 8 | 8 | 600×800 | 232 | 600×800 |
*if any other capacity, configuration requiry, also achieved.
Application
Agriculture
----vegetables: radish, lettuce, pumpkin, carrots, spinach, cassava,etc.
----fruits: apple, lemon, mango slices, peach,apricots,etc.
Grain
Herbs
Seasoning
Seafood
----fish, shrimp, seaweed,etc.
Meat
----sausage, beef, duck, ham,etc.
Paper products
Construction
Mineral industry
After-sales service
After-sales is the provision of services, support and spare parts after making an initial sale.
We provide a complete service from the first customer contact , designing, manufacturing to
installation and commissioning, as well as the excellent after sales support .
Company Information
Henan Baixin Machinery Equipment Co.,Ltd is a set of technology development, manufacturering, operating services as one of the high-paying technology state import enterprises, the central plains regions is the largest drying equipment, food equipment research and development and production base. Products are exported to the world more than 90 countries and regions, favored by customers. Its comprehensive strength ranks among the best in China's drying industry.
The main products: continuous mesh dryer, heat pump dryer, drying ovens, Microwave drying sterilization equipment, vegetables&fruits processing line,
such as slicing machine,peeling machine, package, grinder, so on. Equipments is widely used in agriculture, industry, food, chemicals, medicine and other industries, to meet the existing more than 85% of raw materials,drying and deep processing.
FAQ
Now we plan to make the drying project, what should we do?
Firstly, please confirm your water content of material, before the dryer? after the dryer?
Secondly, please tell us what is your required capacity? per hour or per day
Thirdly, what 's the heat source? Coal, gas, electrical or others.
We could recommend you the suitable drying solution base on your project requirments.
What kind of drying machine is suitable for me?
We could supply three types of shrimp dryer machine:
*multi-layer belt drying machine---which is more suitable for large-scale food drying.
*heat pump drying machine---easier to operate, which is mostly used in the small and medium scale drying process.
*microwave food drying machine---which has higher drying efficiency and sterilization function.
Based on your production process, you could choose the suitable one.
Can I specify the heat source?
Yes, Electricity and natural gas are widely used as heat sources. but for Mesh belt dryers, which has a wide range of heat sources (electricity, hot air, natural gas, steam or coal), you could choose one that suits the conditions of your area.
What's the drying time?
It depends on various reasons:
*The water content of the materials,
*The sugar content of materials
*The size of the raw materials
*the required dyied temperature
*the ambinet environment
*the final desired texture
The most important is that whether the dryer you chose is suitable for drying
if any other configuration required about shrimp dryer machine, please feel free to contact us, my whatsapp number is +8615638192992
