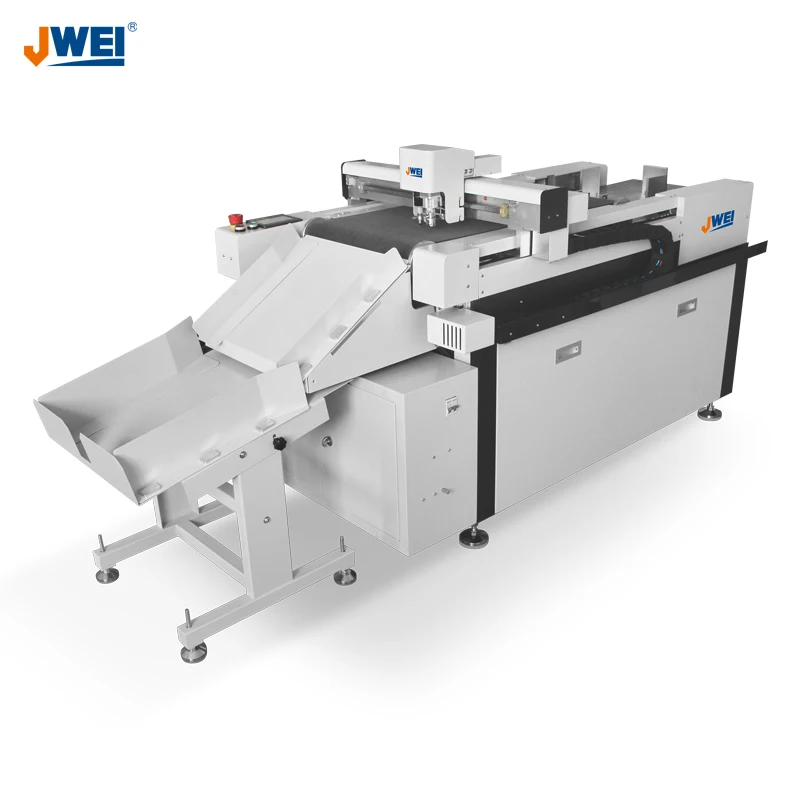

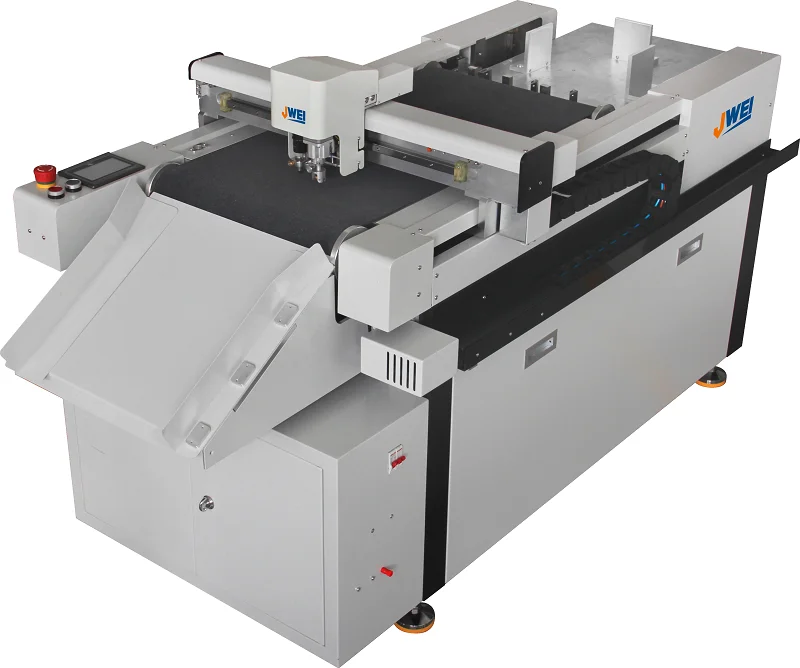

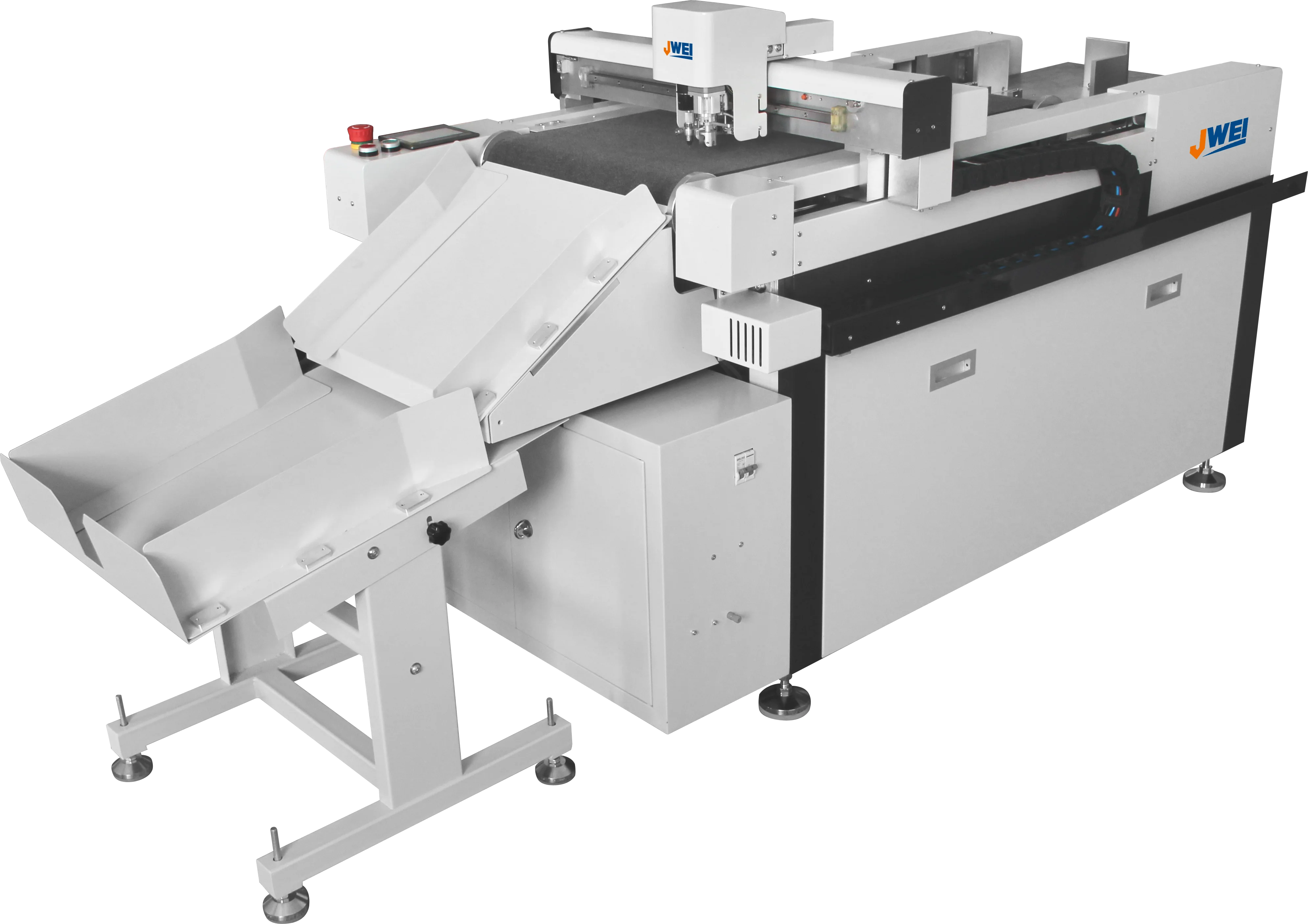

LS series high quality plotter head has two tool holders which be used insert tool scoring tools
- Category: >>>
- Supplier: Ningbo Jingwei Systemtechnik Ltd.
Share on (1600473568634):
Product Overview
Description
The LS series cutting plotter is equipped with various kinds of cutting and impressing blades and can be used in the cutting, plotting and impressing of many materials such as PVC board, PP board and white card paper. The LS series cutting plotter helps you save time while reducing the cost. It is able to process cardboards, paper, PVC, film, sticker, etc. The maximum cutting depth is up to 2mm, depending on material density.

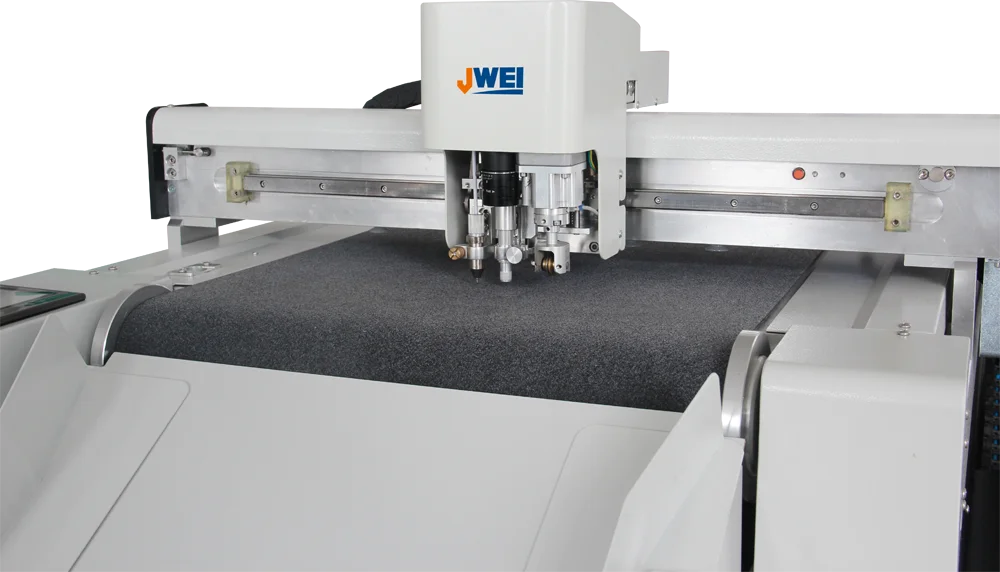

LS series cutting plotter is a model with superior speed and accuracy. Supported by a DSP control center and digital servo motor,it wins the market by its best cost-performance. The LS series cutting plotter has two tool-holders on the head and is universal for inserts of cutting knifes, scoring tools or plotting pens. One cutting plotter can maximize the application range. The LS series cutting plotter is equipped with various kinds of cutting and impressing blades and can be used in the cutting, plotting and impressing of many materials such as PVC board, PP board and white card paper. The LS series cutting plotter helps you save time while reducing the cost. It is able to process cardboards, paper, PVC, film, sticker, etc. The maximum cutting depth is up to 2mm, depending on material density. The LS series cutting plotter is a CE certified product. We offer an English LCD menu. We welcome custom orders.

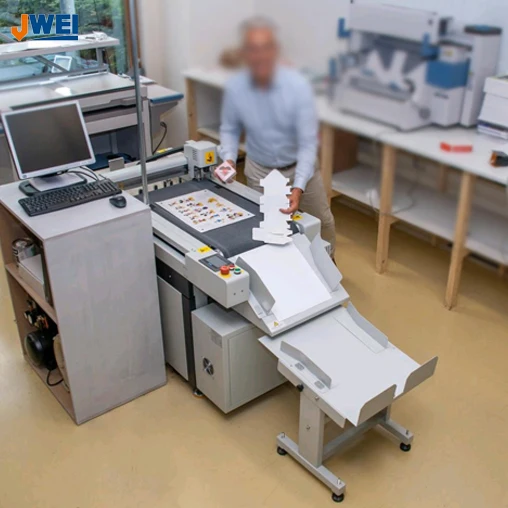

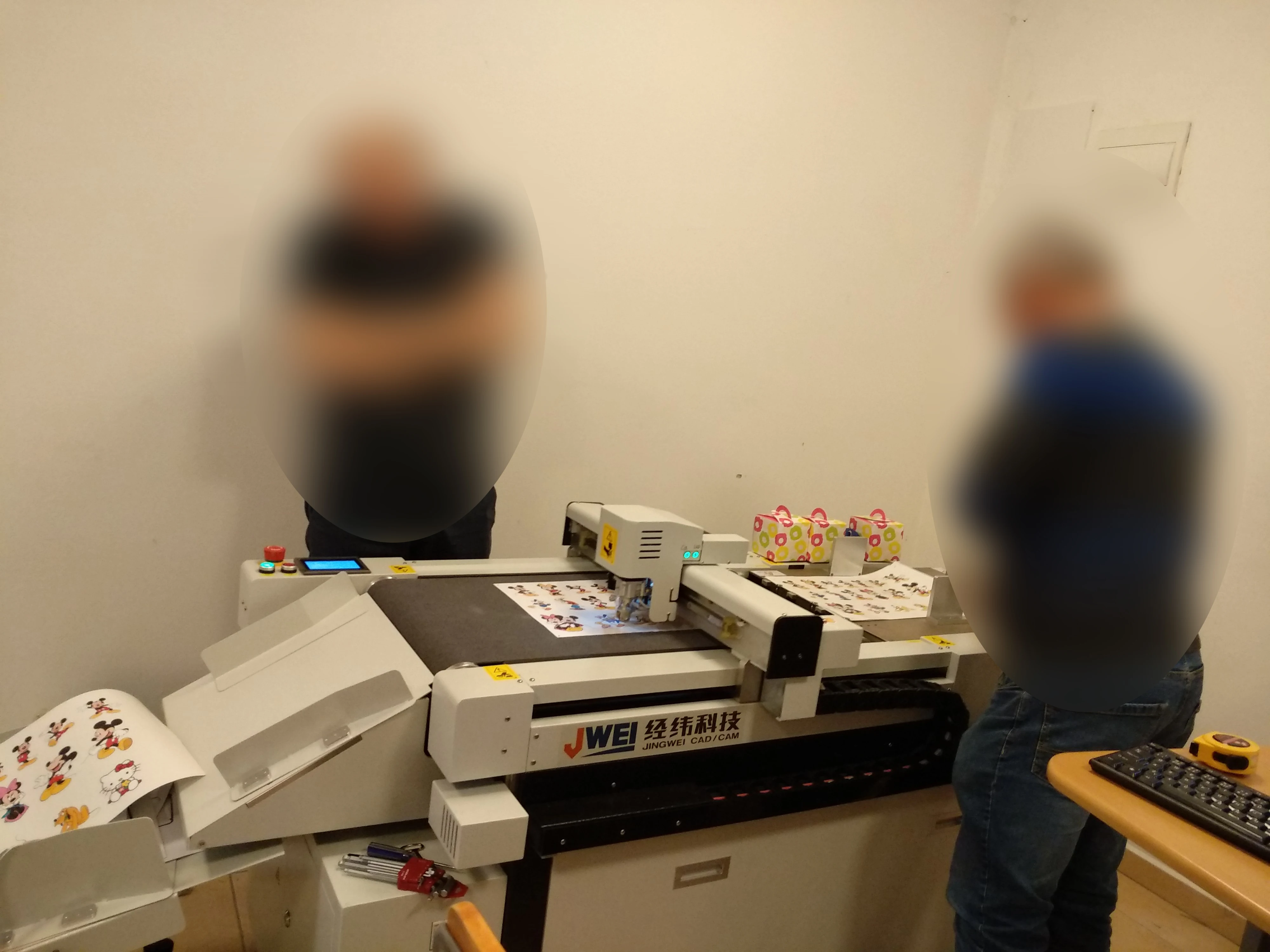

At the customer's factory
sample
Function | Thorough cutting/Kiss cutting/Creasing/Plotting/Lasor Locating | ||||
Max. Speed | Max1000mm/s | ||||
Max. Cutting Depth | ≤1.5mm | ||||
Cutting Media | Kinds of plastic board, PVC board, PU, cardboard, fibrous board, rubber sheet and marking film, etc. | ||||
Blade/Wheel | Special tungsten carbide blade/ Creasing tool | ||||
Media Fixture Method | Vacuum suction | ||||
Repeat Precision | ≤0.1mm | ||||
Programmable Resolution | 0.025 / 0.01 / 0.1 available | ||||
Interface | Ethernet port | ||||
Buffer Memory | 1G | ||||
Command Mode | HP-GL compatible format | ||||

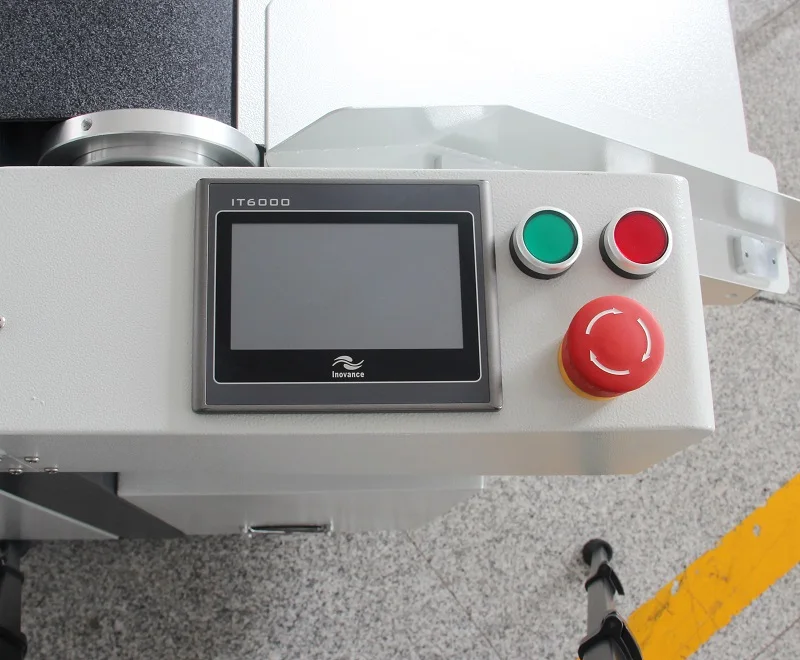

Operational Panel | Liquid crystal display panel with push contacts | ||||
Transmission system | Imported servo driver; synchronous belt | ||||
Power Supply | AC 220V +/- 10%, 50HZ / 60HZ | ||||
Fuse | 2A、6A、30A | ||||
Working Environment | 10 to 35 deg.C | ||||
Effective Cutting Area | 600mm*400mm | ||||
Q1：Are you manufactory or trade company? A1: JWEI is a cutting plotter manufacturer in China.we can offer digital cutter, kiss cutting for adhesive sticker, corrugated box cutting solution,leather cutting system and so on.
After-sale service First, warmly welcome you to our head office to have a professional training and observation. We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine.
Q2:How to contact us?
A2: - By E-mail. info@jingwei.com.cn - By whatsapp: 18368275009 - Welcome to visit us here in Ningbo,China. You can have a close encounter with our cutting machine working condition and functions.
On-sale service we treat every customer sincerely, enthusiastically and equally. No matter who you are, once you need us help, our dedicated salesman and professional technicians will support at once.
After-sale service First, warmly welcome you to our head office to have a professional training and observation. We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine.
Q3:How long is the warranty period for the digital cutter ?
A3:12 Months Guarantee and Life-long Maintenance. Full life-time Remote service support. Free training.
