plastic HDPE jerrycan blow molding machine for sale
- Category: >>>
- Supplier: Ningbo Kinggle Machinery Co. Ltd.
Share on (1600473569710):
Product Overview
Description
Product Description
This model is fixed open-closing and accumulator die head series which adopts double drawbar clamping mechanism, mold clamping by oil cylinder pressure directly, It suits for making 30/60L chemical packing drums, medium size toys, auto parts pipes, water container, toolcase, sprayer and so on. Technical characteristics: Hydraulic servo system control, quick action response, energy saving.

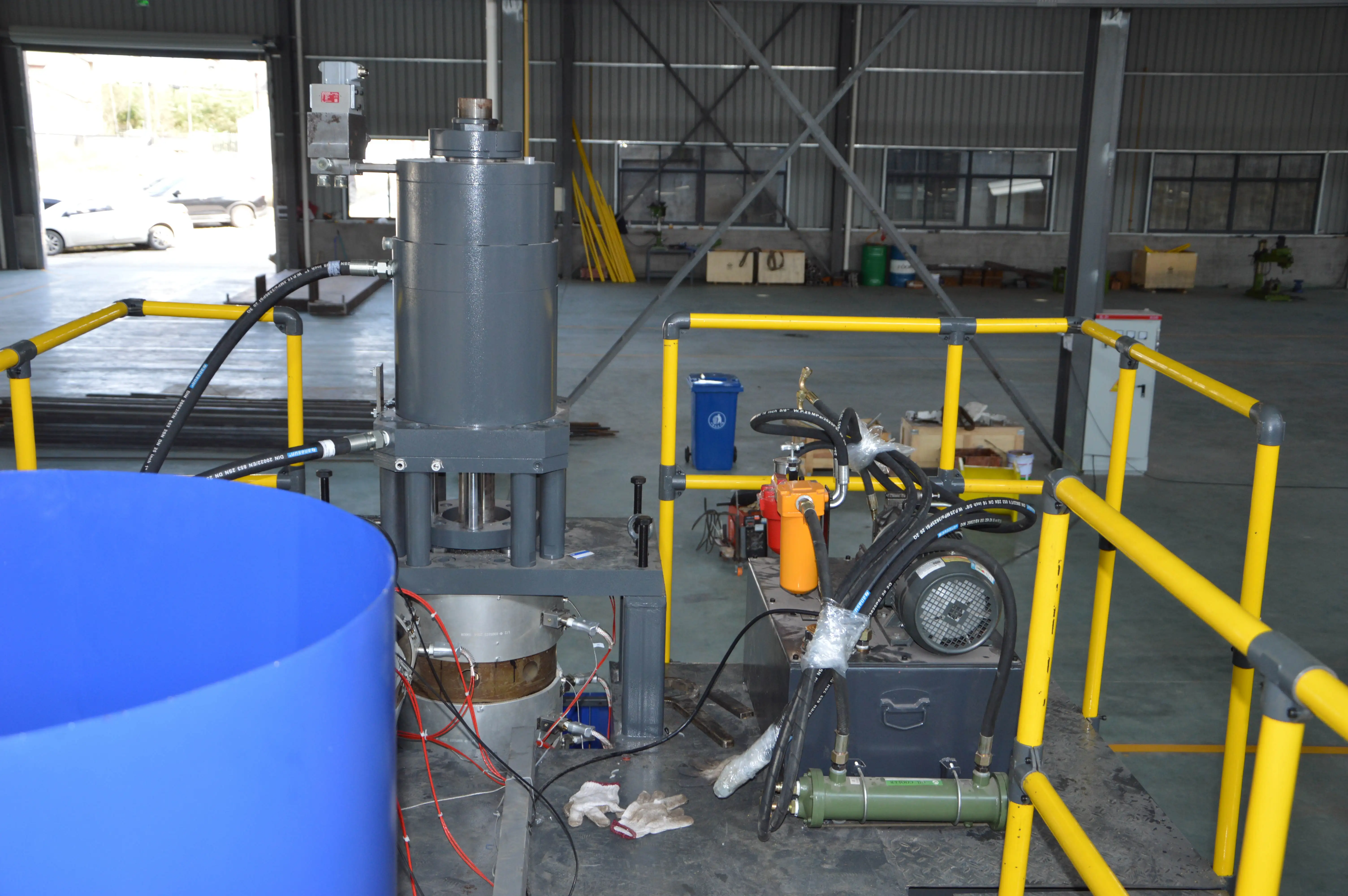

Die head:verticality first-in first-out system;

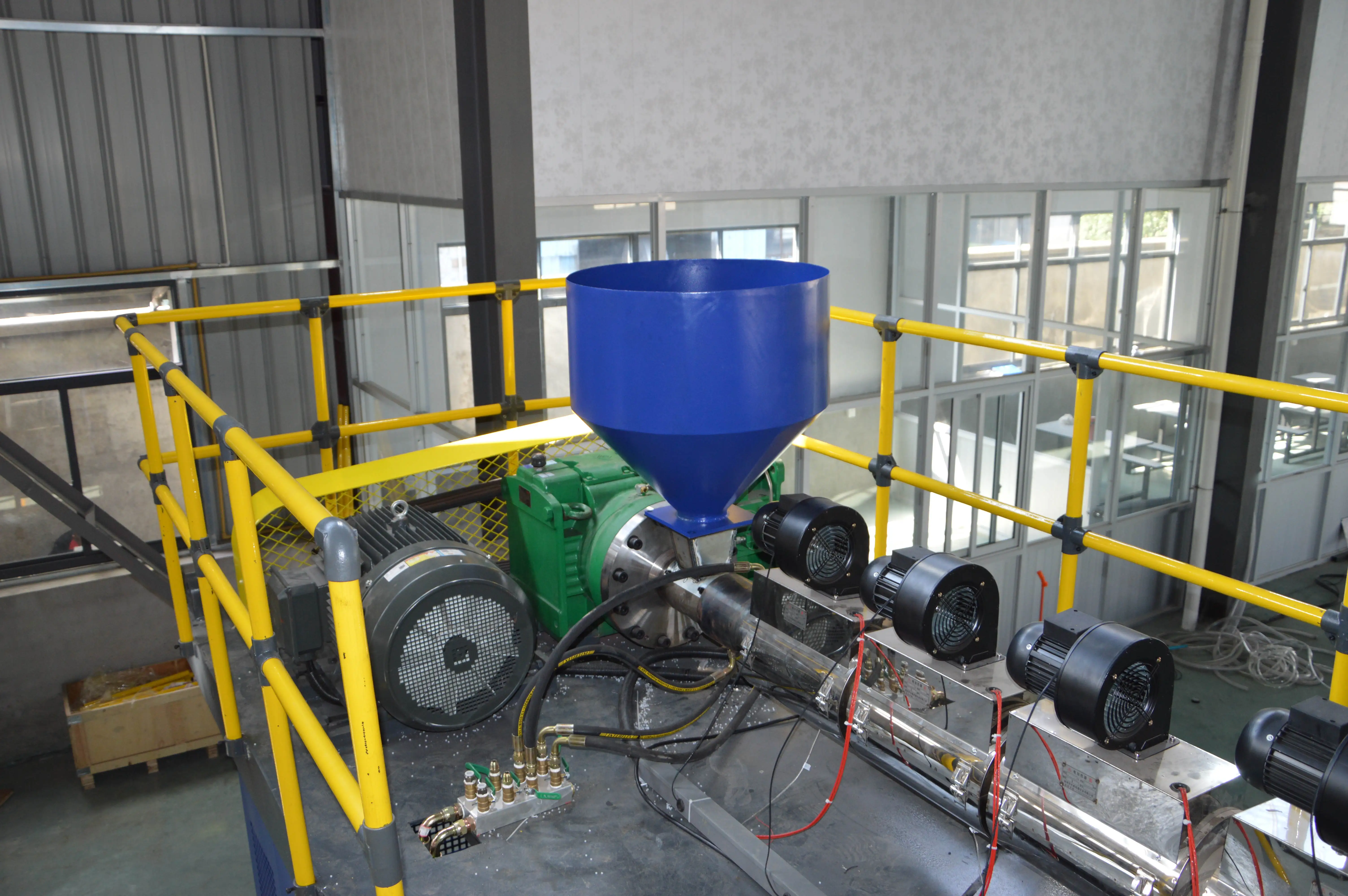

Extruder unit: adopt automatic temperature control unit of import,the screw united by
hard tooth surface gear box and frequency motorto achieve stepless speed regulation;
Clampling device: the clampling device of double draw bar is a type of hydraumatic and
fixed , draw bar of new type through template,this type is accommodate large size of
mould,smooth action,high stability,clamping mould force is uniformly,template is not
distortional;
Hydraulic system: whole system adopt imported components,proportional
pressure,flow,pressure feedback,system response is faster,action is more
smoothly,lowest power loss,and the output of torque is big.

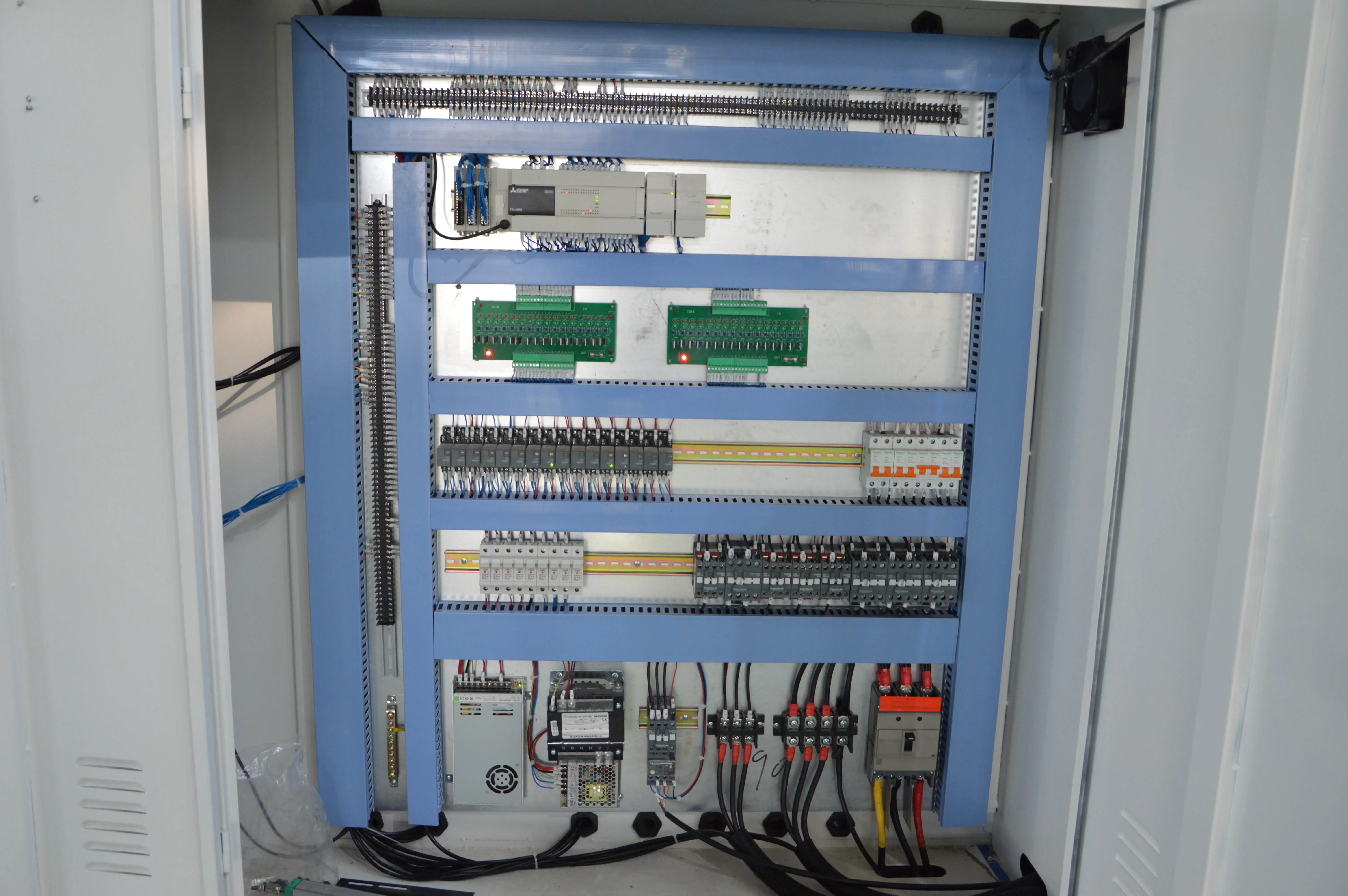

Electric controlling system: it adopts Japan programmable controller,touch
screen,the characteristic of it has direct manipulation and large information on board.
Control System
Technology
| Specifications | Unit | Single station |
| Machiner model | PXB90A | |
| Material | PE,PP,ABS etc. | |
| Max container capacity | L | 60 |
| Machine dimension ( L×W×H ) | M | 5.7x3.6x4.3 |
| Machine Weight | T | 14 |
| Clamping unit | ||
| Mold platen size ( W×H ) | MM | 960x980 |
| Max mold size ( W×H ) | MM | 700x980 |
| Platen opening storke | MM | 450-1050 |
| Power | ||
| Servo oil pump motor power | KW | 18.5 |
| Servo pump displacement | L/MIN | 100 |
| Average energy consumption | KW | 35-40 |
| Blow pressure | Mpa | 0.8 |
| Extruder unit | ||
| Screw diameter | MM | 90 |
| Screw L/D ratio | L/D | 24:1 |
| Melting capacit for HDPE | KG/HR | 130-160 |
| Extruder power | KW | 37(45) |
| Die head | ||
| Max die-pin diameter | MM | 350 |
| Accumulator capacity | L | 6.6(7.6) |
| (HDPE) Accumulator weight(hdpe) | KG | 4.95(5.7) |

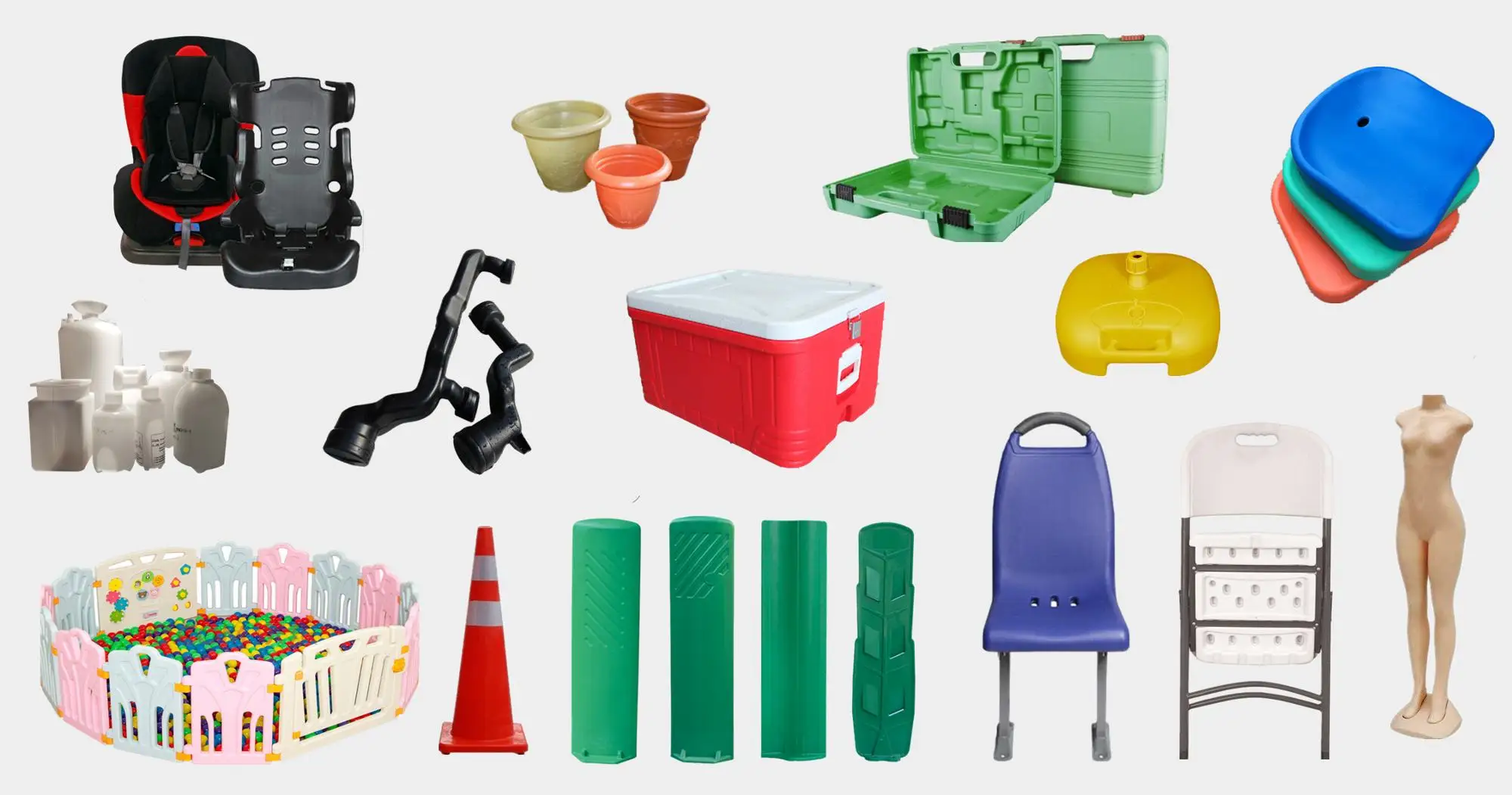

Suit product
Other Product types
 |  |  |
|  |  |
Our Services
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours; |
2. 100% Quality inspection before the shipment; |
3. Can trainning clients operator for free in seller`s factory |
4. Engineer overseas is avilable |
5. Blowing mould and injection mould made orginal |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
8. Introduce our engineer come to customer’s factory working! |
Packaging & Shipping
Customer/ Exhibiton
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory.
[2] Q: Where is your factory located?
A: Our factory,near Shanghai & Ningbo port, Ningbo ,zhejiang .
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need”
Kinggle machinery factory focuses on quality,quality control from beginning to the end. Every piece of goods
is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee.
[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service
[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
