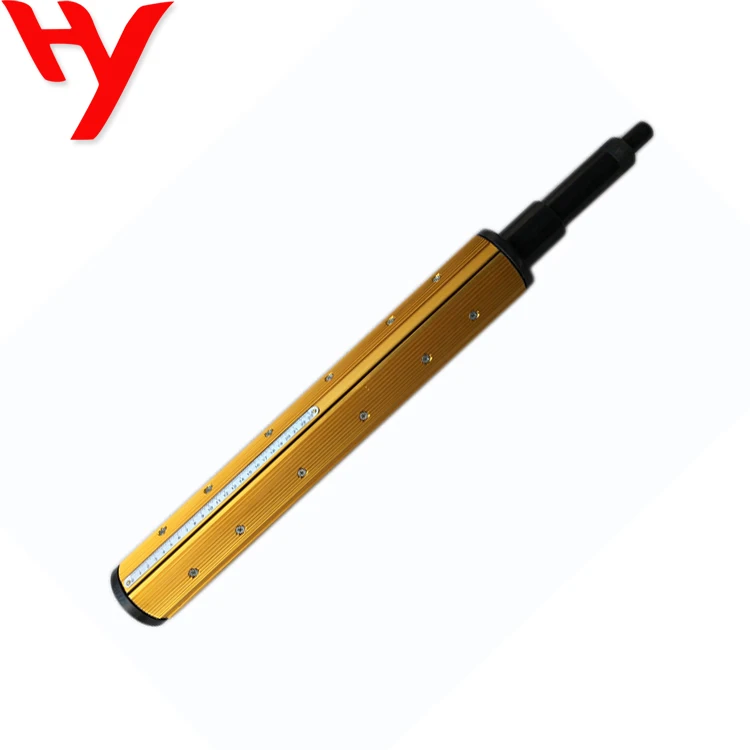

Unwind roll air shafts

Product Overview

Description

Product Description

Application:

plastic film printing flexible packaging industry,paper printing industry,paper and plastic film/aluminum foil and plastic film composite industry,adhesive tape,label printing industry,protective film,optical film,high performance film industry,battery,electronic industry.



MULTIBLADDER WINDINGSHAFTS
In- and Deflating stripes (flat bladder) with one valve
Designed to hold one large or multiple small cores
Designed to improve concentricity
Easy flat bladder and stripes replacement (without disassemble of shaft)
Price worthy light weight extruded aluminum design
Available in standard or cantilevered design



CENTRAL BLADDER WINDINGSHAFTS
Custom build design from scratch
Multifunctional design for various core diameters
Easy lug replacement (without disassemble of shaft)
Available in standard or cantilevered design



LEAF TYPE WINDINGSHAFTS
Custom build design from scratch
Designed for coreless un- and rewinding
Multifunctional design for various core diameters.
Perfect grip and equally divided clampingforce
Available in standard or cantilevered design



Aluminium Lightweight Air Shafts
Range covers most standard sizes.
Lightweight extruded aluminium for ease of handling.
High Strength to weight ratio
Ultra-lightweight 3” version available
Continuous lug for both continuous core and multi split applications.
Available with Rubber or Aluminium strips.
Simple to maintain with easily replaceable parts.



Aluminium Lug Type Airshafts
Air Shaft sizes from 25.4mm (1″) diameter upwards.
Proven durable design.
Heavy duty for high torque applications.
Available in Aluminium, Steel and Carbon Fibre.
Easily maintained.



Strip Type Air Shafts
Lightweight Airshafts in Carbon Fibre for ease of handling.
Very high strength to weight ratio
Available to suit 3″/75mm & 6″/150mm
Available in different Weights/Strengths
Low inertia.
High resistance to fatigue & deflection.



Lug Type Airshafts
Lightweight Airshafts for ease of handling.
Very high strength to weight ratio
Aluminium Covering Available
Low inertia.
High resistance to fatigue.



Could manufacture central pressure type,pneumatic side compression type,high performance differential slip shaft.to get lower mechanical loss, accuracy torque,to control tension in a wide rang with great precising.the most widely application,key tooth can take any tube core.



For the right solution for your converting needs, consult with HuiYuan Manufacturing.
