Mineral Separator Powder Concentrator Air Classifier Machine With Cyclone Air current Specific Gravity Separator
- Category: >>>
- Supplier: Nanjing Sure Origin Environmental Protection Technology Co. Ltd.
Share on (1600473796463):
Product Overview
Description

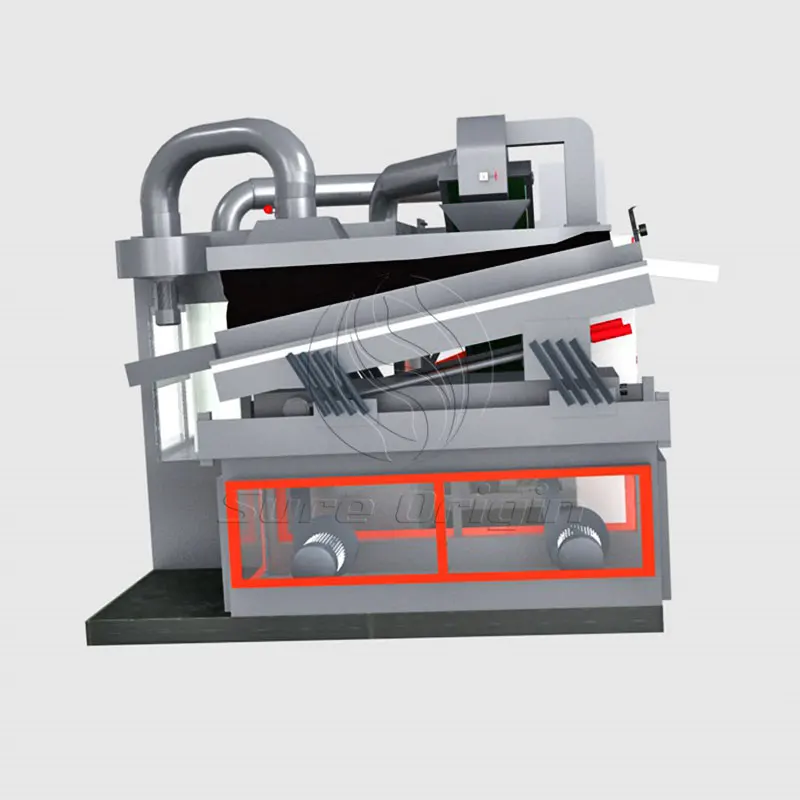

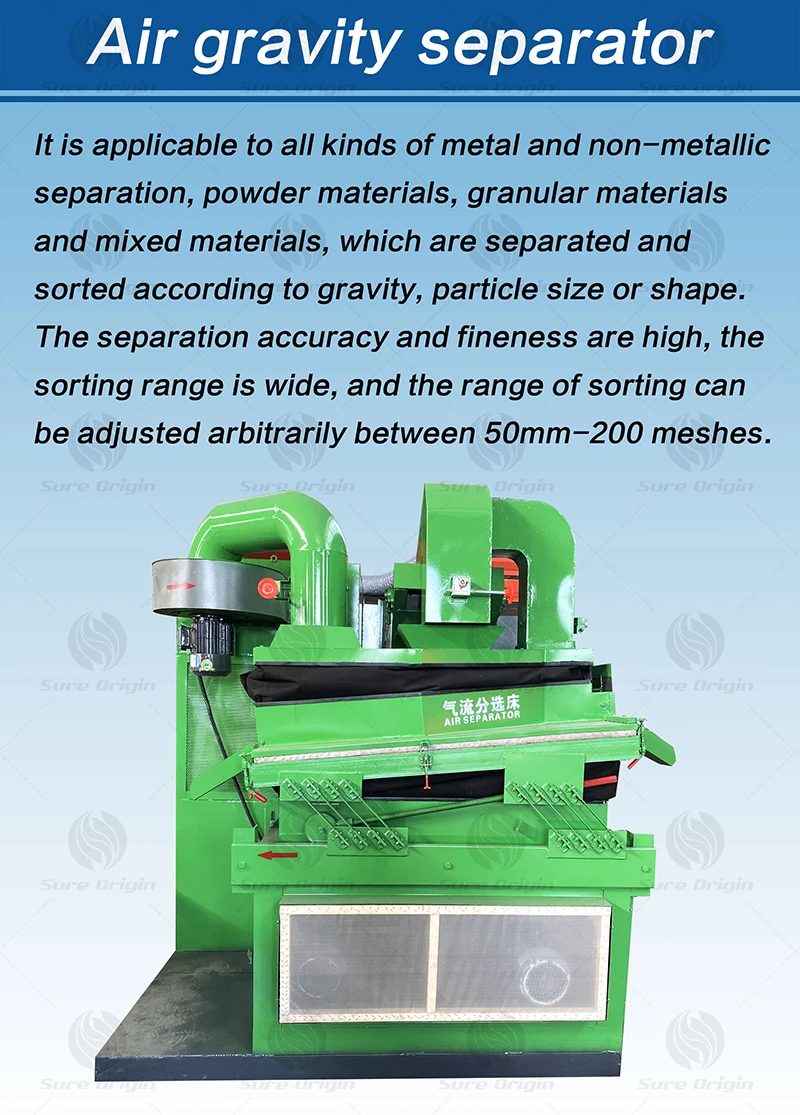

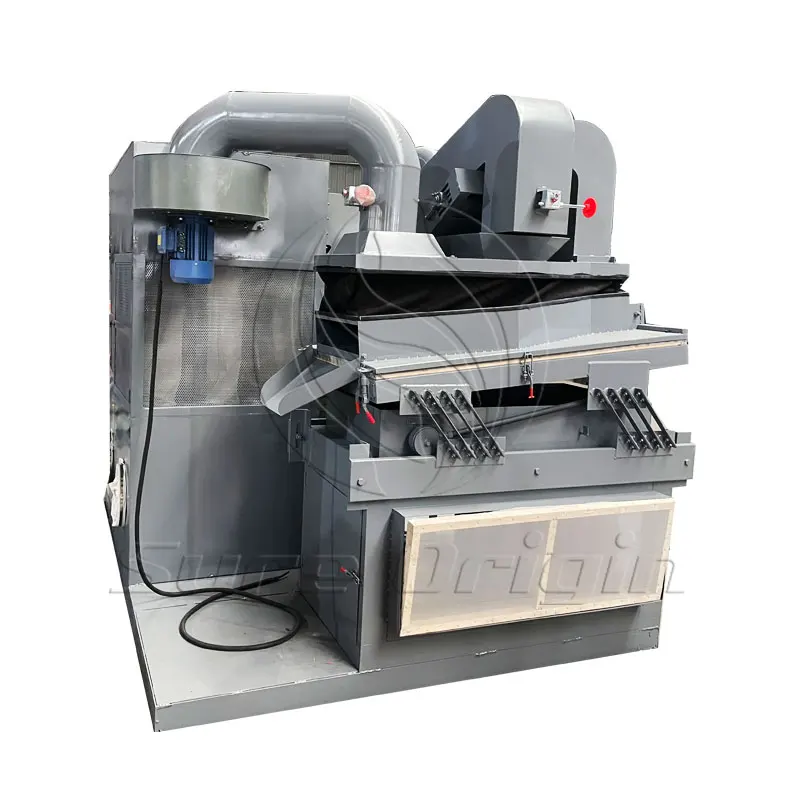

Air gravity separator
Product Description
Application:
It is applicable to all kinds of metal and non-metallic separation, powder materials, granular materials and mixed materials, which are separated and sorted according to gravity, particle size or shape. It is used in grain selection and impurity removal, beneficiation, chemical engineering, waste wires copper and plastics sorting, waste circuit boards copper powder and resin powder sorting, separation and reuse of waste metal with specific gravity difference and waste plastics with specific gravity difference and other industries.
Structural feature:
1. By using the principle of air suspension, the equipment makes the materials with specific gravity difference suspend and stratify, and it can sort the materials with different specific gravity by fish scale shaped screen surface friction and material self weight angle flow.
2. The separation accuracy and fineness are high, the sorting range is wide, and the range of sorting can be adjusted arbitrarily between 50mm-200 meshes.
3. The sorting efficiency is high and the application range is wide.
4. The automatic air circulation is adopted, set sorting and collection in one, simple and compact structure, and it is equipped with pulse dust removal equipment to ensure that there is no dust overflow in the sorting process.
5. Long service life; easy to install and maintain.
2. The separation accuracy and fineness are high, the sorting range is wide, and the range of sorting can be adjusted arbitrarily between 50mm-200 meshes.
3. The sorting efficiency is high and the application range is wide.
4. The automatic air circulation is adopted, set sorting and collection in one, simple and compact structure, and it is equipped with pulse dust removal equipment to ensure that there is no dust overflow in the sorting process.
5. Long service life; easy to install and maintain.
Model | Air volume(m3/min) | Vibrating frequency | Screen fineness(um) | Power(kw) | External dimension(mm) | Weight(kg) |
SY-C-400 | 805-1677 | 40-200 | 15-200 | 0.75 | 600*1250*1650 | 520 |
SY-C-750 | 1688-3517 | 1.5 | 900*1650*1680 | 750 | ||
SY-C-1000 | 2664-5628 | 3 | 1200*1850*1680 | 1200 |
Packing & Delivery
According to different types of machines, we use protective film or standard import & export wooden cases to pack.

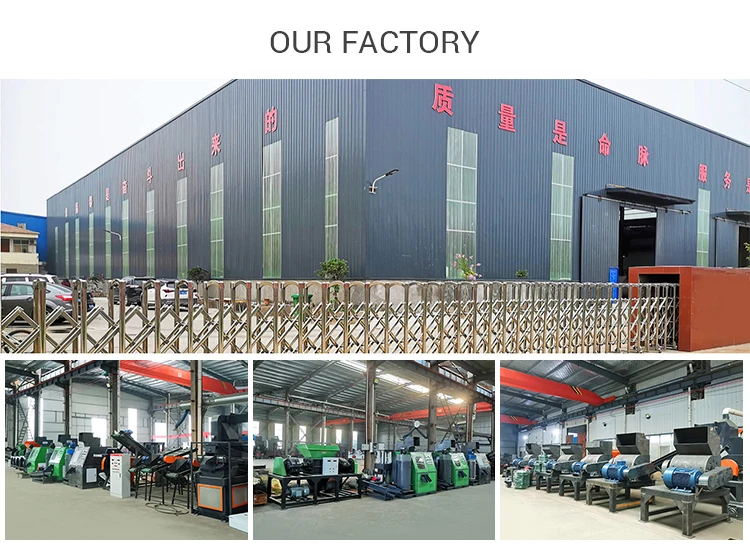

Company Profile
Founded in 2002, Nanjing Sure Origin Environmental Protection Technology Co., Ltd. is a China's leading professional
manufacturing enterprise which gather development, design, production, sales, installation and after-sales service in one. Our products include aluminum and copper wire recycling machine, PCB circuit board recycling machine, PCB gold stripping machine,waste circuit board electronic component dismantling machine, aluminum plastic board and medical blister recycling machine, large scale copper and aluminum radiator separator, air condition radiator copper aluminum separator, mixed plastics electrostatic separation machine, plastic silica gel and rubber electrostatic separation machine, gold deplating machine, gold refining machine, etc. Our advanced machines have been currently exported to German, USA, India, Pakistan, Colombia, Mexico,Thailand,Greece, South Korea, Japan,Vietnam...
manufacturing enterprise which gather development, design, production, sales, installation and after-sales service in one. Our products include aluminum and copper wire recycling machine, PCB circuit board recycling machine, PCB gold stripping machine,waste circuit board electronic component dismantling machine, aluminum plastic board and medical blister recycling machine, large scale copper and aluminum radiator separator, air condition radiator copper aluminum separator, mixed plastics electrostatic separation machine, plastic silica gel and rubber electrostatic separation machine, gold deplating machine, gold refining machine, etc. Our advanced machines have been currently exported to German, USA, India, Pakistan, Colombia, Mexico,Thailand,Greece, South Korea, Japan,Vietnam...
FAQ
Q: Why Choose Us?
A:
A:
1). Several Year's Experience: We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on, more than 20 countries and regions.)
2). India plant:
We have Indian branch office and plant, welcome you to visit and test.
3). Fast Delivery: We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?
A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.
Q: Which brand of motor will you use?
A: We use domestic motor manufactured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and training about the operation of the machine.
We have Indian branch office and plant, welcome you to visit and test.
3). Fast Delivery: We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?
A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.
Q: Which brand of motor will you use?
A: We use domestic motor manufactured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and training about the operation of the machine.
