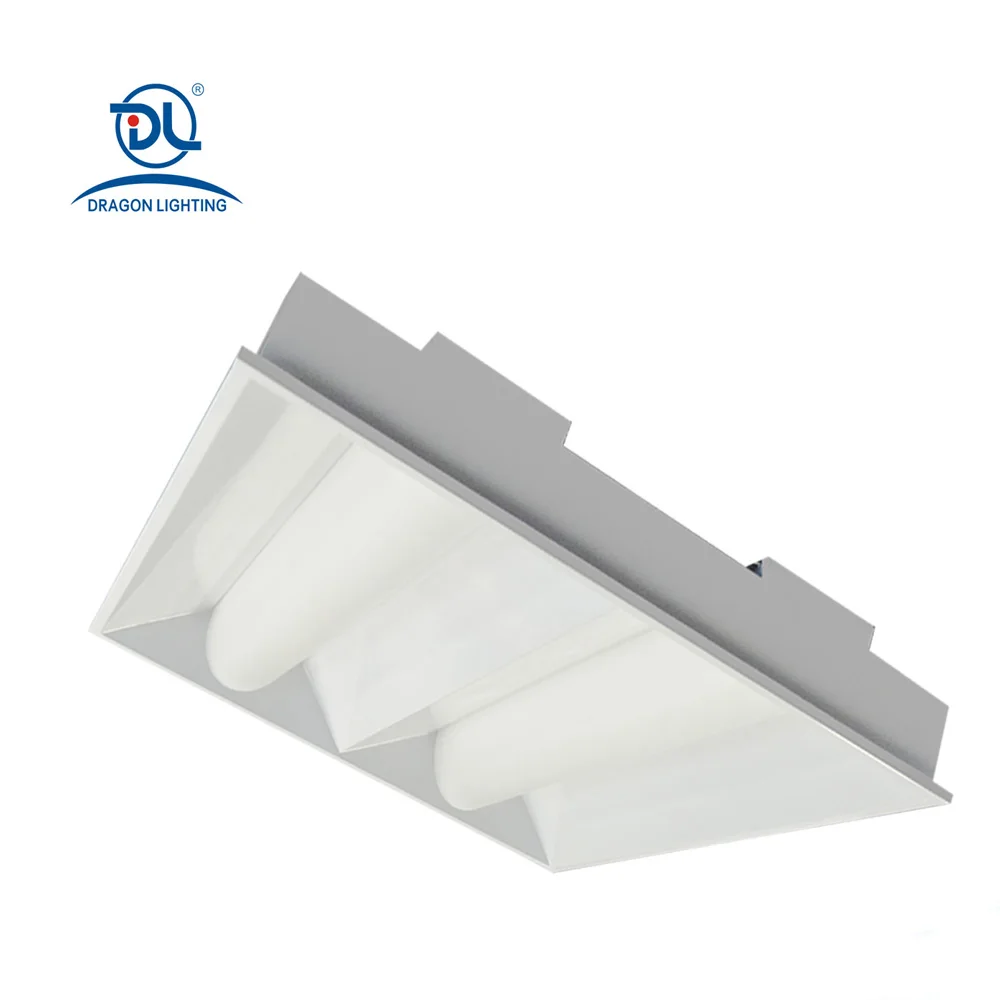

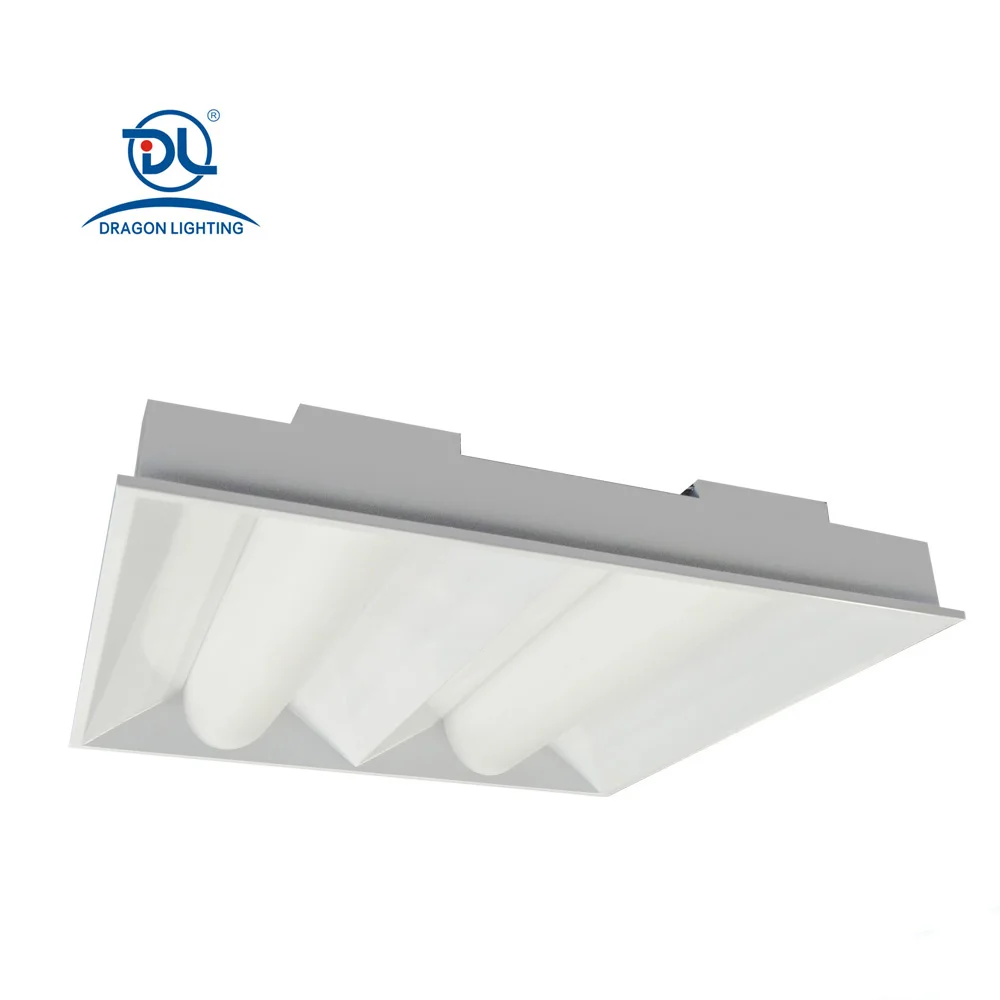

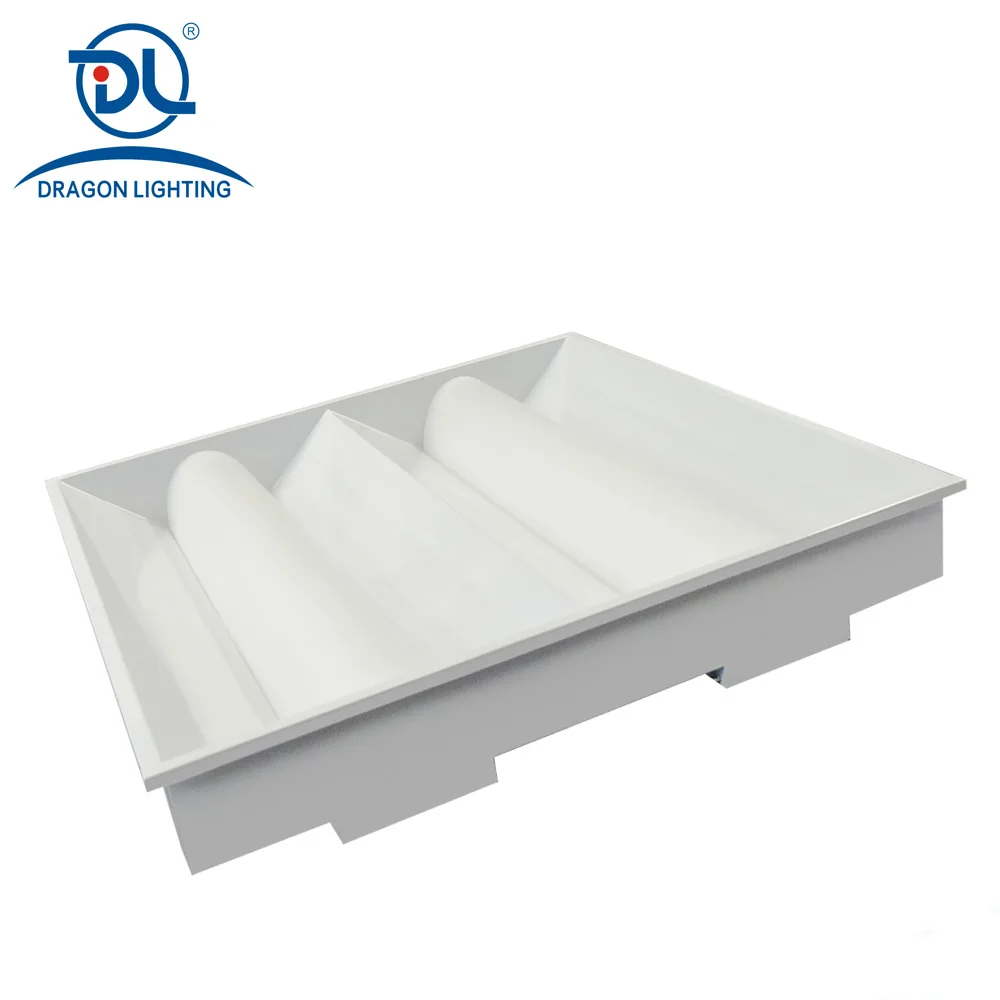

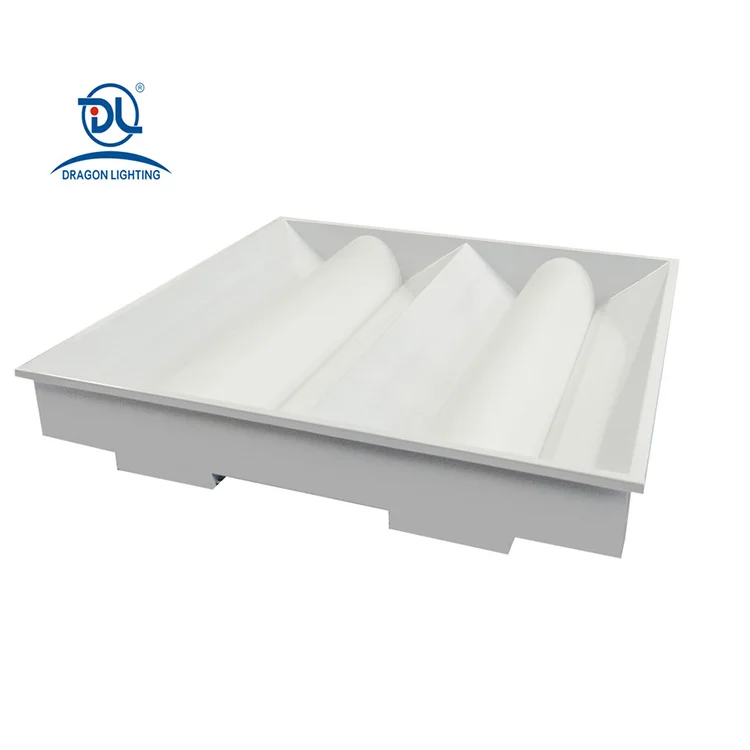

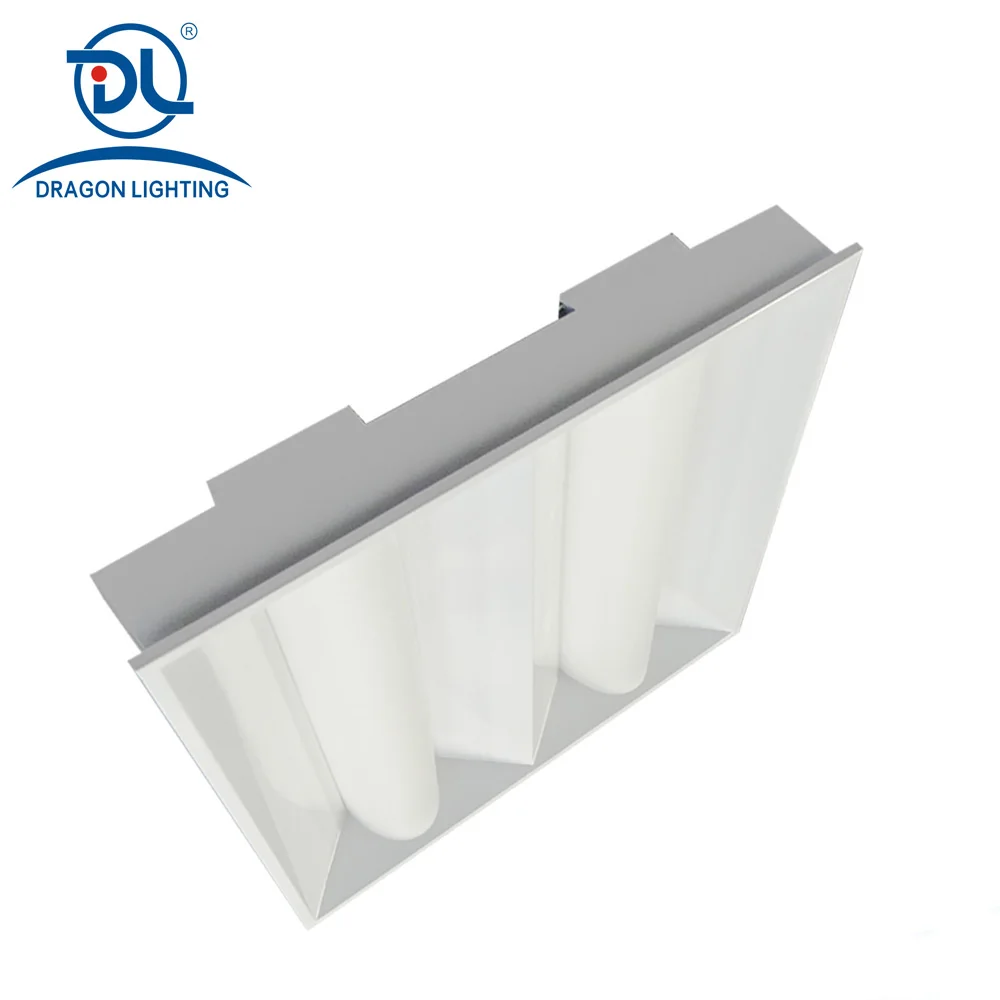

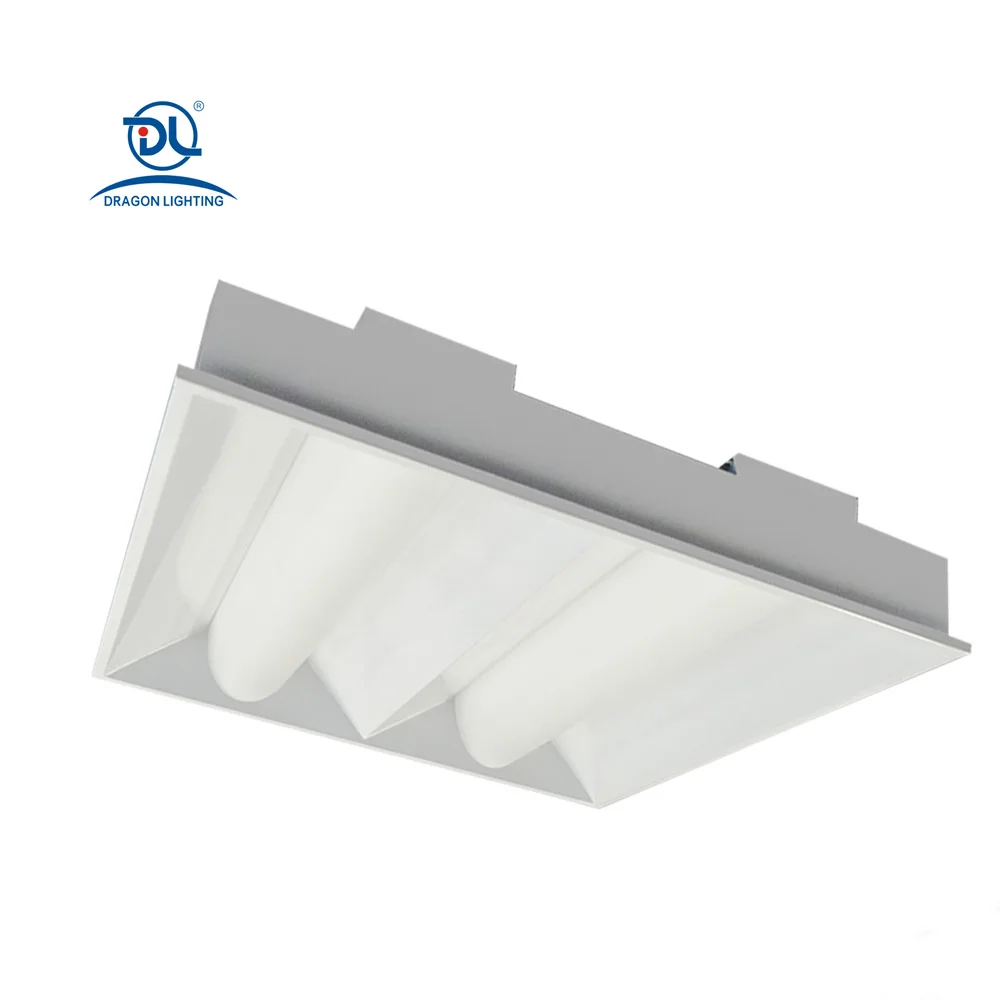

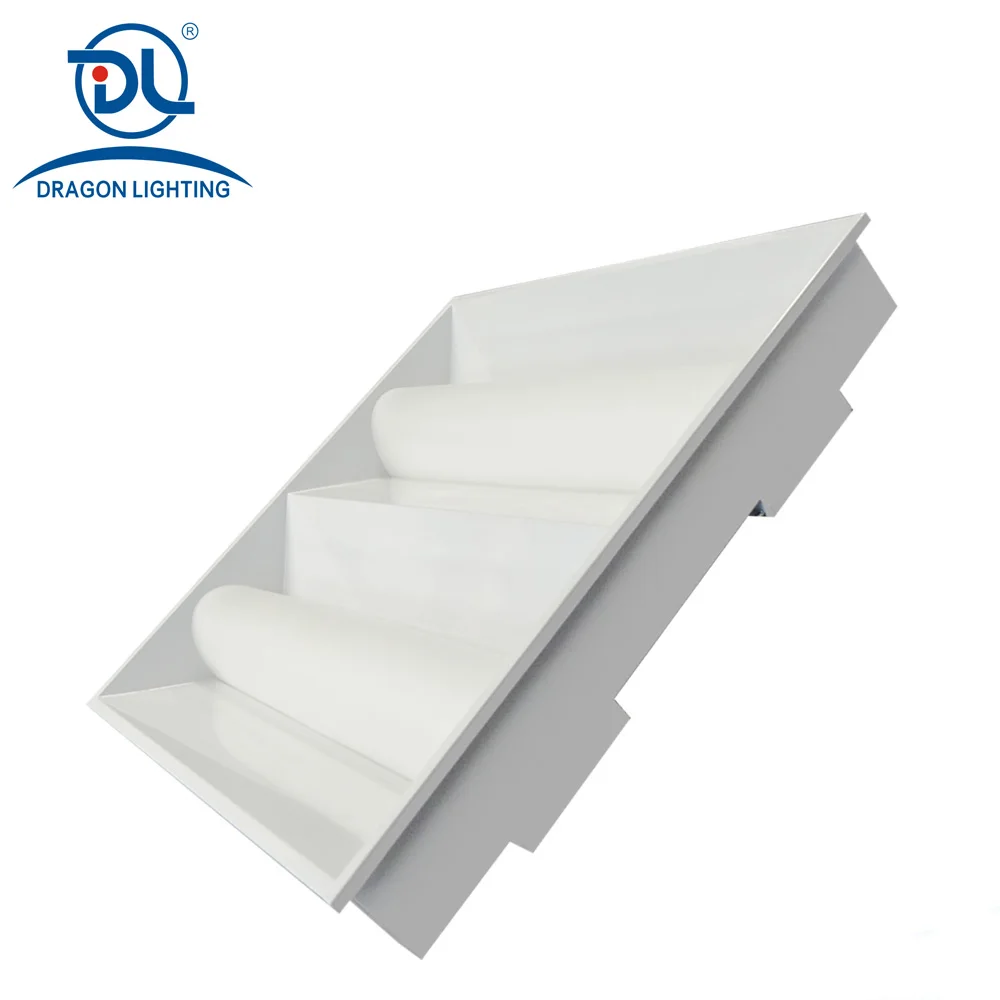

Modern Smart Indoor House Bedroom Home Led Troffer Retrofit Kit Ceiling Light
- Category: >>>
- Supplier: Sin-Light Industrial Co. Ltd.
Share on (1600473933834):
Product Overview
Description
Product Information
Technical Data：
Model: DLTPD-30 Fixture dimension: 23.80”’x23.80”’x2.95” Output power: 30W Luminous Flux:3750lm Light efficiency: 125lm/W LED: LED chips 2835 Driver: Arcata /X-power 0-10v dim driver | CRI: >80 CCT: 4000k/6000k Rated input: AC122-270V Beam Angle: 160° Certification: CE/ROHS/ETL/SAA Warranty: 50000 hours Dimmable or Dali driver is available on request |
Features
Housing for LED troffer:
Light is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating.

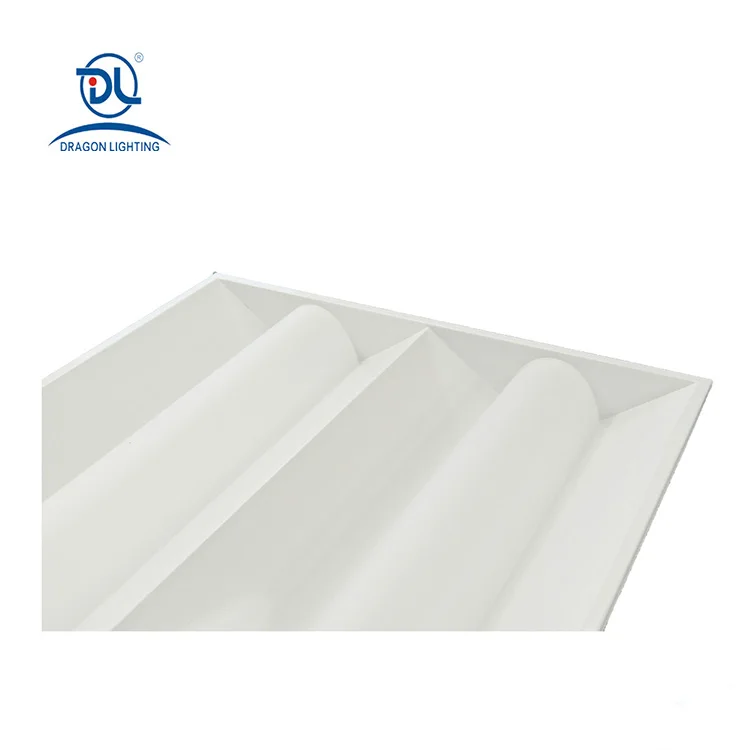

Diffuser for LED troffer:
Polycarbonate, Acrylic LED Diffuser Specially for LED.
High transmittance of polycarbonate diffuser for bright and uniform lighting distribution.
High transmittance of polycarbonate diffuser for bright and uniform lighting distribution.

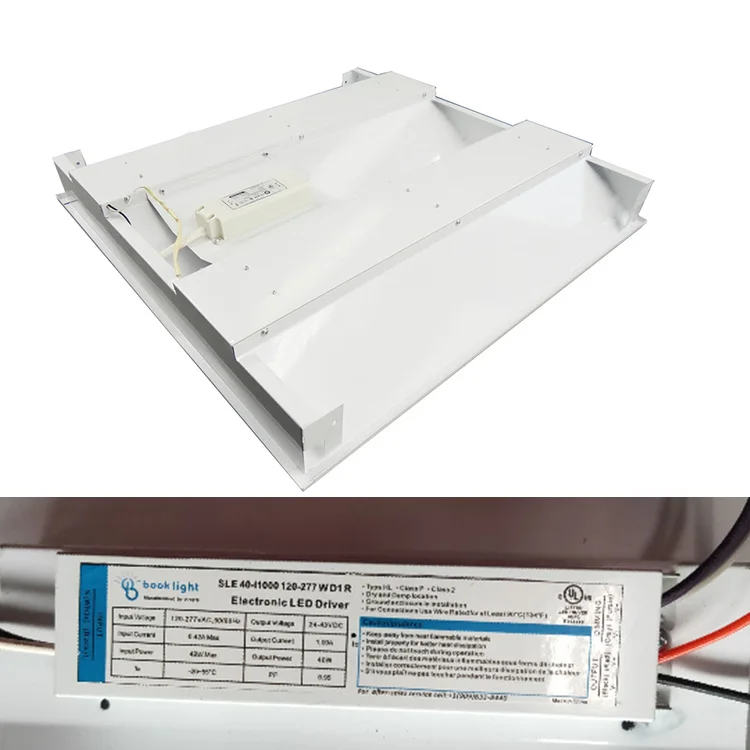

Electrical for LED troffer:
Arcata/X-power 0-10V dimmable driver for LED line.
It uses dimmable driver and it can give the LED troffer long life and save more energy.
It uses dimmable driver and it can give the LED troffer long life and save more energy.

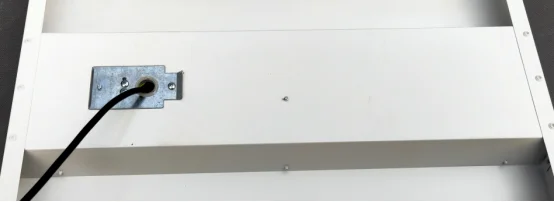

End Cover
Open rear cover design,it is easy to install the wiring and maintenance

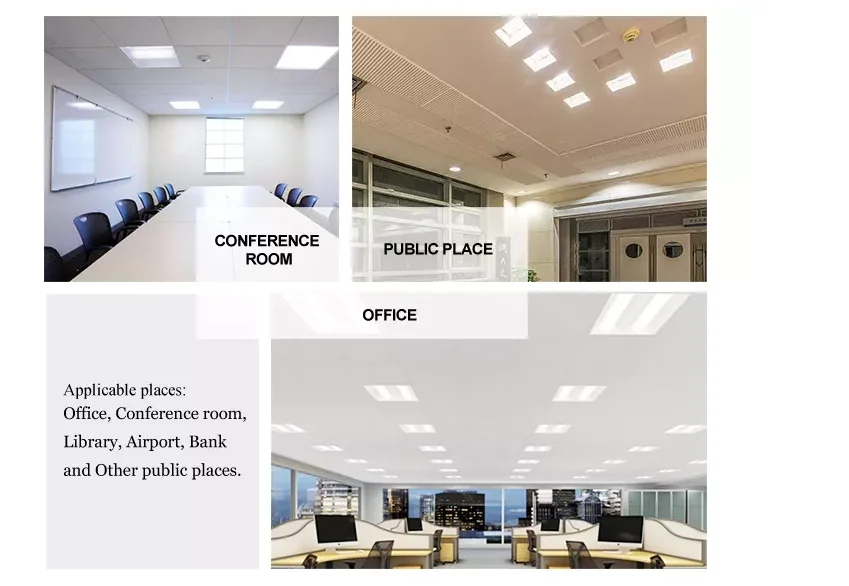

Main applications:
1.Hotel / Hospital / Supermarket
2.Conference / Meeting room / Factory / Office
3.Bank / Institution Building
4.School / College / University
2.Conference / Meeting room / Factory / Office
3.Bank / Institution Building
4.School / College / University
Advantages
High efficiency save energy:
The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminous efficiency of light is quite high. Energy saving, saving 65% than the traditional lights at the same brightness.
Luminous uniformity:
It is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, so the reasonable distance between the LED SMD and the Polycarbonate or Acrylic LED Diffuser, so that it improves the brightness uniformity when it's lighting up.
Long life:
It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminous efficiency of light is quite high. Energy saving, saving 65% than the traditional lights at the same brightness.
Luminous uniformity:
It is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, so the reasonable distance between the LED SMD and the Polycarbonate or Acrylic LED Diffuser, so that it improves the brightness uniformity when it's lighting up.
Long life:
It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
Specifications (American Standard)：
Model | Power | Leds | Luminous Flux(lm) | Efficiency(lm/w) | CRI | CCT |
DLTP2230 | 30 | 2835 | 3750 | 125 | >80 | 3000K-6000K |
DLTP2240 | 40 | 2835 | 5000 | 125 | >80 | 3000K-6000K |
DLTP4250 | 50 | 2835 | 6250 | 125 | >80 | 3000K-6000K |
DLTP4260 | 60 | 2835 | 7500 | 125 | >80 | 3000K-6000K |
Packing Details：
Model | Dimension (L*W*H) (inch) | Packing size (inch) | Qty/ctn |
DLTP2230 | 23.80x23.80x2.95 | 24.40x24.40x6.70 | 2 |
DLTP2240 | 23.80x23.80x2.95 | 24.40x24.40x6.70 | 2 |
DLTP2450 | 47.25x23.80x2.95 | 47.65x24.40x6.70 | 2 |
DLTP2460 | 47.25x23.80x2.95 | 47.65x24.40x6.70 | 2 |
Related Products

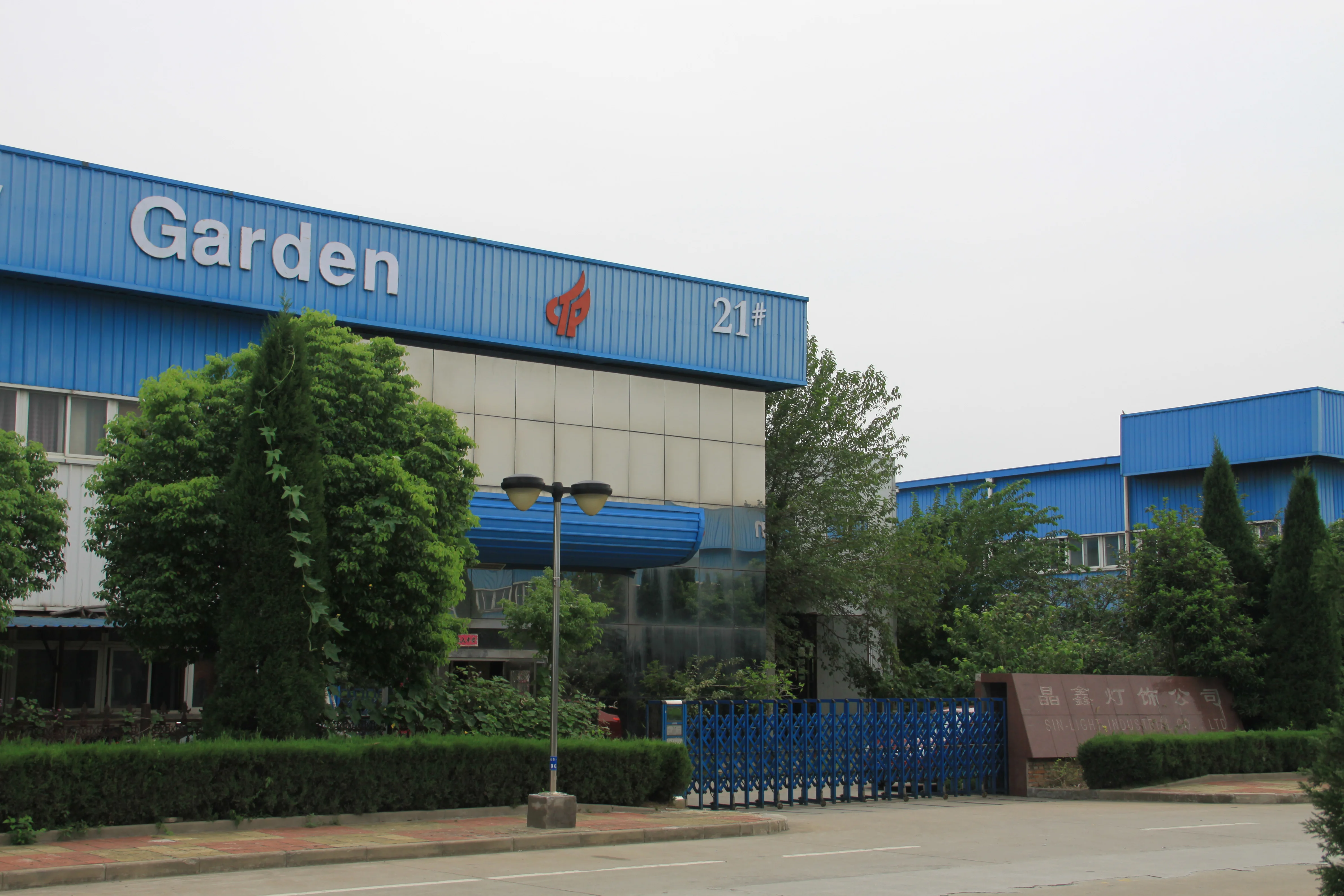

Company Profile
Packaging & Transportation
Pallet bulk transport Container transportation Sample Packaging and Shipping
FAQ
Q1: Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Q3: Do you have any MOQ limit for LED light order?
A: 1pc for sample order is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to place an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer
confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q6: Are you a factory?
A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Q3: Do you have any MOQ limit for LED light order?
A: 1pc for sample order is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to place an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer
confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q6: Are you a factory?
A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
