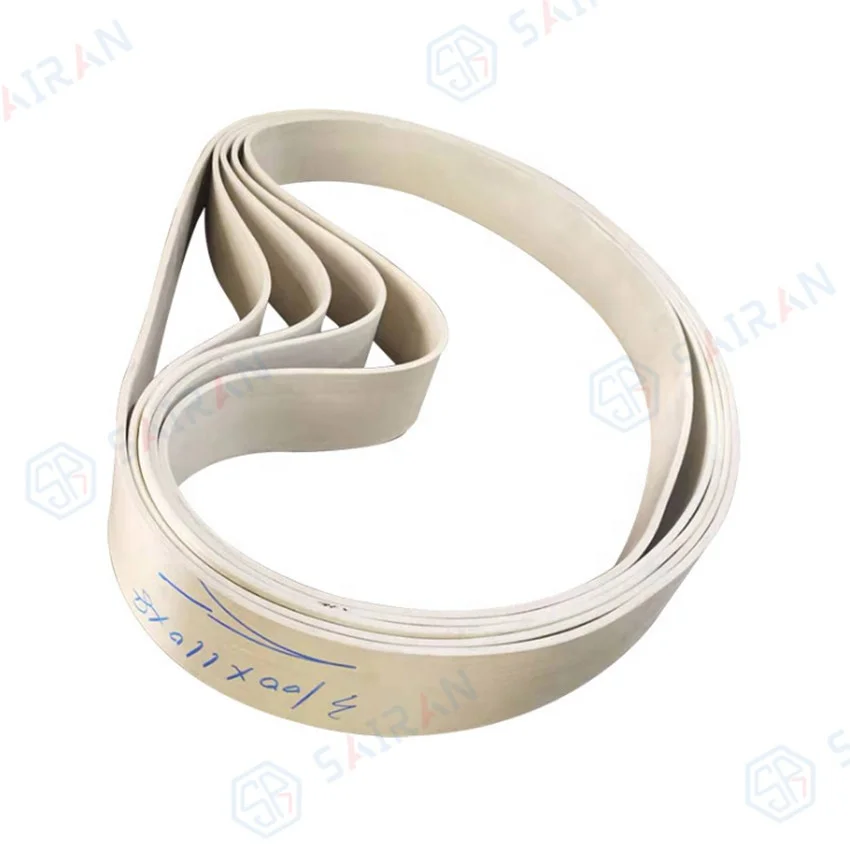

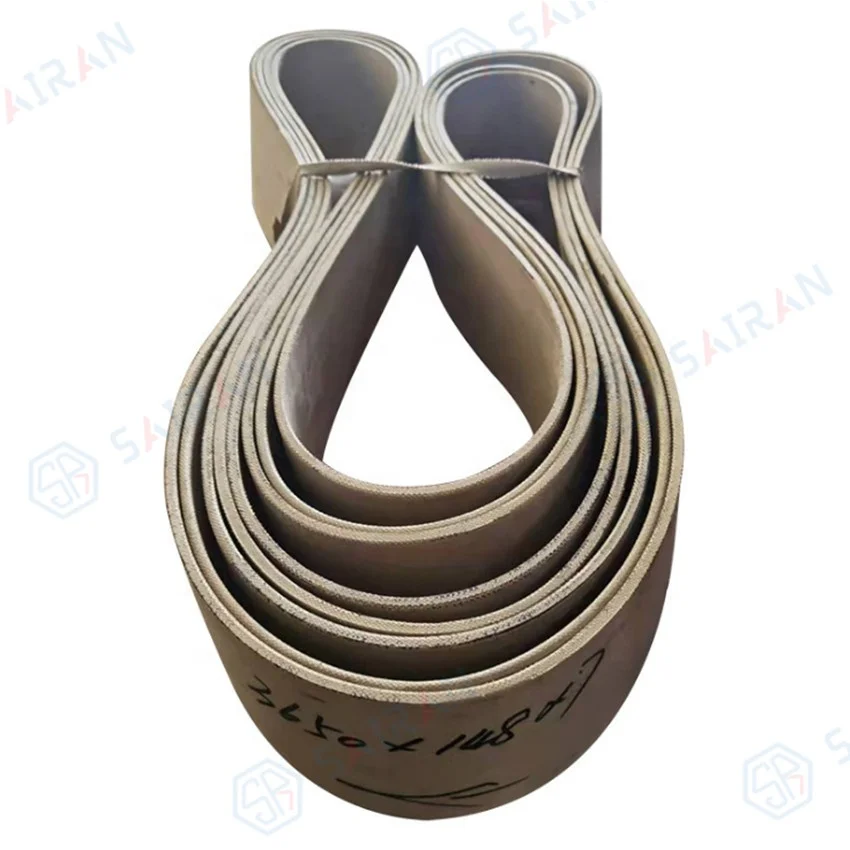

Gold supplier wholesale price canvas belt flat belt on paper core winding machine
- Category: >>>
- Supplier: Zhengzhou Sairan Machinery Equipment Co. Ltd.
Share on (1600474129170):
Product Overview
Description
Product Description
Introduction:

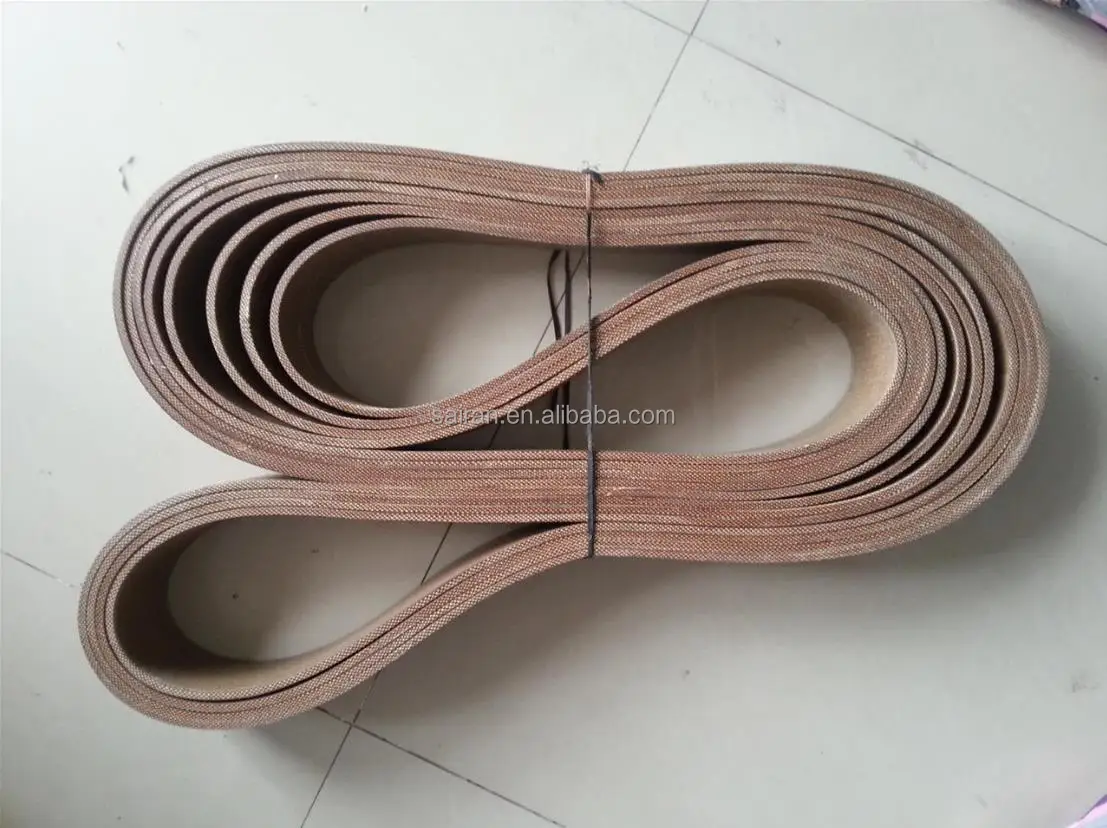

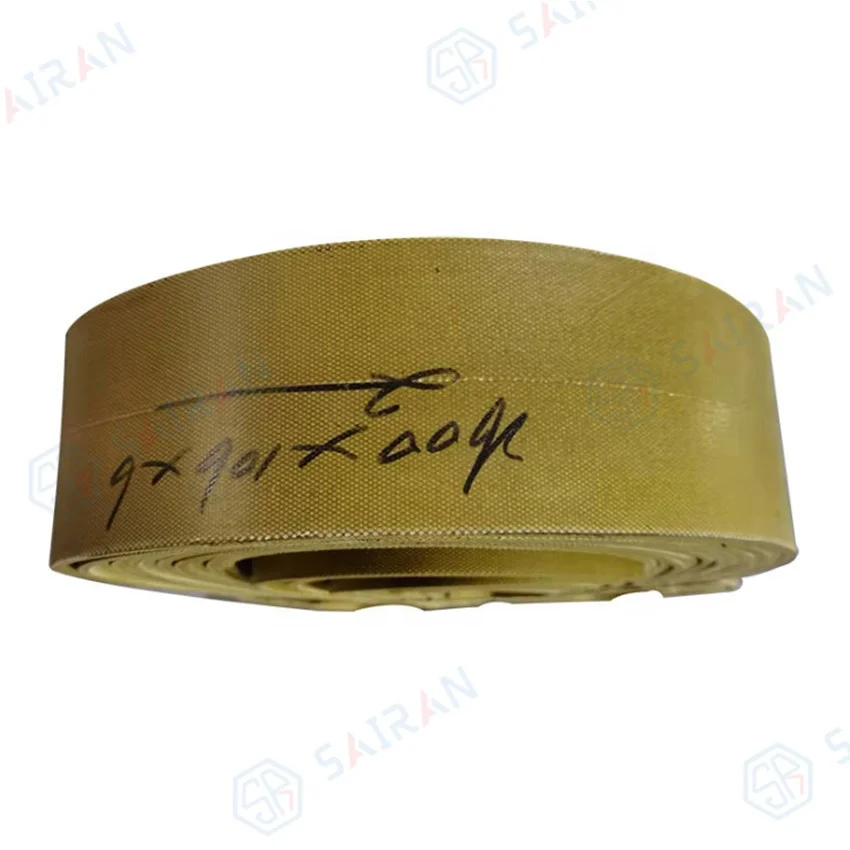

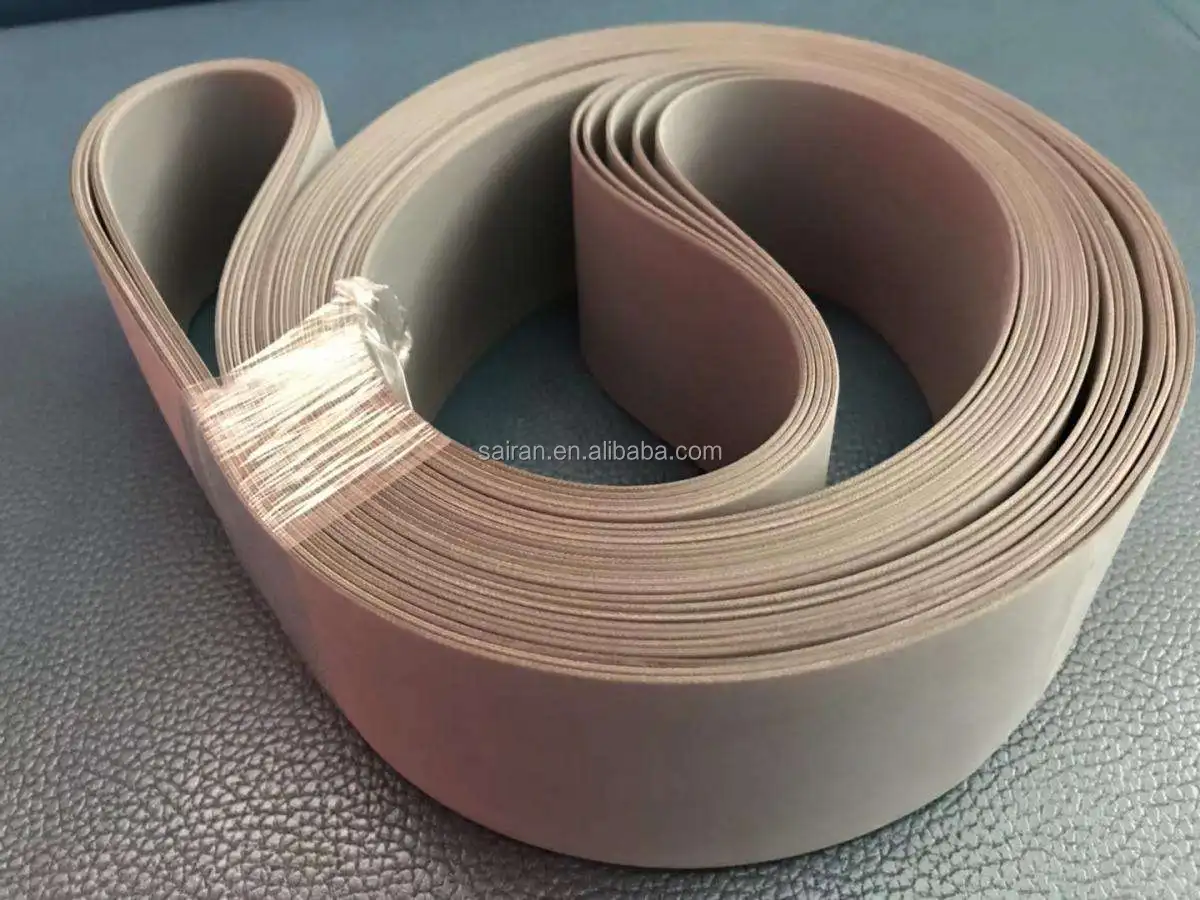

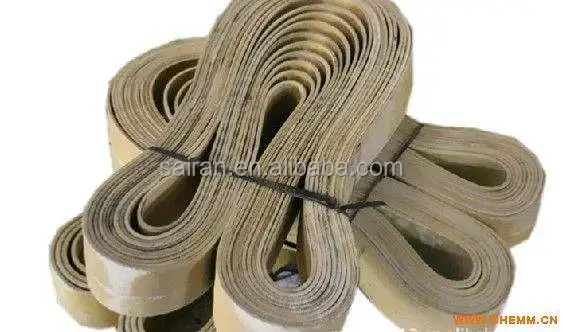

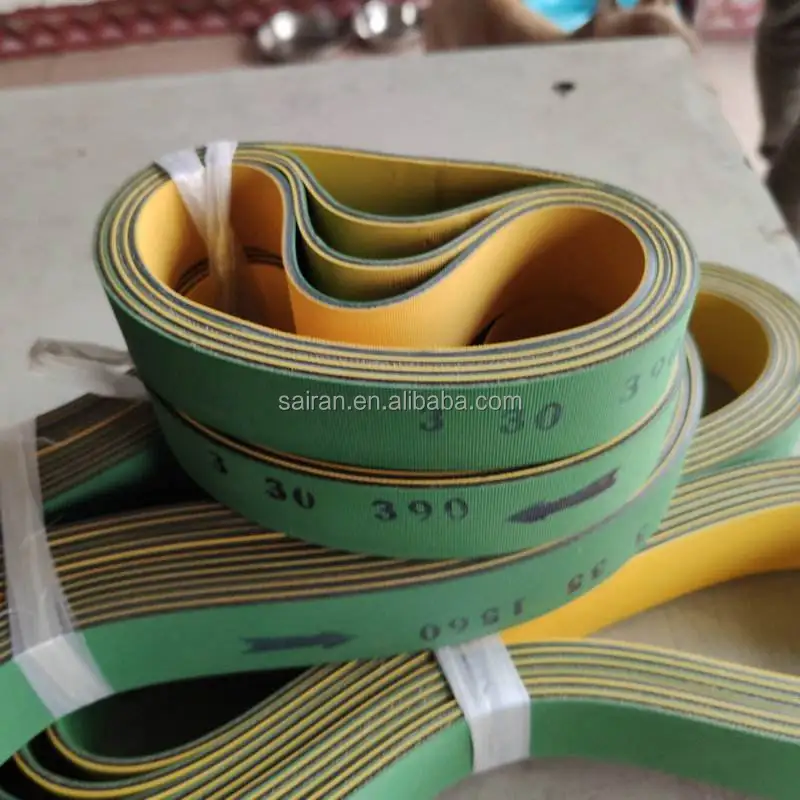

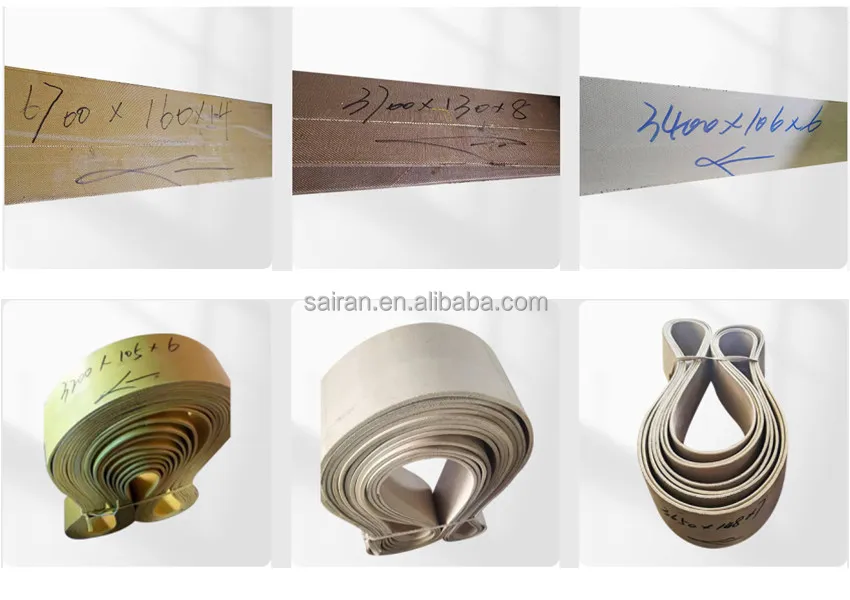

The paper tube machine canvas belt adopts the annular rubber seamless flat belt, the internal rubber sheet is made of imported rubber thread, and the external canvas is coated with yellow rubber, which has high strength, wear resistance, non-slip, not easy to stretch, and long life. and other characteristics, the joint part has undergone two long-temperature treatments, so as to ensure that the belt can withstand high pressure operation during use, nylon canvas has high-strength tensile properties, and the natural rubber of the polyester pulley in the interlayer has oil resistance. , heat resistance, anti-skid effect.
Characters:
Strong pulling force, not easy to wear, not easy to age, smooth transmission, good mute effect, rich models, support
for customization.
for customization.
Application:

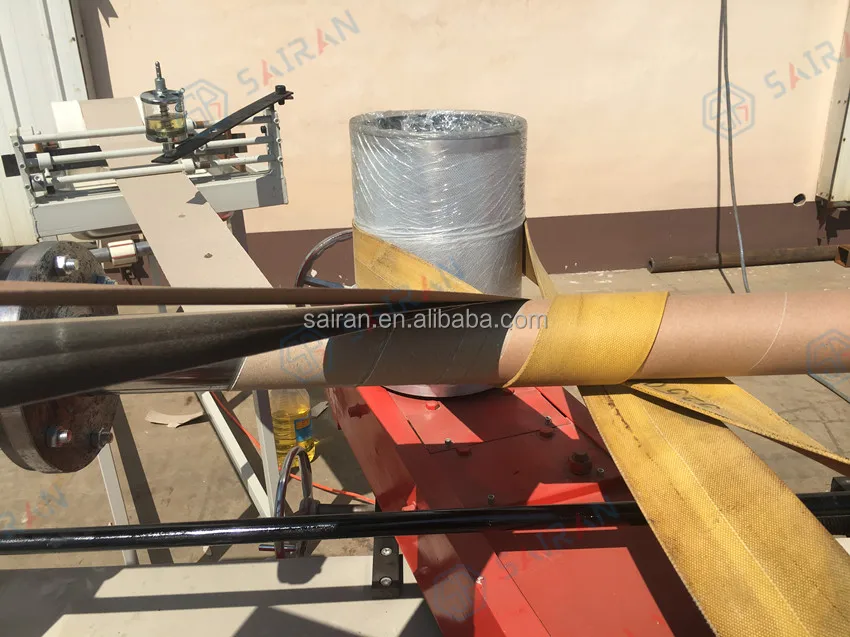

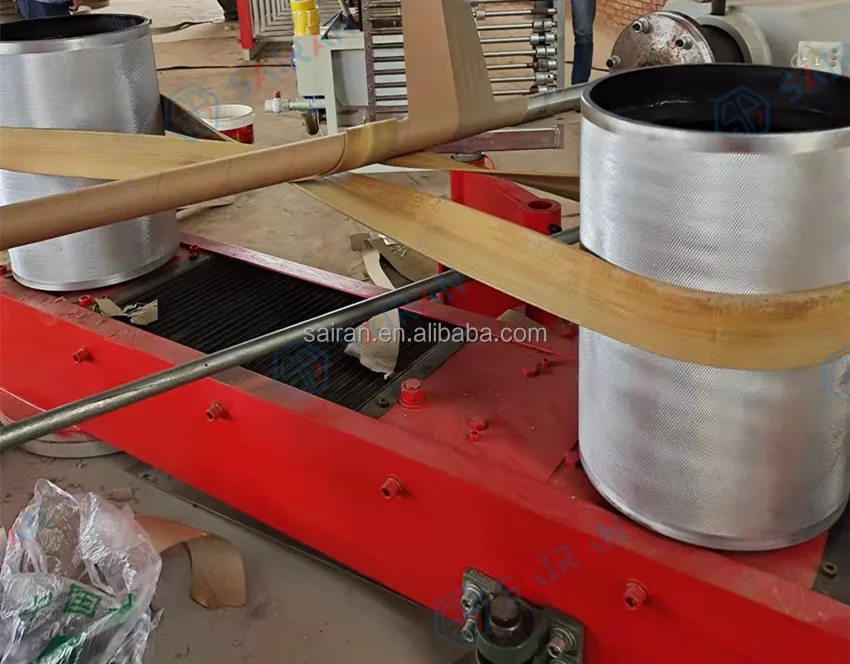

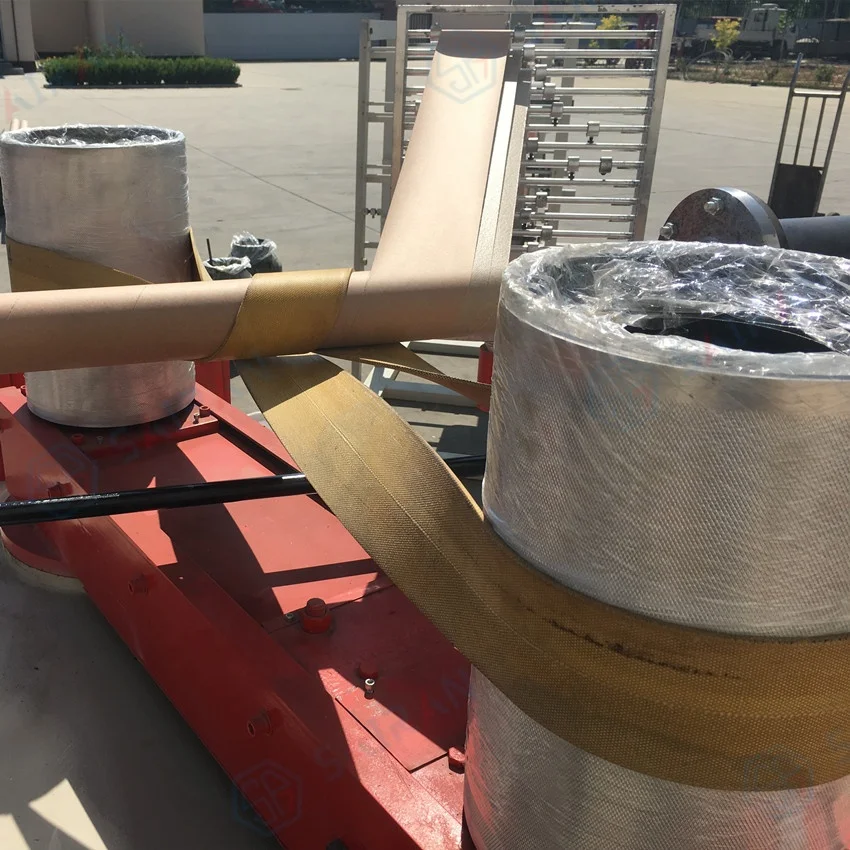

The rollers on both sides of the paper tube machine are connected by the canvas belt of the paper tube machine, and the belt is cross-wound on the mandrel. After passing through, the power of the motor drives the roller on one side to rotate, the roller drives the roller on the other side to rotate through the belt, and at the same time drives the paper tape on the sleeve to rotate through the belt. During this process, when the paper tape is fed between the moving belt and the sleeve, under the frictional force of the belt, the paper tape is tightly screwed on the rotating sleeve according to the spiral law, and the sleeve is driven by the belt. Continue to rotate, so that the rolled paper tube can be sent out smoothly.
Technical Parameters
Name:Canvas band for paper core machine
Material:High wear resistant canvas
Application: Paper core machine
Working temperature:-20。-80。C
Thickness: 4-10mm
Material:High wear resistant canvas
Application: Paper core machine
Working temperature:-20。-80。C
Thickness: 4-10mm
Width | Layer number | Width tolerance |
20,25,30,40,45,50,55,60 | 3-4layers | +-2 |
65,70,75,80,90,100,125 | 3-6 | +-3 |
140,160,180,200,224,250 | 4-6 | +-4 |
288,300,315,400,450,550,600 | 4-10 | +-5 |
Tensile strength | Longitudinal minimum | Transverse minimum |
190 | 190 | 75 |
240 | 240 | 95 |
290 | 290 | 115 |
340 | 340 | 130 |
385 | 385 | 225 |
425 | 425 | 250 |
450 | 450 | |
500 | 500 |
Related Products

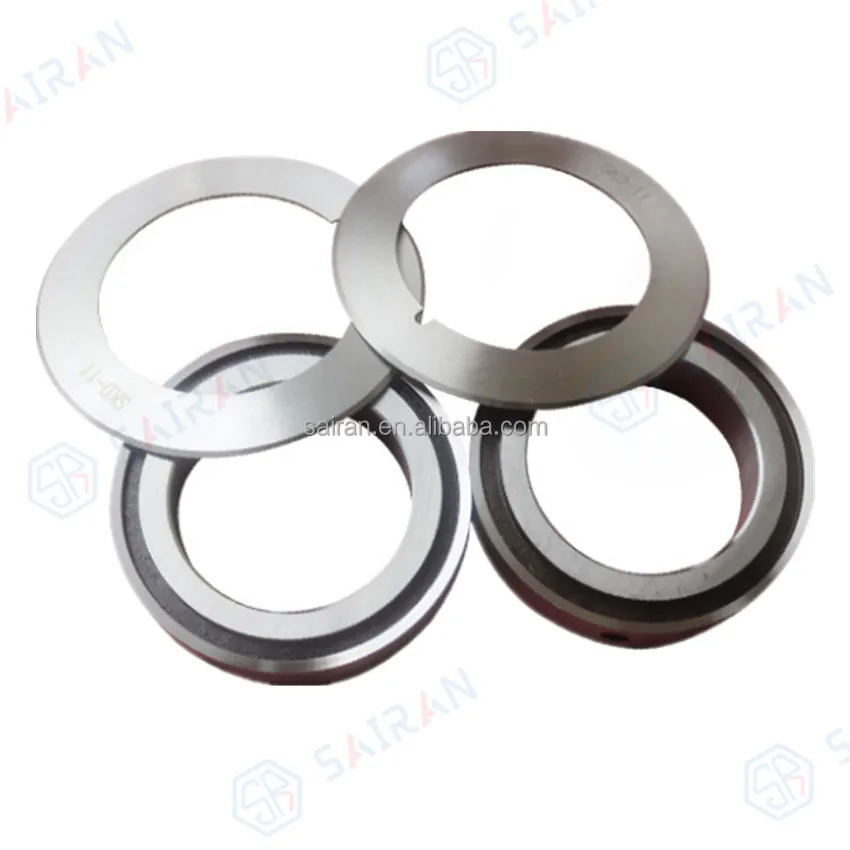

Paper core cutting blade
The cutting blade is mainly used for slitting paper, film, gold foil, aluminum foil, copper foil and other foils, non-woven fabrics, magnetic tapes, lithium batteries and other materials.
Packing and shipping
We will use the film wrapping before loading the container for anti-corrosion and anti-collision treatment. If you need to use wooden box packaging, we will strictly follow the relevant export wooden box packaging regulations, and will do anti-collision fixation of machinery and equipment before wooden box packaging. The box board packaging has tight seams, and the box board combination is flat and without misalignment.The belt and cutting blades of spare parts will be packaged in woven bags or carton boxes and shipped by air or by Express.
Certifications
Company Introduction
Zhengzhou Sairan Machinery Equipment Co., Ltd., located in Central China，is a professional machinery manufacturer and supplier of paper product machinery, food machinery and packaging machinery.We are a young company with young team,more innovative concepts and creative ideas, and we have built good and stable cooperation with clients from American,Europe, Africa, Southeast Asia, etc. Customer satisfaction is our target. Relying on advanced technologies,
perfect services and inexpensive products of high quality, we have the ability to provide satisfying machinery and services.Also we have won the recognition of international markets and clients.Welcome new and old customers to contact us for business negotiation.
FAQ
1. What is the MOQ ?
MOQ:1pcs
2. Can it be customized according to our supply size ?
Yes, support for custom
3. What is the price per pcs ?
The price is related to the size and order quantity.
4. How do you ship the belts ?
The belts can be shipped by Express or by air.
5. What is the payment term ?
30% by T/T or western union, 70% balance before shipment.
MOQ:1pcs
2. Can it be customized according to our supply size ?
Yes, support for custom
3. What is the price per pcs ?
The price is related to the size and order quantity.
4. How do you ship the belts ?
The belts can be shipped by Express or by air.
5. What is the payment term ?
30% by T/T or western union, 70% balance before shipment.
