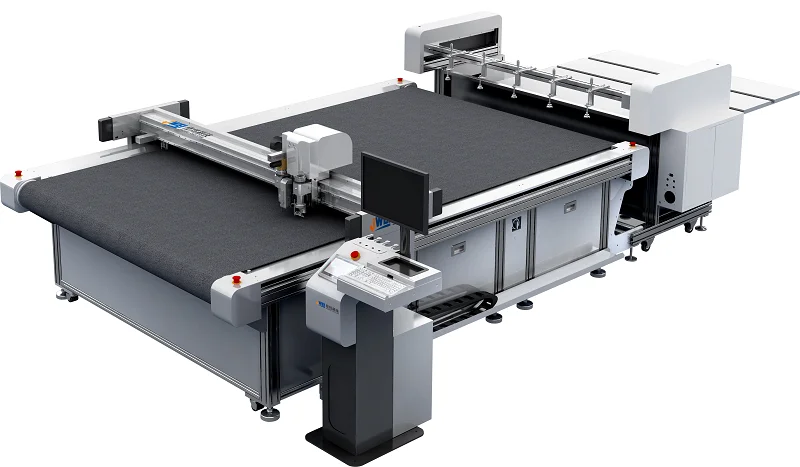

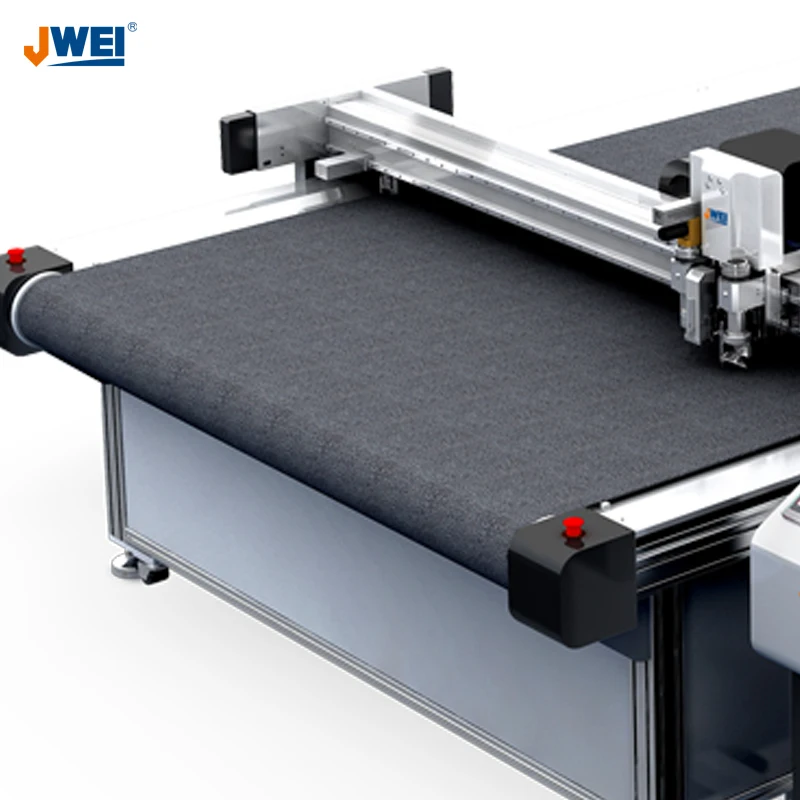

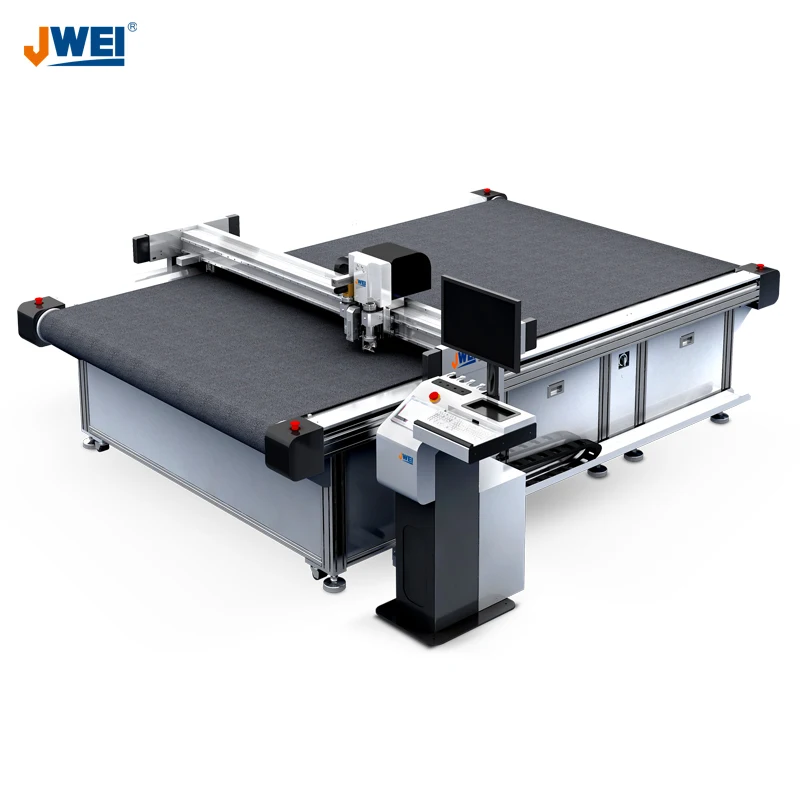

Numerical control digital cutting machine material fixing method vacuum adsorption
- Category: >>>
- Supplier: Ningbo Jingwei Systemtechnik Ltd.
Share on (1600474149807):
Product Overview
Description
Low voltage control panel integrated inside the cutter: the low voltage control panel is integrated into the cutter with "drawer" design, taking full advantage of spare room inside.
High voltage control panel: mount the high voltage enclosure inside the cutter, which lay aside the cutter previously, easy forcable connection as a result of appropriate layout.
Pneumatic parts layout: mount all pneumatic parts on the back of a steel plate guard on one side of the cutter, easy for adjustment and maintenance.
High voltage control panel: mount the high voltage enclosure inside the cutter, which lay aside the cutter previously, easy forcable connection as a result of appropriate layout.
Pneumatic parts layout: mount all pneumatic parts on the back of a steel plate guard on one side of the cutter, easy for adjustment and maintenance.

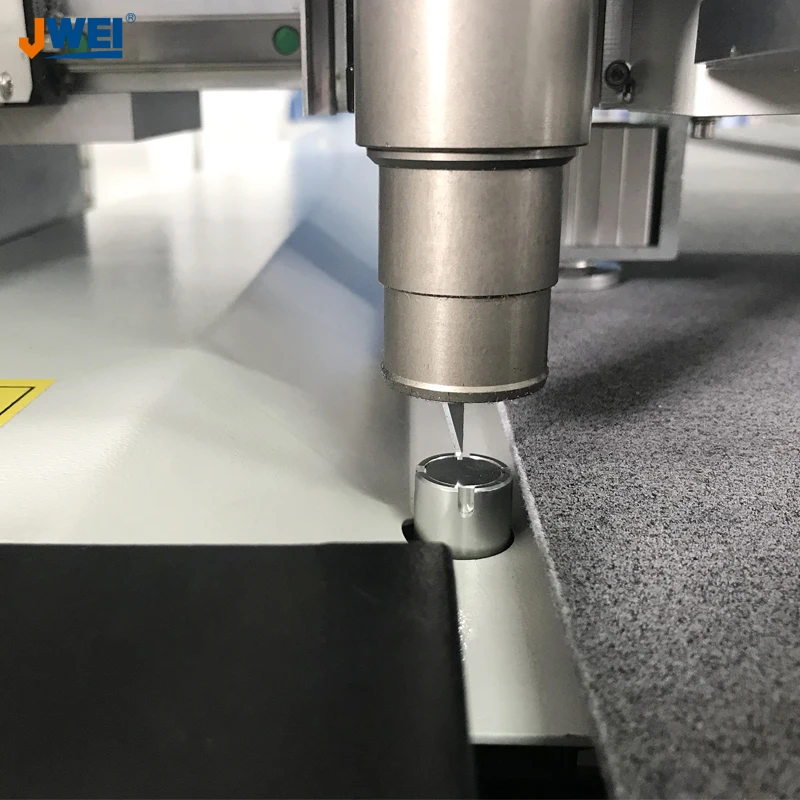

Automatic offset of cutting tool: add two automatic cutting tool offset units, one left and one right on the platform, enhanced
effeciency and performance.
Appearance design: professionally industrial design appearance, a feast for eyes.
Cutting heads: upgrade modules and motors with smaller dimensions and compact appearance. Enhanced rigidity, less weight. Tools of CB08II are compatible with CB03II and CB06II series.
effeciency and performance.
Appearance design: professionally industrial design appearance, a feast for eyes.
Cutting heads: upgrade modules and motors with smaller dimensions and compact appearance. Enhanced rigidity, less weight. Tools of CB08II are compatible with CB03II and CB06II series.

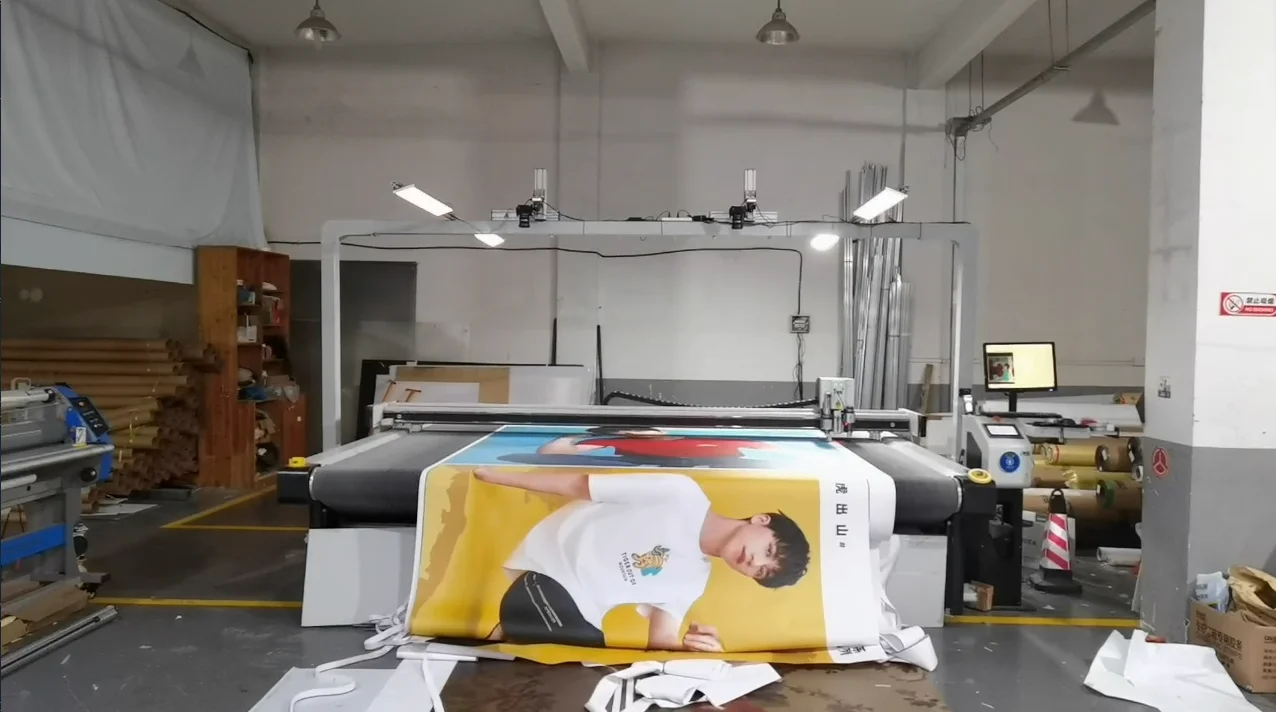

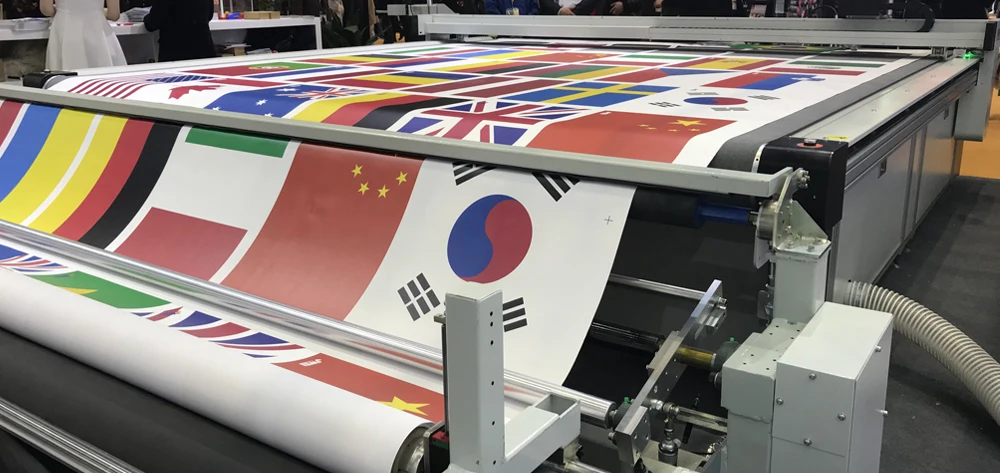

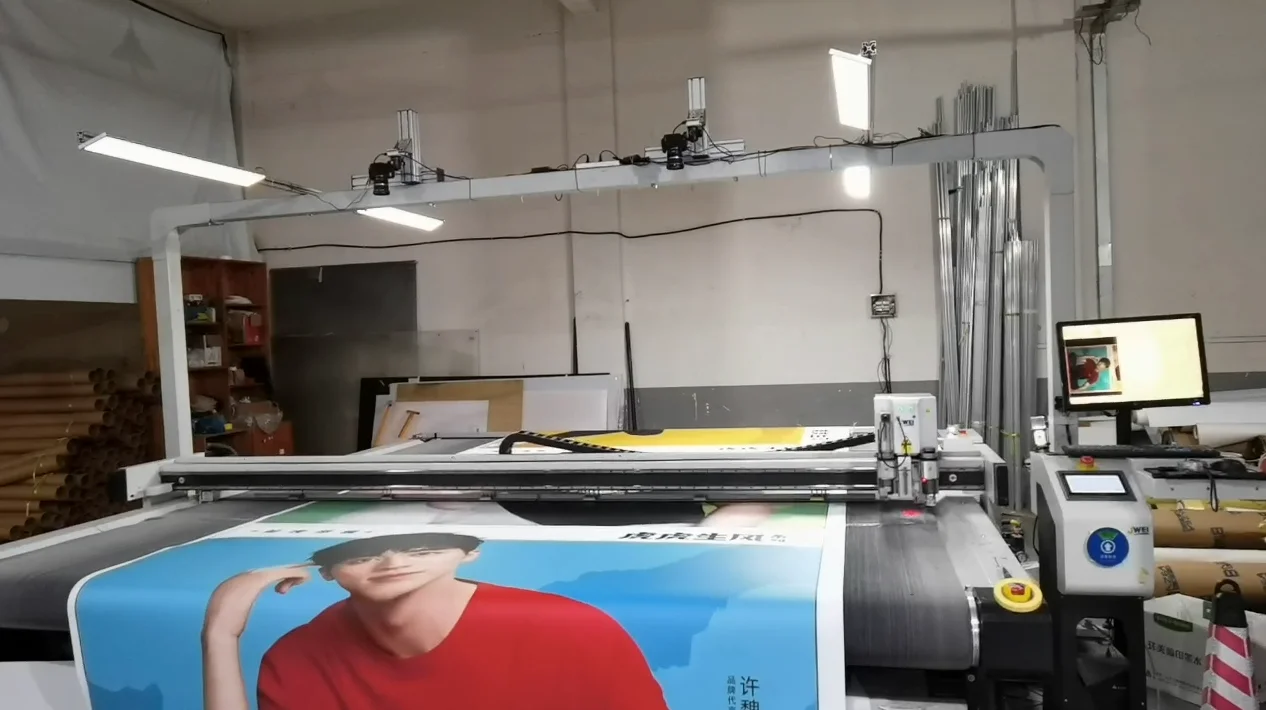

At the customer's factory

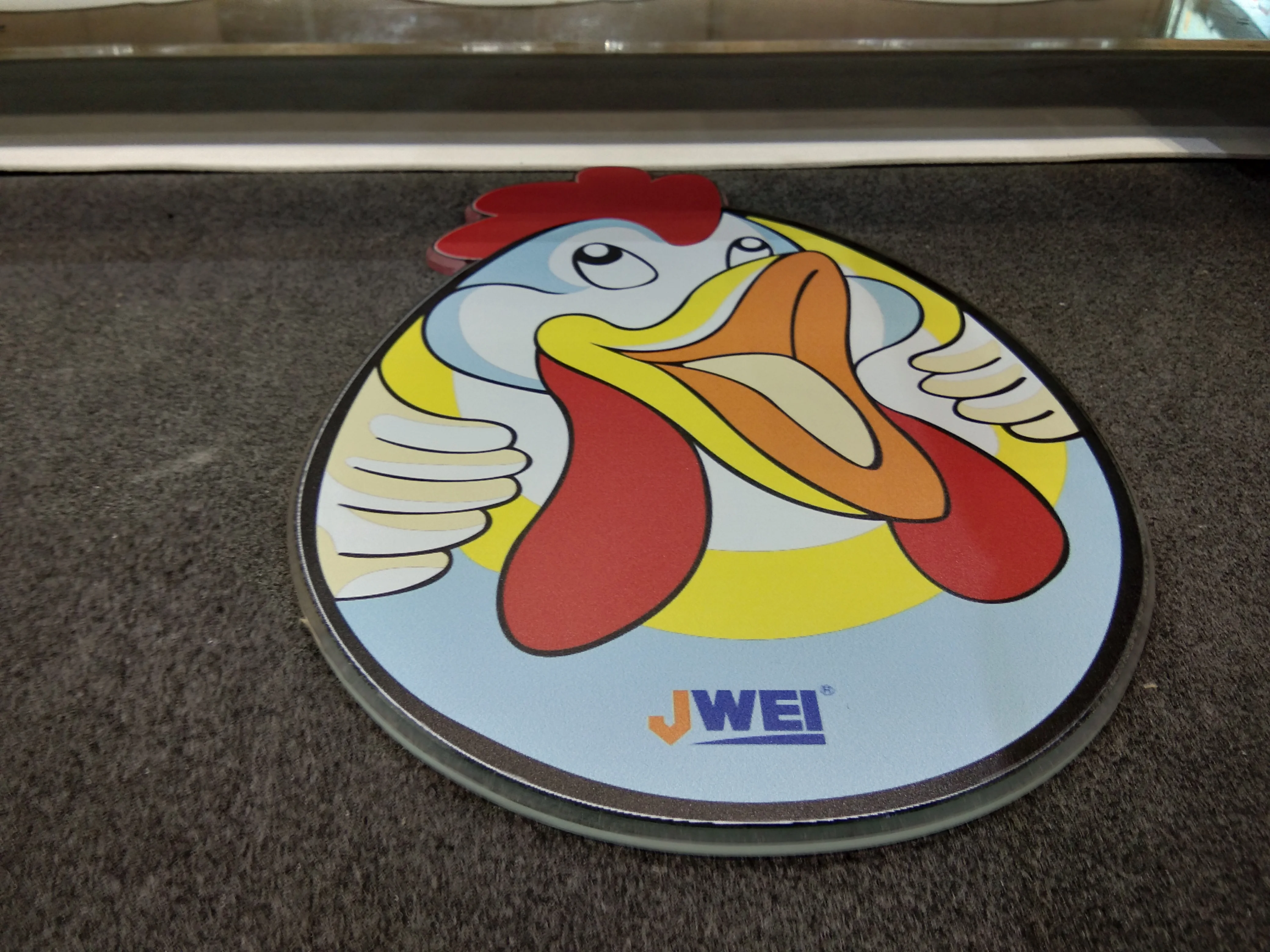

sample
Model No. | CB08II-2516PM 3516PM 5516PM 2520PM 3520PM 5520PM 3032PM |
Multifunctional head | Oscillating knife, offset knife, rotary knife,snip knife, cursor, drawing, automatic feeding |
Safety device | Infrared sensor, responsive, safe and reliable |
moving speed | Up to 1500 mm/s |
Cutting speed | Up to 1200 mm/s（Depends on different materials） |
Cutting thickness | Up to 50mm（Depends on different materials） |
Cutting material | UV material, outdoor printing fabric, light sheet, gridding cloth, flag fabric, stickers, KT board, PVC expansion sheet, corrugated paper, honey comb board etc. |
Servo precisiony | +/-0.01mm |
Repeat precision | +/-0.05mm |
Buffer memory | 2GB |
Interface | Ethernet port |
Material fixing meathod | Vacuum adsorption |
Work command | HP-GL compliant format |
Transmission system | Servo driver, high precise gear |
Numerical control panel | EN LED Touch screen |
Power Supply | AC 380V+/-10% |
Working Environment | Temperature 0-35 degree; Humidity 60% - 80% |
Effective Cutting Area | 2500mm*1600mm|3500*1600|5500*1600|2500*2000|3500*2000|5500*2000|3000*3200 |
Machine Size(mm) | 3370mm*2380mm*1300mm(not including automatic board loading system) |
Q1：Are you manufactory or trade company? A1: JWEI is a cutting plotter manufacturer in China.we can offer digital cutter, kiss cutting for adhesive sticker, corrugated box cutting solution,leather cutting system and so on.
After-sale service First, warmly welcome you to our head office to have a professional training and observation. We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine.
Q2:How to contact us?
A2: - By E-mail. info@jingwei.com.cn - By whatsapp: 18368275009 - Welcome to visit us here in Ningbo,China. You can have a close encounter with our cutting machine working condition and functions.
On-sale service we treat every customer sincerely, enthusiastically and equally. No matter who you are, once you need us help, our dedicated salesman and professional technicians will support at once.
After-sale service First, warmly welcome you to our head office to have a professional training and observation. We can also dispatch our technician to your place, offer training and help solve your any questions about our cutting machine.
Q3:How long is the warranty period for the digital cutter ?
A3:12 Months Guarantee and Life-long Maintenance. Full life-time Remote service support. Free training.
