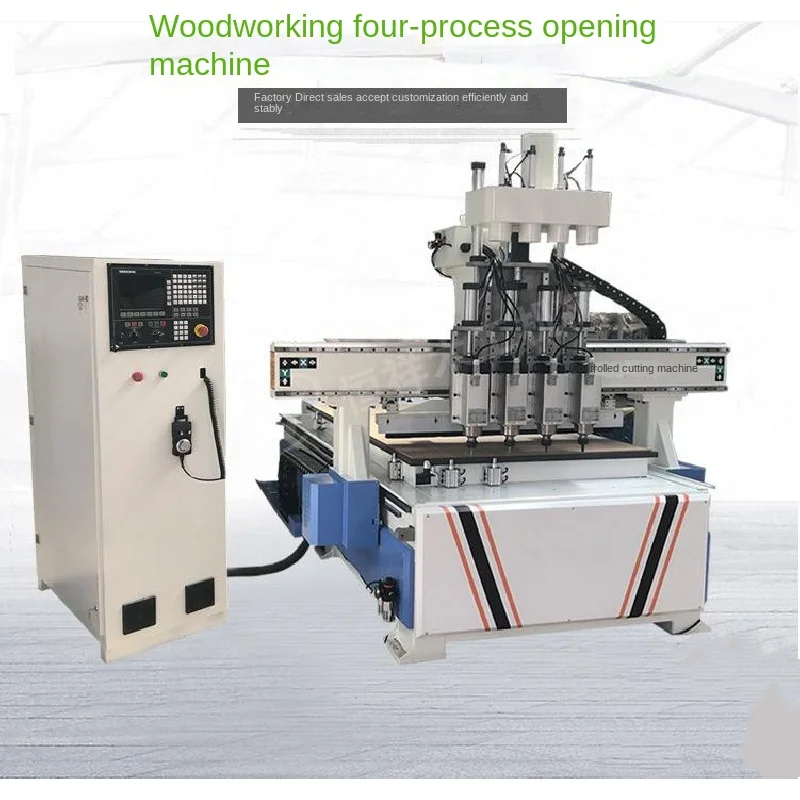

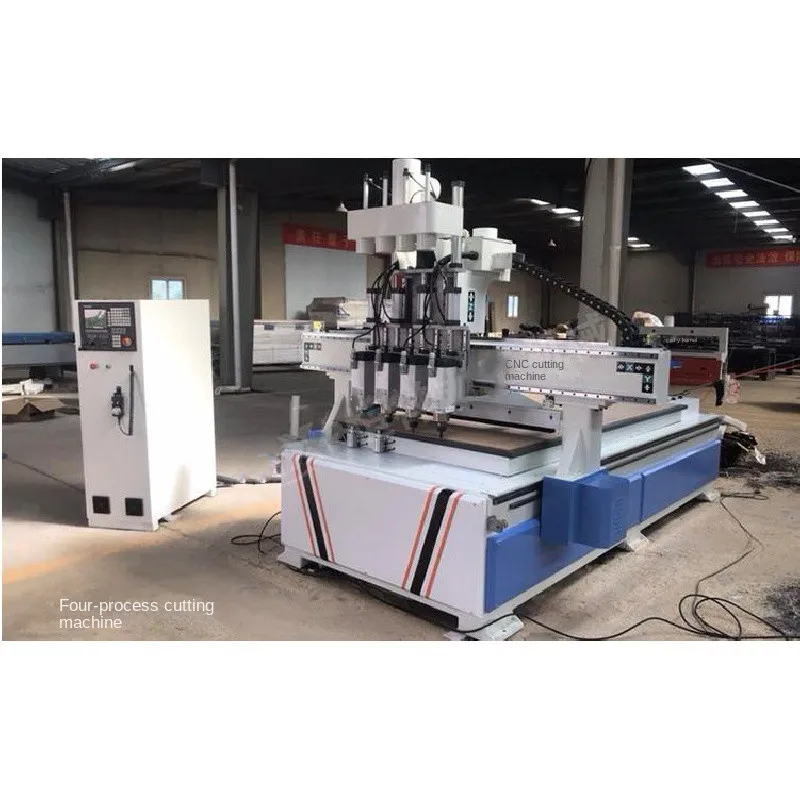

woodworking machine router 3axis 4 axis 1325 atc wood carving cnc router
- Category: >>>
- Supplier: Yantai Ruibo Woodworking Machine Co. Ltd
Share on (1600474159657):
Product Overview
Description
Product Description
Specification
item | value |
Condition | New |
Range of Spindle Speed(r.p.m) | |
Positioning Accuracy (mm) | 0.2mm |
Number of Axes | 3 |
No. of Spindles | Single |
Working Table Size(mm) | 1300×2500 |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 2000mm |
Travel (Y Axis)(mm) | 2500mm |
Repeatability (X/Y/Z) (mm) | 0.2mm |
Spindle Motor Power(kW) | 5.5 |
CNC or Not | CNC |
NC Studio | |
Place of Origin | China |
Shandong | |
Voltage | AC380V(Option) |
Dimension(L*W*H) | 1300x2500x260mm |
Power (kW) | 9 |
Weight (KG) | 2300 |
Warranty | 1 Year |
Key Selling Points | Competitive Price |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, PLC, Other |

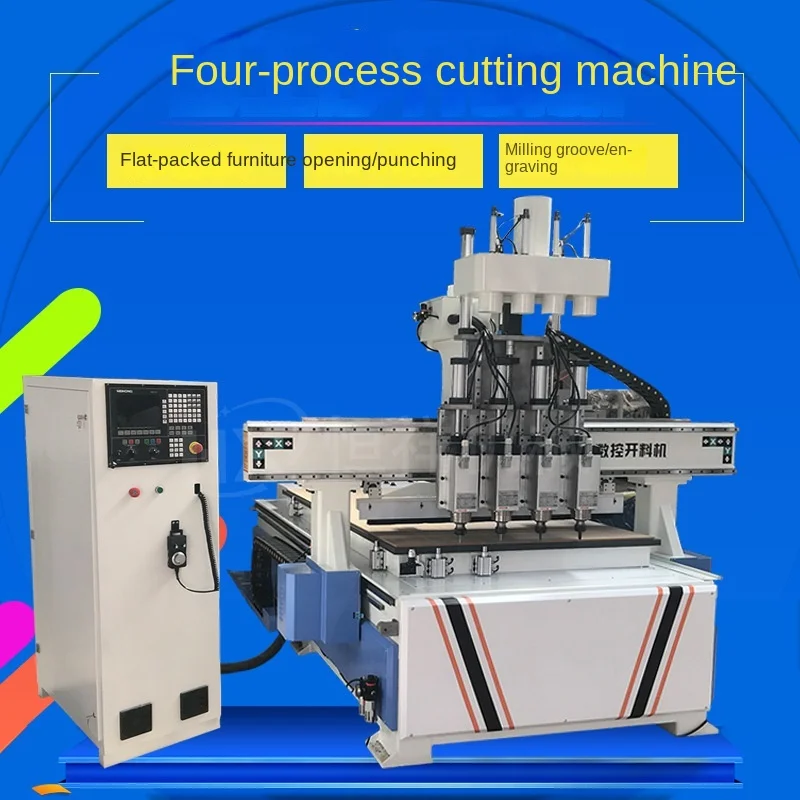

Product name | Fully automatic four-process cutting machine |
Application | MDF WOOD ACRYLIC ALUMINUM |
Keywords | Cnc Wood Router Engraver |
Spindle | Air Cooling Spindle |
Name | 1325 Woodworking CNC Router |
Control system | Weihong NC60A |
Transmission | Taiwan TBI Ball Screw |
Working area | 2800mm*1300mm*200mm |
Spindle power | 9.9kw |
Inverter | Fuling Electric 11KW Inverter |
Weihong single-station straight-line tool change CNC cutting machine (standard version)
1. Dimensions: 4000mm*2350mm*2000mm;
2. Working stroke: 2800mm*1300mm*200mm;
3. Body: heavy-duty bed (processed and formed by gantry machining center milling, drilling and other processes), the whole machine is approx. 2. 3 tons;

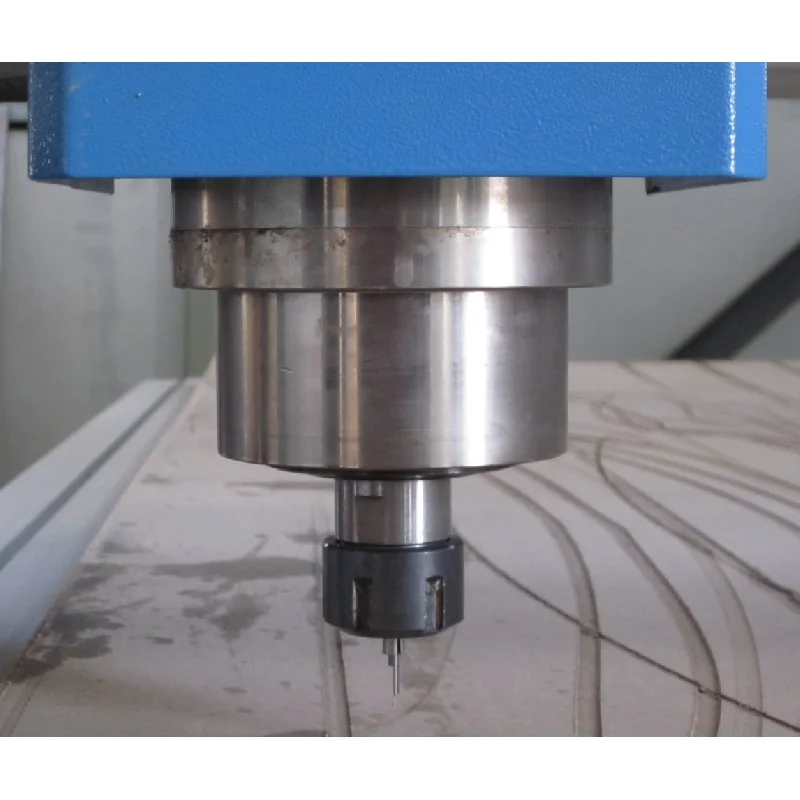

4. Spindle motor: 9Kw air-cooled spindle: the brand is Linnan Changsheng 24000 rpm
5. Servo system: Weihong bus absolute value motor,
6. Reducer: Japan Beto;
7. Operating system: Weihong NC60A

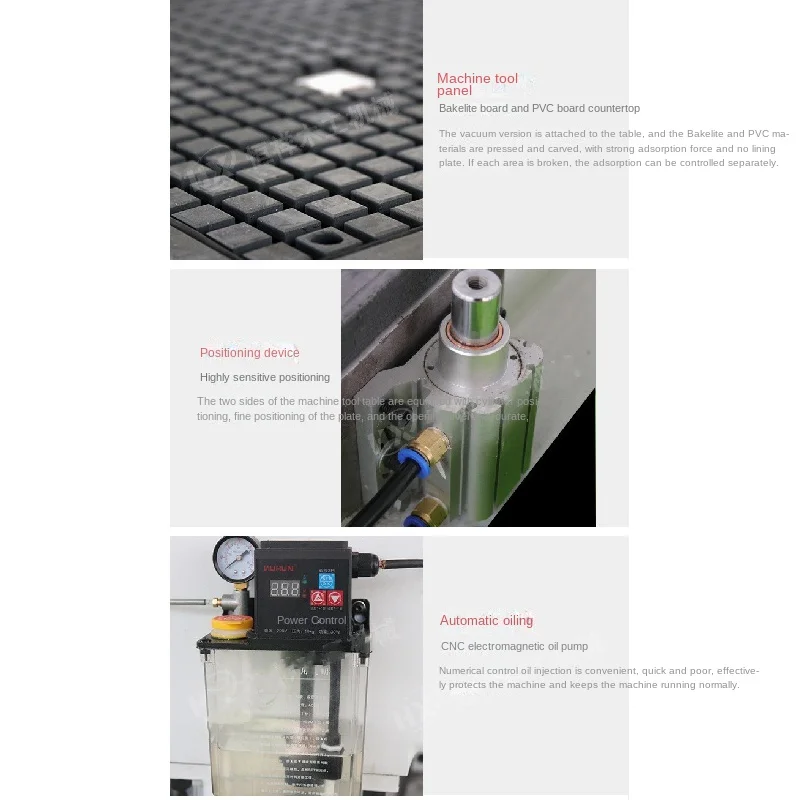

8. Positioning cylinder: Y3+X2 positioning cylinder, with a composite sleeve inside, the positioning accuracy is less than 0.05mm;
9. Vacuum cleaner: 3.0kw double-barrel vacuum cleaner; (optional)
10. Clamping method: 25mmPVC vacuum adsorption table (no deformation, strong adsorption), 7.5/Kw water-cooled vacuum pump
11. Transmission: XY precision helical rack, Z ball screw 2510;
12. Rack: Top 100;
13. Tooth surface: quenching and tempering treatment;
14. Z axis: RBK80 transmission base + fixed end;
15. Rail: Elite 25 standard square rail. (Regular lubrication to prolong the service life of the slider.);
16. Slider: Elite original preload slider, Y-axis with flange;
Limit: double protection of soft limit and mechanical hard limit;
1. Dimensions: 4000mm*2350mm*2000mm;
2. Working stroke: 2800mm*1300mm*200mm;
3. Body: heavy-duty bed (processed and formed by gantry machining center milling, drilling and other processes), the whole machine is approx. 2. 3 tons;
4. Spindle motor: 9Kw air-cooled spindle: the brand is Linnan Changsheng 24000 rpm
5. Servo system: Weihong bus absolute value motor,
6. Reducer: Japan Beto;
7. Operating system: Weihong NC60A
8. Positioning cylinder: Y3+X2 positioning cylinder, with a composite sleeve inside, the positioning accuracy is less than 0.05mm;
9. Vacuum cleaner: 3.0kw double-barrel vacuum cleaner; (optional)
10. Clamping method: 25mmPVC vacuum adsorption table (no deformation, strong adsorption), 7.5/Kw water-cooled vacuum pump
11. Transmission: XY precision helical rack, Z ball screw 2510;
12. Rack: Top 100;
13. Tooth surface: quenching and tempering treatment;
14. Z axis: RBK80 transmission base + fixed end;
15. Rail: Elite 25 standard square rail. (Regular lubrication to prolong the service life of the slider.);
16. Slider: Elite original preload slider, Y-axis with flange;
Limit: double protection of soft limit and mechanical hard limit;
Packing & Delivery

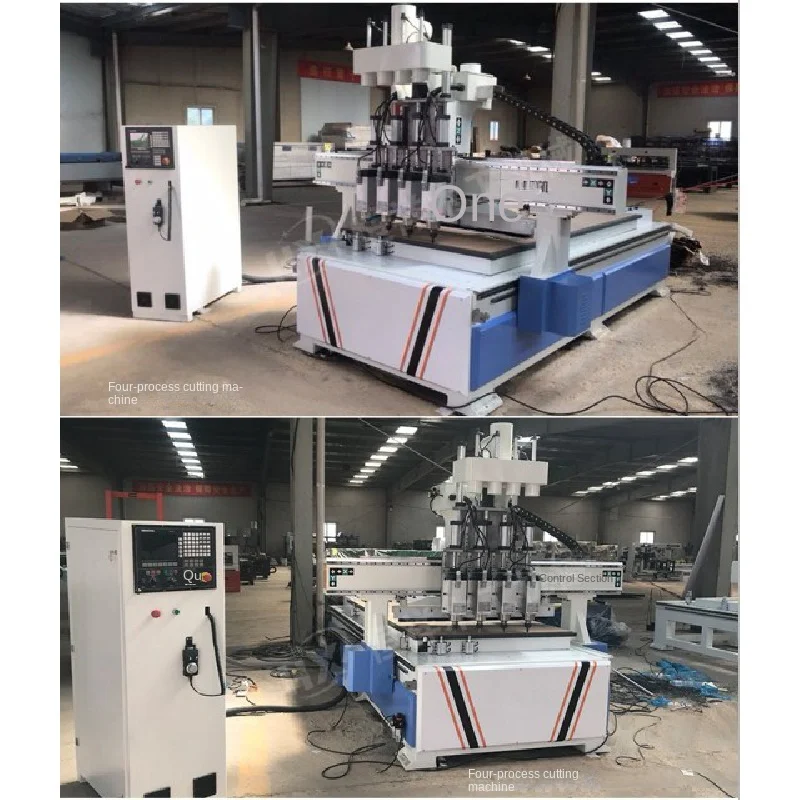

Woodworking engraving machine three-process four-process cutting machine
