Transformer motor generator and other inductive load test wire relay witch contacts Cable DC Resistance Analyzer WDZR 10A
- Category: >>>
- Supplier: Wuhan Wugao Electric Measurement Co. Ltd.
Share on (1600474206557):
Product Overview
Description
Product Overview

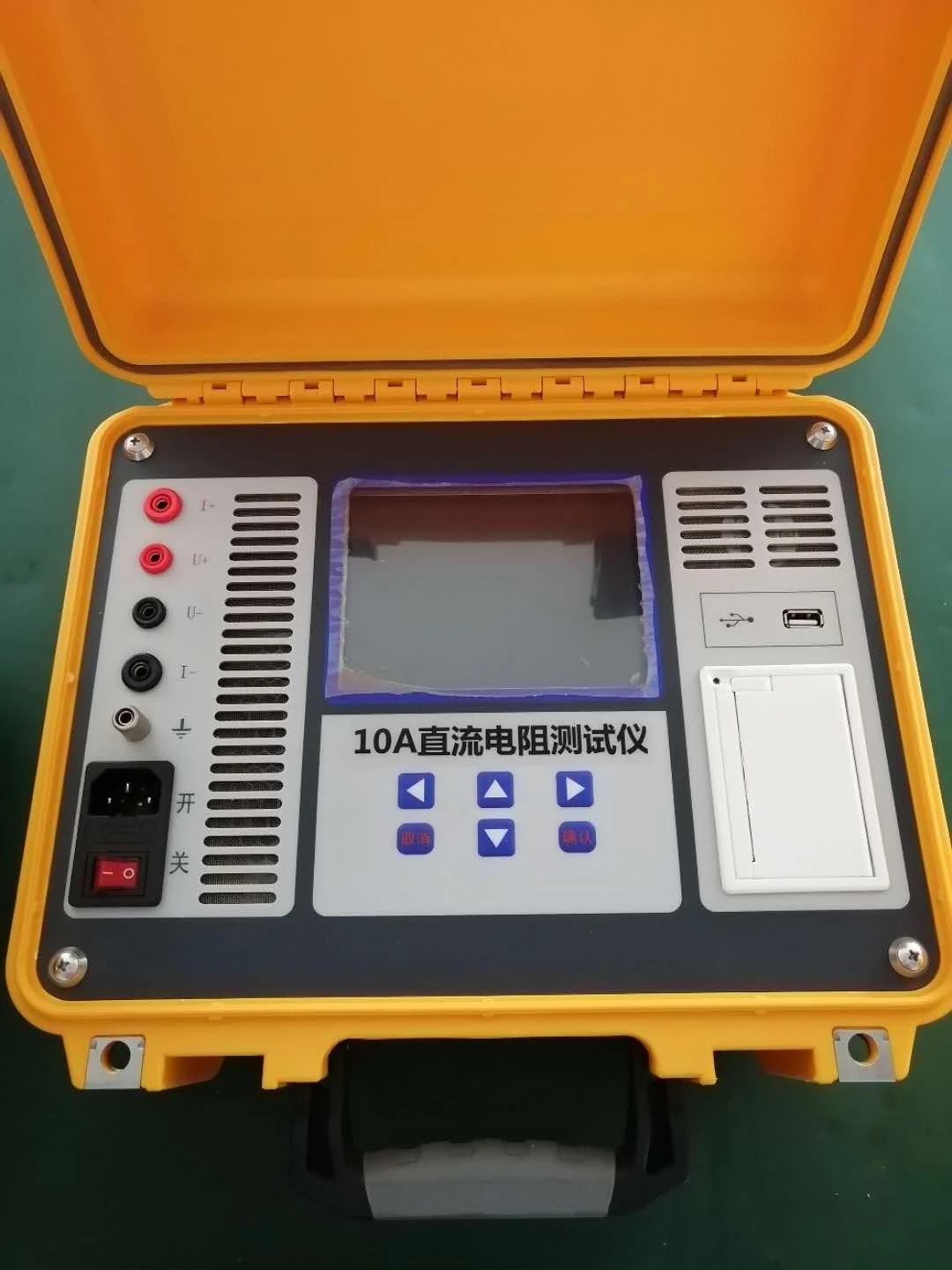

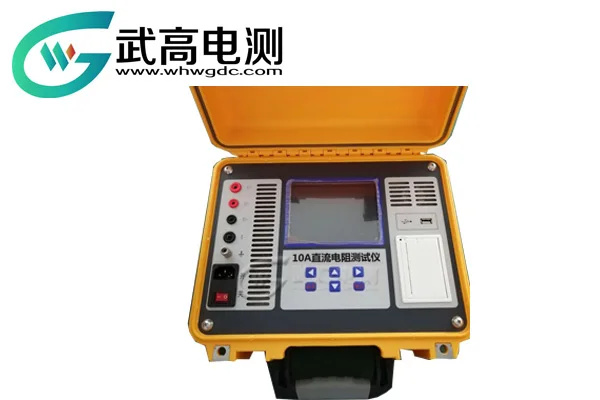

WDZR-10A Transformer DC resistance tester
Products Description
The DC resistance measurement of the winding is one of the routine tests of the transformer. Its main purpose is to check whether the connection or mechanical characteristics between the windings, winding and leads are good, whether the resistance between each phase windings is balanced, etc., to ensure the safe operation of the transformer.
The series of transformer DC resistance tester developed and produced by the company uses 32 bit ARM cores as the core of the process, control the whole machine, automatically complete the functions of self-calibration, steady flow judgment, data processing, resistance value display and so on, and can measure the DC resistance of various types of transformers and transformers.The instrument can be directly used with the internal battery, which greatly facilitates the use of the field workers.
The series of transformer DC resistance tester developed and produced by the company uses 32 bit ARM cores as the core of the process, control the whole machine, automatically complete the functions of self-calibration, steady flow judgment, data processing, resistance value display and so on, and can measure the DC resistance of various types of transformers and transformers.The instrument can be directly used with the internal battery, which greatly facilitates the use of the field workers.
Product Paramenters
Item | Technical indicators and parameters | remark |
test current | auto、<20mA、40mA、200mA、1A、5A、10A | |
test range | 10A：0.2mΩ～800mΩ 5A：2mΩ～2Ω 1A：5mΩ～10Ω 200mA：100mΩ～50Ω 40mA：500mΩ～250Ω <20mA：50Ω～100KΩ | |
Minimum resolution | 0.1μΩ | |
accuracy | ±(0.2%+2bite) | |
indicate | LCD | The resistor display is a significant digit of 4 digits |
Environmental humidity | ≤90%RH, no condensation | temperature: -20℃～40℃ |
Dimension | 360*290*170（mm） | |
NW | 6.45KG |
Performance characteristics and technical indicators
1.Output current and range: Output current: 0-10A, range of 1m-20K.
1.Output current and range: Output current: 0-10A, range of 1m-20K.
Note: Use the above test above.
1. This product is suitable for 10KV and 35KV grade distribution transformers, transformers, motors, generators and other inductive load tests, as well as the measurement of wires, relay switch contacts, etc.
2. With temperature conversion function, it can be converted to the resistance value at different temperatures according to customer needs, which is convenient for data comparison.
3. With no power-down data storage and perpetual calendar, it can store 1000 groups of test data and store test time in real time.
4. It has a micro printer that can print test data in real time.
5. It has protection functions such as discharge sound alarm, power supply overheating, voltage reverse connection and so on.
6, 480X272 dot matrix 65K true color LCD, high brightness, clear display under strong light.
7. The on-load switch can be directly switched in the measurement state, and the instrument automatically refreshes the data without resetting the operation.
8. Equipped with RS232 interface and U disk interface, which is convenient for communication and data removable storage.
9. It has 6 current gears and has automatic current gears, which can automatically select current gears according to the load.
10. Injection molding chassis, which can be waterproof, dustproof, shock absorption, etc.
11. Optional large-capacity lithium battery (16.8V/7800mAH)
2. With temperature conversion function, it can be converted to the resistance value at different temperatures according to customer needs, which is convenient for data comparison.
3. With no power-down data storage and perpetual calendar, it can store 1000 groups of test data and store test time in real time.
4. It has a micro printer that can print test data in real time.
5. It has protection functions such as discharge sound alarm, power supply overheating, voltage reverse connection and so on.
6, 480X272 dot matrix 65K true color LCD, high brightness, clear display under strong light.
7. The on-load switch can be directly switched in the measurement state, and the instrument automatically refreshes the data without resetting the operation.
8. Equipped with RS232 interface and U disk interface, which is convenient for communication and data removable storage.
9. It has 6 current gears and has automatic current gears, which can automatically select current gears according to the load.
10. Injection molding chassis, which can be waterproof, dustproof, shock absorption, etc.
11. Optional large-capacity lithium battery (16.8V/7800mAH)

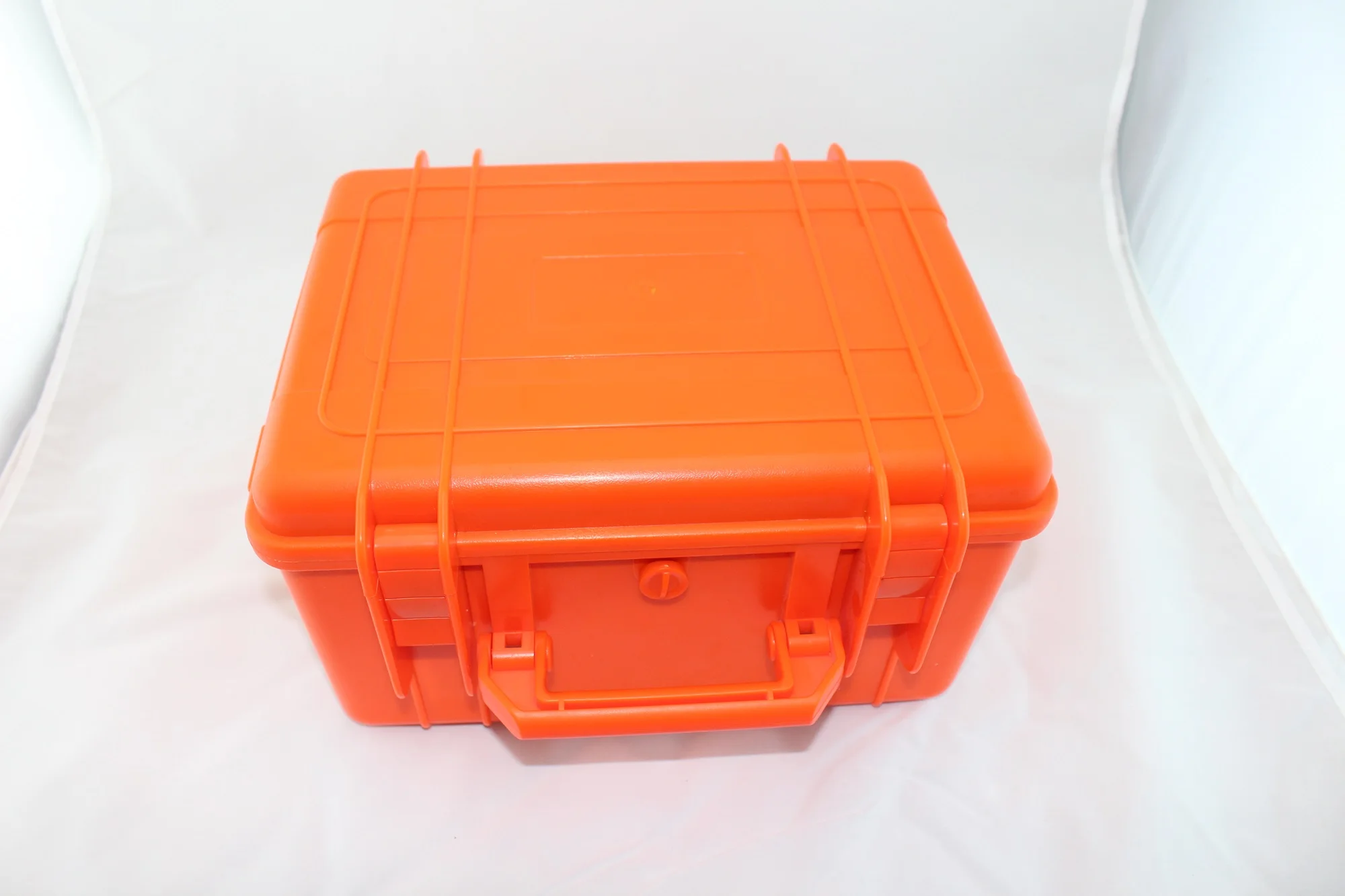

Product packaging
Our Advantages
1. The company was established in 2011 and is one of the early manufacturers of electric power instrumentation in Hubei.
2. Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the start-up stage to a total of 150 products in 14 categories. At present, the serialization, diversification and scale of products have been realized.
3. Wugao Electrical has passed the international quality management system certification (GB/T19001-2008/IS09001: 2008), the occupational health and safety management system certification (GB/T28001-2011/OHSAS 18001: 2007) and the environmental management system certification (GB/ T24001-2004/ISO 14001:2004), the company has the People's Republic of China Manufacturing Measuring Instruments License (CMC Ezhi No. 00000350), and is a member of the Hubei Electric Power Measurement and Testing Association.
4. Wugao Electric continues to develop new products to achieve product upgrades. Through years of accumulation, Wugao Electric has won a number of patented technologies with independent intellectual property rights, and has successively obtained more than a dozen invention patents and utility model patents.
2. Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the start-up stage to a total of 150 products in 14 categories. At present, the serialization, diversification and scale of products have been realized.
3. Wugao Electrical has passed the international quality management system certification (GB/T19001-2008/IS09001: 2008), the occupational health and safety management system certification (GB/T28001-2011/OHSAS 18001: 2007) and the environmental management system certification (GB/ T24001-2004/ISO 14001:2004), the company has the People's Republic of China Manufacturing Measuring Instruments License (CMC Ezhi No. 00000350), and is a member of the Hubei Electric Power Measurement and Testing Association.
4. Wugao Electric continues to develop new products to achieve product upgrades. Through years of accumulation, Wugao Electric has won a number of patented technologies with independent intellectual property rights, and has successively obtained more than a dozen invention patents and utility model patents.
Company Profile
Wuhan Wugao Electric measurement Co., Ltd.( abbreviated as Wugao Electric ), was established in 2011 and is one of the early manufacturers of electric power instrumentation in Hubei. our company mainly engaged in power products for the research and development, production, sales and technical consulting, technology transfer, installation and commissioning; power equipment, instrumentation, and power test equipment; computer integration; design and development of engineering equipment and installation tools; power Wholesale and retail sales of appliance C materials, wires and cables, and so on
Wugao Electric has always adhered to the slogan: "A little progress every day" as its core value, and everything is centered on the needs of the power industry. We hope that through professionalism and our unremitting efforts, we can reshape our corporate image and let our products gain the power industry recognized.
Wugao Electric has a plant area of 5,000 square meters and a total of more than 50 employees. The company has ten departments including the general manager's office, product research and development department, marketing department, production department, quality inspection center, administrative personnel department, marketing department, finance department, material department and after-sales service center.
Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the initial stage to the development and production of series resonance test devices, high-voltage insulation withstand voltage equipment, transformer testing instruments, and circuit breakers Testing equipment, relay protection/secondary circuit testing equipment, cable/line testing equipment, lightning arrester/insulator testing equipment, SF6 testing equipment, oil chemical testing equipment, DC system/battery testing equipment, reactive power compensation/generator testing equipment, There are a total of 150 products in 14 categories, including power metering products, grounding series/insulation series, and power test accessories. At present, the serialization, diversification and scale of products have been realized. After more than ten years, Wugao Electric has grown into a high-tech power service enterprise integrating scientific research, development, production, sales, consulting, installation, commissioning and service.
Wugao Electric has always adhered to the slogan: "A little progress every day" as its core value, and everything is centered on the needs of the power industry. We hope that through professionalism and our unremitting efforts, we can reshape our corporate image and let our products gain the power industry recognized.
Wugao Electric has a plant area of 5,000 square meters and a total of more than 50 employees. The company has ten departments including the general manager's office, product research and development department, marketing department, production department, quality inspection center, administrative personnel department, marketing department, finance department, material department and after-sales service center.
Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the initial stage to the development and production of series resonance test devices, high-voltage insulation withstand voltage equipment, transformer testing instruments, and circuit breakers Testing equipment, relay protection/secondary circuit testing equipment, cable/line testing equipment, lightning arrester/insulator testing equipment, SF6 testing equipment, oil chemical testing equipment, DC system/battery testing equipment, reactive power compensation/generator testing equipment, There are a total of 150 products in 14 categories, including power metering products, grounding series/insulation series, and power test accessories. At present, the serialization, diversification and scale of products have been realized. After more than ten years, Wugao Electric has grown into a high-tech power service enterprise integrating scientific research, development, production, sales, consulting, installation, commissioning and service.
Certifications
Why Choose Us
Wuhan Wugao Electric Co., Ltd. specializes in the research, manufacturing and sales of high-voltage testing equipment, and was awarded the title of "High-tech Enterprise" by the Wuhan Municipal Science and Technology Commission. The company has strong financial strength, and has a group of high-end scientific research personnel and a production team with rich manufacturing experience. The company has established extensive and close cooperative relations with many well-known experts from Wuhan University, Huazhong University of Science and Technology, and State Grid Electric Power Research Institute. This uninterrupted research and development benefited from continuous improvement and always striding forward to the highest standards.
FAQ
1.Are your products competitive?
We are manufacturers, we can guarantee preferential prices and high quality.
2. When can l get the price?
We usually quole within 6 hours after we get your inquiry. If you are vey urgent to get price, please call us or tell us in your inquiry so that we will deal with your inquiry priority.
3. Whal is your terms of delivery?
We accep EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convience and cost effeclive for you.
4. What if I have difficulty in using the instrument?
We will provide equipment operation manual, operation video and so on. We can also provide training through remote video call.
5. What about the leading time for production?
Honestly,it depends on the order qty and product item. For normal items, goods will be delivered within 3 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
6. How to deliver?
For most of our customers, we provide door-to-door service. You only need to go through the import customs clearance procedures and pay the import tariff.
7. How about the packing and will the goods be damaged?
We will do standard export packing for each equipment, so far there has been no damage to the goods.
We are manufacturers, we can guarantee preferential prices and high quality.
2. When can l get the price?
We usually quole within 6 hours after we get your inquiry. If you are vey urgent to get price, please call us or tell us in your inquiry so that we will deal with your inquiry priority.
3. Whal is your terms of delivery?
We accep EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convience and cost effeclive for you.
4. What if I have difficulty in using the instrument?
We will provide equipment operation manual, operation video and so on. We can also provide training through remote video call.
5. What about the leading time for production?
Honestly,it depends on the order qty and product item. For normal items, goods will be delivered within 3 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
6. How to deliver?
For most of our customers, we provide door-to-door service. You only need to go through the import customs clearance procedures and pay the import tariff.
7. How about the packing and will the goods be damaged?
We will do standard export packing for each equipment, so far there has been no damage to the goods.
