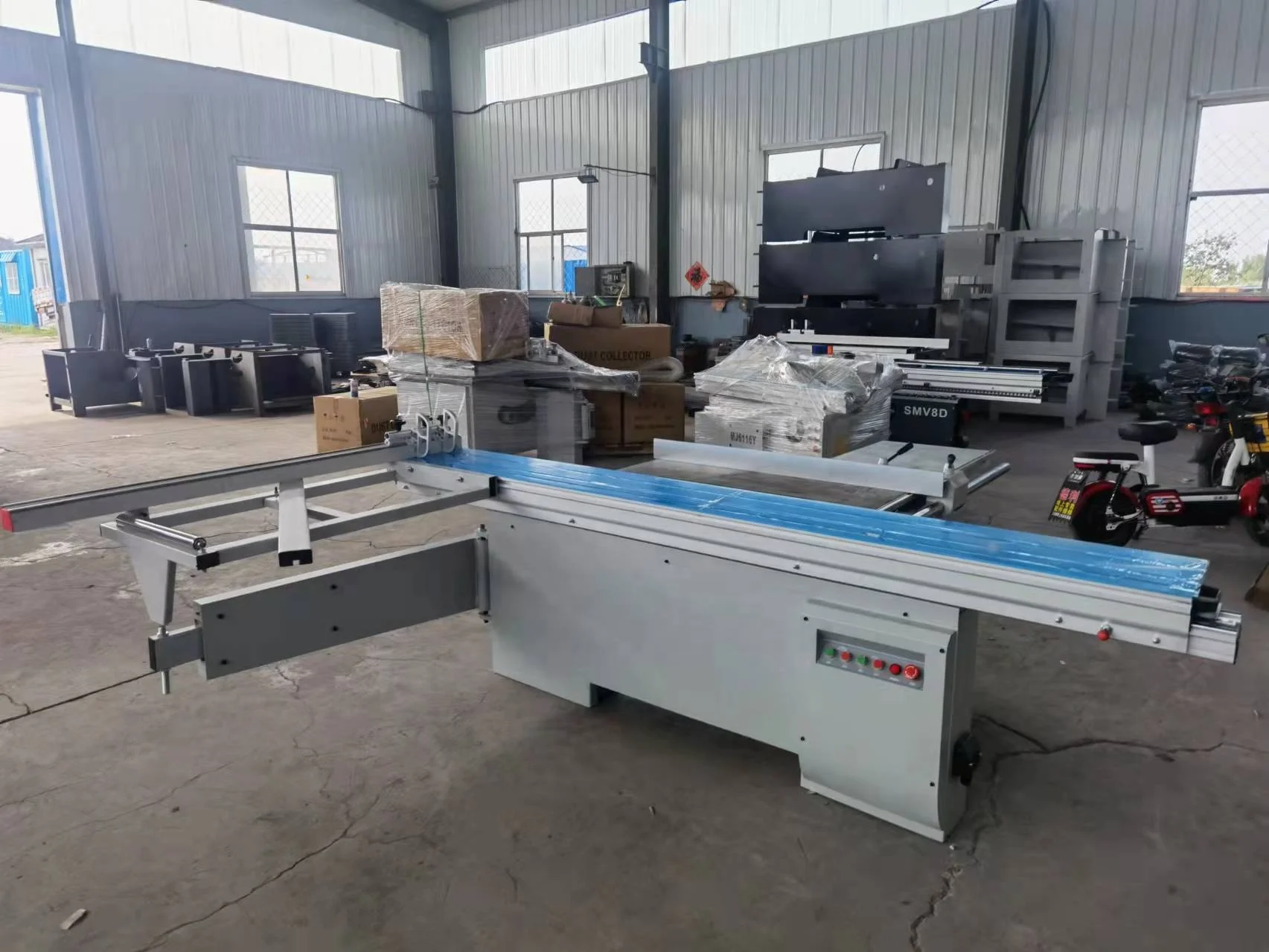

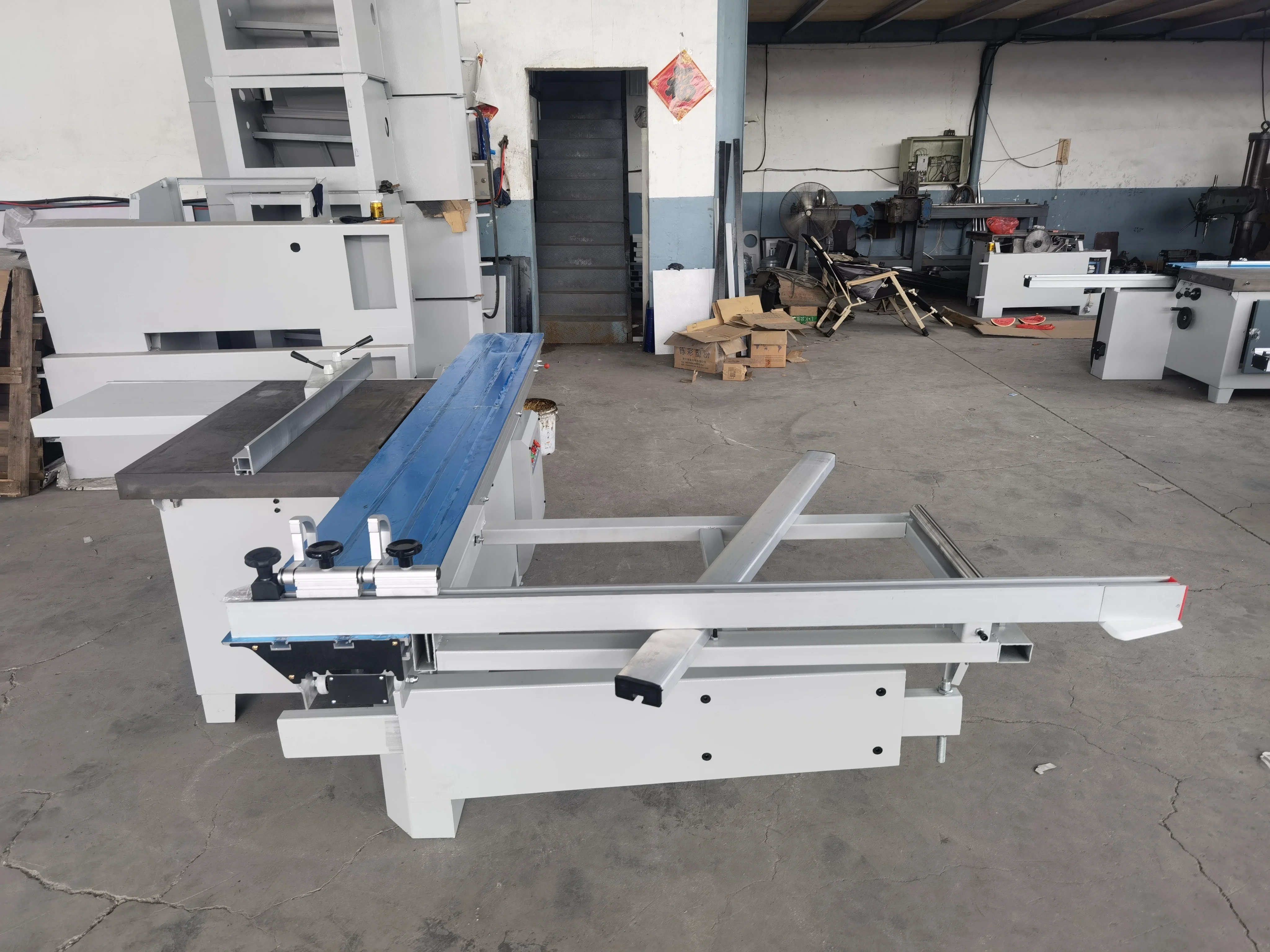

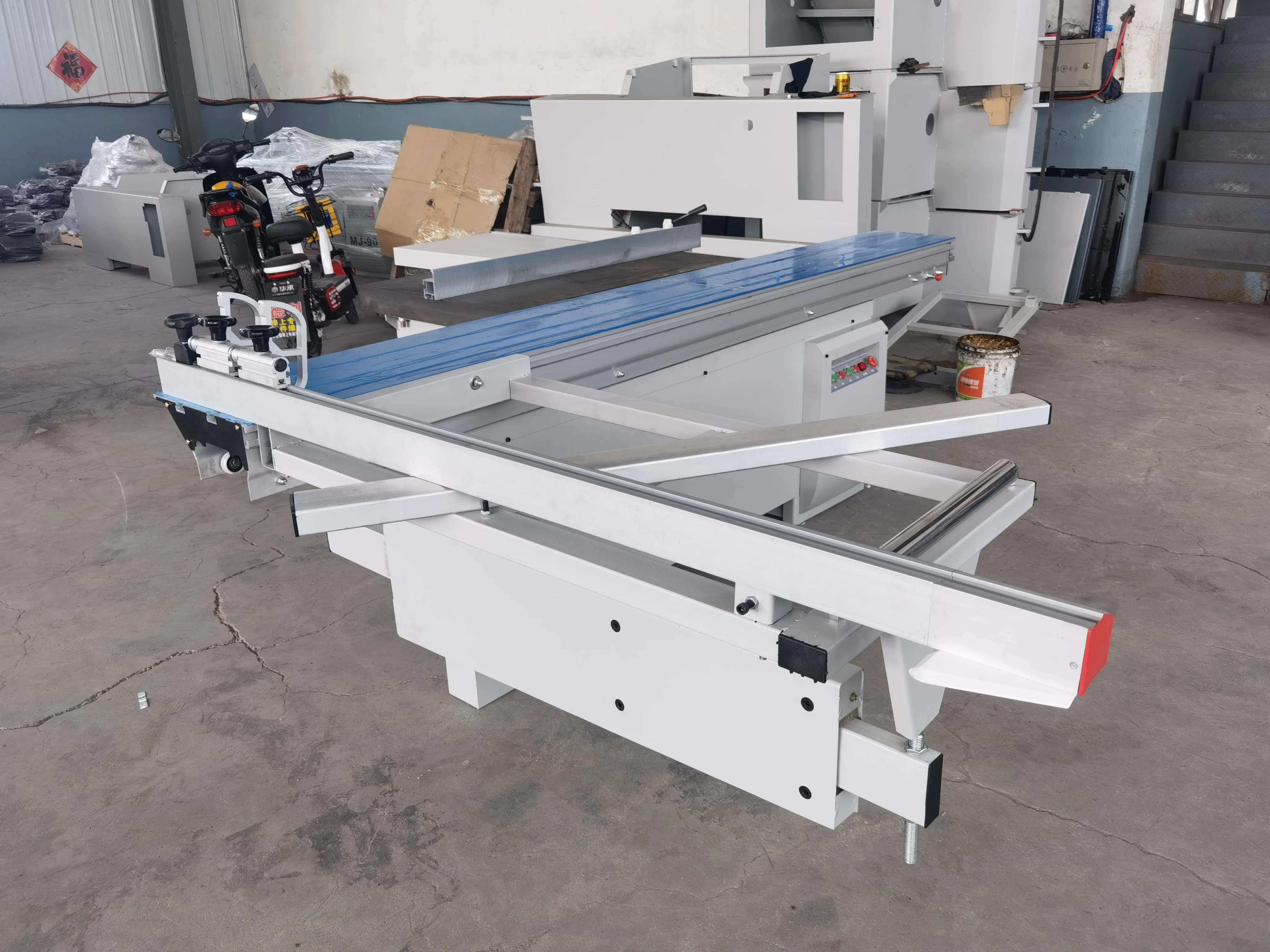

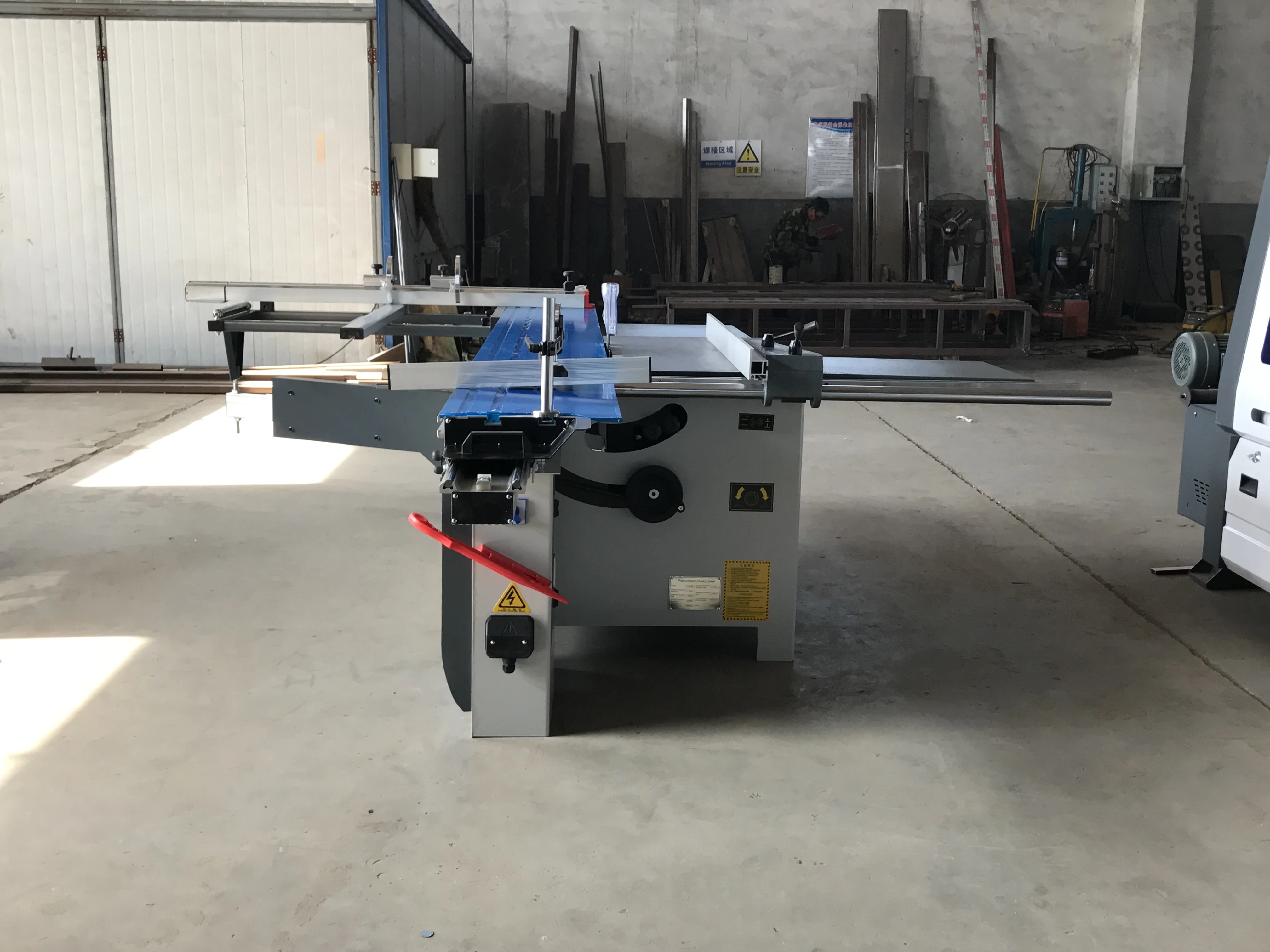

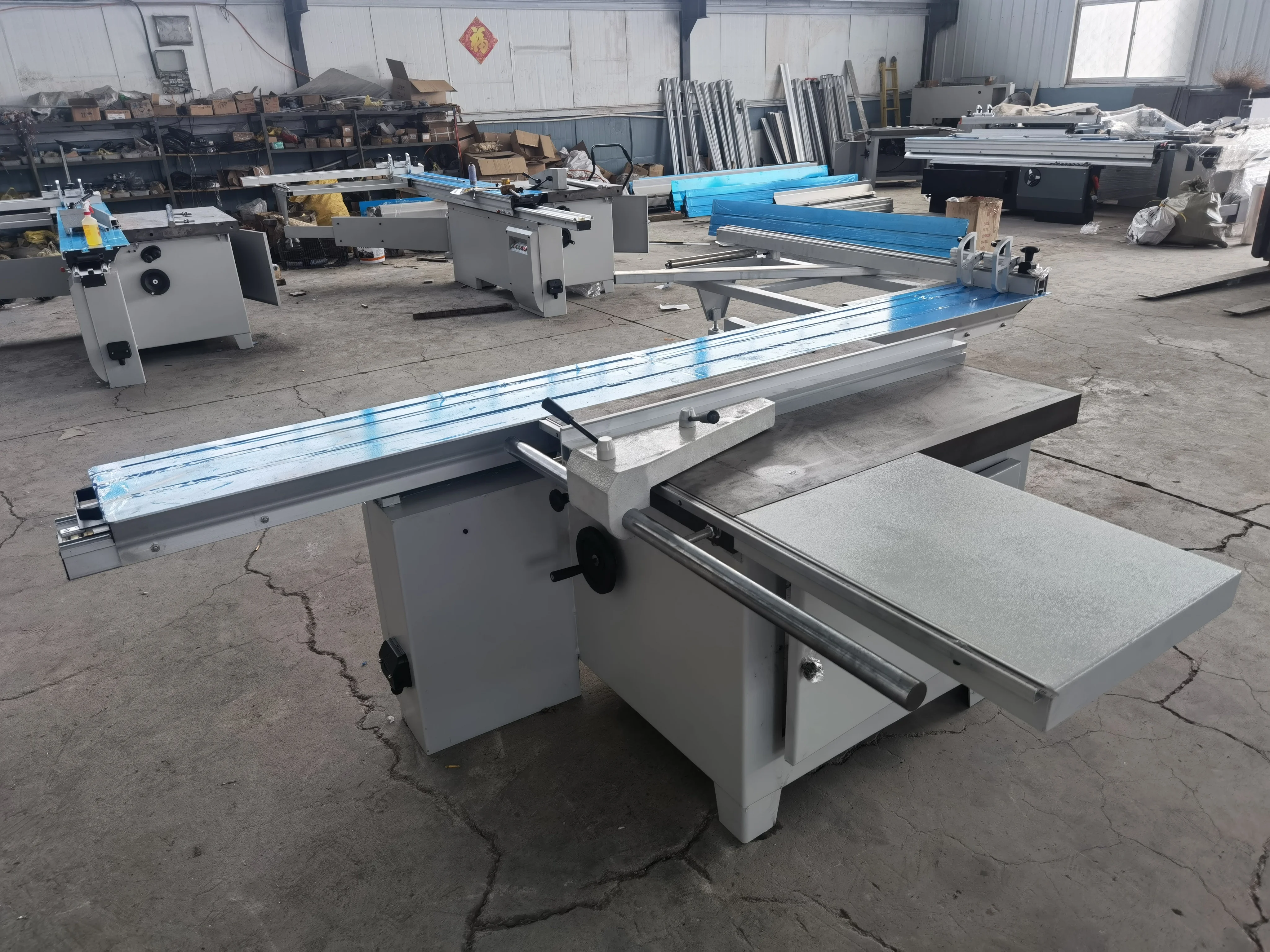

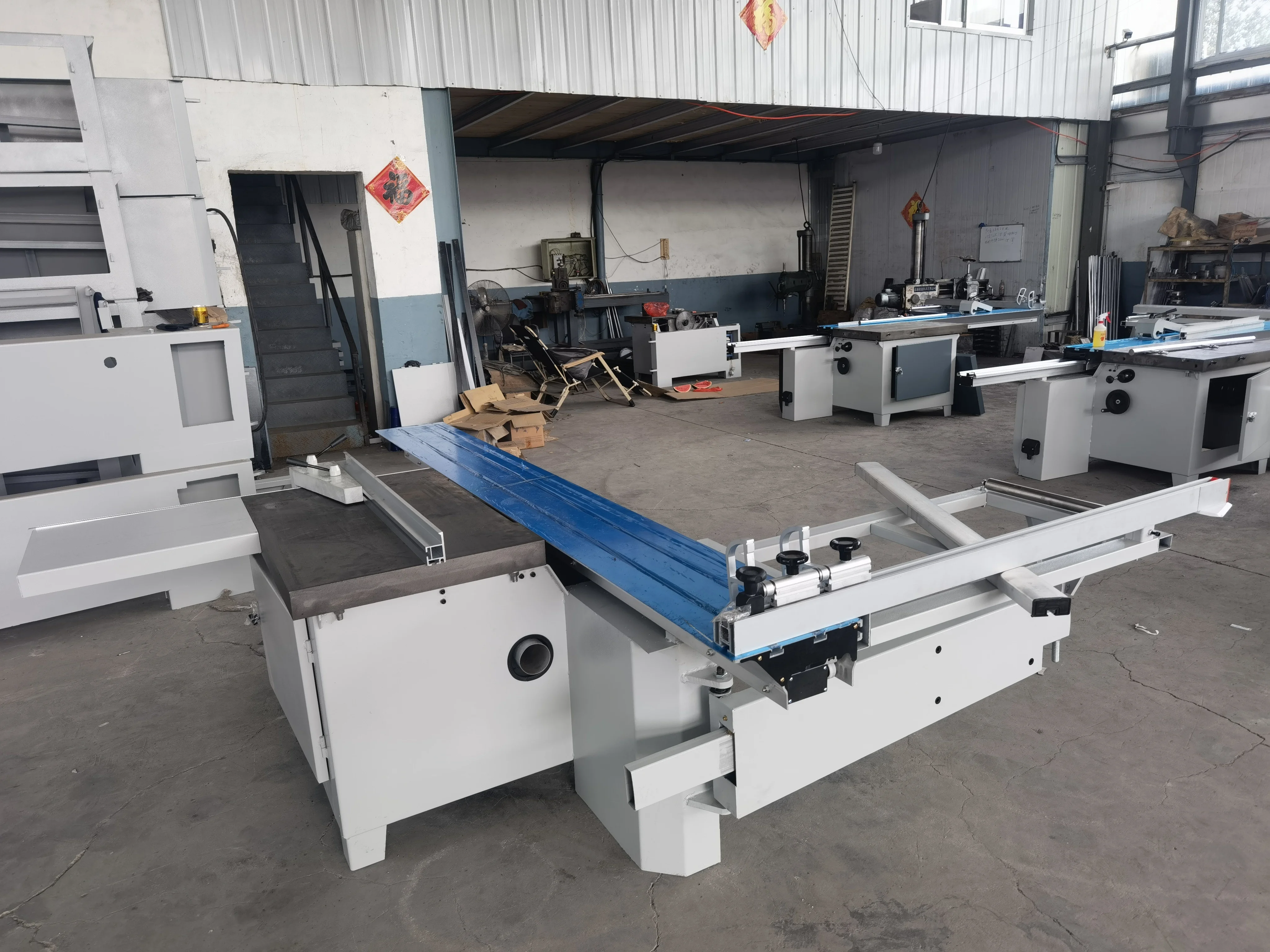

Wood Plywood Saw Cutting Machine 45 or 90 degree
- Category: >>>
- Supplier: Qingdao WINTOP Machinery Technology Co. Ltd.
Share on (1600474242555):
Product Overview
Description
Wood Plywood Saw Cutting Machine 45 or 90 degree
Product Description
Performance features:
1. Improved internal structure, ensure stable and precision working environment;
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tilt (0°- 45°)as well as height adjustable.
1. Improved internal structure, ensure stable and precision working environment;
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tilt (0°- 45°)as well as height adjustable.
6. Using pure copper wire motor, high power 5.5/1.1KW, more powerful cutting.
▬▬Technical parameter
Dimension(L*W*H) | 3250*3500*870mm | Main saw blade diameter | 300-350mm | |
Weight | 640KG | Main saw shaft diameter | 30mm | |
Sliding table size | 3200*375mm | Blade angle | 45-90 degree | |
Max.Cutting Height at 45°(mm) | 75mm | Deputy saw motor power | 1.1kw | |
Max.Cutting Height at 90°(mm) | 75mm | Deputy saw spindle speed | 7200r/min | |
Maximum cutting length | 3100mm | Deputy saw blade diameter | 120mm | |
Maximum cutting width | 1200mm | Deputy saw shaft diameter | 20mm | |
Maximum cutting thickness | 75mm | Soft package delivery size | 3250*1100*1100mm | |
Main saw motor power | 5.5kw | Plywood box package size | 2150*1150*1130mm, 3200*400*280 mm | |
Main saw spindle speed | 3600-6000r/min | Warranty | 1 year |
▬▬Internal Structure
▬▬Details show

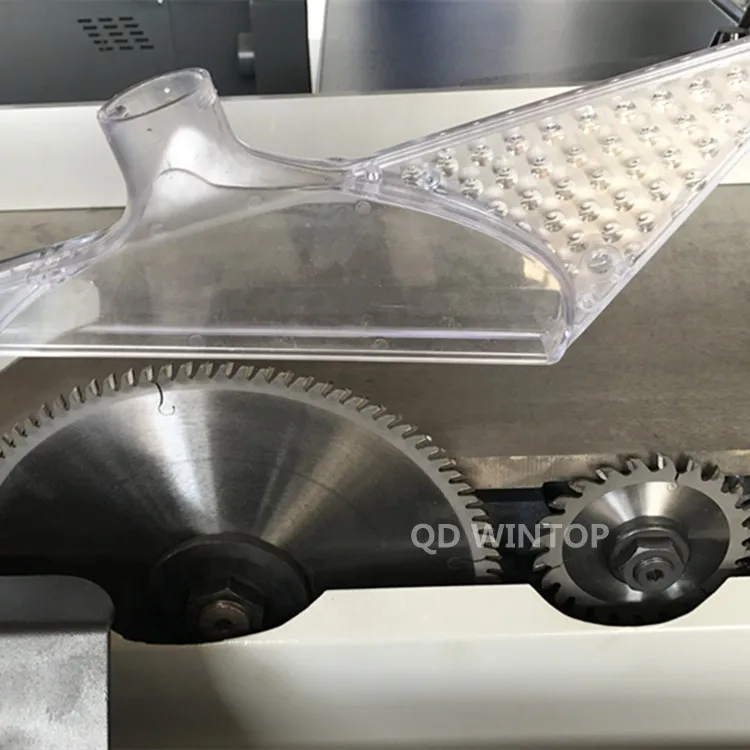

Doule blades
Blade angle: 45-90°
Use high quality saw blades.
With protective cover, the operation is safer.
With protective cover, the operation is safer.

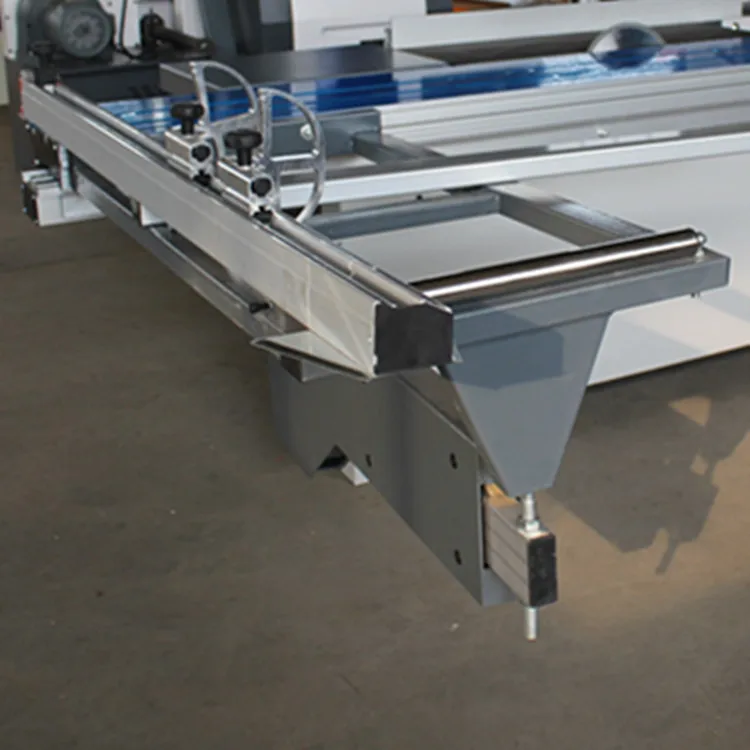

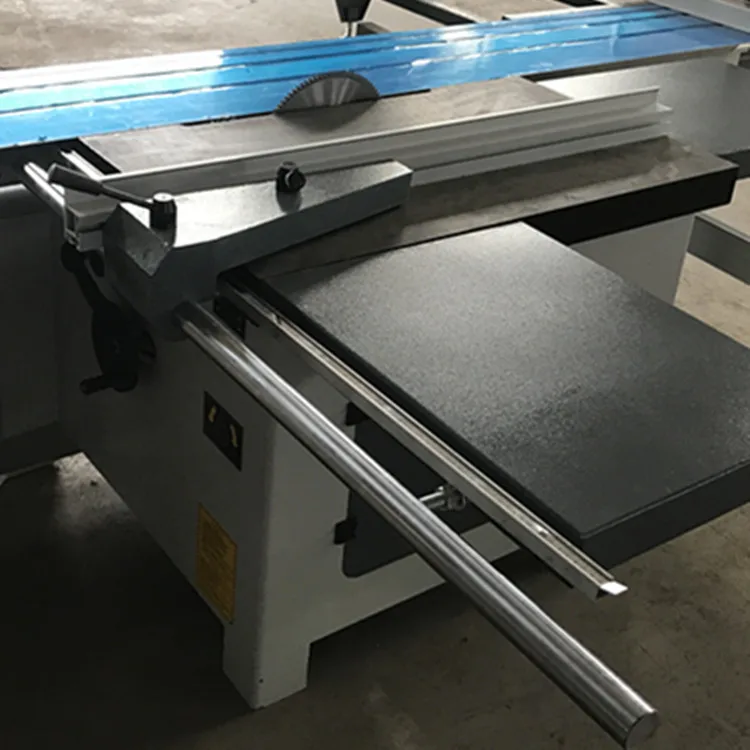

Sliding table
Thickened round rod guide rail sliding table.
High precision, firm, smooth sliding, long service life.
Accept dimensional customization.

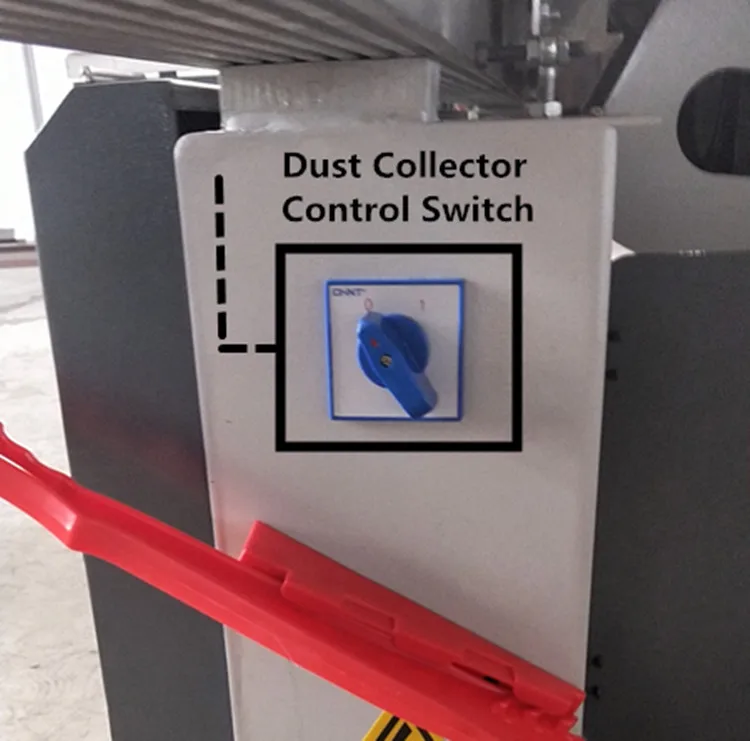

Dust Collector Control Switch
We installed a dust collector junction box and control switch.
Humanized design, Dust-free cutting, make the work more convenient.
Humanized design, Dust-free cutting, make the work more convenient.

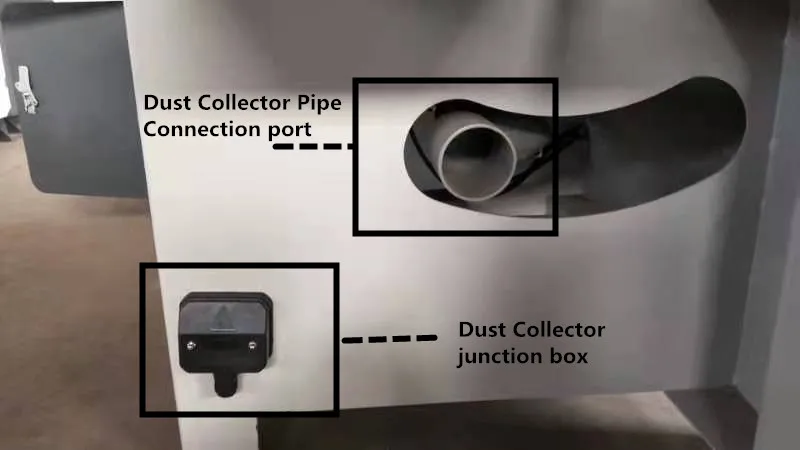

Dust Collector junction box and Dust Collector Pipe Connection port
We installed a dust collector junction box and control switch.
Humanized design, Dust-free cutting, make the work more convenient.
Humanized design, Dust-free cutting, make the work more convenient.

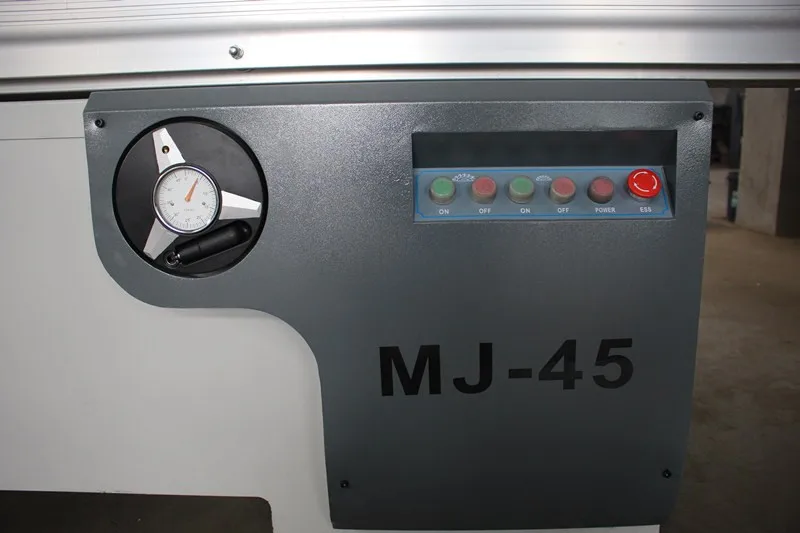

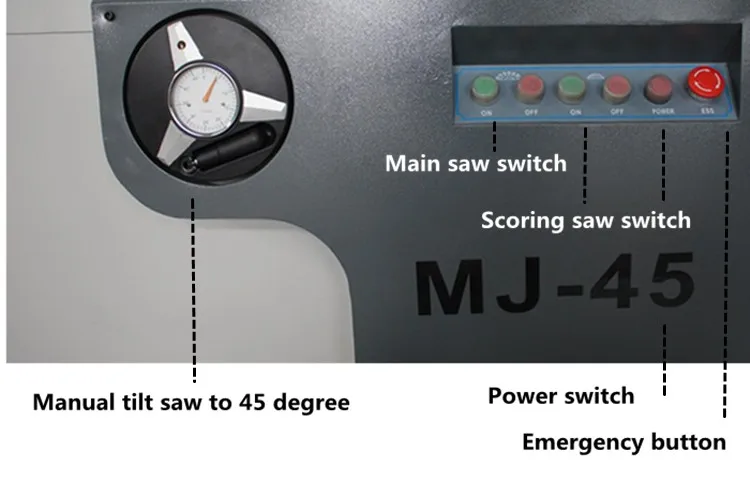

Control panel
1. Manual lifting.
2. Manual tilting with pointer dial shows Angle. 3. With the main stop switch.
The operation button is durable, clear and easy to operate.

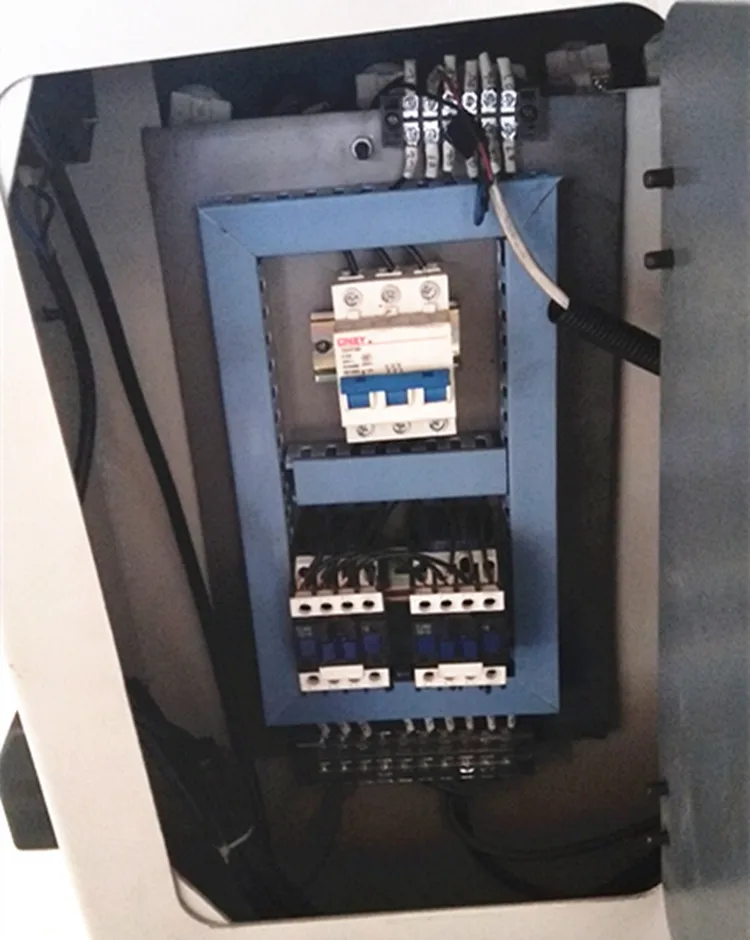

Electrical circuit box
Strict circuit configuration, after repeated testing, to ensure the use of stability and safety.

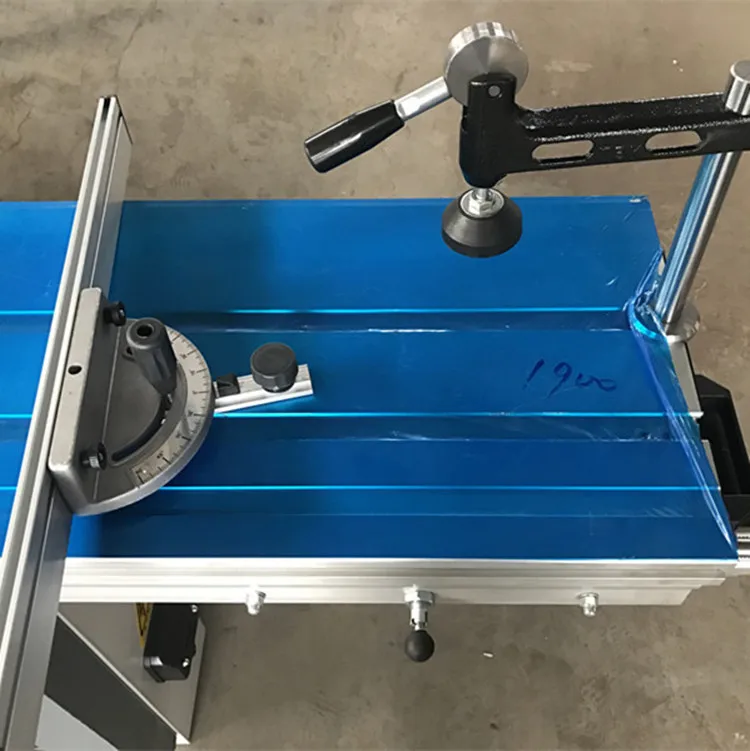

Auxiliary tools
Each machine is equipped with Angle ruler and hand presser.Use more intimate, more safe

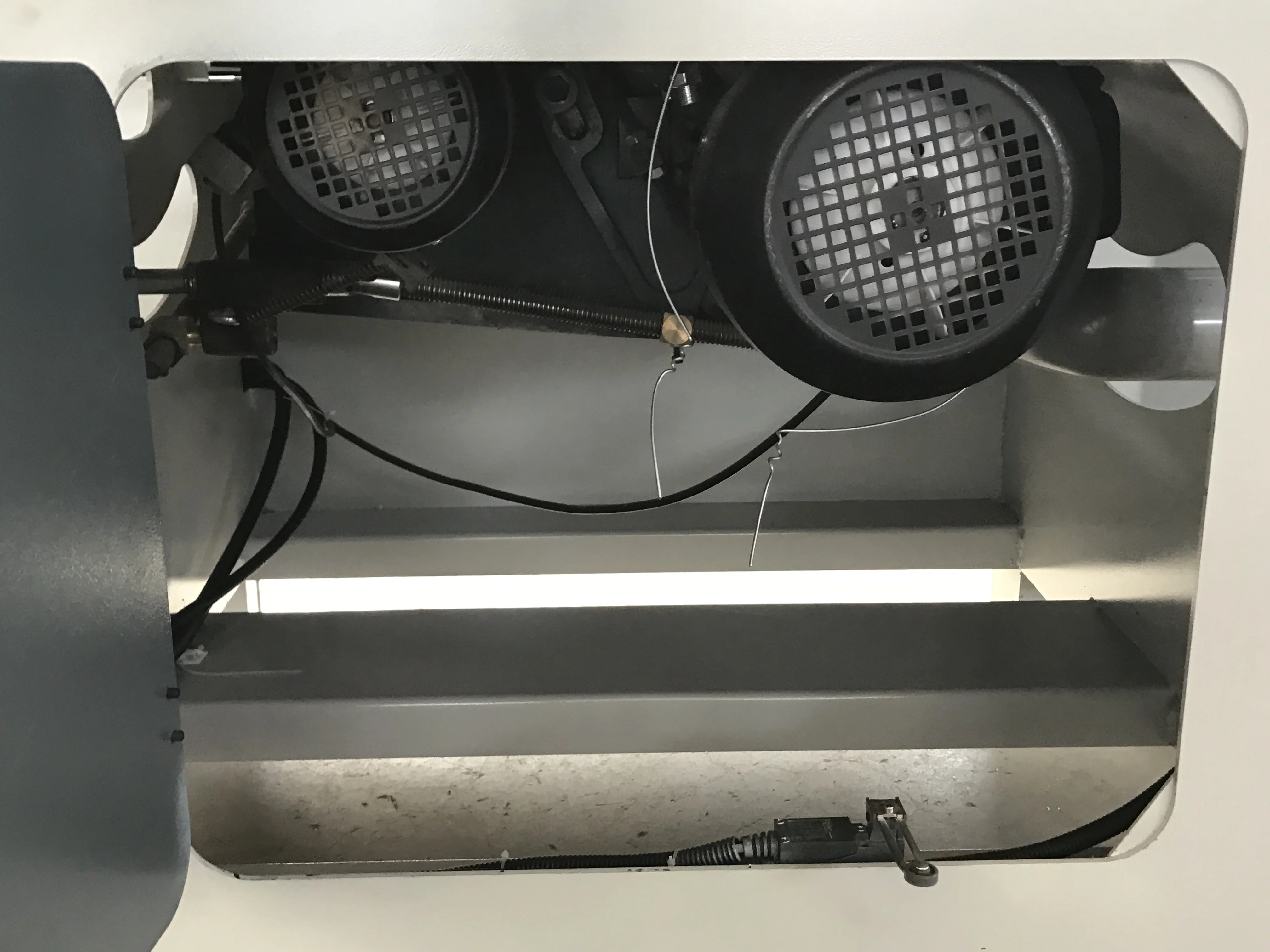

Spindle system and motor box
Using a new spindle system and a pure copper wire Strong power motor, The cutting is more precise and powerful. At the same time, it also has the function of instantly power off when opening the door

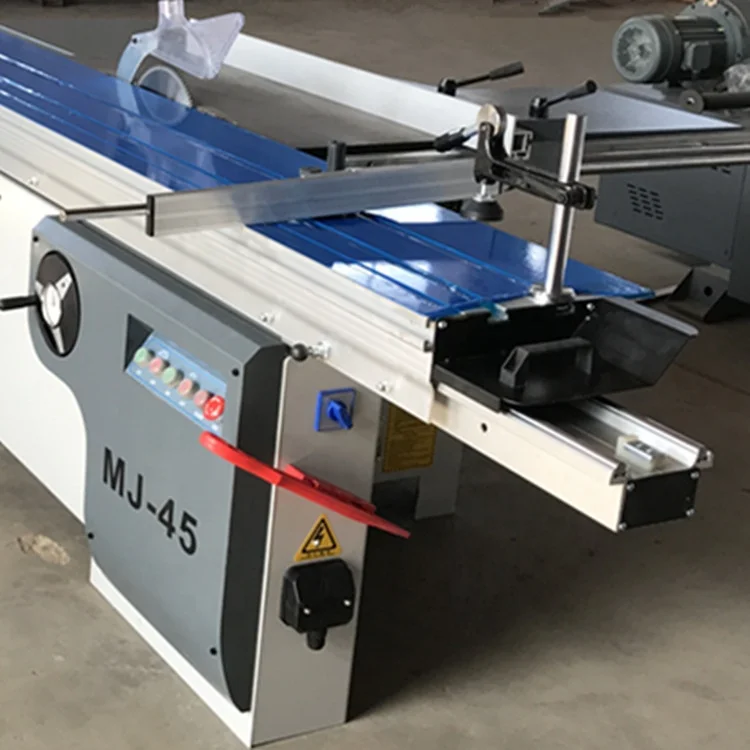

Sturdy platform
The platform is made of high strength extruded aluminum alloy, and is upgraded to double width widening push platform with round bar guide structure. The stability and precision have been greatly improved.
Big scale ruler
The guiding ruler uses a large scale style. Stable and non shifting. Effectively guarantee the precision of the plate cutting
process.
process.
Packing & Delivery
Professional Packing And Shipping
packing with plastic films and plywood box, or as you requirement
Company Profile
Qingdao WINTOP machinery technology co., Ltd. is located in Qingdao, shandong province, China, has been engaged in the research and development and production of woodworking machinery technology for more than 15 years.
Main production: Edge banding machine,Panel saw, Band saw, Sanding machine, Drilling mac-hine, Hot/cold press machine, etc.
Our company attaches great importance to the friendly cooperation with customers, cherishes the reputation, guarantees the quality and the service, thus has won the customer's trust and the support. We welcome you to contact us, we are willing to become a partner with you and do great business together.
Our Advantages

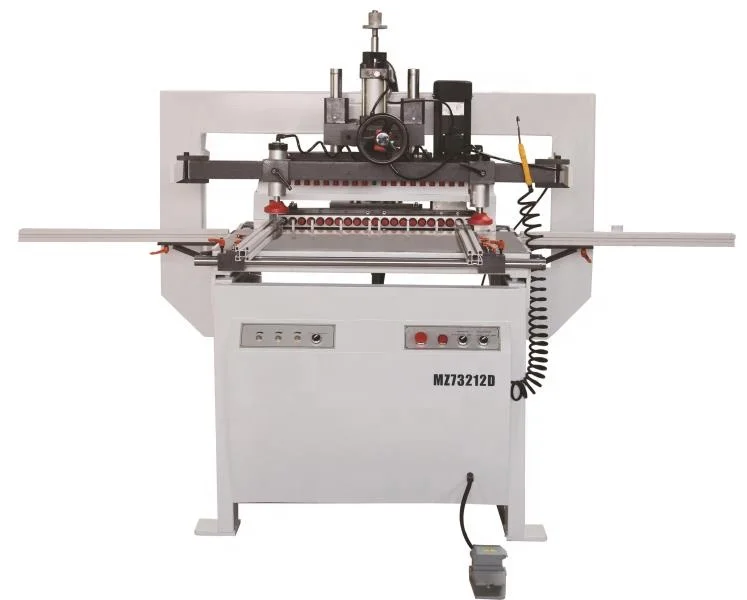

Other machines
