Medical optical rigid ENT endoscope sinuscope shenda bolang 4mm/2.7mm/3mm

Product Overview

Description

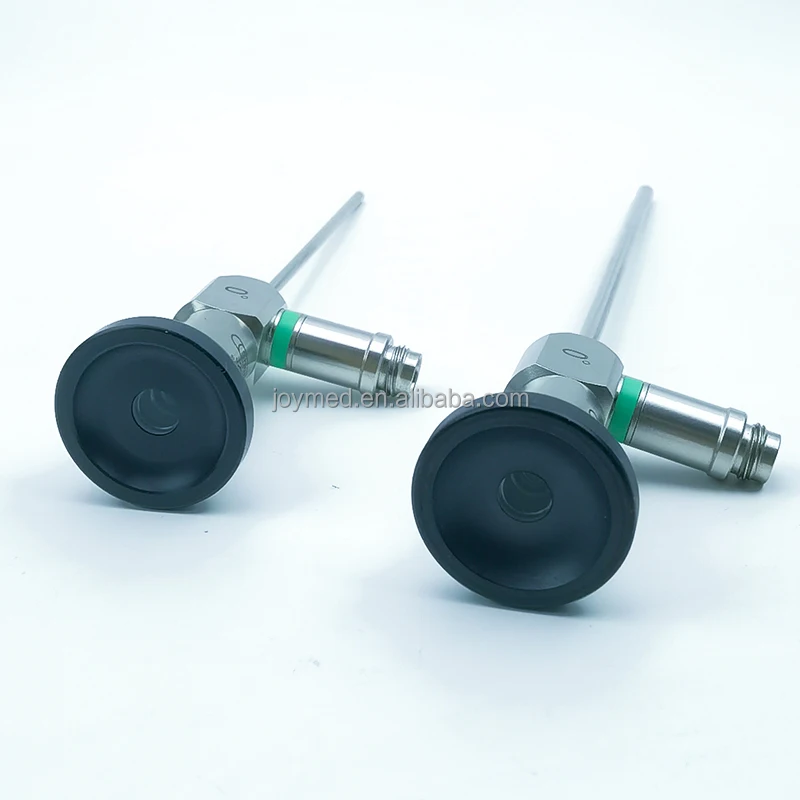

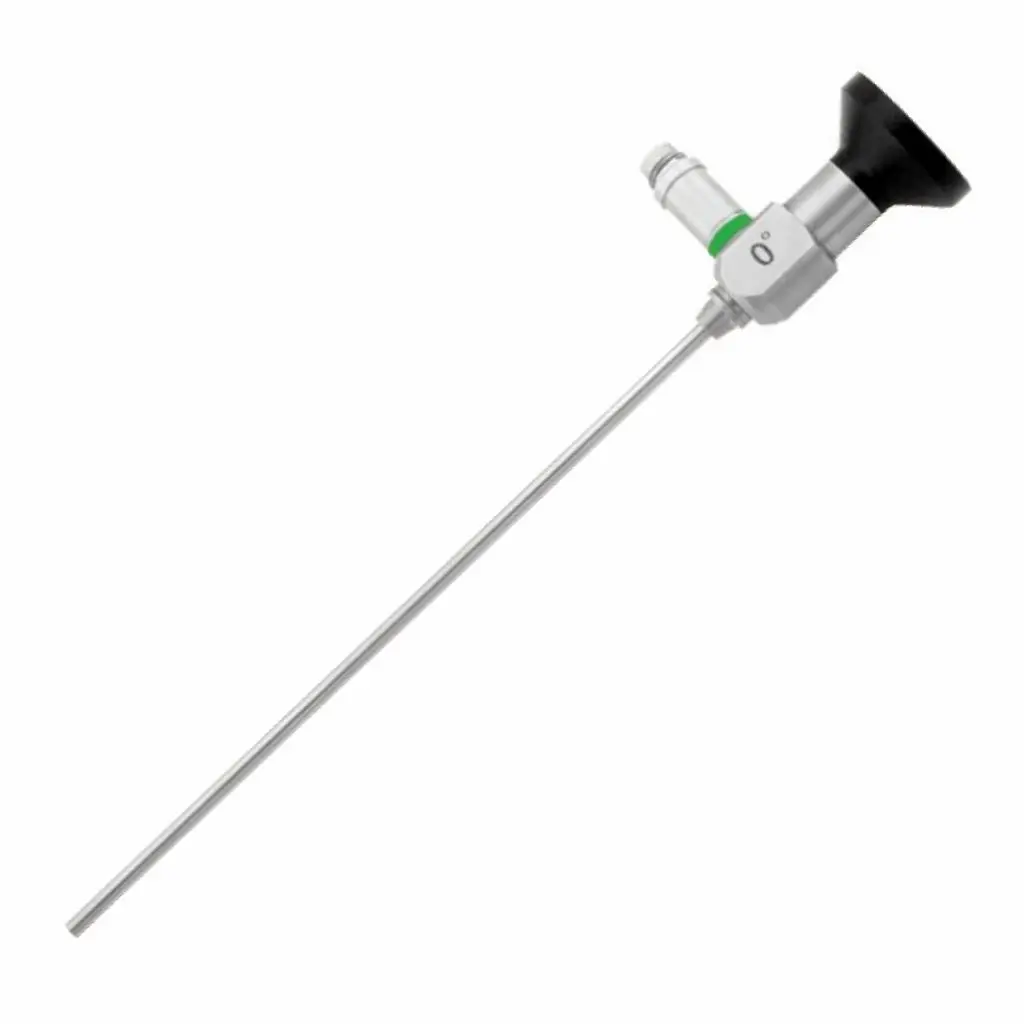

Rigid sinuscope is a medical device which is used to look into the nose. It is a kind of rigid endoscope. Doctor use it to check the illness in nasal cavity, where is difficult to observe directly.

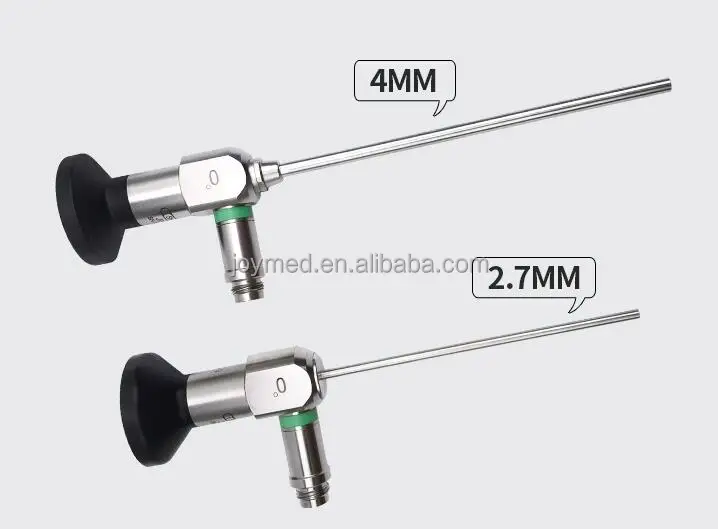

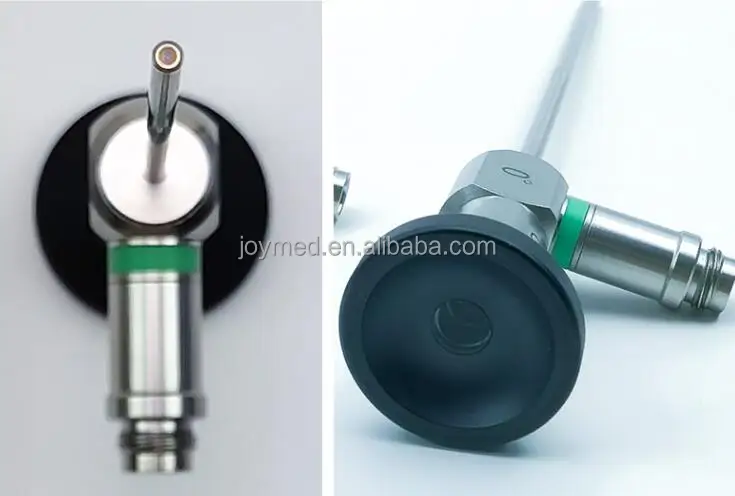

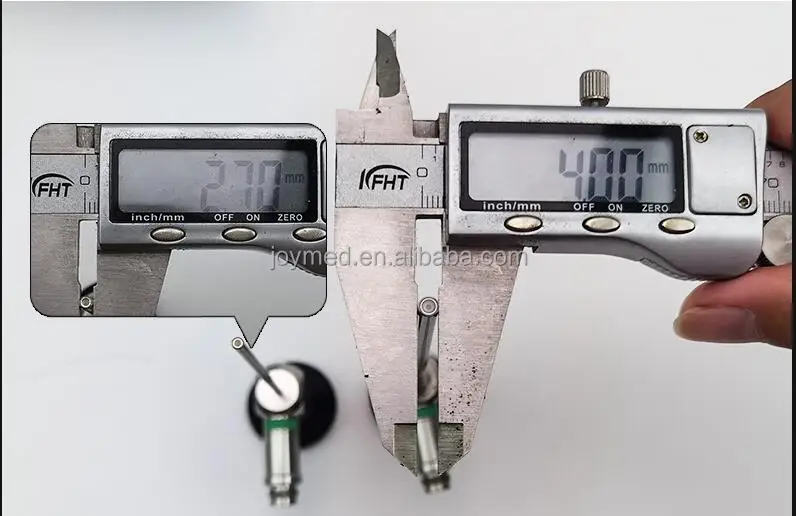

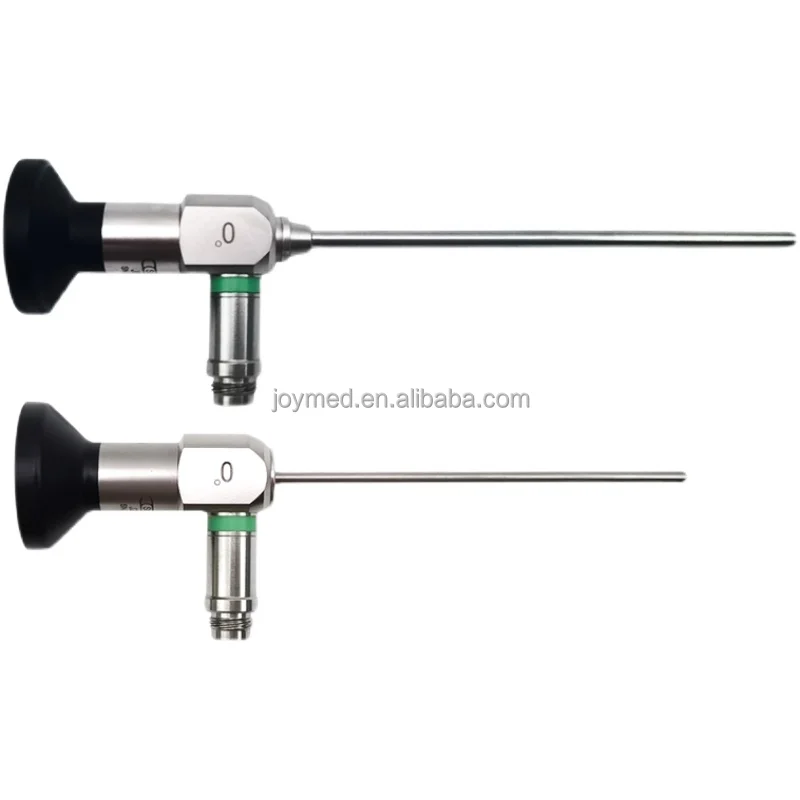

A typical dimesion of sinuscope is 170mm length and 4mm diameter. We also have 2.7mm diameter version. The view angle could be 0°, 30° or 70°. There is one light incoming port at the side of otoscope, connecting to cold light source with fiber optical beam. The observation hole is at the base. When use, install the otoscope onto the endoscope camera head and connect the cold light source, then doctor is able to see the real time image on medical monitor.

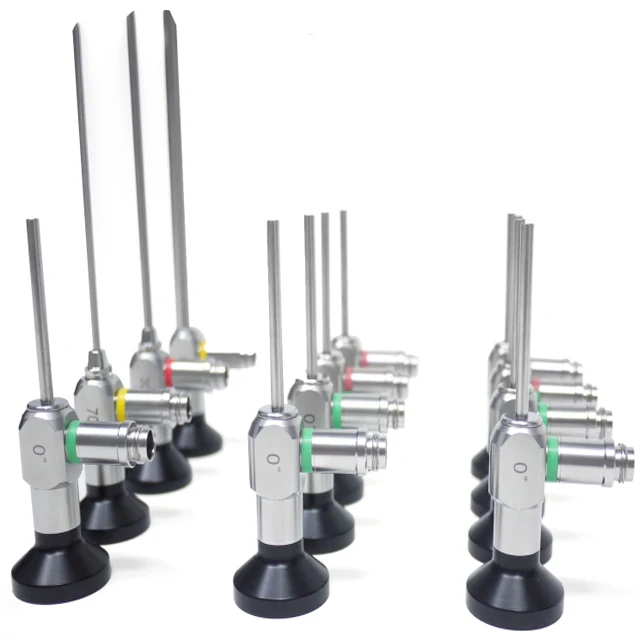

A complete ENT surgery endoscope set contains otoscope, sinuscope and laryngoscope. The rest two endoscopes are in different length and diameter.



PARAMETER	VALUE
Material	Stainless steel and high transperant glass
Length	170mm
Diameter	2.7mm / 4mm
View angle	0° / 30° / 70°
Visual field	Normal angle / Wide angle
Disinfection	Immersion sterilization / Autoclavable
