Gaoda 2022 milk straw Box milk juice bag straw packing machine Factory Supply U shape straw packing machine Made In China
- Category: Straw Making Machines >>>
- Supplier: Wenzhou Gaoda Paper Tube Machinery Co. Ltd.
Share on (1600474274131):
Product Overview
Description
Product Description
GD-UP300:

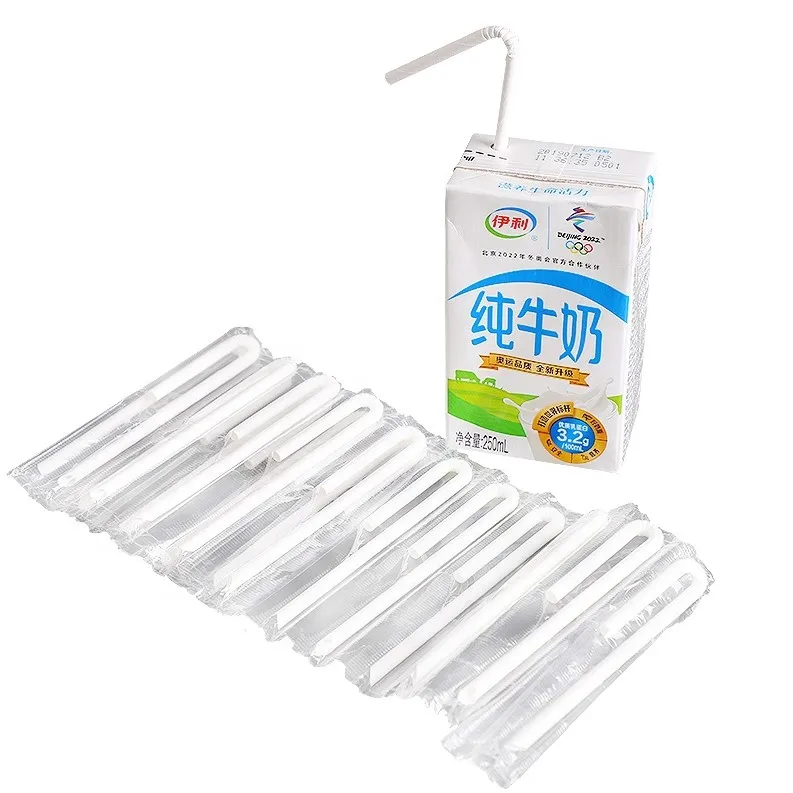

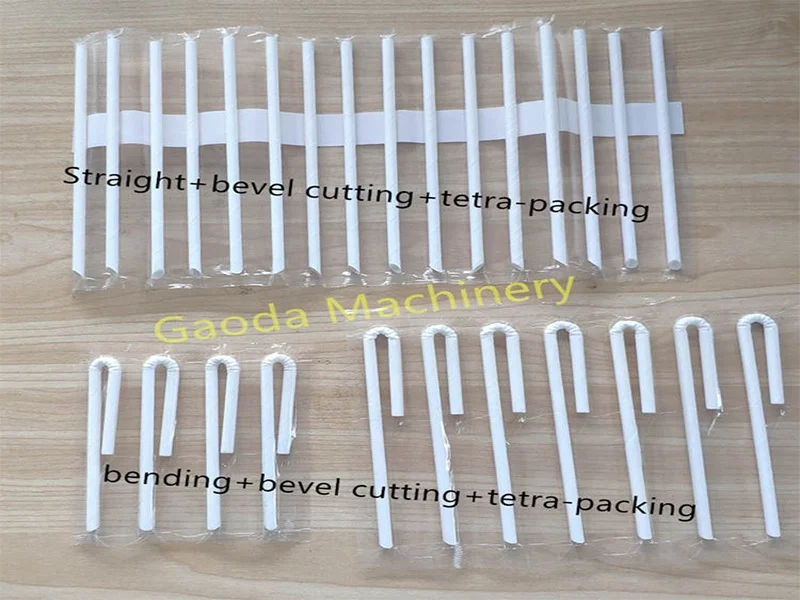

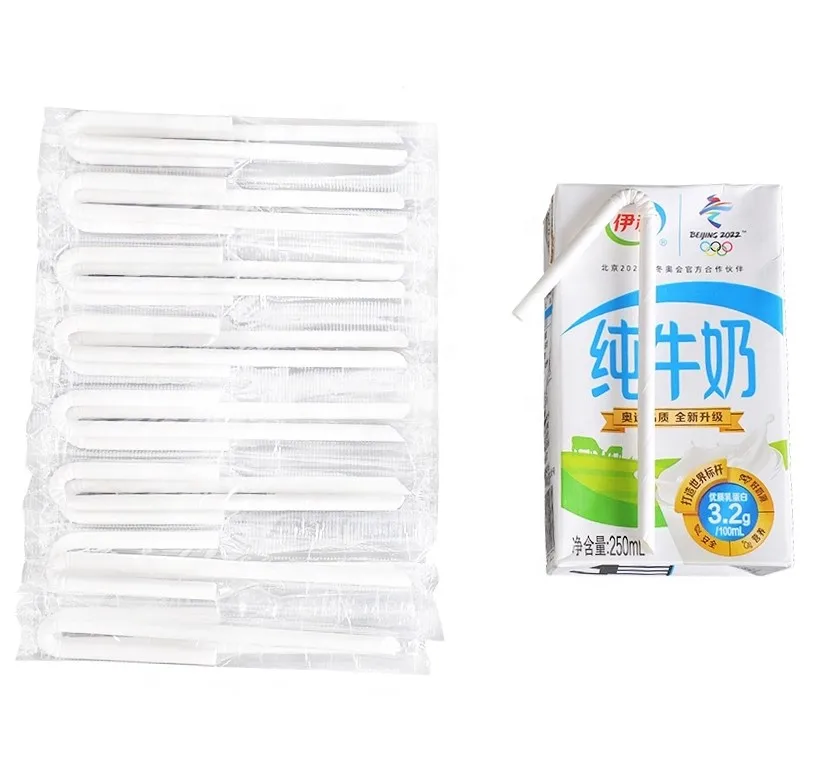

U shape paper straw packing machine, it’s function is to pack U-shape or straight drinking straws in line, which is used for
aseptic-packing beverage like milk and juice. It could finish fold, sharp end cutting and packing at same time.
aseptic-packing beverage like milk and juice. It could finish fold, sharp end cutting and packing at same time.
U type Paper Straw Packing machine, it’s function is to pack U-shape or straight drinking straws in line, which is used for aseptic-packing beverage like milk and juice. It could finish fold, sharp end cutting and packing at same time.
The beverage company will cut straws into individual package, then stick straws on paper carton and box. (This working process is finished at beverage company, not straw making factory).
The produce process is total automatic. Operator just need put paper straws into the hopper, put on packing materials, then start the machine.
The beverage company will cut straws into individual package, then stick straws on paper carton and box. (This working process is finished at beverage company, not straw making factory).
The produce process is total automatic. Operator just need put paper straws into the hopper, put on packing materials, then start the machine.
Machine Features
1) Whole process automatically, packing speed controllable, auto stop when there’s a fault;
2) High production efficiency, one operator, 250-300 pcs/min;

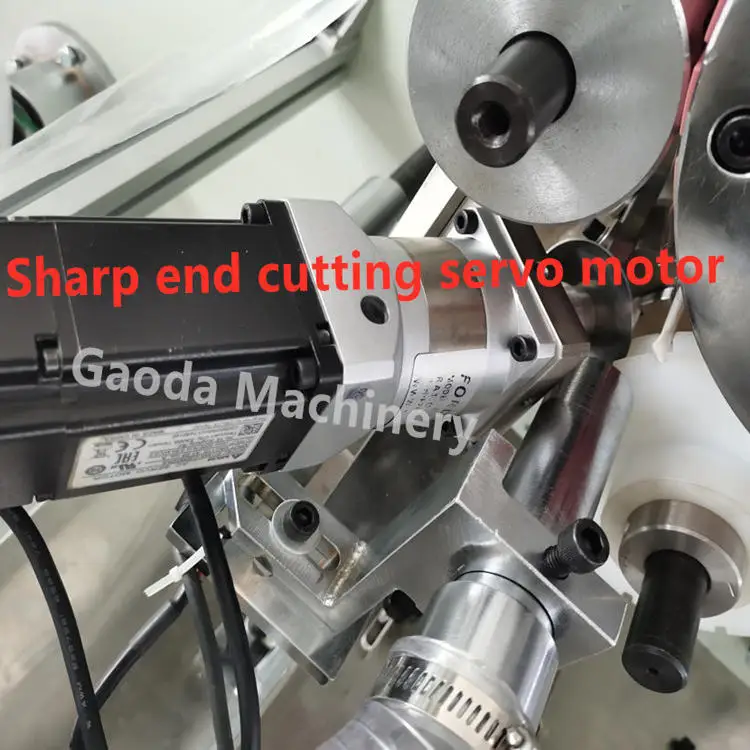

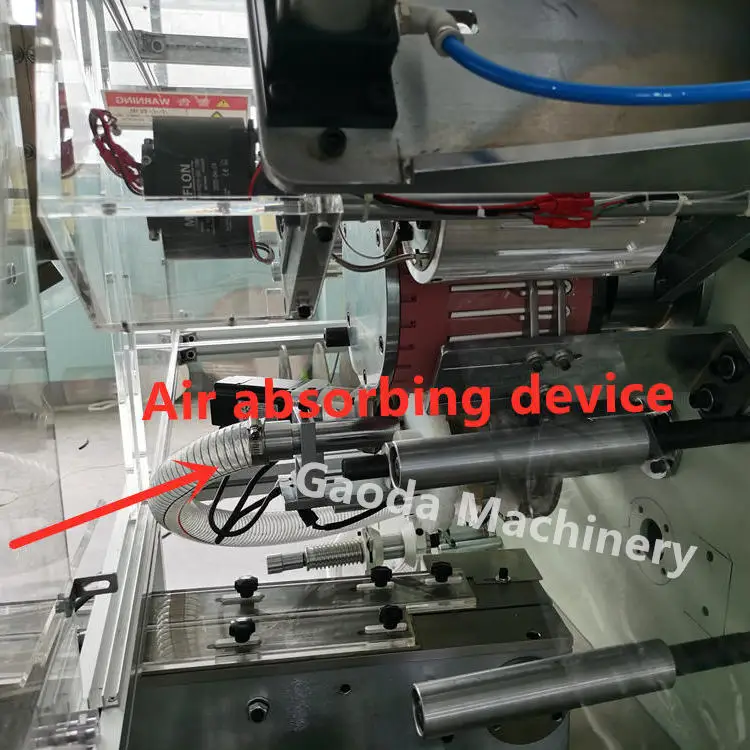

3) Bevel (sharp end) cutting controlled by servo motor, ensuring all sharp ends are packed in the same direction. Air absorbing
device take waste sharp end materials away
4) Automatic counting for how many pcs of paper straws had finished;
5) Automatic stop when there is a fault.
6) Could use packing material like plastic film, or PLA(other biodegradable adhesive) coated paper.
2) High production efficiency, one operator, 250-300 pcs/min;
3) Bevel (sharp end) cutting controlled by servo motor, ensuring all sharp ends are packed in the same direction. Air absorbing
device take waste sharp end materials away
4) Automatic counting for how many pcs of paper straws had finished;
5) Automatic stop when there is a fault.
6) Could use packing material like plastic film, or PLA(other biodegradable adhesive) coated paper.
Specification
Place of Origin | China |
Zhejiang | |
Brand Name | GAODA |
Condition | New |
Voltage | 380V/3 phase/ 50hz |
Machine Size(L*W*H) | 2000×1750×1600mm |
Machine Weight | 1000kg |
Machine Speed | 200-300 pcs/min |
Straw Inner Diameter | 3.8mm （Other size are Customization) |
Straw Out Diameter | 4.5mm （Other size are Customization) |
Length | 160-170mm （Other size are Customization) |
Packing Method | Four-sides seal |
Packing Material | Material which could be hot sealed Like BOPP plastic film, or biodegradable adhesive coated paper |
Packing Material Specification | Packing material shape: roll; Max roll diameter: 280mm; Max roll width: 180mm; Core diameter of roll: 76mm, 3 inches; Film thickness: like BOPP, 20-30μm ( 1μm=0.001mm) |
Packing Unit(Shape) | Pitch: 22mm, width:100-140mm; |
Size Of U-Shape Model | Depends on customers design and drawing |
Main Motor | 2.2 kw/h, brand: SIEMENS BEIDE control by frequency changer, 2.2Kw/h |
Servo Motor Frequency Charger | Brand: DELTA, servo motor:AC, 0.2Kw |
Auxiliary Motor | 220V, 50/60Hz, 120W, brand: OTG, Shanghai |
Magnetic Powder Brake | 10N.m, DC24V,0.6A, |
Circuit Breaker Push Button Switch | CHINT |
AC Contactor | Schneider |
Pneumatic Component | AIRTAC |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
will be provided.
Company Profile
Gaoda Paper Tube Machinery Co., Ltd. is located at Wenzhou city of China. We are a leading supplier of paper straw machine and equipment integrating the R&D, manufacture, marketing and service.
Our company has a strong ability to design and develop new products, specializing in the manufacture and sale of paper straw machine, straw packing machine, paper slitting machine, paper color printing machine. Products are exported to all parts of the country and overseas countries and regions.
Gaoda Machinery has always adhered to the "high quality" business philosophy, to provide customers with quality products, reasonable prices and excellent service, so that our customers are satisfied with our products.
Our company has a strong ability to design and develop new products, specializing in the manufacture and sale of paper straw machine, straw packing machine, paper slitting machine, paper color printing machine. Products are exported to all parts of the country and overseas countries and regions.
Gaoda Machinery has always adhered to the "high quality" business philosophy, to provide customers with quality products, reasonable prices and excellent service, so that our customers are satisfied with our products.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(80.00%),North America(5.00%),South Asia(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Western Europe(2.00%),South America(1.00%),Africa(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Drinking Straw Machine,Paper Packing Straw Machine,Paper Slitting Machine,Paper Flex Printing Machine,Paper Tube Machine
4. why should you buy from us not from other suppliers?
Gaoda is a leading supplier of paper drinking straw machinery and equipment integrated with R&D, production, sales and service in China. We have a history with paper tube machines for more than 10 years, and our technical and service team are experienced.
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(80.00%),North America(5.00%),South Asia(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Western Europe(2.00%),South America(1.00%),Africa(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Drinking Straw Machine,Paper Packing Straw Machine,Paper Slitting Machine,Paper Flex Printing Machine,Paper Tube Machine
4. why should you buy from us not from other suppliers?
Gaoda is a leading supplier of paper drinking straw machinery and equipment integrated with R&D, production, sales and service in China. We have a history with paper tube machines for more than 10 years, and our technical and service team are experienced.
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
