NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox
NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox
NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox
NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox
NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox
NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox
NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox

NMRV 40 50 Worm Gearbox Double Shaft 120w Worm Gear Speed RV Reducer Worm Gearbox

Share on:


Price:$35.25 - $41.50
Price in USD:Details

Quantity:


Product Overview

Description



Product Overview

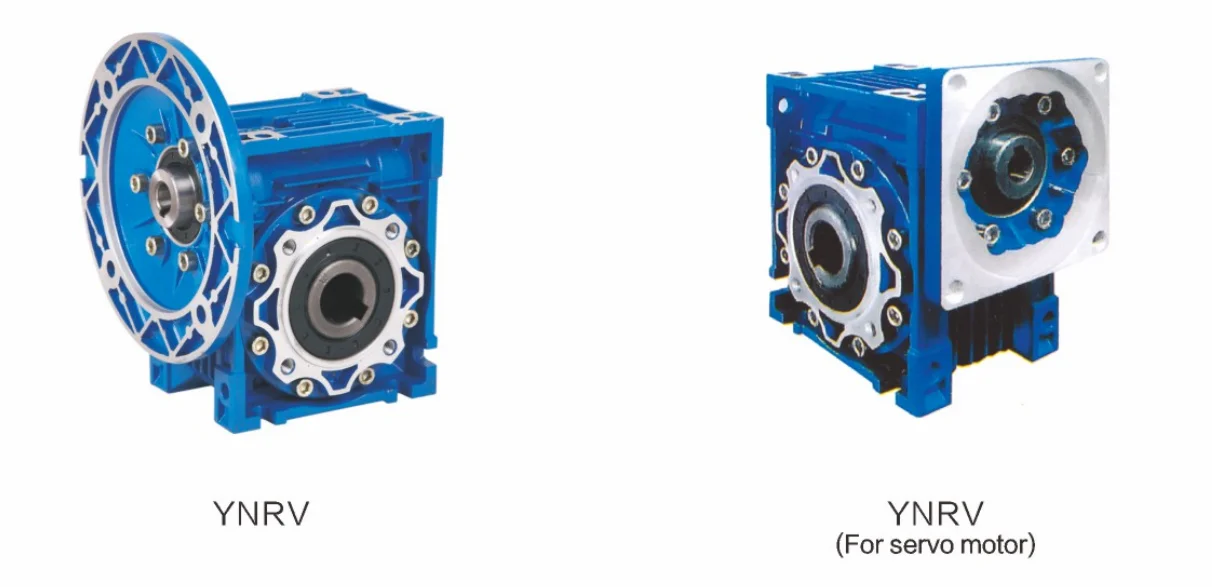

Single Stage Worm Gear Reducer:

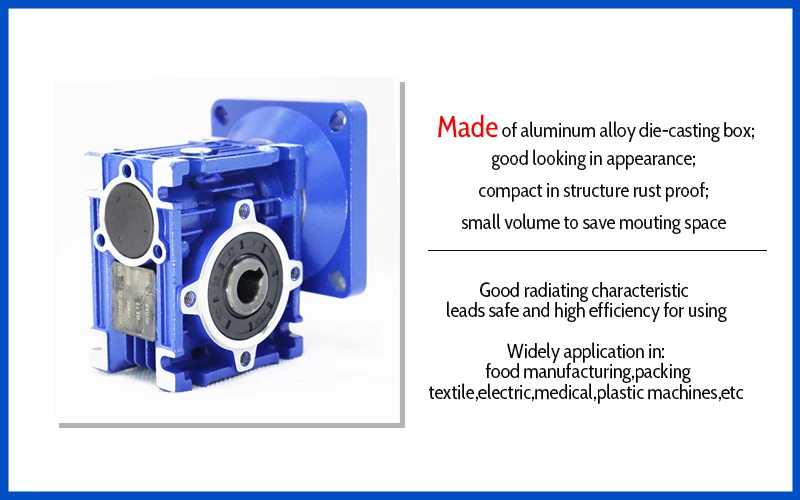

1. Made of aluminum alloy die-casting box, good looking in appearance, compact in structure rust proofing on surface and small volume to save mouting space.
2. Good radiating characteristic leads safe and high efficiency for using.
3. The strong capacity of loading and overload ensure stable transmission, make less virabtion and noise.
4. Varies of connecting structure for power input and torque output meet different requirements; the design of box outline and the set of foot hole is apt to with many kinds of mounting.
5. Beside big cases, no gap structure of box means maintenance-free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.


Double Stage Worm Gear Reducer:
It is combined by two single step reducers and has all the virtues of them. And you can get bigger ratio with it.
The modes of 25/30、25/40、30/40、30/50、30/63、40/75、40/90、50/110、63/130、63/150, are in common use.
You can choose 25、30、40、50、63、75、90、110、130、150 as combination units to combine according to the fact of your special needs.


Geared Motor Paramenters






YNRV-063-30-VS-F1(FA)-AS-80B5-0.55kw-B3
YNRV
Worm gear speed reducer
YRV
Worm gear speed reducer with input shaft
063
Center distance
30
Reduction ratio
VS
Double input shaft
F1(FA)
Output flangeE
AS
Single ouput shaft
AB
Double output shaft
PAM
Fitted for motor coupling
80B5
Motor mounting facility
0.55KW
Electric motor power
B3
Mounting position








SIMILAR PRODUCTS


Planetary Gear Motor
Planetary Gearbox
Reversible Motor


Planetary Speed Reducer
Speed Controller
Torque Motor




Company Profile


Company Introduction:
Dongguan Chuanhe Mechanical and Electrical Co.,Ltd，specialized in planetary gear reducer, AC gear motors , stepper gearhead motor, reversible gear motors, brake gearhead motors, variable speed gear motors, brake small AC gear motors, torque gear motors research and development over 10 years. Located in Dongguan City, Guangdong Province, China. Our factory is located in Jiangsu Province. Large stock, leading time is very short.
We take "quality for survival, service for development" as our business philosophy. Our company is equipped with the most professional sales team to provide customers with high quality products and excellent service. we look forward to cooperating with you. Thank you!s.




Certificates & Patents




Packing & Shipping




FAQ


1. Are you trading company or manufacturer ?
-We are trading company.
2. What is the transportation?
-If small quantity, we suggest to send by express, such as DHL,UPS,TNT FEDEX. If large amount, by air or sea shipping.
3. Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
4. Could you tell me the delivery time of your goods?
- Depending on the difficulty and quantity of product processing, a reasonable arrival time will be given to you.
5. What about your after-sales service?
- Tell me your e-mail or other social accounts, I will show you the details.
