Aluminum Spacer Bar Bending Machine Sealed Insulating Glass Processing Production Line
- Category: >>>
- Supplier: Lingbo (shandong) Cnc Machinery Co. ltd
Share on (1600474342271):
Product Overview
Description
Product Overview

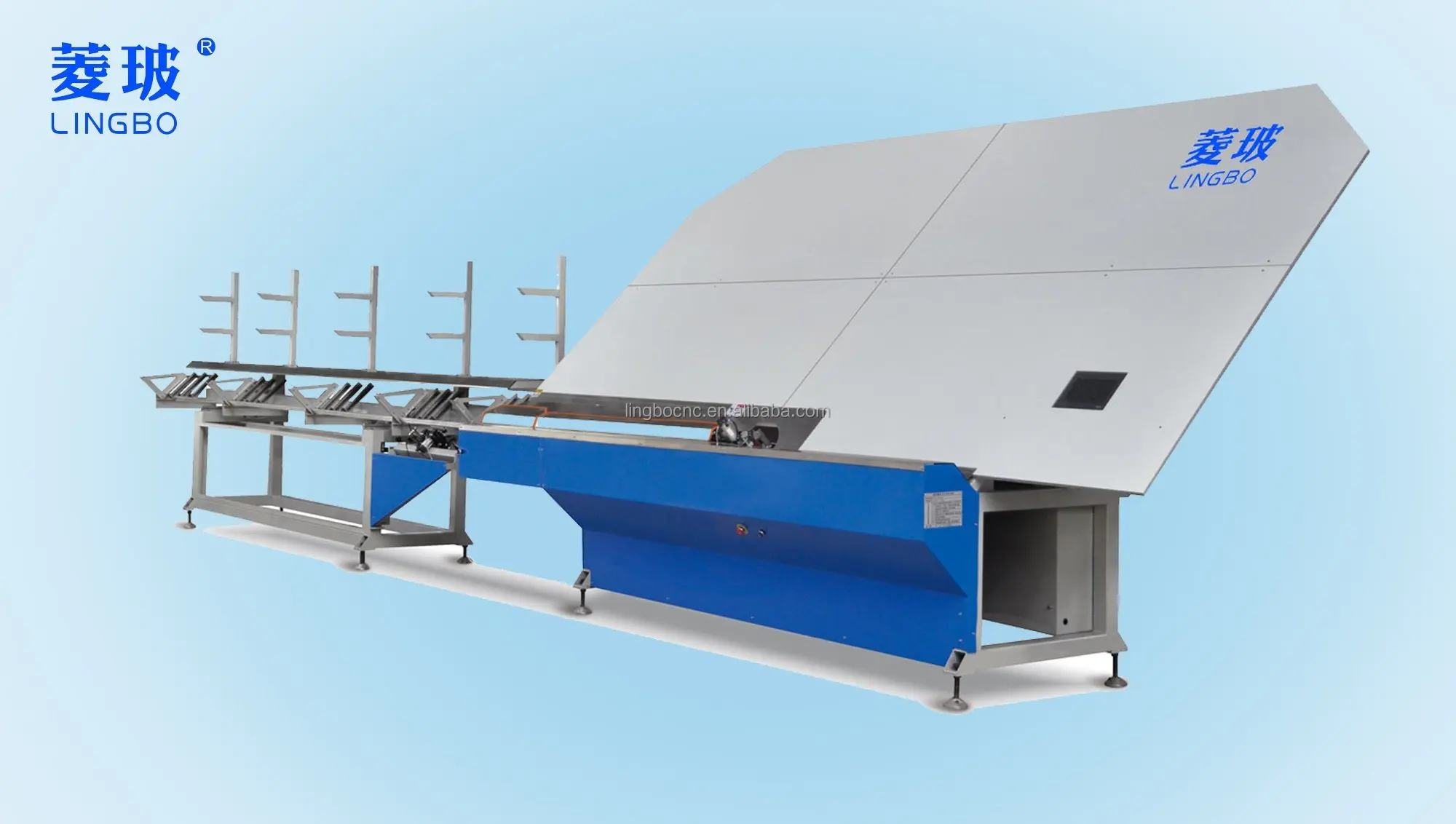

Aluminum Spacer Bar Bending Machine Sealed Insulating Glass Processing Production Line Introduction
FEATURES AT A GLANCE
The Advantage of Aluminum Spacer Bar Bending Machine Sealed Insulating Glass Processing Production Line includes:
The Advantage of Auto Aluminum Spacer Profile Bending Machine for Insulating Glass Machine includes:

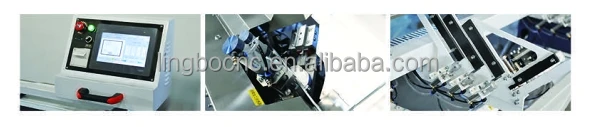

1. Apply CNC control system with touch screen interface (Both Chinese and English language) .Parameter setting and transfer are very convenient .
2. Adopt two axis servo motor accompanied with encoder for profile supply and bending control. Size error within
±0.3mm/m, angle error within ±0.3°.
3. Be able to imitate finished frame shape. The image is symbolic and lively .
4. Four profile magazines for different specifications of spacers .
5. All activities can be controlled manually for the convenience of test and overhaul.
6. Intelligently avoid spacer connection part. Automatic cutting after bending.
7. Shape shift among line、angle and arc are flexible.
1. Apply CNC control system with touch screen interface (Both Chinese and English language) .Parameter setting and transfer are very convenient .
2. Adopt two axis servo motor accompanied with encoder for profile supply and bending control. Size error within
±0.3mm/m, angle error within ±0.3°.
3. Be able to imitate finished frame shape. The image is symbolic and lively .
4. Four profile magazines for different specifications of spacers .
5. All activities can be controlled manually for the convenience of test and overhaul.
6. Intelligently avoid spacer connection part. Automatic cutting after bending.
7. Shape shift among line、angle and arc are flexible.
PRODUCT SPECIFICATIONS
Technical Parameter of Aluminum Spacer Bar Bending Machine Sealed Insulating Glass Processing Production Line
Spacer Width | 6mm-20mm |
Frame size | Max：2000mm×2000mm |
Frame size | Min:350mm×350mm |
Conveying speed | at 0-90m/min（adjustable） |
Air pressure | 0.7MPa |
Power | 3P 415V/1P+N 240V, 50Hz 5kW |
Machine Size | 10000mm(L)×2200mm(W)×2600mm(H) |
Notes:
a. if you have special glass size, please note us, we can design the line for you;
b. If you have special power supply, please let us konw, we can specially make the line for you.
Configuration on Aluminum Spacer Bar Bending Machine Sealed Insulating Glass Processing Production Line
PROJECT NAME | BRAND | COUNTRY |
Frequency converter | SIEMENS | GERMANY |
Programmable PLC | OMRON | JAPAN |
Intermediate relay | HONEYWELL | USA |
Low-E Glass Recognizer | OPTEX | JAPAN |
Proximity Switch | AUTONICS | KOREA |
Pneumatic Solenoid valve | AIRTAC | TAIWAN |
Successful Project
For Aluminum Spacer Bar Bending Machine Sealed Insulating Glass Processing Production Line, we have installed some projects all over the world, and we are wishing to develop the dealers all over the world. We will supply the high quality machines, high technology with competitive prices to get WIN-WIN Goals.
Project in Korea
Project in Serbia
Project in India
FAQ
Q: we are first time to hear your brand, Are you NEW to this glass process filed?
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: How about your warranty?
A: The guarantee period shall be 15 months counting from the date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage, during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts.
Q: What's the payment term?
A: we can accept T/T, L/C, western union etc.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: How about your warranty?
A: The guarantee period shall be 15 months counting from the date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage, during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts.
Q: What's the payment term?
A: we can accept T/T, L/C, western union etc.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
What is the service can you supply?
1. Machine function introduction and quotation reply within 24 hours.
2.Industrial design or workshop layout design reply within 48 hours.
3.Customization feasibility reply within 72 hours.
4.Engineer onsite installation and operation guide if necessary.
5.Machine operation and maintenance guide service after sells.
6.Supply all the parts of the machine in whole lifetime.
7.PLC control system can be update and repaired in machine's whole lifetime!
8.Spare parts supplied in cost prices for all the clients.
What's the guarantee for the machines?
1. Our guarantee for 12 months.
2.24 hour's technical support by email or calling.
3.English manual and video teaching.
4.We will provide the consumable parts at an agency price.
5.24 hours on line service each day, free technical support.
Company Profile
LINGBO (SHANDONG) CNC MACHINERY Co., Ltd is a professional manufacturer of glass further processing machines more than ten years, and now based on the strong technical support and strong after-sell services, we develop rapidly. We are focusing on the high quality machines producing and supplying includes the focuses on the design, R&D, manufacture and after-sell service.
Our key machines is Insulating Glass Machine, Glass Filling Machine, Glass Sealing Machine, Glass Washing Machine, Glass Cutting Machine etc the complete glass deep processing machines. We have about 20 patent for our products, and now have Occupied one-third of the Chinese market. Automatic Argon Gas Filling Machine Line is our patent products as well, we adopts the top technology of side filling way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods for such argon gas filling line, one is suitable for all glass for filling, and the other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. Now our argon gas filling machine is the most popular products, it adopts the side filling method as the special filling way to save energy. Filling result can get more than 90%. It is the ideal products for the old bottom filling ways.
In order to make sure the machine stability, we have specially make the machines structures and using the first-class electrical parts.
Our company develop slogan is Cooperate and Win-win, so we warm welcome to different zone customers to cooperate, and we will offer the best price with highest quality products.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
Our key machines is Insulating Glass Machine, Glass Filling Machine, Glass Sealing Machine, Glass Washing Machine, Glass Cutting Machine etc the complete glass deep processing machines. We have about 20 patent for our products, and now have Occupied one-third of the Chinese market. Automatic Argon Gas Filling Machine Line is our patent products as well, we adopts the top technology of side filling way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods for such argon gas filling line, one is suitable for all glass for filling, and the other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. Now our argon gas filling machine is the most popular products, it adopts the side filling method as the special filling way to save energy. Filling result can get more than 90%. It is the ideal products for the old bottom filling ways.
In order to make sure the machine stability, we have specially make the machines structures and using the first-class electrical parts.
Our company develop slogan is Cooperate and Win-win, so we warm welcome to different zone customers to cooperate, and we will offer the best price with highest quality products.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
