Product Overview
Description
Product Description
SWIFT OPTICAL INSTRUMENTS
For ninety five years, Swift Optical Instruments has been a trusted global producer of quality microscopes and microscope accessories. During that time, we've partnered with K-12 teachers and university educators across the United States to provide them with innovative solutions to meet the increasingly complex STEM teaching needs of the 21st century. Our microscopes are complemented by a full line up of accessories and upgrade possibilities, including digital cameras with software powered by Swift, slide kits, illumination options, and more.

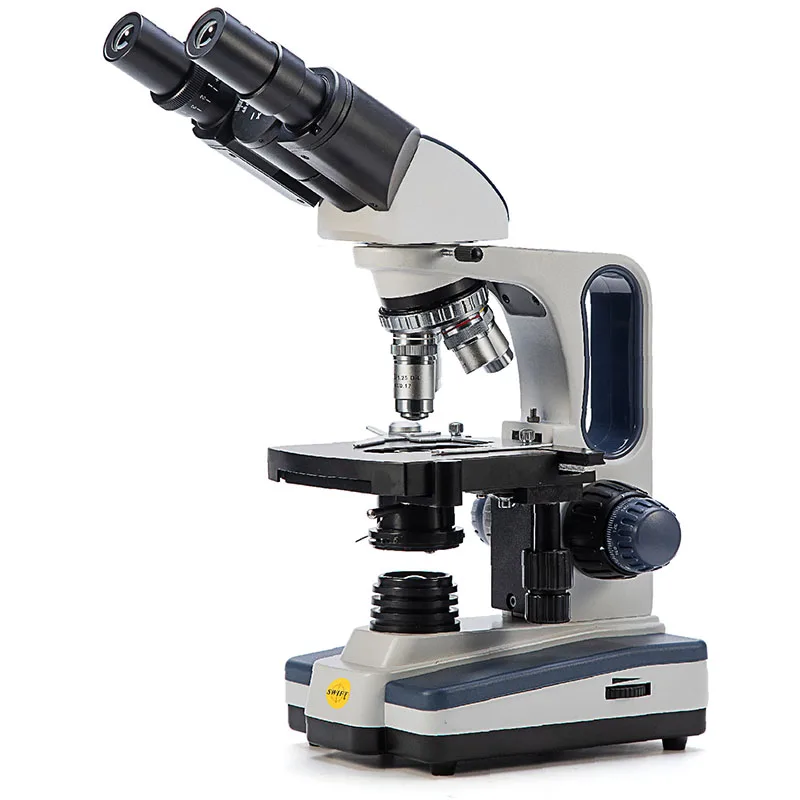

SWIFT Line is designed to meet ever-increasing and challenging needs of teachers and students, through innovation, design and workmanship. SW350B is a compound microscope. Compound microscopes with its high-quality optical performances, will meet the demands for applications from cell imaging, routine laboratory work to reasearch of dynamic processes in living celles. These microscopes are ergonomically designed for kids, students and professionals used to observe animal and botanical cells or tissues with translucent or incident light.
\\uD83C\\uDFC6 A sleek, multi-purpose compound microscope for viewing tiny details of specimen slides; built for clinicians, high school and university science students, and enthusiastic hobbyists alike
\\uD83C\\uDFC6 Professional Siedentopf binocular head is fully rotatable for shared use and equipped with interchangeable wide-field 10X and 25X glass eyepieces fixed at an ergonomic 30 degree tilt to reduce neck strain, easily adjustable for different interpupillary distances without losing focus
\\uD83C\\uDFC6 4 DIN Achromatic objectives mounted in a revolving turret offer 6 magnification levels: 40X, 100X, 250X, 400X, 1000X, and 2500X
\\uD83C\\uDFC6 Ultra-precise focusing system to make coarse and extremely fine adjustments
\\uD83C\\uDFC6 The brilliant LED bulb transmits light through an Abbe condenser, illuminating slide specimens from below with adjustable
\\uD83C\\uDFC6 Professional Siedentopf binocular head is fully rotatable for shared use and equipped with interchangeable wide-field 10X and 25X glass eyepieces fixed at an ergonomic 30 degree tilt to reduce neck strain, easily adjustable for different interpupillary distances without losing focus
\\uD83C\\uDFC6 4 DIN Achromatic objectives mounted in a revolving turret offer 6 magnification levels: 40X, 100X, 250X, 400X, 1000X, and 2500X
\\uD83C\\uDFC6 Ultra-precise focusing system to make coarse and extremely fine adjustments
\\uD83C\\uDFC6 The brilliant LED bulb transmits light through an Abbe condenser, illuminating slide specimens from below with adjustable
Components
* 30 degree inclined, 360 degree rotatable binocular Siedentopf head
* Mechanical stage with rack stop, 130x130mm
* Stage x-y travel range: 70x30mm
* NA 1.25 Abbe condenser with iris diaphragm
* Coaxial coarse and fine focus knobs
* Transmitted illumination with 1W LED bulb, adjustable brightness
* Power supply: 110-240V power input brightness
Warranty Information
* Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. Does not cover normal wear, routine maintenance, add-on accessories, damage resulting from repair by unauthorized parties, accident, alteration, shipping, misuse or abuse is not covered.
* One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords.
* All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. Buyers are responsible for shipping to and from our warehouse for warranty services. The warranty does not cover damages resulting from normal wear and tear, abuse, or unauthorized repairs.
* For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer.
* For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer.
Structure&viewer | Upright&binocular |
Material | Metal base and body |
Specialized features | Brightfield |
Optical system | Finite optical system, 160mm |
Observation tube | Siedentopf binocular |
Nosepiece | Quadruple revolving |
Head | 360° rotatable binocular |
Inclination | 30° inclined |
Eyepieces | Wide-field glass eyepieces: 1 pair of 10X/18mm, 1 pair of 25X/8mm |
Interpupillary distance | 48-75mm |
Adjustable ocular diopter | On left tube, +/-5dp |
4 objective lenses | 4X/0.10, 10X/0.25, 40X/0.65 (spring), 100X/1.25 (spring, oil) |
Objective mounting thread | W 4/5''x1/36'' (RMS standard) |
Magnification levels | 40X, 100X, 250X, 400X, 1000X, 2500X |
Stage | Double-layered coaxial mechanical stage with slide holder, 130x130mm |
Stage X-Y range | 70mmx30mm |
Upper limit stop | Rack stop, preset but adjustable |
Condenser | NA 1.25 Abbe condenser with iris diaphragm |
Focus mechanism | Coaxial coarse and fine, fine is graduated |
Fine focus precision | 0.027mm minimum increment |
Z-Axis movement | 14.5mm |
Filter | Built-in frosted glass |
Handle | Built-in arm handle |
Illumination&plug-in use | Built-in transmitted 1W LED bulb, adjustable brightness |
Power supply | 110-240V AC adapter (included, plug type should be chosen according to regions) |
Certification&transformer | CE&built-in |
PACKING LIST
1 Pair of WF10X eyepieces
1 Pair of WF25X eyepieces
1*Sample immersion oil
1*Blue filter
1*Dust cover
1*Spare fuse
1*User manual
We rigorously test and inspect every single unit before shipping to ensure that each microscope reaches our standards for excellence.
Detailed Images
2 pairs of wide-field glass eyepieces 10X and 25X make microworld extremely clear and funny
Built-in arm handle
Built-in 1W LED light source

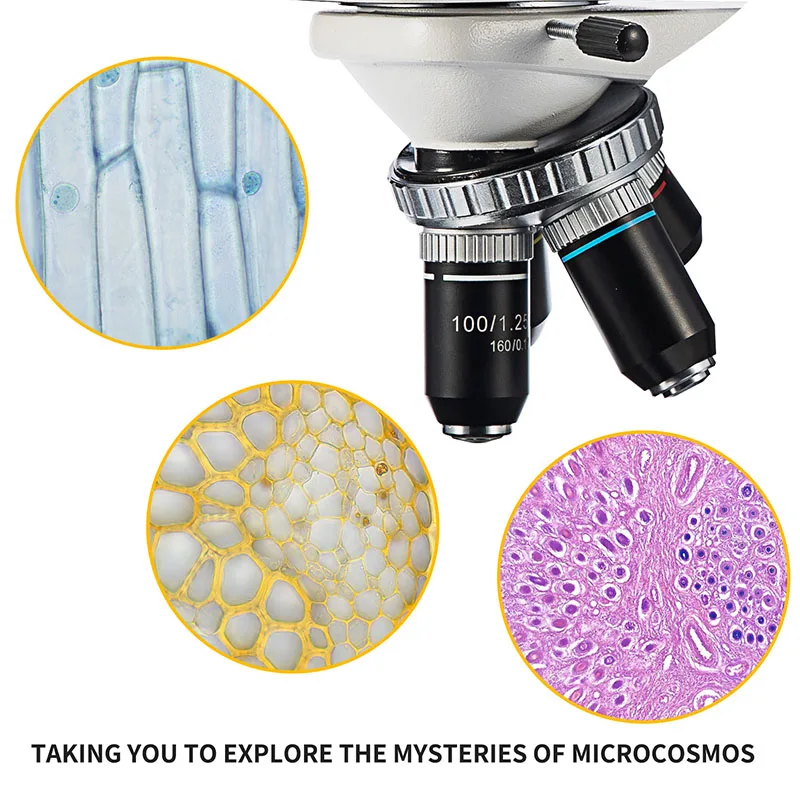

DIN achromatic objectives: 4X, 10X, 40X, 100X
Lock the slide into place and provide precise slide manipulation
Coaxial coarse and fine focus

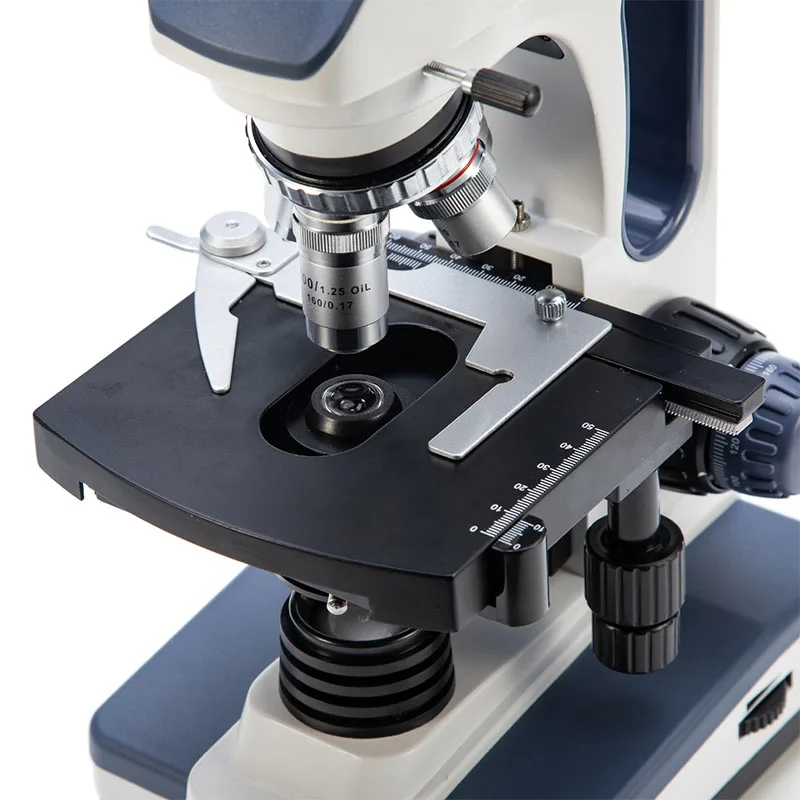

Double-layer mechanical stage
Siedentopf head, easily adjustable for different interpupillary distances without losing focus, ergonomic 30-degree tilt to reduce neck strain
Super accurate data comparing with other competitors
Company Introduction
ABOUT US - SWIFT OPTICAL INSTRUMENTS
For ninety five years, Swift Optical Instruments has been a trusted global producer of quality microscopes and microscope accessories. During that time, we've partnered with K-12 teachers and university educators across the United States to provide them with innovative solutions to meet the increasingly complex STEM teaching needs of the 21st century. Our microscopes are complemented by a full line up of accessories and upgrade possibilities, including digital cameras with software powered by Swift, slide kits, illumination options, and more.
Now, for the first time, we are offering our entire catalogue directly to our customers online. Swift microscopes are manufactured to our specifications by carefully selected and monitored factories, and then rigorously tested and inspected before shipping to ensure that each microscope reaches our standards for excellence. Swift Optical products include a limited lifetime warranty to guarantee against defects in material or workmanship, and Swift Basics come with a five year manufacturer's warranty. Our reliable and friendly customer service representatives are always ready to help you get the most value out of your instrument.
Swift's constant commitment to enduring quality and technical excellence ensures that you always receive the best product for your budget and application. Between our Swift Optical, Swift Basics, and Premium lines, we offer a microscope at every price point for every user. From children just beginning to explore the world of microscopy, to STEM hobbyists, to medical and industrial professionals and beyond, Swift Optical Instruments carries the perfect microscope for you! Contact us for more information.
