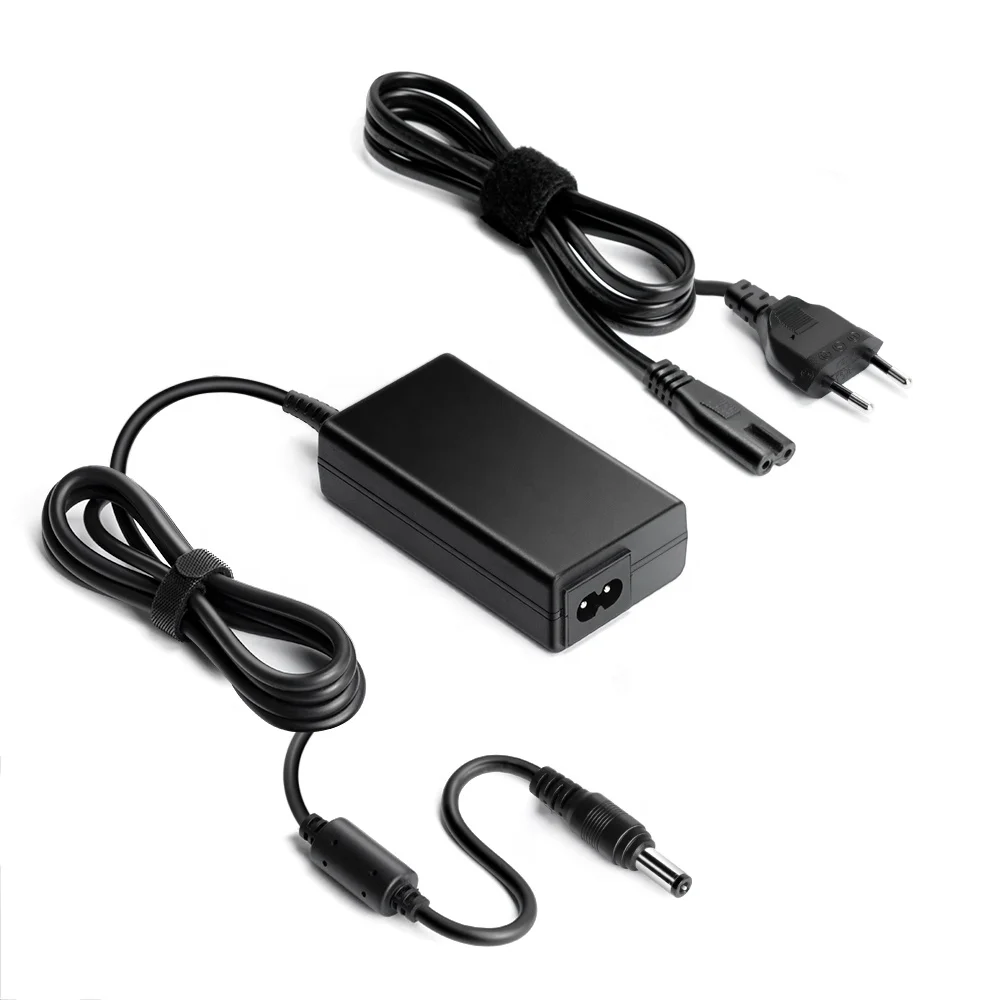

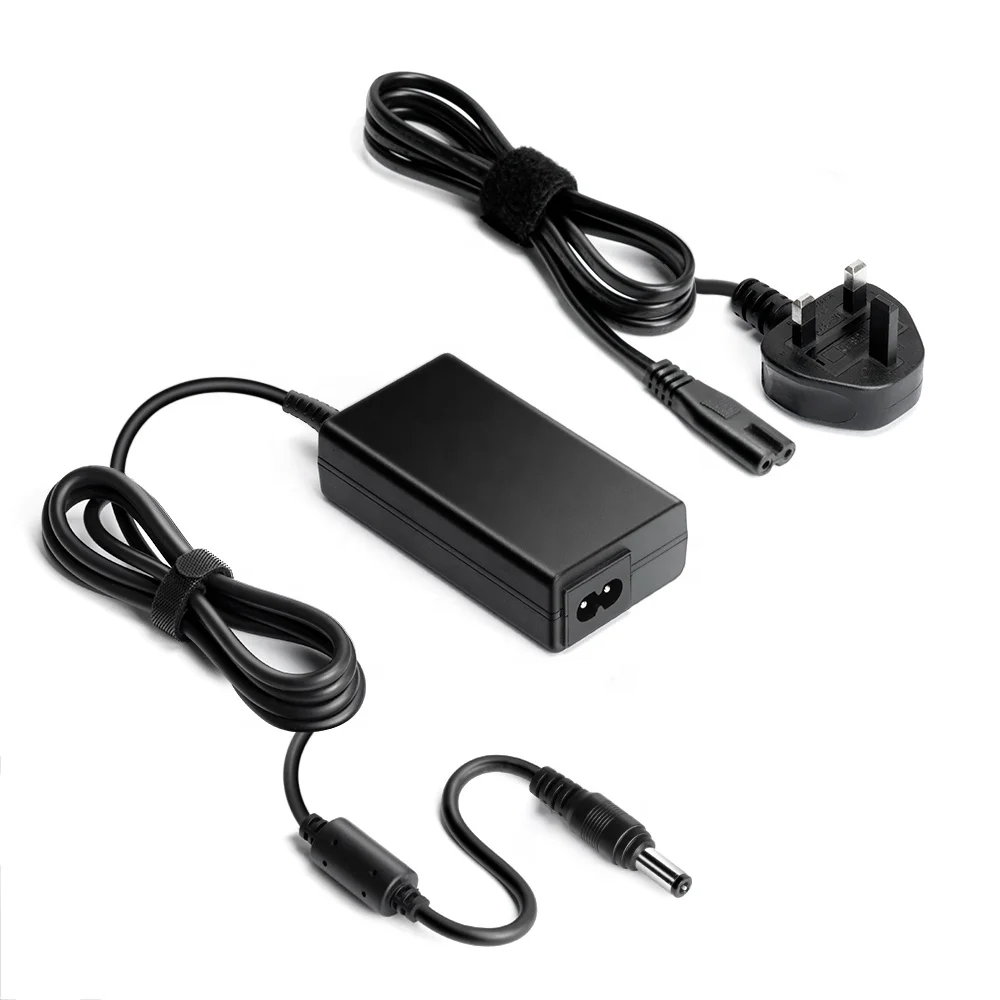

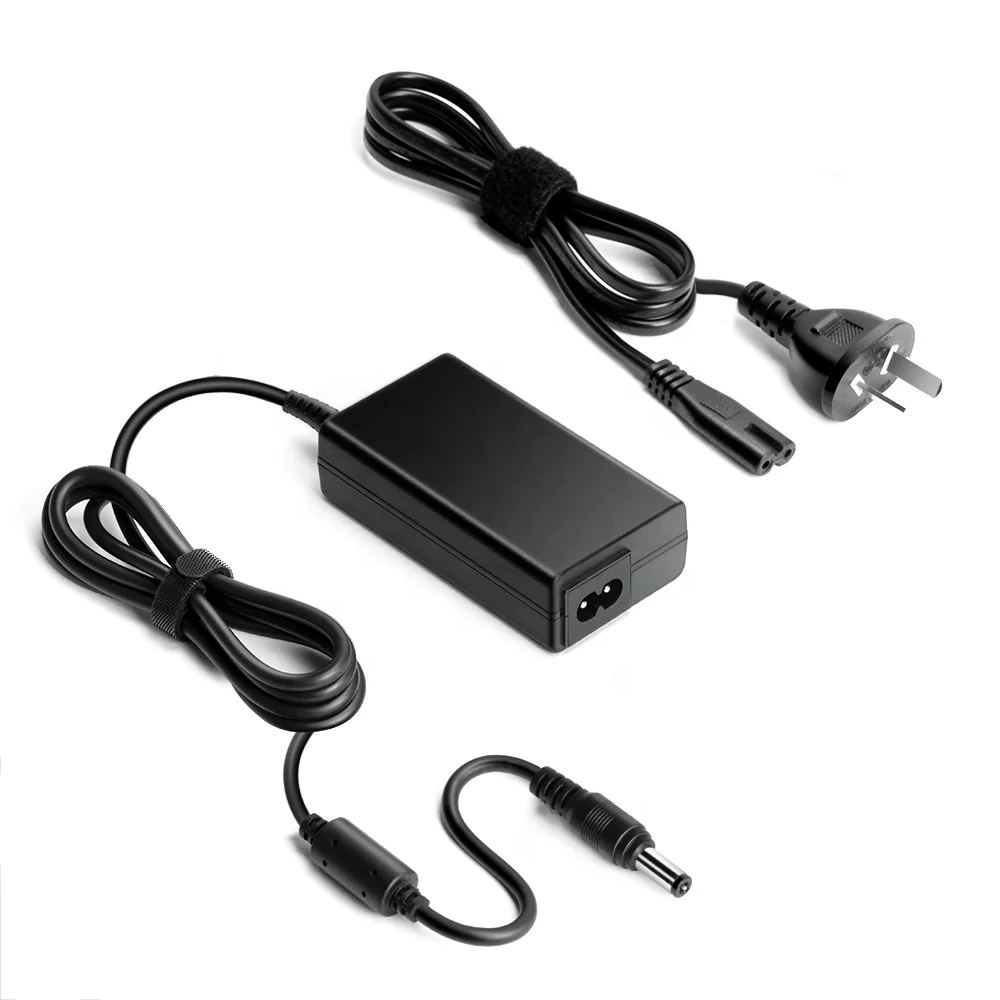

HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter
HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter
HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter
HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter
HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter
HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter
HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter

HKY 9V 12V 19.5V to 54V 65W AC DC Adapters for LCD Monitors Display Soundbar Rugged tablet PC etc Switching Power Adapter

Share on (1600474376124):


Price:$6.40 - $6.80

Quantity:


Product Overview

Description





5V to 54V 65W Max Ac dc Adapter for office electronics, smart home device, audio equipment ULListed GS CB CE PSE certified , pass UL62368-1 IEC62368-1 PSE62368-1 test standard Swiching Power Adapter
5V 9V 12V 15V 14V 19V 19.5V 18.5V 24V 30V 48V 54V 65W

Please feel free to contact us for sample testing.


Input
100-240VAC Universal Input 50/60Hz
Efficiency
Meet CEC/DoE VI/Energy Star 3.0/CoC V5 Tier 2, DoE VI
Certificates
UL TUV PSE GS CE CB FCC SAA RCM RoHS


INPUT CHARACTERISTICS

Rated Input Voltage ----------------------------------- 100-240V AC
Rated Frequency ---------------------------------------- 50/60Hz
Steady AC Current -------- 1.5A (Max) Measured at 100Vac input and maximum load
Inrush Current --------------------------------------------- Less than 80A
Empty Loaded Wasting ----------150mW at 5V Output

SAFETY STANDARDS

LVD ---------------------------------------- UL60950-1 IEC 60950-1 UL62368-1 EN62368-1 IEC62368-1
EMC & EMI ----------------------------- EN55032 EN55024
EN61000-3-2 EN61000-3-3


RELIABILITY ITEMS
Hi-Pot Test ------------------------- AC 3000V1min between input
Plug-DC plug
Leakage Current ------------------- 0.25mA Max at nomimal AC input Voltage and frequency
Temperature Rise --------------------- Case surface rise 95℃ or Less
OUTPUT CHARACTERISTICS
Power --------------------------------------65.88W Max
Load Regulation ------------------------------------------------- ±5%
Turn on delay time ------------------- 3s Max at AC 115V, Max output load
Hold up time --------------------------- 5ms Min at AC 115V, Max output load
Rise up time ------------------------ 40ms Max at AC 115V, Max output load
Efficiency ------------------------------- Meet CEC, Energy Star 3.0
(EPA/DOE-LevelVI)

PROTECTION
OVP---------------------------------------- Auto Recovery
SCP ---------------------------------------- Auto Recovery
OCP---------------------------------------- Auto Recovery
Protection Class ------------------------------------------------- Class II

ENVIORNMENTAL
Operation Temperature ---------------- -10 ℃ - 40 ℃

Storage Temperature ----------------------- -25℃ - 70 ℃

Operation Humidity ------------ 5% (0 ℃) ~ 90% (40 ℃)
Storage Humidity ------------------ 5% ~ 95%
