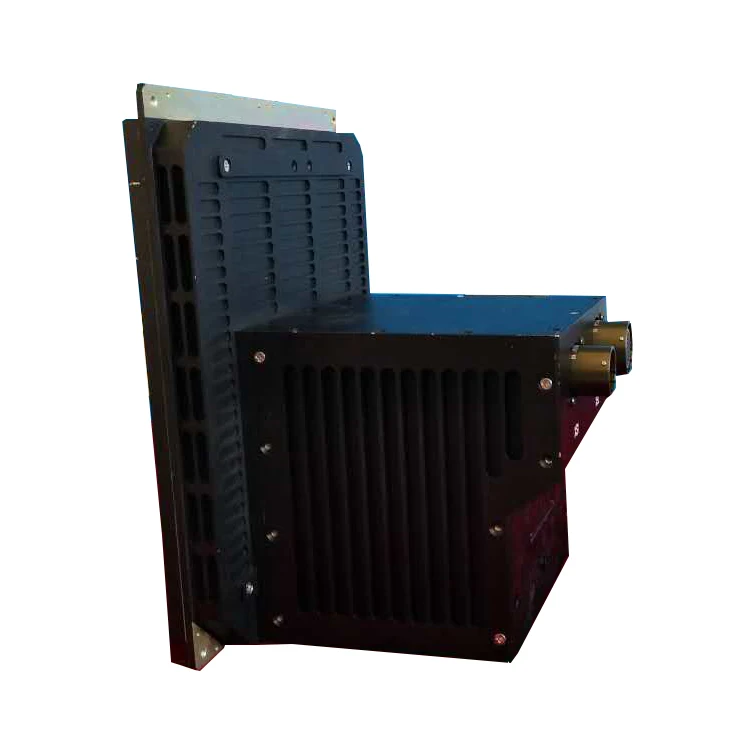

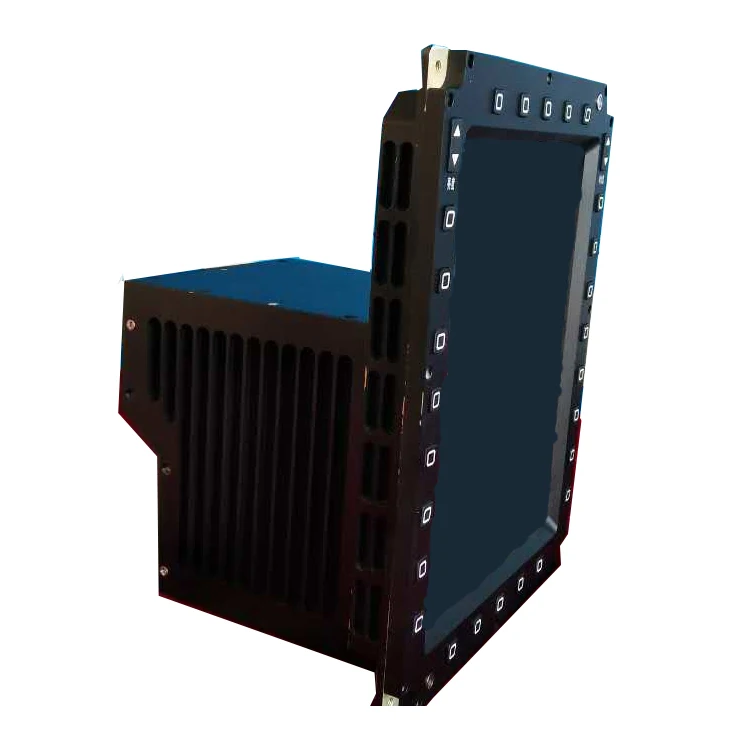

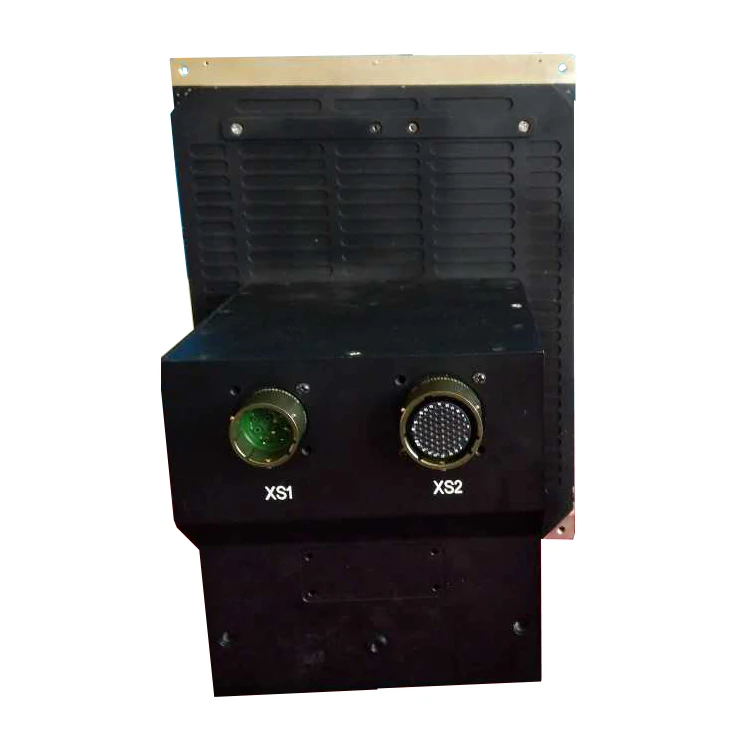

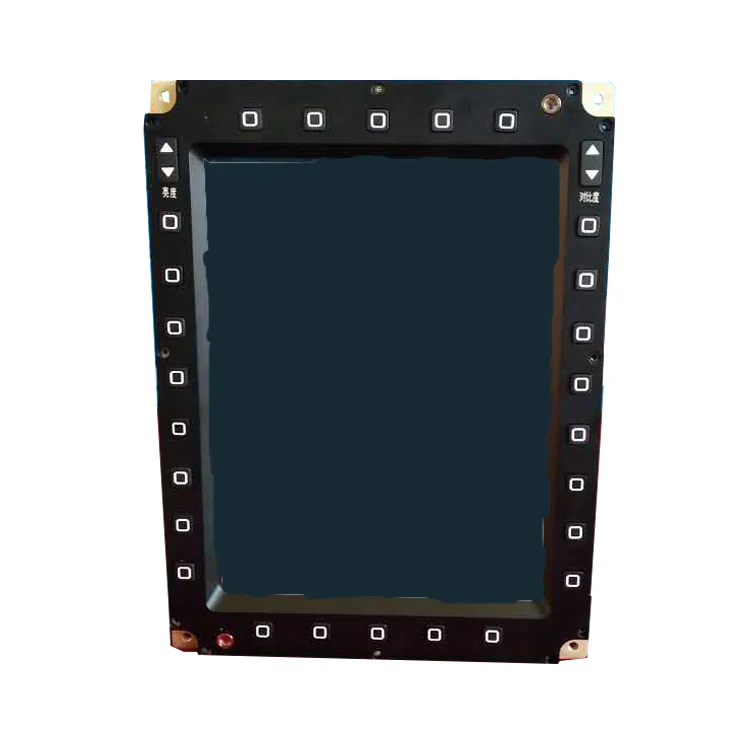

Support navigation function aluminum aircraft multi-function led display screen
- Category: Aviation Parts >>>
- Supplier: Shenyang,Shenlan,Aviation,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Place of Origin: | China |
Name | aircraft multifunction display(LD-400) |
Material | aluminum |
Color | black |
1.Function
Support the display of aircraft flight parameters
Support extended air/ground obstacle collision warning capability
Support radar search and tracking function control display
Support electronic countermeasure function display
Support the display of aircraft engine working parameters
Support navigation function
Support visual voice alarm function
Satellite navigation data, compass navigation display, air situation/formation flight display function
2.Performance and interface
Resolution: 1024×768;
Number of CPU cores: four cores;
CPU main frequency 1.9GHz;
Memory: Onboard 4Gb;
LCD display size: 10.4 inches;
Working temperature: -40～+70℃;
Storage temperature: -55～+85℃.
Working voltage: DC28V
Support the display of aircraft flight parameters
Support extended air/ground obstacle collision warning capability
Support radar search and tracking function control display
Support electronic countermeasure function display
Support the display of aircraft engine working parameters
Support navigation function
Support visual voice alarm function
Satellite navigation data, compass navigation display, air situation/formation flight display function
2.Performance and interface
Resolution: 1024×768;
Number of CPU cores: four cores;
CPU main frequency 1.9GHz;
Memory: Onboard 4Gb;
LCD display size: 10.4 inches;
Working temperature: -40～+70℃;
Storage temperature: -55～+85℃.
Working voltage: DC28V
