Wholesale Factory Price 16 63mm 20 110mm three layers PPR glass fiber pipe making machine , PP R fiberglass pipe production line

Share on:

Price in USD:Details


Product Overview


Wholesale Factory Price 16-63mm and 20-110mm Three Layers PPR Glass Fiber Pipe Making Machine

PP-R Fiberglass Pipe Extrusion Production Line

Product Description

16-63mm and 20-110mm three layers PPR glass fiber pipe hot and cold water pipe extrusion production line, this line adopts the most advanced technology of Europe, it is a new research achievement of energy-saving tube extrusion production line, which is mainly suitable for making high speed extrusion of PPR or PPR glass fiber water pipes and other polyolefin pipe, with various diameters and thickness, which are used in various fields, such as water supply system, industrial water conveying system, etc.


Compared with common plastic pipe extrusion production line, the energy-saving effect reach on 35%, and the product efficiency increase more than 1.5 times, thus it is not only saving the cost of site and manpower, but also improving efficiency. This PPR glass fiber hot and cold water pipe extrusion production line has nice appearance, higher automatical degree, production reliable and stable, and so on.


Main Technical Parameter of PPR glass fiber pipes extrusion production line:

ModelTube diameter(mm)Extruder modelMax.output(kg/hr)Total power(kw)
PPR-6316-63SJ65*33 & SJ45/33150100
PPR-11020-110SJ65*33 & SJ50/33180130
PPR-16050-160SJ75*33 & SJ50/33220180


Detailed Images of PPR glass fiber hot and cold water pipe production line:

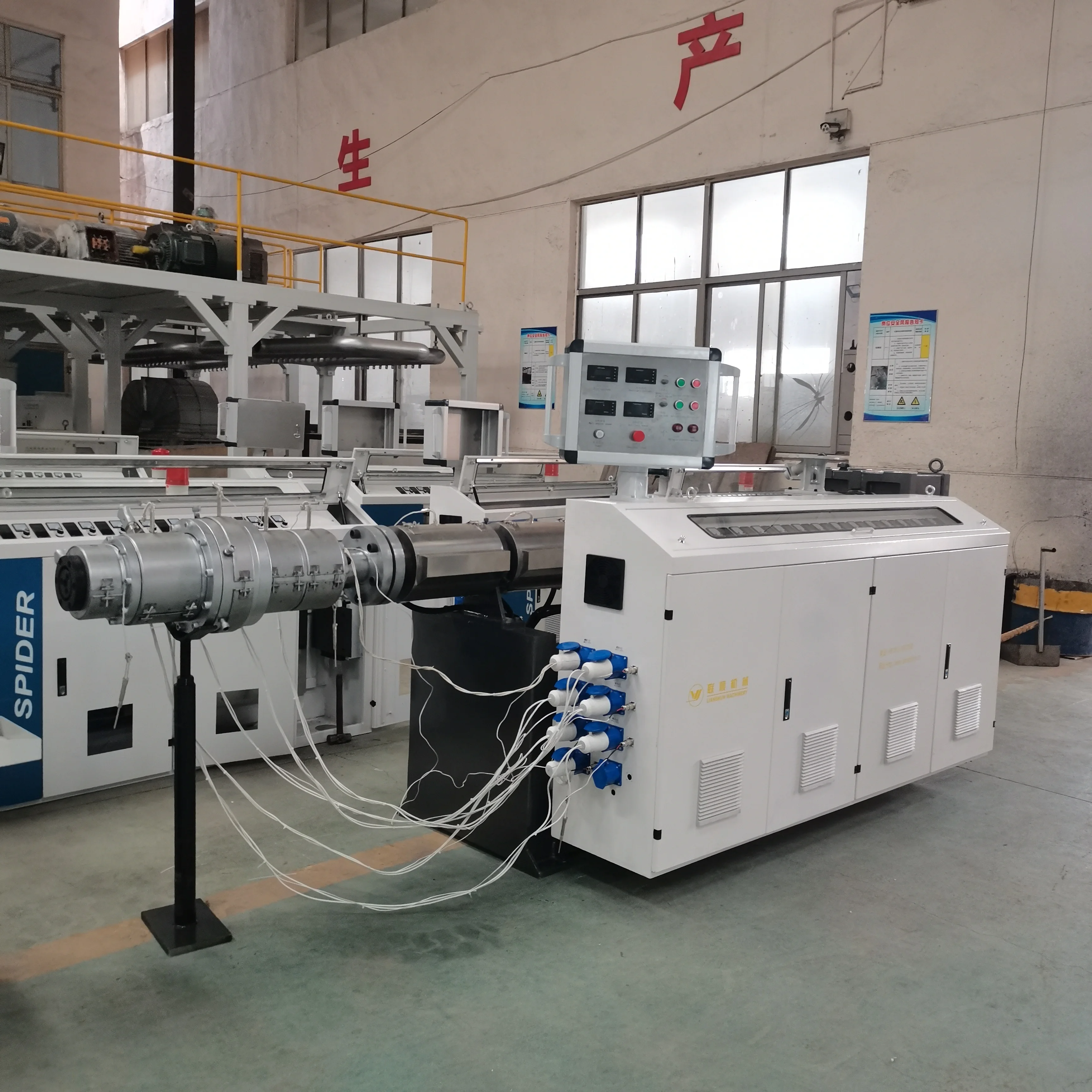

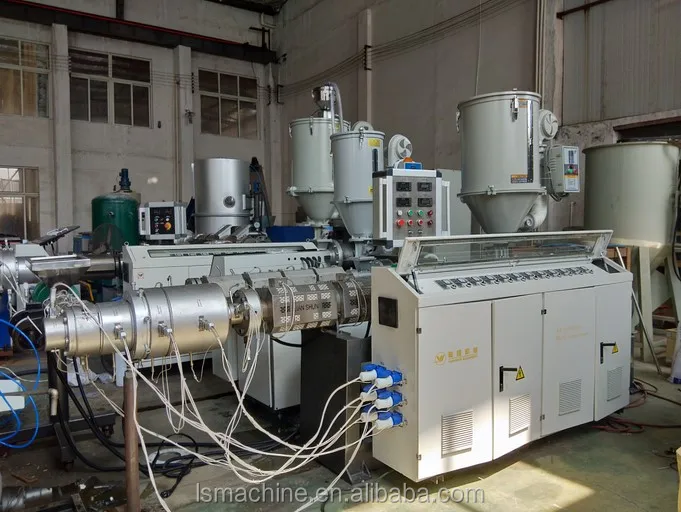

 1. SJ65/33 & SJ50/33 Single Screw Extruder:

The extruder uses ABA inverter, Siemens motor, Simens contactor, Schneider circuit breaker, Omron temperature controller, ensure the long-term operation of the equipment is more stable.

Single screw extruder.jpg1

2. Die-head (Molds) of 20-110mm PPR glass fiber pipes

Material of die-head: stainless steel,

Sizing unit material: Copper alloy steel.

Single screw extruder + mould.jpg

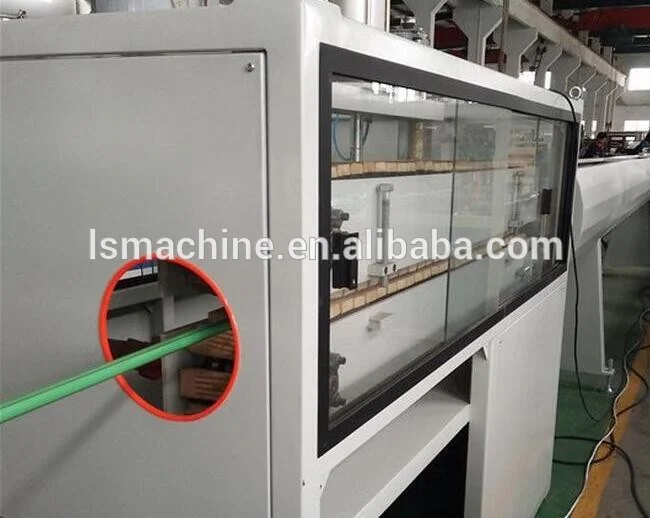

3. 9m Vacuum calibration tank

Material of stainless steel 304,

4KWx2Sets of vacuum pump,

4KWx2Sets of water pump,

9m effective length.

Vacuum Calibration Tank~1

4. Water cooling tank

Material of stainless steel 304,

4KWx1Sets of water pump,

9m effective length.


5. Haul-off machine

Effective traction length: 1800mm,

Servo motor: 2.35Nx2Sets,

Traction speed: 0.5-20m/min.

Two claw Hauling machine~1

6. Pipe Cutting machine

Cutting method: no-dust cutting,

Cutting knife material: alloy steel,

Cutting pipe range: 20-110mm PPR fiberglass pipe.



7. PPR Pipe Winding machine

Doulbe disk winding machine: 20~63mm, 63~110mm.

Servo motor: 2.35N/M 6F

Winding speed: 0~40m/min

Discharge way: pneumatic

For more information, Please contact Mobile/WhatsApp number: 0086 13812851662 (Mr. James).

2 (3)

8. Pipe Stacker

Material: Stainless steel 304

Discharge way: by pneumatic

Effective length: 6m

extrusion machine (25)

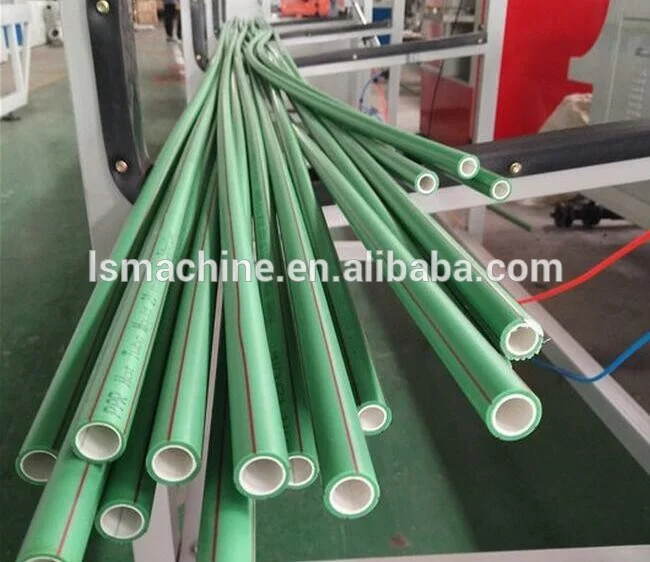

9. Ready pipes



Q: Why do I choose your company?
A: 1) We are one of the leading manufacturers of extruder machinery .
2) Our company has made extruder machine about 18 years with strong experience and advanced technology.
3) Best Quality & Best Service with Competitive price. 1 year guarantee and lifetime maintenance.
4) We have Professional technical teams, and will supply 24 hours services.

Q: What should we prepare for Machine ?
A:You should prepare raw material, workshop, water line, electric line, compress air(if you need I can help you buy air
compressor).We would supply workshop layout drawing for you.

Q: Where is your factory located? How can I visit you?
A: Our factory is located in Zhangjiagang city, Jiangsu province, you can fly to Shanghai AirPort. When you confirm the flight No.and time, please tell me then we will pick you up at Airport.

Q: If my machine can not work when I receive it, what will your factory do?
A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.


Q: How can I believe your factory and machines.
A: We have CE, ISO certificates. And we have customers all around the world, we will test all the machines after finished before shipping.

Exhibitions Show:



If you are interested in PPR water pipe machine and three layers PPR glass fiber pipe hot and cold water pipes making machine, Welcome to contact with us,

Contact mobile & Whatsapp number: 0086-13812851662 (Mr. James).

Welcome you to visit our factory anytime!
