Roller glass coating machine
US $10000-$13000

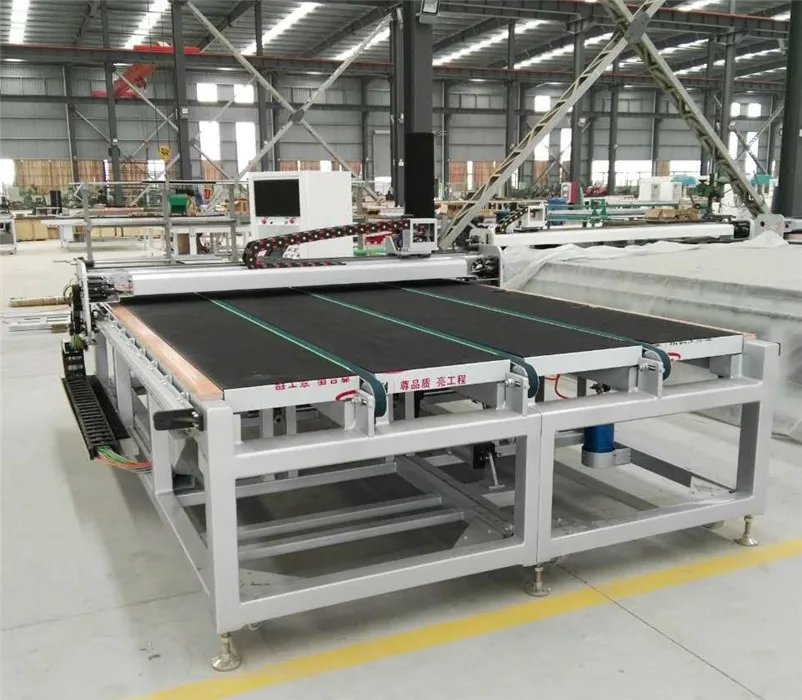

automatic glass cutting table
- Category: >>>
- Supplier: Jinan Parker Machinery Co. Ltd.
Share on (1600474497973):
Product Overview
Description

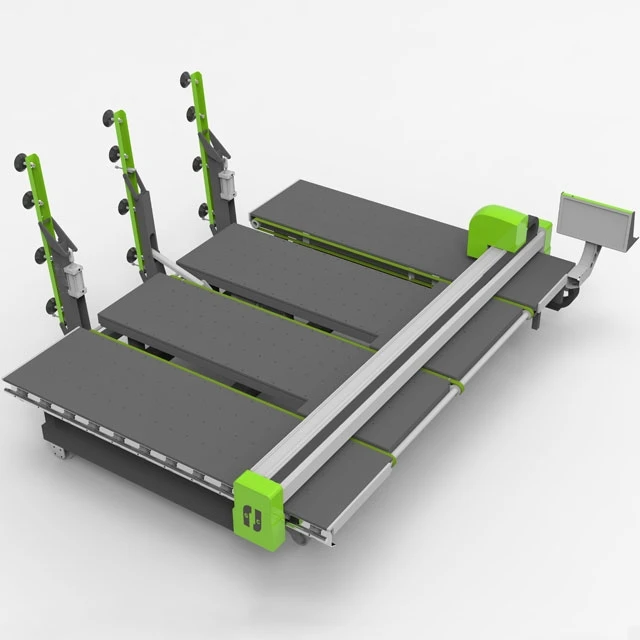

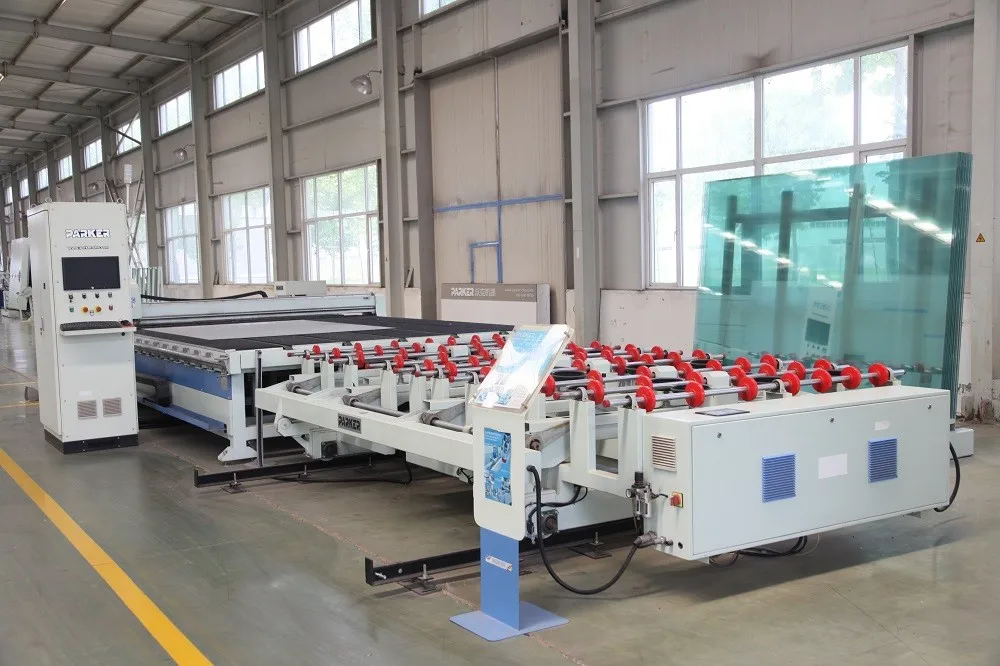

CNC Flat Glass Sheet Cutting Machine Circles
Product Description
| Maximum size of cutting glass | 3660mm× 2440mm |
| Minimum upper film size | 1400mm× 700mm |
| Cutting thickness | 3~19mm |
| Line parallelism | ≤±0.25mm/m |
| Diagonal accuracy | ≤±0.30mm/m (the above accuracy shall be subject to the accuracy of the cutting line before snapping) |
| Cutting bridge speed | 0~150m/min. (Adjustable) |
| Positioning accuracy error of cutting head | ≤±0.15mm |
| Dimension | 4400 mm * 3140 mm * 1300 mm |
| Table height | 800mm±50mm |
| Power supply: | 380V/50HZ (adjusted according to customer requirements in special cases) |
| Air source | 0.5-0.7mpa |
| Installation power | 11KW |
| Number of unilateral upper arm | 3 |
| Number of suckers on one arm | 4 |
| Upper flip arm | single flip |
| On-chip workstation | simplex |
1.The equipment is analyzed by professional structural software to ensure the stability of the machine, the
dynamic balance, the strength of the mechanics to achieve the perfect match, and to ensure that the structure of the
equipment is not deformed.
2.The Japanese SMC proportional solenoid valve is used to automatically adjust the pressure according to the
thickness of the glass. The cutter head rotates 360 degrees, and the lower knife cushions and cuts. The knife box
adopts the patented product of the company
3.The automatic edge finding system eliminates the need for edge marking and greatly increases the glass cutting
rate.
4.The oil circuit is equipped with an air filter device to ensure the clean use of the cutting oil, and the oil is
automatically injected during cutting.
The main performance of motion Controller (Galil)
-
Running fast, smooth operation, high precision control, the controller modular structure.
-
Line cutting mode, optical positioning cutting mode, cutting mode directly by the option set free. Process
can readily achieve automatic cutting mode with the dry run mode.
-
After a full glass pressure store, disposable cutting thickness specifications of the input pressure to save,
you can directly used.
-
Machining path display real-time tracking and timely recording moving coordinate axis status, I / 0 status,
fault diagnosis and alarm automatically record.
-
Receive a variety of processing documents, accept standard G code Optima and other nesting software,
AUTOCAD DXF file, the system comes with graphics editing software(Exactly the same way with Bottero
editor)
Security can be set under the knife away. Editing files can not trimming, improve the utilization of glass.
-
Gallery nesting program, selected from the gallery shaped, set the relevant parameters, the number of
processing, automatic nesting, generate toolpaths.
-
Compensation: Tool eccentricity compensation, backlash compensation, pitch compensation.
-
Optical positioning function (accurately determine the actual position of the glass), according to the actual
position and the deflection angle, automatic adjustment of the cutting.
-
Can be realized by setting options in English interface switching, and imperial, metric programming. Easy
to use foreign users.
-
Various protection: Includes soft and hard limit, blade pressure limit, external emergency stop control, etc.
-
Speed increase / decrease buttons timely optimize machine cutting speed.
-
Man-machine interface is simple and elegant, simple parameter adjustment, less need for the operator to
modify the parameters, simple and intuitive, requiring low operating personnel.
-
Find edge speed, back to zero faster.
-
Cutting speed: 160m / min.
-

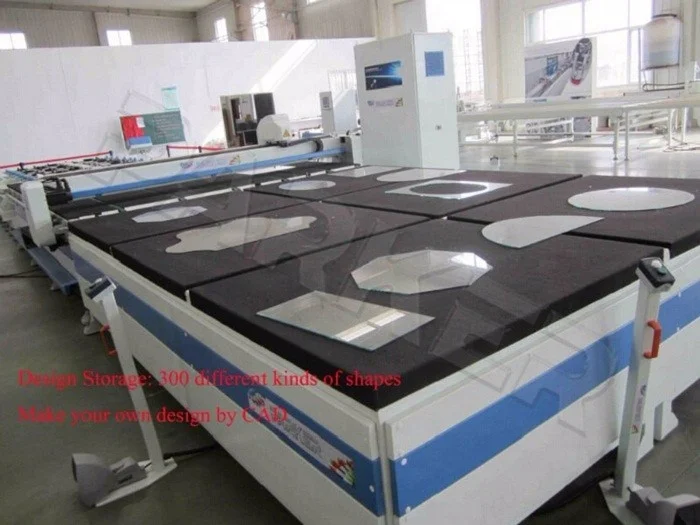

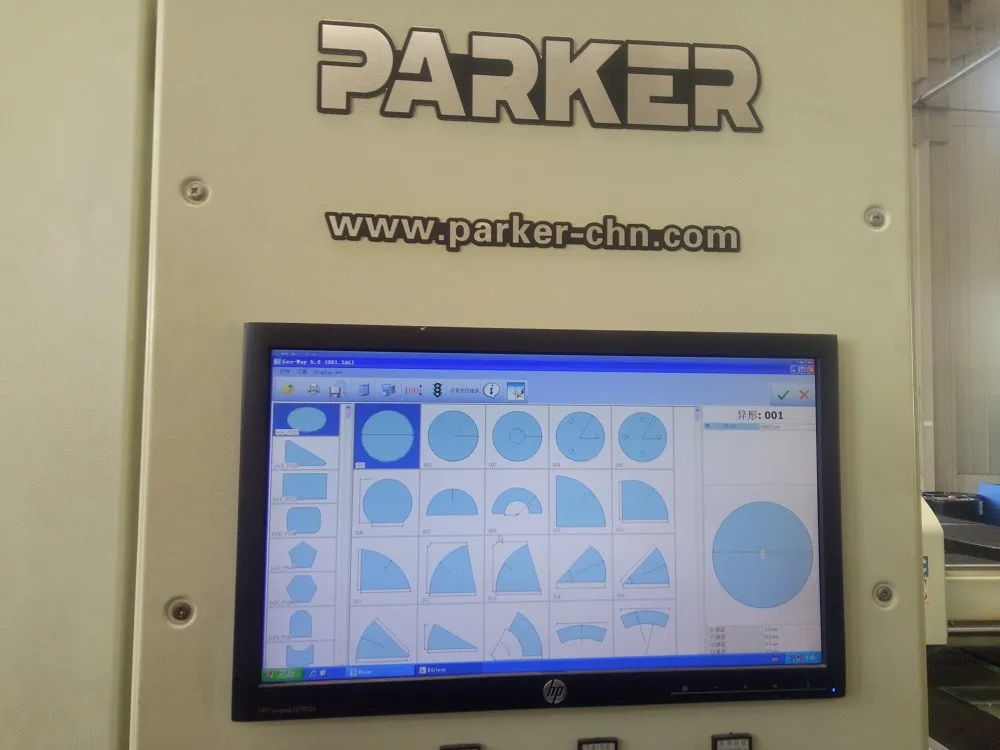

Has a relatively rich graphics library, you can expand the gallery.
-

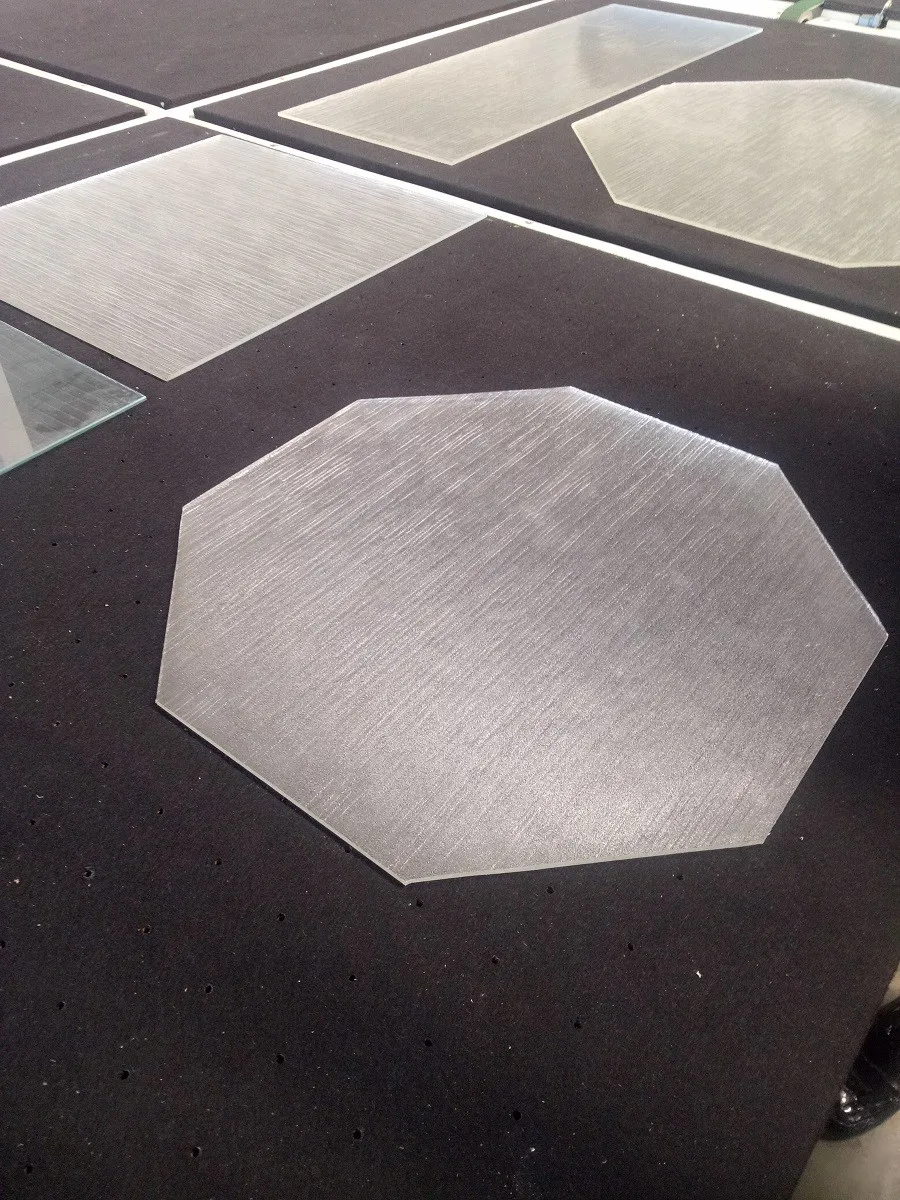

Shaped scanning high precision, simple graphics can be saved directly processed.
-
Cutting interface displayed directly cut a small piece size (with the OPTIMA software).
-
Opened directly from within the software optimization software.
-
Under the pipeline mode automatically wrap view of optimization software program, continuous
processing.
-
Fast patrol side positioning feature, you can grab a one-time patrol edge signal, improve work efficiency.
Company Information

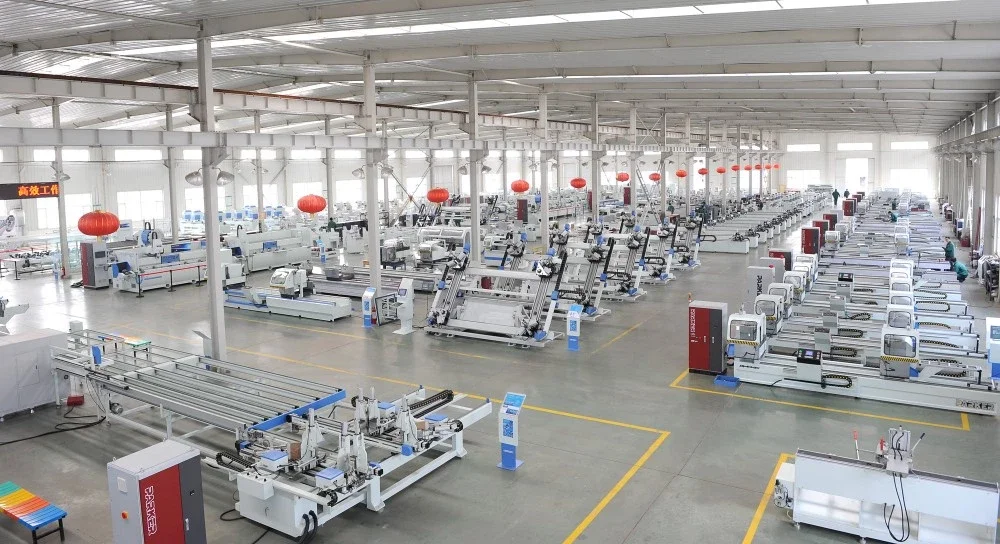

1.PARKER Machinery Co.,LTD was founded in 2003,since the entry into the window door curtain wall machinery manufacturing field,peck with the best team and most stringent manufacturing standards,has been committed to the global supply of machinery and the best service.Today,with more than 300 employees,PARKER Industrial Park covers an area of 70000 m^2,Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.
2.PARKER products include aluminium,PVC window and doors machinery,aluminium curtain wall processing machinery,industrial aluminium processing machinery and insulating glass series production line machinery.
3.PARKER machinery expotrs to the world more than 80 countries and regions,and has firstly established branches in USA,India,UAE,Brazil,has more than 10 patents.
4.PARKER machinery are all passed through high standard European CE certification,American UL certification and Canadian CSA certification.
5.PARKER manufacturing creates ecological management system of 9M that is unique and most proud of,and the human resources,raw materials,technology methods,environment,information etc. Have been ongoing ascension,and improves the overall quality and core competitiveness of parker.Customers around the world are actively popularize and apply it,benefit a lot from it.
6.PARKER machine core parts procurement achieved internationalization,and established a cooperative partnership with ABBA,OMRON,SCHNEIDER,OPTIMA.
7.PARKER people are always follow the core concept,it is "PARKER is developing with the world",it is PARKER peoples' strict implementation of ecological system of PAREKR and of "zero defect" stern pursuit,which makes the PARKER machine perfect implement unique global standard,achieves improvement value and sustainable innovation!
8.PARKER machinery,leads the era of intelligence,create the strategy of globalization!
9.PARKER machinery,contribution to the world culture of windows and doors!
